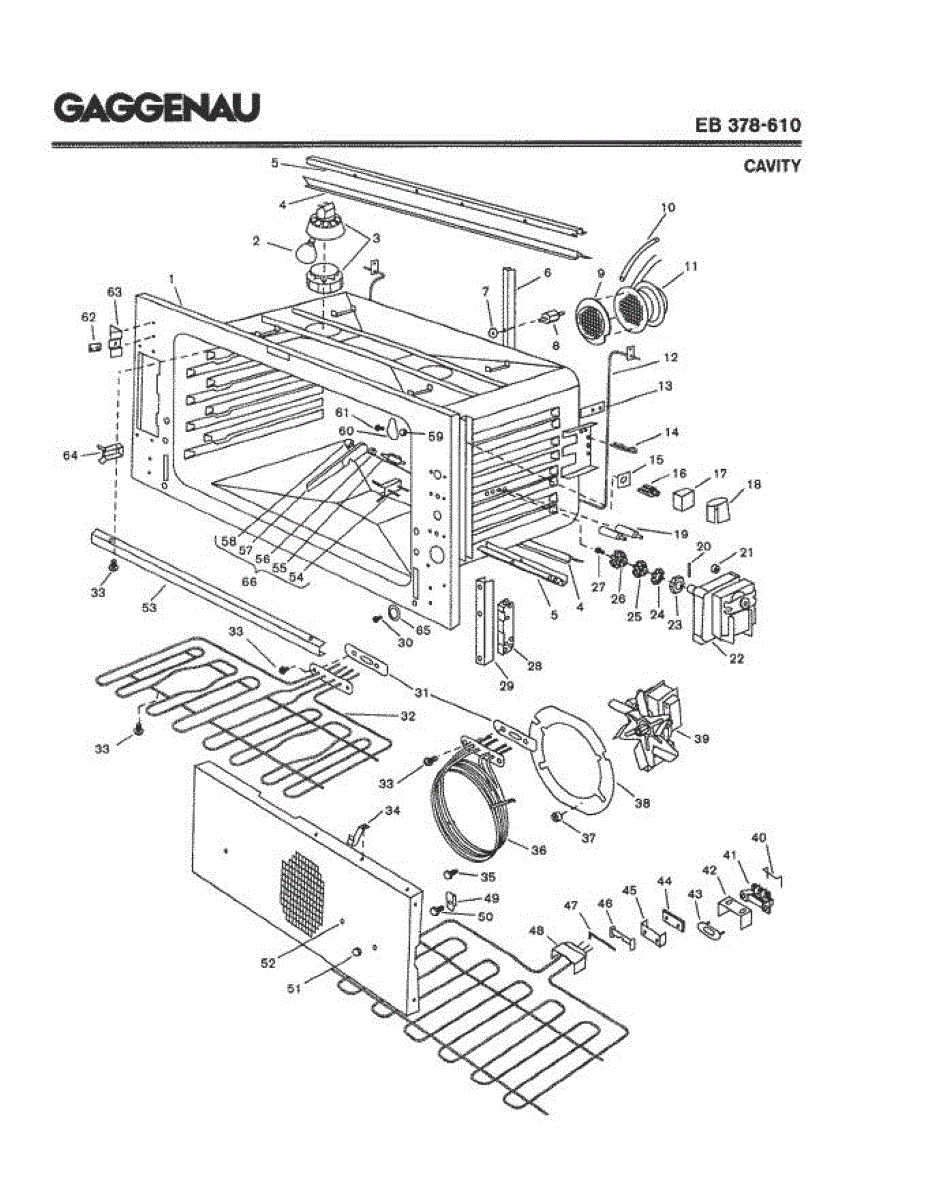

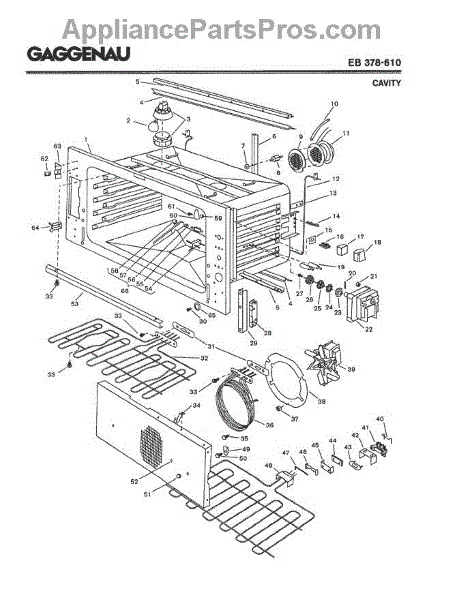

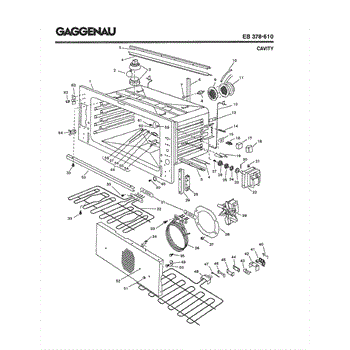

Parts for Gaggenau EB378-610: 02 - Cavity Parts

Replace a burned-out oven light with this 120V, 15W bulb. It restores interior illumination so you can clearly monitor cooking progress through the window, helping maintain temperature and consistent results.

• Illuminates the oven cavity during preheat, baking, and broiling
• Direct replacement for a failed or dim bulb
• Helps you check food without opening the door
• Common signs of failure: light won't turn on, flickers, or filament appears broken

• Disconnect power to the appliance and allow the oven to cool completely before servicing.
• Remove the glass lens/cover to access the bulb; handle glass carefully.
• Install using a dry cloth or gloves; do not overtighten.
• Match the bulb's voltage and wattage to the original; never exceed the rated wattage.

This threaded rear spacer secures and spaces rear components on compatible Bosch appliances, helping keep panels and assemblies aligned for reliable operation and reduced vibration. Durable metal construction designed for exact OEM fit. What it does:

• Provides a threaded mounting point to secure rear panels or assemblies
• Maintains correct spacing and alignment between parts to prevent rubbing or misfit
• Reduces vibration-related noise by holding components firmly in place
• Useful when replacing damaged, stripped, or missing spacers during repairs

• One threaded rear spacer

• Intended for use in the appliance's rear assembly; confirm orientation from your model's diagram
• Install with appropriate fastener torque; avoid overtightening to prevent thread damage
• Disconnect power before accessing internal components and follow all safety warnings in the owner's manual
• If threads are damaged or fastener does not engage smoothly, replace the fastener.

This clamp secures the mullion element assembly to the appliance, keeping the element stable and properly positioned so trim and fittings sit flush. It's a small replacement part used where the mullion/element meets the cabinet. What it does

• Holds the mullion element or element trim firmly in place
• Prevents the element or trim from shifting or vibrating during use
• Helps keep the front trim aligned for a clean fit and finish
• Stops gaps that can allow rattling or interference with adjacent components

• One mounting clamp for the mullion element

• Disconnect power at the breaker before starting any repair
• Remove any trim or access panels per the appliance service instructions to reach the mullion area
• Use basic hand tools; retain all fasteners and take note of orientation for reassembly

This spacer positions and stabilizes nearby components to ensure proper fit and spacing during appliance assembly. It helps prevent rubbing and maintains correct panel and bracket alignment for quieter, more reliable operation. What it does:

• Keeps fixed parts correctly spaced to prevent contact and wear
• Stabilizes panels or brackets to reduce vibration and noise
• Restores proper alignment when gaps or looseness are present
• Supports fastener placement for secure reassembly

• Disconnect power and water before starting any repair
• Inspect surrounding hardware and replace any damaged fasteners before reinstalling the spacer
• Handle carefully to avoid deforming; install in original orientation and location

This gasket seals the heating element opening to help maintain proper heat and prevent leaks or debris entry. It restores a tight fit between the element and the appliance cavity for safer, more efficient operation. What it does:

• Creates a heat-resistant seal around the heating element to reduce heat loss
• Helps prevent dust, grease, and moisture from entering the element cavity
• Reduces risk of shorting or arcing caused by gaps or damaged insulation
• Common symptom fix: frayed, cracked, or missing gasket around element flange

• One heating element gasket

• Disconnect power (or unplug) and allow the appliance to fully cool before servicing
• Access the element per your model's service instructions; remove element mounting hardware to replace gasket if required
• Inspect element flange and mounting surface; replace gasket only if it matches OEM shape and seating
• If you see corrosion, burning, or element damage, replace the element as needed and retest after installation

This genuine OEM replacement part is a heater ring. Also known as the heating element, the heater ring is the coil in the oven that heats up allowing the oven to do its job. Over time, through continuous wear and tear, it is possible for a heating ring to no longer heat properly and sometimes not heat at all. Luckily, replacing this part is a relatively simple process.To replace the heating element, first, make sure the oven is turned off and unplugged. After that, remove the screws of the back panel located on the interior of the oven where the fan is located. The old heater ring will be attached to a single bracket with two screws. Unfasten those screws and remove the old ring by gently pulling it out. Remove the wires attached to the back of the heating element and make sure to take note of their orientation by taking a photo. After the old heater ring has been completely removed, reattach the correct wires to the terminals of the new heating element. Secure the mounting bracket and reinstall the back panel of the oven's interior.This replacement part is sold individually and is compatible with Bosch, Gaggenau, and Thermador ovens.

This reflecting ring fits around the convection heating element to help direct heat into the oven cavity for more even cooking and consistent browning. It's a direct-replacement component used when the original ring is warped, cracked, or missing. What it does:

• Helps reflect and distribute heat from the convection element into the oven cavity
• Supports and protects the heating element from contact with oven interior parts
• Can reduce hot/cool spots caused by a damaged or missing reflector
• Common symptom: uneven baking or visible damage to the reflector ring

• 1 reflecting ring for the convection element

• Disconnect power to the appliance before starting any repair
• Handle carefully to avoid bending or denting the ring and to prevent damage to the heating element
• May require removing the oven back panel or interior access panel; follow your model's service instructions

This convection fan motor circulates oven air to promote even heat distribution for baking and roasting. Replacing a failed motor restores airflow so your oven can maintain more consistent cooking temperatures. What it does:

• Spins the convection fan to move hot air throughout the oven cavity for more even cooking and browning
• Common symptom: uneven baking or roasting where food cooks hotter in some areas
• Common symptom: fan doesn't run, hums, or runs intermittently
• Common symptom: increased vibration or loud noise coming from the oven interior

• Disconnect power to the appliance before starting any service to avoid shock hazard
• Access usually requires removing oven panels or the rear cover; handle sharp sheet metal carefully
• Match part number and connector type before installation; secure mounting and wiring per OEM guidance
