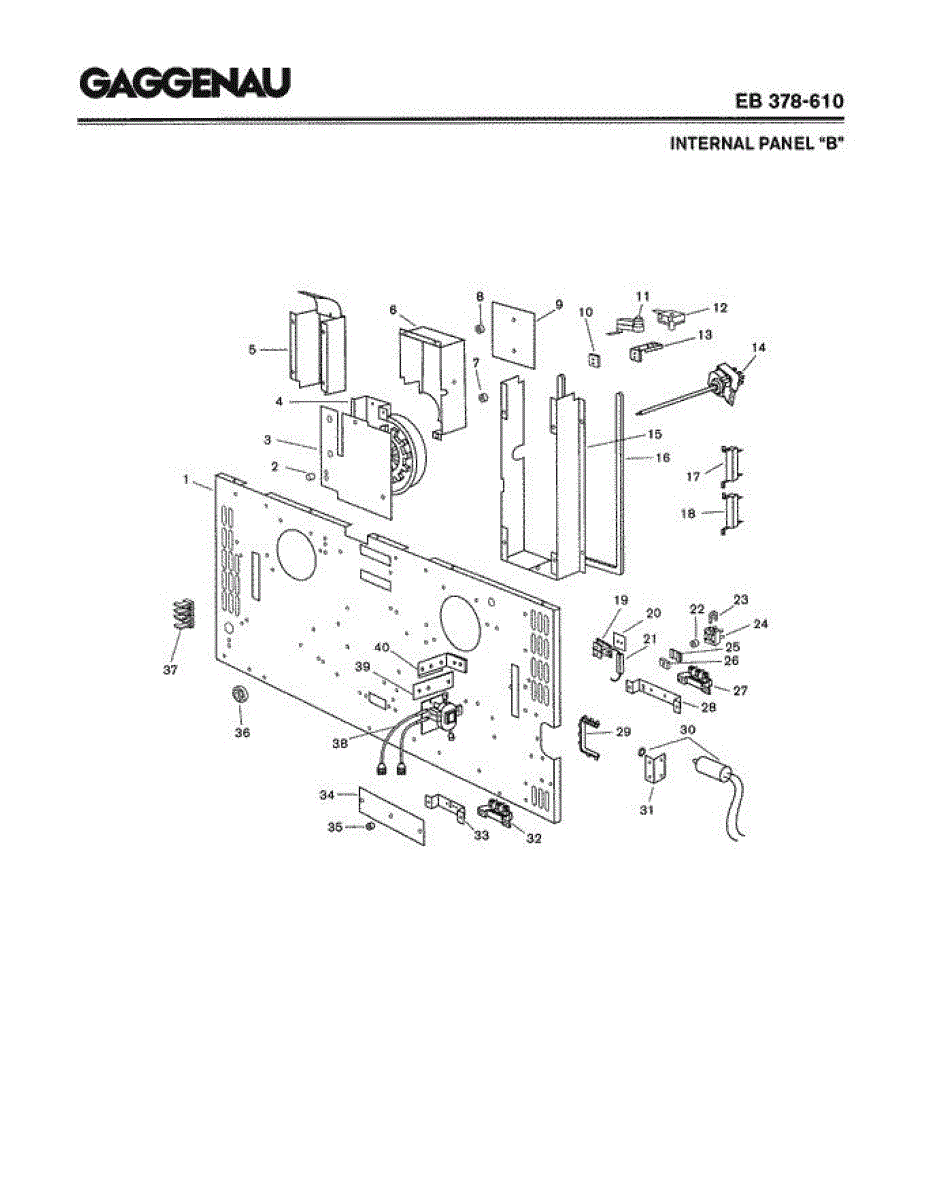

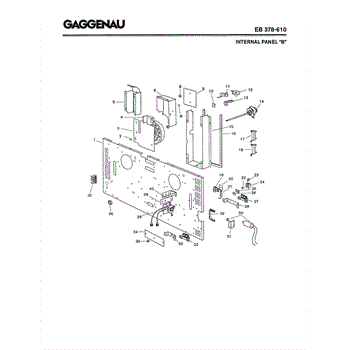

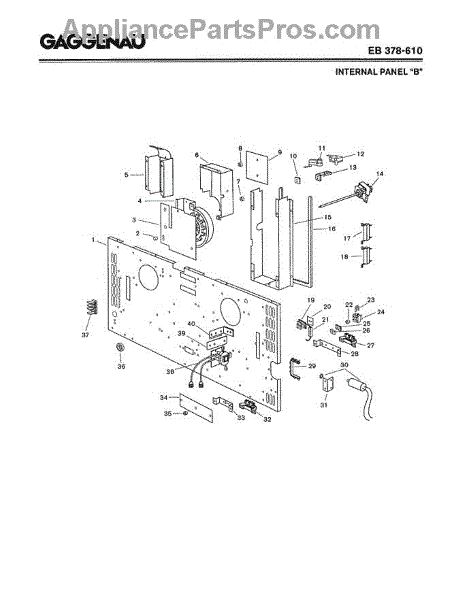

Parts for Gaggenau EB378-610: 05 - Internal Panel `B` Parts

This fan motor powers the appliance's blower to circulate air for proper cooling and ventilation, restoring airflow and helping maintain consistent temperatures. It replaces a failed motor to stop noise or loss of circulation. What it does:

• Spins the blower to move air through the appliance for cooling, exhaust, or circulation
• Restores normal airflow when the appliance has weak or no air movement
• Stops excessive motor noise or vibration caused by a worn or failing motor
• Helps prevent overheating by re-establishing proper ventilation

• Disconnect power to the appliance before starting any repair
• Handle the motor carefully; avoid exposing electrical connections to moisture
• Basic hand tools are typically required; refer to the service manual for disassembly steps
• Secure all connectors before testing

This is a temperature limiter (thermoprotector) that acts as a safety device inside a microwave. It monitors internal temperatures and cuts power to the heating components if the appliance overheats, preventing damage or fire. Replace this part if the microwave shuts off unexpectedly during use, fails to heat, or if testing shows the limiter has tripped and no longer resets.

This oven temperature limiter is a safety device that prevents your oven from overheating by cutting power when temperatures exceed safe limits. It automatically resets when temperatures return to normal operating range. Replace if your oven isn't heating, shuts off unexpectedly during cooking, or won't maintain proper temperatures.

Appliance overheating or shutting off unexpectedly? This 253°F thermal protector prevents damage by cutting power when temperatures exceed safe limits.

Structural angle bracket for appliance mounting and support. Replace if bent, cracked, or missing to restore proper alignment and secure installation.

Structural angle bracket for appliance mounting and support. Replace if bent, cracked, or missing to restore proper alignment and secure installation.

This 750 ohm fixed resistor restores the correct resistance on the appliance control circuit so the control board can operate reliably. Use it to replace a burned or open resistor that interrupts normal electrical function. What it does:

• Provides a precise 750 O resistance value used in control and sensing circuits
• Limits or drops voltage to protect downstream components
• Restores stable control-board signals when the original resistor is open or damaged
• Commonly linked to symptoms like intermittent operation, control errors, or failure to start

• Disconnect power to the appliance before attempting service
• Handle the resistor and circuit board carefully to avoid damage; observe ESD precautions
• Confirm orientation and solder joint quality when installing; use proper tools and techniques

This terminal connector provides a secure electrical connection for appliance wiring, replacing a worn or damaged spade-style terminal to restore reliable power flow. It fits into the appliance's existing terminal block for a lasting repair. What it does:

• Replaces a damaged or corroded spade terminal to re-establish a solid electrical connection
• Helps eliminate intermittent power, arcing, or overheating at the wiring junction
• Works where a right-angle terminal is required to connect a wire to the appliance terminal block
• Compatible with standard insulated or non-insulated spade-style wire terminations

• Disconnect power at the circuit breaker or unplug the appliance before inspecting or replacing terminals
• Verify terminal orientation and fully seat the connector on the mating spade to ensure a tight fit
• Use proper crimping or soldering techniques if attaching bare wire; avoid loose or exposed conductors

M4 square nut for securing components in appliances. Replace if stripped, corroded, or missing to properly fasten panels and parts during assembly.

This electrical relay component controls heating elements and temperature regulation in your oven. It switches power on and off to maintain proper cooking temperatures based on thermostat signals. Replace this part if your oven won't heat up, overheats, or maintains incorrect temperatures during cooking.

Structural angle bracket for appliance mounting and support. Replace if bent, cracked, or missing to restore proper alignment and secure installation.

Structural angle bracket for appliance mounting and support. Replace if bent, cracked, or missing to restore proper alignment and secure installation.
