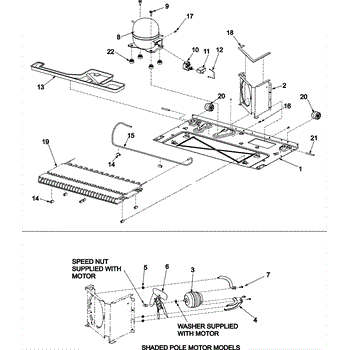

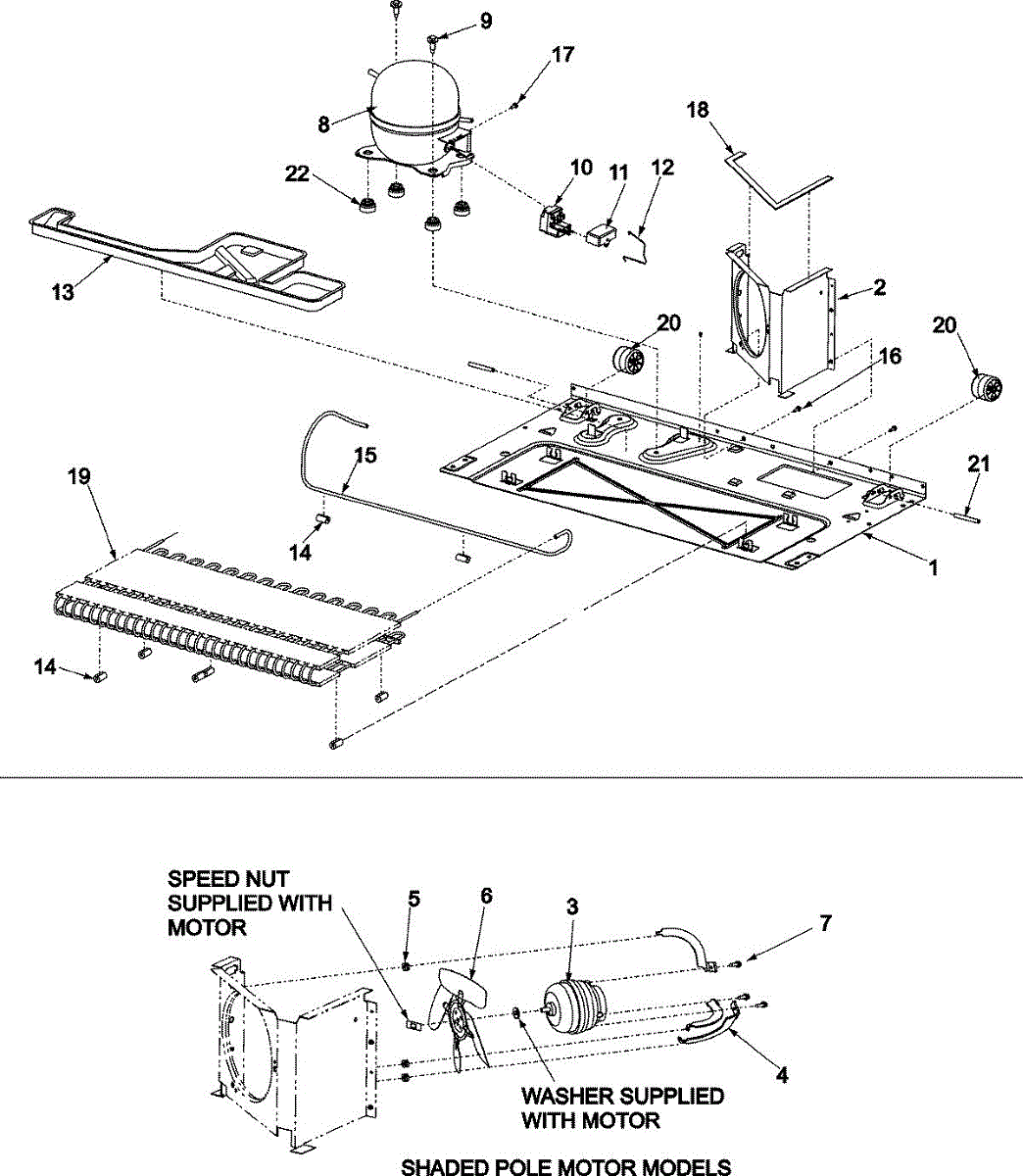

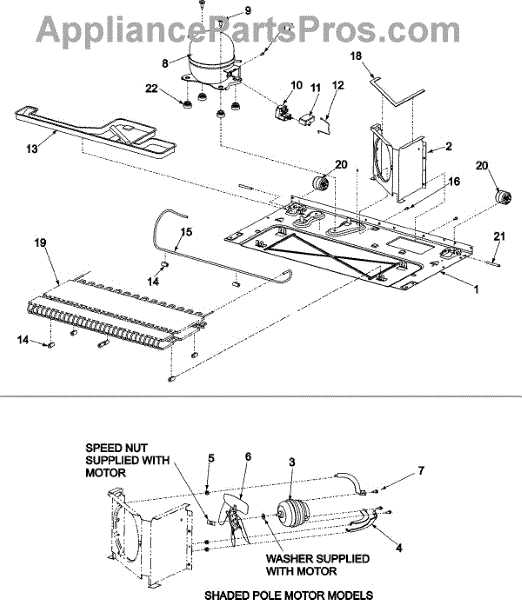

Parts for Maytag PBB2255GEB / PPBB2255GB0: 02 - Compressor Parts

This OEM Replacement Part is a high-quality, 2-watt condenser fan motor for Whirlpool refrigerators.The motor is designed to optimize your refrigerator's cooling performance. This 115-volt motor operates with a clockwise rotation.

Symptoms of a bad condenser fan motor kit include:

• Gradual rise in interior freezer temperatures
• Inability to maintain consistent cooling performance
• Loud buzzing or grinding noises coming from inside
• Tripped breakers or failure to restart after service

Causes stem from normal wear of ball bearings as the high-efficiency motor operates continuously. Exposure to dust or debris introduced through openings accelerates wear over many years of use.

This OEM part is also compatible with brands including Kenmore, KitchenAid, and Danby.

This condenser fan blade is the rotating plastic blade that moves air across the condenser coils to help remove heat from the refrigerator. Replacing a damaged blade restores proper airflow for more consistent cooling. What it does:

• Spins on the condenser fan motor to circulate air over condenser coils
• Helps dissipate heat so the compressor and fridge run efficiently
• Can cause reduced cooling or higher temperatures if broken or missing

• Disconnect power to the appliance before starting any service
• Inspect the fan motor shaft and mounting for wear; replace motor if shaft is damaged
• Handle the blade carefully to avoid cracking; ensure blade is seated and secured before testing

This is the refrigerator's sealed-system compressor. It pressurizes and moves refrigerant through the system to remove heat from the cabinet, restoring consistent cooling performance when the original compressor has failed or lost capacity. What it does and common symptoms:

• Pumps and circulates refrigerant through the evaporator and condenser to remove heat
• Maintains target temperatures in both fresh food and freezer sections
• Symptoms of failure can include: no cool/poor cooling, unit warms up after short operation, humming then clicking from the compressor area, or repeated thermal overload trips
• Runs but not cool effectively when the compressor is weak or internally damaged (after ruling out start components and charge issues)

• 1 compressor

• Disconnect power before servicing; sealed-system work involves high pressure and high temperatures
• Sealed-system repairs require EPA Section 608 certification and specialized tools (gauges, vacuum pump, brazing equipment)
• Replace the filter-drier, braze connections properly, evacuate to deep vacuum, and charge to the model's specification
• Related components (start device/overload, run capacitor, controls) are tested before condemning the compressor

This overload/relay is the compressor start device for select refrigerators. It provides the brief start assist and overload protection the compressor needs to start and run safely, helping restore consistent cooling when the original part fails.

• Supplies the momentary start pathway for the compressor, then disengages
• Opens on overcurrent/overheat to protect compressor windings
• Failure may present as clicking near the compressor, warm temps, compressor not starting, or intermittent cooling
• Visible heat damage or a rattling start device can also indicate replacement

• Disconnect power and remove the rear lower access panel to reach the compressor area
• Note wire locations; pull the old start device straight off the compressor pins—do not bend the terminals; transfer any harnesses
• Reinstall the cover, restore power, and verify the compressor starts

The Run Capacitor is an OEM part for Whirlpool refrigerators. It is responsible for helping the compressor motor start and run efficiently by providing an extra electrical boost. This component ensures that the refrigerator operates smoothly and maintains the correct temperature by stabilizing the compressor's performance.

Causes of a bad run capacitor can include electrical surges, age-related wear, or overheating. When the capacitor fails, the compressor may struggle to start or run continuously, leading to inefficient cooling or a non-functional refrigerator.

Symptoms of a bad run capacitor include:

• The refrigerator not cooling properly
• The compressor not starting or running intermittently
• Unusual clicking noises from the refrigerator

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This condenser grommet cushions and secures the refrigerator condenser assembly, reducing vibration and preventing metal-to-metal contact. It helps keep the condenser stable for quieter operation and longer component life. What it does:

• Isolates condenser from the cabinet to reduce rattling and vibration noise
• Prevents condenser edges from rubbing or wearing against the chassis
• Helps maintain proper condenser alignment for efficient airflow
• Commonly replaced when cracked, torn, or missing and causing noise or movement

• Disconnect power before servicing the appliance.
• Support the condenser assembly before removing or installing the grommet to avoid stress on tubing.
• Push the grommet into position; replace any grommets that are brittle or deformed.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

This seal strip replaces a worn or damaged door gasket edge to restore a proper seal and help the appliance maintain temperature and operate quietly. It's a direct-fit service part used where a continuous seal is required. What it does:

• Provides a flexible barrier along the door/frame to reduce air leaks and heat/cold loss
• Helps prevent moisture buildup and improves energy efficiency when sealing is restored
• Reduces rattling and vibration caused by a compressed or torn seal edge
• Commonly replaced when the strip is torn, missing, or no longer adheres properly

• One seal strip

• Disconnect power to the appliance before servicing to avoid electrical or burn hazards
• Clean and dry the mounting surface; remove old adhesive or residue for best adhesion
• Align the strip carefully and press firmly; allow any adhesive to cure per manufacturer instructions

This rear roller is a replacement for the rollers in a refrigerator. The rollers are not used often, but they have an important purpose. They make it easier to move the refrigerator from one area to another. If the roller had been damaged and is not working properly, it will be difficult to maneuver the refrigerator. Replacing the damaged roller with a new one before moving the refrigerator a long distance is a good idea.The rollers on the refrigerator are meant to handle a lot of pressure. However, they can still wear down and break eventually. They could also be damaged during a previous move. Before replacing the rear roller, unplug the refrigerator and remove the connection to the water supply. The replacement will require only a few tools, such as a screwdriver. It may require moving other parts of the refrigerator to get access to the rear rollers.The rear roller will work for certain models of refrigerators from Whirlpool, GE, KitchenAid, Inglis, Maytag, Admiral, International, Amana, Jenn-Air, Crosley, and Magic Chef. This is a genuine OEM replacement part that is sold individually.

This axle roller is the replacement support shaft that lets the appliance's rotating assembly turn smoothly and quietly. Installing a new axle roller corrects wobble and reduces grinding or squealing caused by a worn shaft. What it does:

• Supports the rotating drum or rack so it spins freely and stays aligned
• Helps prevent metal-to-metal contact that causes loud noise or scraping
• Stops uneven rotation and vibration that can lead to further wear
• Restores smooth operation when an original axle is bent, worn, or broken

• Disconnect power (and gas, if applicable) before starting any repair
• Access location and removal steps vary by model; follow the OEM service manual or diagram
• Inspect related parts (pulleys, idler, glides, bearings) and replace if they show wear
• Use basic hand tools; keep fingers and loose clothing clear of moving parts during testing

This grommet is a small protective seal used where a hose, tube, wire, or component passes through or mounts to the appliance cabinet. It cushions the connection and helps prevent leaks, vibration, and wear for reliable operation.

• Provides a snug barrier between parts and metal openings to protect hoses, tubes, and wiring
• Helps seal against moisture to reduce seepage
• Dampens vibration and rattling noises
• Replace if cracked, hardened, missing, or no longer stays seated; symptoms may include drips at a pass-through, buzzing/rattling, or a loose fit

• Disconnect power; shut off water supply if applicable
• Access the grommet location and note orientation/routing
• Remove the old grommet and clean the opening
• Press the new grommet fully into place; reassemble and test for leaks/noise
