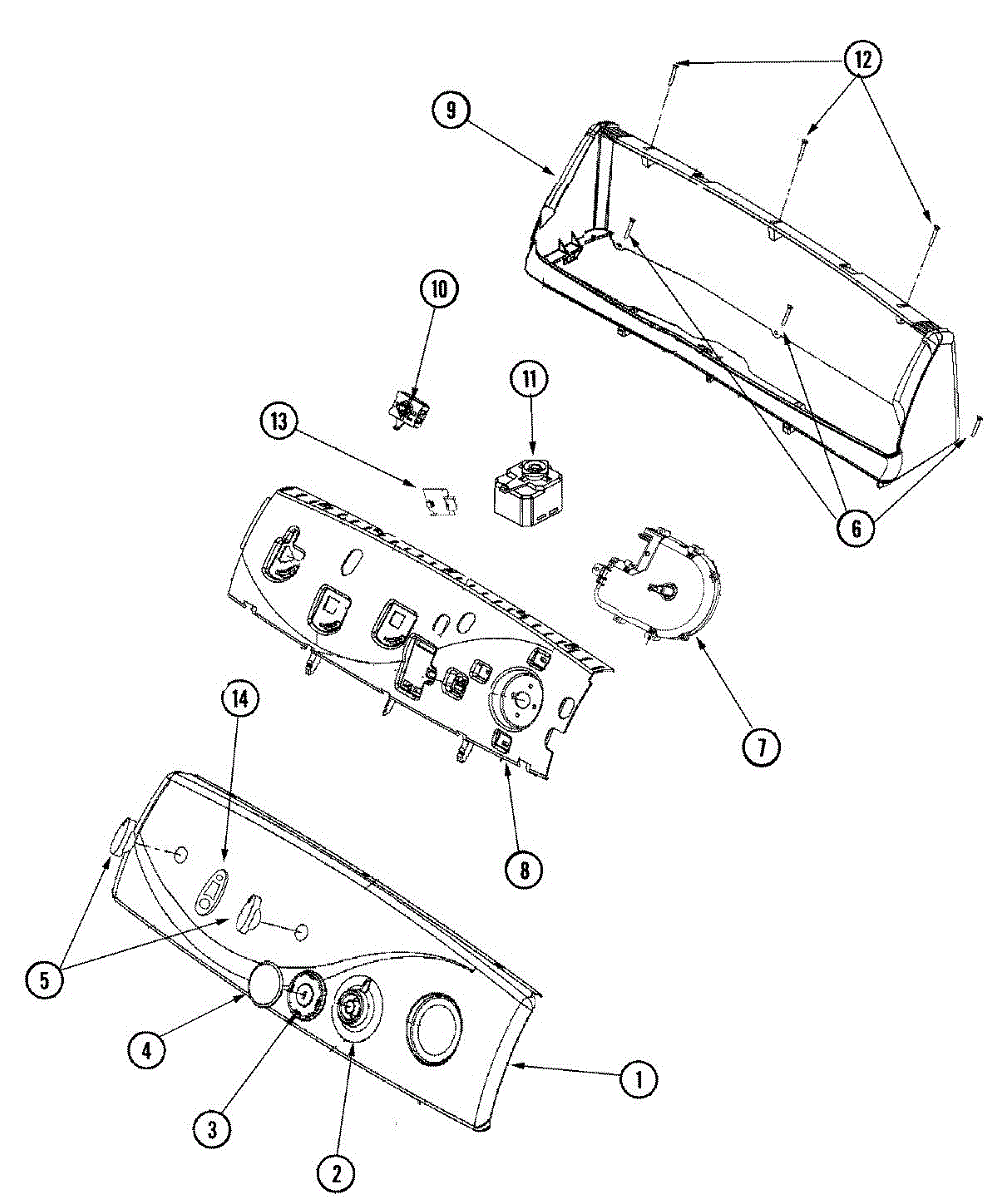

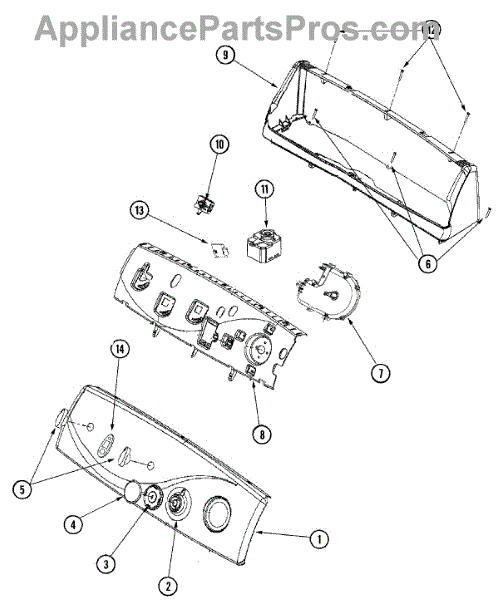

Parts for Maytag MDE7400AZW: 02 - Control Panel Parts

The Dryer Timer Knob is an OEM replacement part for Whirlpool dryers. It allows users to set the drying time and cycle, providing control over the dryer's operation. This knob fits securely onto the timer shaft, and it allows for the selection of the desired drying cycle and time.

Color: White with Blue Trim

Cap Sold Separately

Over time, wear and tear, excessive force when turning, or accidental impact can cause the timer knob to crack, loosen, or lose its grip on the timer shaft. This makes it difficult to select and maintain accurate drying cycles.

Symptoms of a faulty Dryer Timer Knob include:

• Difficulty turning the knob to select the desired cycle
• Knob slipping or turning loosely
• Cracks, breaks, or missing parts

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Timer Knob Cap is an OEM replacement part for Whirlpool washers and dryers. This cap covers the timer knob, giving a clean and polished appearance to the control panel.

Color: Chrome

The Timer Knob Cap might need replacement if it becomes cracked, discolored, or damaged due to prolonged use, accidental mishandling, or exposure to harsh cleaning agents. Additionally, frequent turning and adjustments over time may cause wear.

Symptoms of a failing Timer Knob Cap include:

• Difficulty turning the timer knob
• Loose or missing cap
• Timer knob slipping or not staying in place

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This part has been discontinued by the manufacturer and is no longer available.

Color: chrome. The main part of the knob is about 1 inch in diameter. The handle is about 2 inches.

Specs: No.8X1/2 HEX WASHER HEAD

For 6400 series with serial number starting with 16 or higher, use WP33002803. Note: Per Factory, this Timer will not work on any 8400 series models.

Note: Depending on your dryer's model and serial numbers, your wire harness may also need to be replaced at the same time as the timer. Please call us if you have any questions.

This 4-position rotary temperature control is the selector switch used to choose basic temperature settings in compatible refrigerators. It restores reliable temperature selection and helps return the appliance to normal cooling behavior. What it does:

• Provides four discrete temperature/setting positions for the refrigerator control circuit
• Sends the selected position signal to the cooling system to adjust running cycles
• Commonly replaced when the temperature dial feels loose, won't change settings, or the fridge doesn't respond to position changes
• Helps diagnose selector-related issues by allowing continuity and position testing

• Disconnect power to the appliance before starting work to prevent shock or injury
• Handle wiring and connectors carefully; note wire locations before removal for correct reinstallation
• Test the switch with a multimeter for continuity through positions

This is a genuine replacement mounting screw used to secure appliance components and panels. It restores proper fit and prevents movement that can cause noise or misalignment. What it does:

• Fastens panels, brackets, and small components in place
• Helps stop rattling or vibration caused by loose hardware
• Restores secure attachment after stripped or missing fasteners
• Matches OEM thread and head style for correct fit

• Use the correct driver to avoid stripping the head
• Tighten until snug; do not overtighten to prevent damage
• Disconnect power to the appliance before accessing internal components
• Replace matching screws in the area for consistent fit
