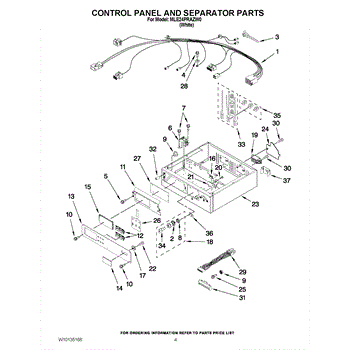

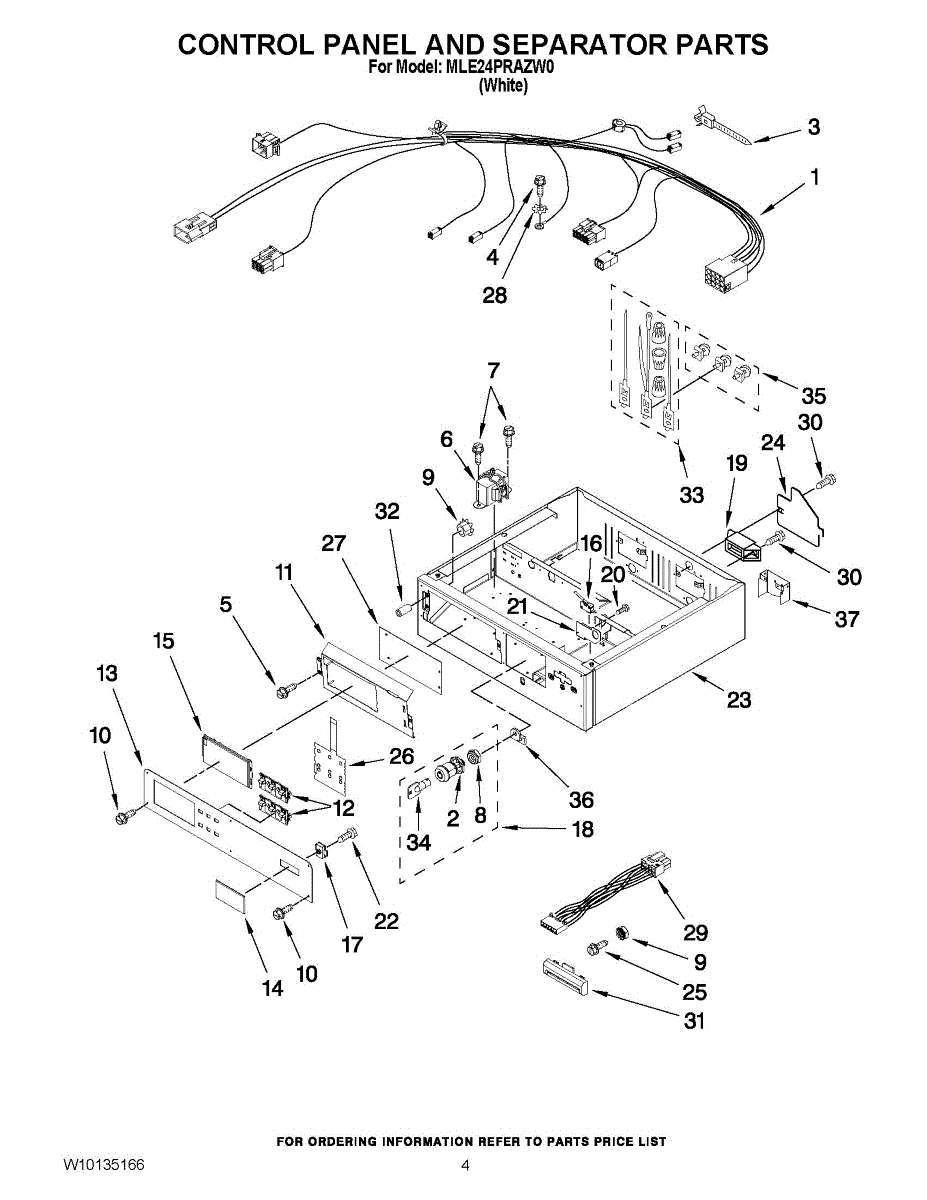

Parts for Maytag MLE24PRAZW0: 02 - Control Panel And Separator Parts

This cable tie secures wiring and the power cord to the appliance chassis to help prevent chafing, pinching, or loose connections. Simple, low-cost part that restores proper wire routing and strain relief. What it does

• Holds wiring and harnesses in place to prevent rubbing against sharp edges
• Helps reduce risk of intermittent power or connector strain caused by loose wires
• Keeps harnesses routed for correct clearance and component access
• Useful during repairs to restore original wire routing and strain relief

• One cable tie (wire harness retainer)

• Safety first: disconnect the appliance from power before inspecting or replacing wiring components
• Remove the damaged or existing retainer and route harnesses to match original OEM routing before installing the new tie
• Trim excess tie tail; do not overtighten—secure, but avoid crushing wires
• Replace any tie that's melted, cracked, or otherwise damaged rather than reusing it

This replacement screw secures appliance panels and components. Use this OEM fastener to swap out stripped, corroded, or missing hardware so assemblies stay tight, aligned, and quiet for reliable day-to-day operation.

• Provides secure attachment for panels, brackets, and internal assemblies
• Direct replacement for stripped, corroded, or lost screws
• Can help with symptoms like vibration, rattling, or loose/misaligned parts
• Supports proper fit to reduce gaps or unwanted movement

• Disconnect power; for gas or water appliances, shut off the supply before service
• Note hardware order and retain any spacers or clips from the original setup
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Repair or replace the mating part before installation

This control transformer converts household line voltage to the low-voltage feed used by the appliance's control and components, restoring reliable power to timers, relays, and sensors. It's a direct-replacement electrical transformer designed for plug-and-play swap when the original is faulty. What it does:

• Steps down 120VAC line voltage to the appliance's low-voltage control circuit so controls and relays operate correctly.
• Commonly replaces a failed or intermittent transformer that causes control failures, no-power to timers, or unresponsive electronic components.
• Helps restore stable control voltage when the original transformer is noisy, overheats, or delivers inconsistent output.
• Fits the OEM mounting and wiring layout for a clean replacement without modifying existing harnesses.

• One replacement transformer

• Disconnect power at the breaker or unplug the appliance before any service—verify power is off.
• Match wiring colors and terminal positions to the original; secure all connections and use strain reliefs where present.
• Inspect mounting hardware and gaskets; replace any damaged fasteners for a secure fit.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This lock assembly secures the appliance access panel and restores a proper, stable latching action for safe operation. It replaces a worn or broken access lock so the panel stays closed when the appliance is in use. What it does:

• Provides a secure latch for the access/service panel to prevent unintended opening
• Replaces damaged, bent, or non-engaging lock components that cause loose or rattling panels
• Helps restore normal operation when a panel won't stay closed or is difficult to latch
• Works as the mechanical locking point for service access, improving user safety during operation

• One access lock assembly

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Removal may require a screwdriver and access to the service panel; keep fasteners for reassembly
• Handle plastic clips and tabs carefully to avoid breakage; replace any damaged fasteners

The Push Button is an OEM part for Whirlpool Laundry Centers. This part starts the wash or dry process, and making adjustments to settings. The push button is engineered for durability and a precise fit, ensuring it integrates seamlessly with the appliance's control panel.

Causes of a malfunctioning push button can include repeated use leading to wear and tear, accumulation of lint or detergent residue affecting its functionality, or damage to the button's contacts or the control panel circuitry.

Symptoms of a bad Push Button include:

• Difficulty in engaging the desired cycle or setting
• The button feeling stuck or failing to return to its original position after being pressed
• The appliance not responding to button presses, resulting in an inability to start or modify cycles

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This display cover protects and finishes the appliance control panel, keeping the touchpad and display lens safe while restoring a clean, readable appearance. Replaces a cracked, faded, or scratched panel trim. What it does:

• Shields the control board area from dust, spills, and everyday wear
• Restores a clear view of the display and touchpad markings for easier use
• Improves the appliance's appearance by replacing damaged or discolored trim
• Helps prevent debris from interfering with buttons or electronic controls

• Disconnect power before starting any repair to avoid shock or damage
• Remove any outer trim or screws to access the control panel; handle the cover gently to avoid breaking retention clips
• Keep track of small fasteners and note orientation for correct reassembly
• Avoid touching circuit board contacts or components when replacing the cover

This service access switch is the OEM-style replacement switch that detects and secures the appliance's service or control access point, helping technicians safely access internal components during diagnostics and repair. What it does:

• Detects whether the service/access panel or console is opened and signals the control board accordingly
• Helps prevent operation while the access panel is open for safer service
• Restores proper access-sensing when a worn or failed switch causes service-mode or control interlock issues
• Compatible where the appliance uses a dedicated access/service switch for control-board interlock functions

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove necessary panels or console to access and replace the switch
• Handle near control boards with care to avoid ESD damage; reconnect all wiring securely
• After installation, restore power and verify the switch correctly senses panel position and that the appliance operates normally

This lock assembly secures the appliance access panel and restores a proper, stable latching action for safe operation. It replaces a worn or broken access lock so the panel stays closed when the appliance is in use. What it does:

• Provides a secure latch for the access/service panel to prevent unintended opening
• Replaces damaged, bent, or non-engaging lock components that cause loose or rattling panels
• Helps restore normal operation when a panel won't stay closed or is difficult to latch
• Works as the mechanical locking point for service access, improving user safety during operation

• One access lock assembly

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Removal may require a screwdriver and access to the service panel; keep fasteners for reassembly
• Handle plastic clips and tabs carefully to avoid breakage; replace any damaged fasteners

The Terminal Block is an OEM part for Whirlpool ranges and ovens. It is designed to provide a secure connection point for the appliance's electrical wiring, ensuring the safe transmission of power to the heating elements and other components.

You should replace the terminal block if it becomes damaged or faulty. Causes of a bad terminal block can include electrical arcing, loose connections, or damage from overheating. A compromised terminal block can lead to electrical issues, affecting the performance and safety of the appliance.

Symptoms of a bad terminal block include:

• The oven or range not heating up properly
• Visible damage or burning around the terminal block
• Intermittent power issues or flickering display
• Unusual electrical smells or sparks from the terminal area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

A short self-tapping screw used to fasten appliance panels and trim so components stay secure and aligned. Replacing a worn or missing screw restores proper fit and reduces rattling or loose parts. What it does

• Fastens panels, trim, and small assemblies to the appliance frame
• Keeps control panels, access panels, and bezels securely mounted
• Replaces stripped, rusted, or missing fasteners that cause vibration or rattling
• Helps maintain proper alignment of removable panels and covers

• One short self-tapping screw

• Disconnect power before working on the appliance to avoid shock or injury
• Use the correct screwdriver and hold parts in place while installing to avoid cross-threading
• Do not overtighten — stop when the panel is snug to prevent stripping or cracking
• Replace with the exact part number to ensure proper fit and function

This replacement switch restores reliable on/off control for the matched function in your appliance. A worn or sticking switch can prevent components from powering correctly; replacing it helps bring back consistent, safe operation.

• Opens and closes an electrical circuit to control a specific component
• Actuates via a knob, button, lever, or door/lid mechanism
• Common symptoms: unit or component won't start/turn on, intermittent operation, or must press/hold to work
• Visual clues: loose actuator, heat discoloration, or burned terminals

• Disconnect power before servicing; verify no voltage with a meter
• Document wire positions; move leads to the new switch one at a time
• Secure the switch in the original orientation and ensure proper actuator alignment
• Restore power and test the controlled function for proper operation

Includes screws and wire connectors. For the complete terminal block kit use 279320.

This access door key operates the factory lock on select appliances. It replaces a lost or worn key so you can securely lock or unlock the access door and restore normal, controlled access to the compartment.

• Locks or unlocks the access door via the built-in lock cylinder
• Restores function when the original key is missing, bent, or broken
• Helps resolve situations where the door can't be opened or secured due to a worn key
• Maintains restricted access to the compartment when needed

• Verify this key matches your model's lock; keys are not universal
• Insert fully and turn gently—do not force a stuck lock
• If the lock cylinder is damaged or seized, replace the lock assembly
• Disconnect power if removing the door or servicing internal components

The Terminal Block Screw Kit is an OEM replacement part for Whirlpool dryers. It is an assembly of screws used to securely fasten electrical terminal blocks within the dryer's control panel. Includes 3 screws and 3 nuts. Screw kit for dryer cord connector.

Over time, terminal block screws can become loose, corroded, or damaged due to regular use or electrical issues. If the terminal block screws are compromised, it can lead to electrical problems or even pose a safety hazard.

Symptoms of a faulty terminal block screw kit include:

• Intermittent power or failure of heating/fan elements to engage
• Repeated blowing of internal fuses or tripping of circuit breakers
• Hot terminal connections detected during operation
• Arc flashes, sparks, or smoke seen around the control panel area

This genuine Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.
