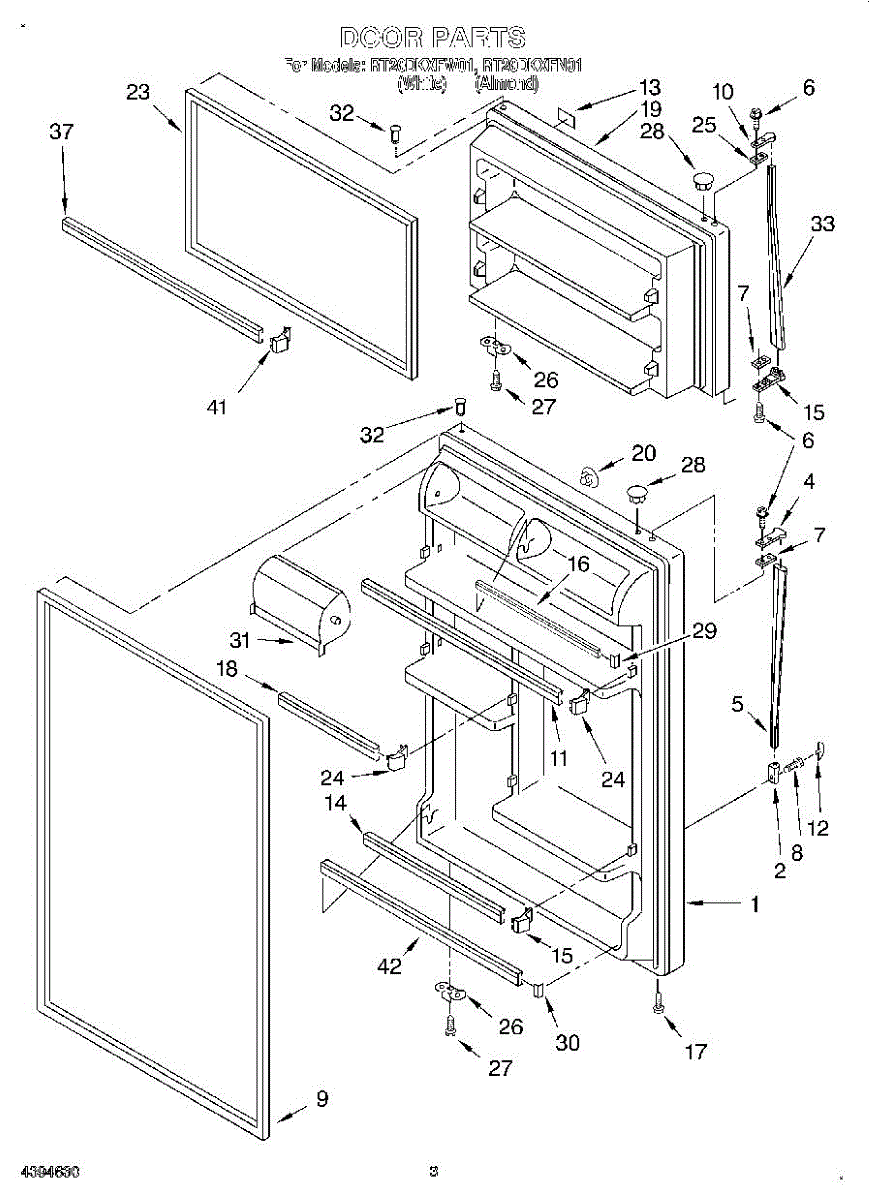

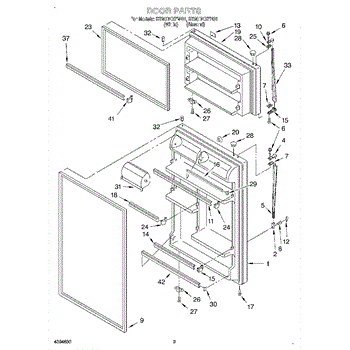

Parts for Whirlpool RT20DKXFW01: 02 - Door Parts

The Door Handle Endcap Kit is an OEM part for Whirlpool refrigerators. This kit includes both upper and lower handle endcaps to replace or repair the endcaps of the refrigerator door handle. The endcaps provide a finished look and secure attachment for the handle, enhancing the overall appearance of the refrigerator.

Common symptoms of bad door handle endcaps in a Whirlpool refrigerator include:

• Loose or wobbly door handle
• Damaged or cracked endcaps

Difficulty in securely attaching or positioning the handle

Causes of bad handle endcaps can include:

• Normal wear and tear over time
• Physical damage or breakage
• Incorrect installation or mishandling

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Handle Endcap Kit is an OEM part for Whirlpool refrigerators. This kit includes both upper and lower handle endcaps to replace or repair the endcaps of the refrigerator door handle. The endcaps provide a finished look and secure attachment for the handle, enhancing the overall appearance of the refrigerator.

Common symptoms of bad door handle endcaps in a Whirlpool refrigerator include:

• Loose or wobbly door handle
• Damaged or cracked endcaps

Difficulty in securely attaching or positioning the handle

Causes of bad handle endcaps can include:

• Normal wear and tear over time
• Physical damage or breakage
• Incorrect installation or mishandling

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Handle Kit is an OEM part for Whirlpool refrigerators. It contains both door handles, linkage, fasteners, and installation instructions needed to operate the refrigerator doors. Please note: Handle may be longer, this is a "cut to fit" design. For white order WP2162555. No longer made in almond. Includes both refrigerator and freezer door handles.

Symptoms of a bad door handle kit include:

• Difficulty opening the refrigerator door(s)
• Handles no longer latches the doors securely closed
• Loose, wobbly, or sagging door handles
• Damaged finishes on the plastic handle components

Causes can be normal wear and tear over years of use, brute force twisting of the handles, or issues related to over-tightened door gaskets putting pressure on the linkage.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This sheet-metal screw secures appliance panels, brackets, and components to the cabinet. Replacing a missing or stripped fastener restores a tight, rattle-free fit and helps keep assemblies aligned for reliable operation.

• Fastens sheet-metal parts to the chassis or support brackets
• Replaces stripped, corroded, or lost screws to restore proper hold
• Helps reduce vibration and noise from loose panels
• Maintains alignment of covers, ducts, or trim

• Disconnect power to the appliance; shut off water or gas if applicable.
• Match this screw to the original location and length.
• Start threads by hand to avoid cross-threading; tighten until snug—do not overtighten.
• If the original hole is damaged, repair or replace the mounting point before installing.

This door handle spacer sits between the door panel and the handle to set the correct stand-off and support the mounting hardware. Replacing a cracked or missing spacer restores a solid feel, proper alignment, and protects the door finish.

• Maintains the designed gap and stand-off between the handle and door
• Supports and centers the handle over the mounting post(s)/screw(s)
• Helps prevent rubbing, scuffs, or creaks from a handle that sits too close
• Typical symptoms of failure: loose or wobbly handle, uneven gap, rattling, broken or missing spacer

• Disconnect power and, if applicable, shut off water before service
• Support the handle; remove the set screw(s)/bolt(s) and lift off the handle as designed
• Position the new spacer over the mounting point; reinstall the handle and hardware
• Tighten hardware snugly—do not overtighten; check alignment and handle security

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Fresh Food Door Gasket is an OEM part for Whirlpool refrigerators. It seals the refrigerator door, keeping cold air inside and preventing warm air from entering, which helps maintain the proper temperature and efficiency of the refrigerator.

You should replace the fresh food door gasket if it becomes damaged or worn out. Common causes of a bad gasket include wear and tear from regular use, exposure to temperature fluctuations, or physical damage from cleaning or handling.

Symptoms of a bad fresh food door gasket include:

• The refrigerator door not sealing properly
• Increased energy consumption
• Frost or condensation buildup around the door
• Visible cracks, tears, or deformation of the gasket

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Handle Endcap Kit is an OEM part for Whirlpool refrigerators. This kit includes both upper and lower handle endcaps to replace or repair the endcaps of the refrigerator door handle. The endcaps provide a finished look and secure attachment for the handle, enhancing the overall appearance of the refrigerator.

Common symptoms of bad door handle endcaps in a Whirlpool refrigerator include:

• Loose or wobbly door handle
• Damaged or cracked endcaps

Difficulty in securely attaching or positioning the handle

Causes of bad handle endcaps can include:

• Normal wear and tear over time
• Physical damage or breakage
• Incorrect installation or mishandling

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This screw cover conceals the mounting screw at the end of the door handle, restoring a clean, finished look while protecting the fastener. Replace a missing or damaged cap to keep the handle hardware covered and secure.

• Covers the exposed handle screw for a finished appearance
• Helps shield the screw head from dirt and moisture
• Direct replacement for a cracked, broken, loose, or missing cap
• Common signs: visible screw, cap won't stay in place, or cosmetic damage

• Use a plastic pry tool to remove the old cover without scratching nearby surfaces
• Verify the handle screw is properly seated; adjust/tighten as needed before installing the cover
• Align the new cover with the opening and press until it snaps flush
• Avoid overtightening the handle screw; excessive torque can prevent the cover from seating

Color: white. Measures about 13 inches wide by 2 inches high.

The Door Handle Endcap Kit is an OEM part for Whirlpool refrigerators. This kit includes both upper and lower handle endcaps to replace or repair the endcaps of the refrigerator door handle. The endcaps provide a finished look and secure attachment for the handle, enhancing the overall appearance of the refrigerator.

Common symptoms of bad door handle endcaps in a Whirlpool refrigerator include:

• Loose or wobbly door handle
• Damaged or cracked endcaps

Difficulty in securely attaching or positioning the handle

Causes of bad handle endcaps can include:

• Normal wear and tear over time
• Physical damage or breakage
• Incorrect installation or mishandling

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Shelf Bar is an OEM part for Whirlpool refrigerators. This part goes on the door to hold condiments on the shelf. This does not include the endcaps.

Causes of malfunction involve cracks developing from weight stress on fasteners.

Symptoms of a problematic shelf bar include:

• Gaps noticeable between shelves and door
• Visible bowing or sagging on panels

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

Note: In some cases, you may have to cut to fit.

This replacement screw secures panels, brackets, or trim within your appliance. Replacing a worn, stripped, or missing screw restores a tight, rattle-free fit so components stay aligned and operate as intended. What it does:

• Fastens components at the original factory locations specified for this part
• Replaces missing, damaged, or stripped screws to restore holding power
• Helps reduce vibration and rattling from loose parts
• Maintains proper alignment of panels, covers, brackets, and trim

• Disconnect power (and gas, if applicable) before servicing
• Match to the original screw and install in the same location and orientation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver or nut-driver; transfer any washers or spacers from the original hardware if present

This part may be longer than needed and may have to be cut to fit.

Color: White

Note: This is a 2 door kit with both the Refrigerator and Freezer doors.

Color: White.

The Freezer Door Gasket is an OEM part for Whirlpool freezers. This gasket forms a tight seal around the freezer door, keeping the cold air inside and preventing warm air from entering, which helps to maintain the optimal temperature and efficiency of the freezer. The gasket measures approximately 20.19” x 31.29” Color: Misty Beige. For Black order 217731

Causes of a bad door gasket can include regular wear and tear, exposure to extreme temperatures, mold or mildew buildup, and physical damage from repeated opening and closing of the door.

Symptoms of a bad freezer door gasket include:

• Frost buildup inside the freezer
• The freezer running more frequently to maintain temperature
• Difficulty keeping the door closed or it not sealing properly
• Visible cracks, tears, or deformation in the gasket

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: white. Measures about 2-1/2 inches high by 5 inches deep.

The Bracket-Door Stop is an OEM replacement part for Whirlpool appliances. This zinc-finished bracket is designed to prevent the appliance door from opening beyond its intended range, protecting both the door and surrounding components from potential damage. It ensures the door stays secure and functions smoothly during regular use.

Symptoms of a bad Bracket-Door Stop include:

• The door overextending when opened
• Difficulty in maintaining the door's position
• Visible bending, cracking, or damage to the bracket

Causes of a failing Bracket-Door Stop can include repeated stress from excessive force when opening the door, normal wear over time, or accidental impacts. A damaged bracket can compromise the door's alignment and overall functionality.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw secures panels, brackets, and other components in your appliance so they stay tight and properly aligned. Use it to replace missing, stripped, or rusted hardware and eliminate looseness, rattles, or gaps.

• Fastens parts to the cabinet/frame to maintain structural integrity
• Helps keep panels and assemblies aligned to reduce vibration and noise
• Replaces missing, damaged, or corroded screws during service
• Common fix for loose panels or components that no longer hold securely

• Disconnect power and shut off water or gas before servicing
• Match length and thread to the original screw for proper fit
• Hand-start threads to avoid cross-threading; tighten only until snug—do not overtighten
• Tighten them evenly to ensure proper alignment

The Hinge-Sleeve Hole Plug is an OEM part for Whirlpool refrigerators. It is designed to cover the hinge sleeve holes on the refrigerator door, providing a finished look and protecting the internal components from dust and debris.

Common causes of a bad hinge-sleeve hole plug include physical damage during routine maintenance or accidental impacts. A missing or damaged plug can lead to exposure of internal hinge components, potentially causing further damage over time.

Symptoms of a bad hinge-sleeve hole plug include:

• Visible gaps or holes in the refrigerator door hinge area
• Accumulation of dust or debris in the hinge mechanism
• Loose or unstable refrigerator door hinges

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Shelf End Cap is an OEM part for Whirlpool refrigerators. This part secures the door shelf bar in place, ensuring that items stored in the door bins are properly supported and contained. The end cap attaches to the ends of the door shelf bar, providing stability and a finished look.

Causes of a bad end cap can include wear and tear from frequent use, heavy loads in the door bins causing stress and fractures, and accidental impacts or mishandling leading to cracks or breaks.

Symptoms of a bad door shelf end cap include:

• The door shelf bar becoming loose or falling off
• Cracks or breaks in the end cap
• Door bins not staying in place
• Difficulty in securing the door shelf bar

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Shelf Trim Endcap is an OEM replacement part for Whirlpool refrigerators. This component fits on the end of the refrigerator shelf trim, providing a finished look and securing the trim in place. It helps to maintain the integrity and appearance of the refrigerator shelves, preventing items from sliding off and ensuring the shelves are securely held in place.

Causes of a bad shelf trim endcap can include regular wear and tear, physical impact from loading and unloading items, or exposure to temperature changes that can cause the plastic to become brittle.

Symptoms of a bad Shelf Trim Endcap include:

• The shelf trim being loose or not staying in place
• Items sliding off the shelf due to instability
• Visible cracks or breaks in the endcap
• Difficulty in securing the shelf trim properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: clear. It measures about 12 inches wide by 6-1/2 inches high.

This thimble is a small insert used in the freezer compartment. It reinforces a mounting hole, prevents liner wear, and helps keep attached hardware stable and properly aligned for smooth, quiet operation.

• Serves as a protective bushing for a hole in the freezer compartment liner
• Helps stabilize and align the component secured at that location
• Replaces cracked, worn, or missing inserts that can cause loose hardware, wobbling, or rattling
• Restores proper fit while helping prevent further wear to the liner

• Unplug the refrigerator and clear the work area in the freezer before service
• Remove the fastener/component to access the insert, then pull the old thimble straight out
• Press the new thimble fully into the hole; reinstall hardware without overtightening
• Use care—cold plastic and liner edges can be brittle or sharp

The Door Handle Kit is an OEM part for Whirlpool refrigerators. It contains both door handles, linkage, fasteners, and installation instructions needed to operate the refrigerator doors. Please note: Handle may be longer, this is a "cut to fit" design. For white order WP2162555. No longer made in almond. Includes both refrigerator and freezer door handles.

Symptoms of a bad door handle kit include:

• Difficulty opening the refrigerator door(s)
• Handles no longer latches the doors securely closed
• Loose, wobbly, or sagging door handles
• Damaged finishes on the plastic handle components

Causes can be normal wear and tear over years of use, brute force twisting of the handles, or issues related to over-tightened door gaskets putting pressure on the linkage.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Endcap is an OEM part for Whirlpool refrigerators. It serves as a component for the interior shelving system, providing support and stability to the shelves that hold food and beverages.

Causes of a bad endcap can include physical damage from overloading shelves, accidental breakage, or normal wear and tear over time. These scenarios can lead to the endcap becoming cracked, broken, or otherwise unable to properly support the shelf, potentially leading to the shelf collapsing or not being able to hold items securely.

Symptoms of a bad Endcap include:

• Shelves that sag or fail to stay level
• Difficulty in sliding shelves in or out
• Visible cracks or breaks in the endcap
• Loose or unstable shelves due to poor endcap support

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Door Shelf Bar is an OEM part for Whirlpool refrigerators, specifically designed to enhance the functionality and organization of the refrigerator's door shelves. This bar is crucial for securely holding items in place, preventing them from falling out when the door is opened or closed. Made to fit perfectly with specific Whirlpool models, this part ensures durability and reliability, upholding Whirlpool's standards for quality.

Causes of a bad Door Shelf Bar can range from normal wear and tear to accidental damage. Overloading the door shelves with heavy items can also lead to stress and eventual breakage of the shelf bar.

Symptoms of a failing Door Shelf Bar include:

• Difficulty keeping items secure on the door shelves
• Items falling from the door when it is opened
• Visible cracks or wear on the bar, indicating physical damage

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
