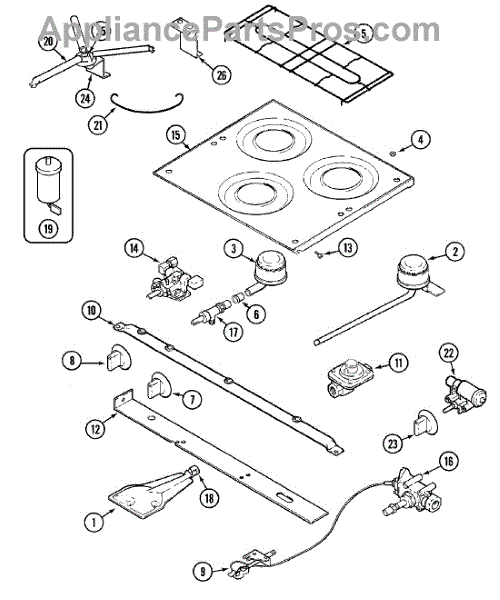

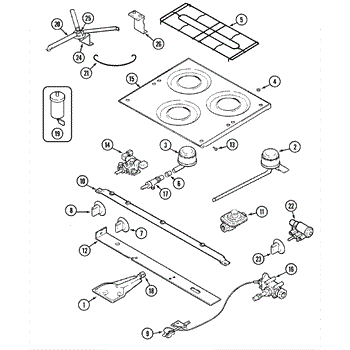

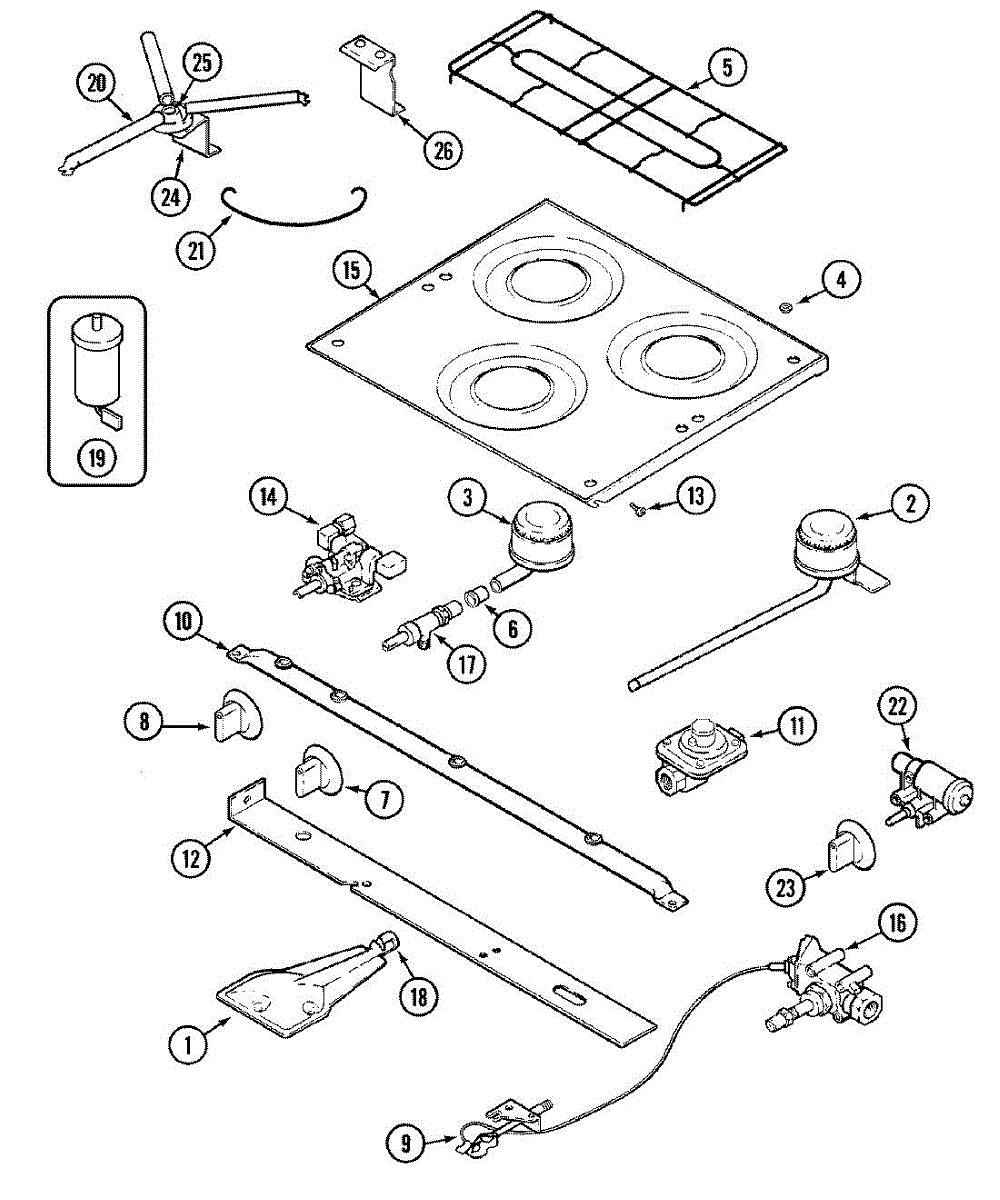

Parts for Magic Chef 16RA-3BK: 02 - Main Top & Burner Assembly Parts

This grommet is used on the bottom feet of a gas stovetop grate. Color: black. It measures about 1/2 an inch in diameter.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

This replacement igniter knob kit restores the ignition control and user knob for gas range burners, letting you safely operate the burner and re-establish reliable spark control. Designed as a direct-replacement style kit. What it does:

• Replaces the burner igniter control and the user knob assembly used to ignite and adjust a gas burner.
• Helps resolve symptoms such as inability to ignite a burner, intermittent or weak spark, or a loose/missing control knob.
• Restores proper knob feel and control indexing for accurate burner selection.
• Matches OEM form and function for straightforward replacement when the existing knob/igniter assembly is damaged.

• Disconnect power and turn off gas supply before starting any service; follow gas-safety precautions.
• Basic hand tools required; do not force parts—align components before tightening.
• Inspect surrounding components (switch, electrode, wiring) for damage while installing.

This hot-surface oven igniter heats and lights the gas burner to start your bake or broil cycle. Replacing a weak or failed igniter restores reliable ignition, faster preheat, and consistent oven temperatures.

• Heats to ignite the oven burner and allows the gas safety valve to open
• Common fixes: oven won't heat, very long preheat, burner lights intermittently, or igniter glows but no flame
• Designed to light the bake or broil burner, depending on model
• Restores proper burner startup and temperature recovery

• Disconnect power and shut off gas before servicing
• Handle by the ceramic base; do not touch or strike the heating element
• Mount with the existing bracket/screws and route leads away from hot surfaces
• Restore utilities and verify prompt ignition and a steady blue flame

This replacement igniter knob kit restores the ignition control and user knob for gas range burners, letting you safely operate the burner and re-establish reliable spark control. Designed as a direct-replacement style kit. What it does:

• Replaces the burner igniter control and the user knob assembly used to ignite and adjust a gas burner.
• Helps resolve symptoms such as inability to ignite a burner, intermittent or weak spark, or a loose/missing control knob.
• Restores proper knob feel and control indexing for accurate burner selection.
• Matches OEM form and function for straightforward replacement when the existing knob/igniter assembly is damaged.

• Disconnect power and turn off gas supply before starting any service; follow gas-safety precautions.
• Basic hand tools required; do not force parts—align components before tightening.
• Inspect surrounding components (switch, electrode, wiring) for damage while installing.

This replacement igniter knob is the user control that engages the spark igniter and gas valve on compatible gas ranges, restoring safe, reliable burner ignition and user control when the original knob is damaged or worn. What it does:

• Replaces a worn, cracked, or stripped igniter/control knob so you can easily turn burners on and off.
• Engages the burner spark mechanism when rotated or pressed (depending on range design).
• Helps ensure proper alignment with the range valve splines for predictable control response.
• Addresses symptoms like a loose, slipping, or broken knob that won't turn the burner valve or activate ignition.

• One replacement knob

• Disconnect power to the appliance and shut off the gas supply before attempting service.
• Ensure splines on the shaft and inside the knob are clean and undamaged; align knob to the shaft and slide fully onto the splines.
• Do not force the knob onto a damaged shaft; forcing can break the knob or valve stem.
• If the burner does not ignite after installation, the igniter or valve assembly may need inspection—this knob only replaces the user control.

This lighter burner assembly provides the spark/ignition component for gas cooktop burners so burners light reliably and cooking can start without delay. It replaces the burned or damaged burner igniter assembly. What it does

• Generates the spark that ignites the gas at a cooktop burner
• Restores ignition when burners fail to light or spark inconsistently
• Stops clicking or weak-spark symptoms caused by a worn igniter
• Helps ensure a stable, visible flame when the gas valve opens

• One lighter burner (igniter/burner) assembly as shown

• Shut off gas supply and power to the appliance before starting work
• Handle ceramic/porcelain and ceramic-tipped igniters carefully to avoid damage
• Basic hand tools required; keep screws and small parts organized during removal
