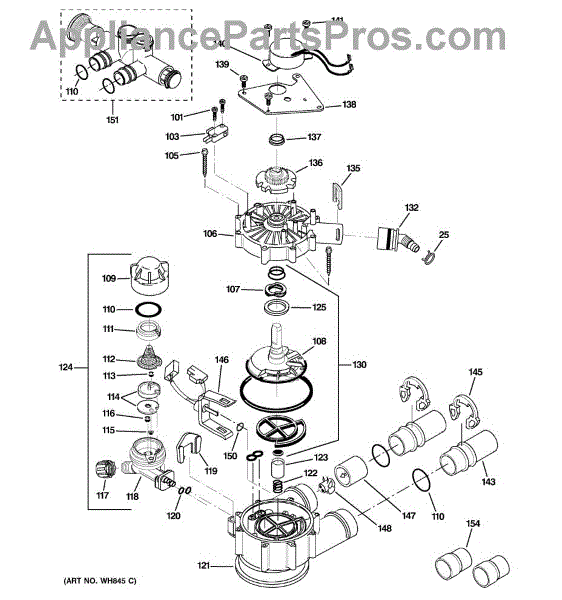

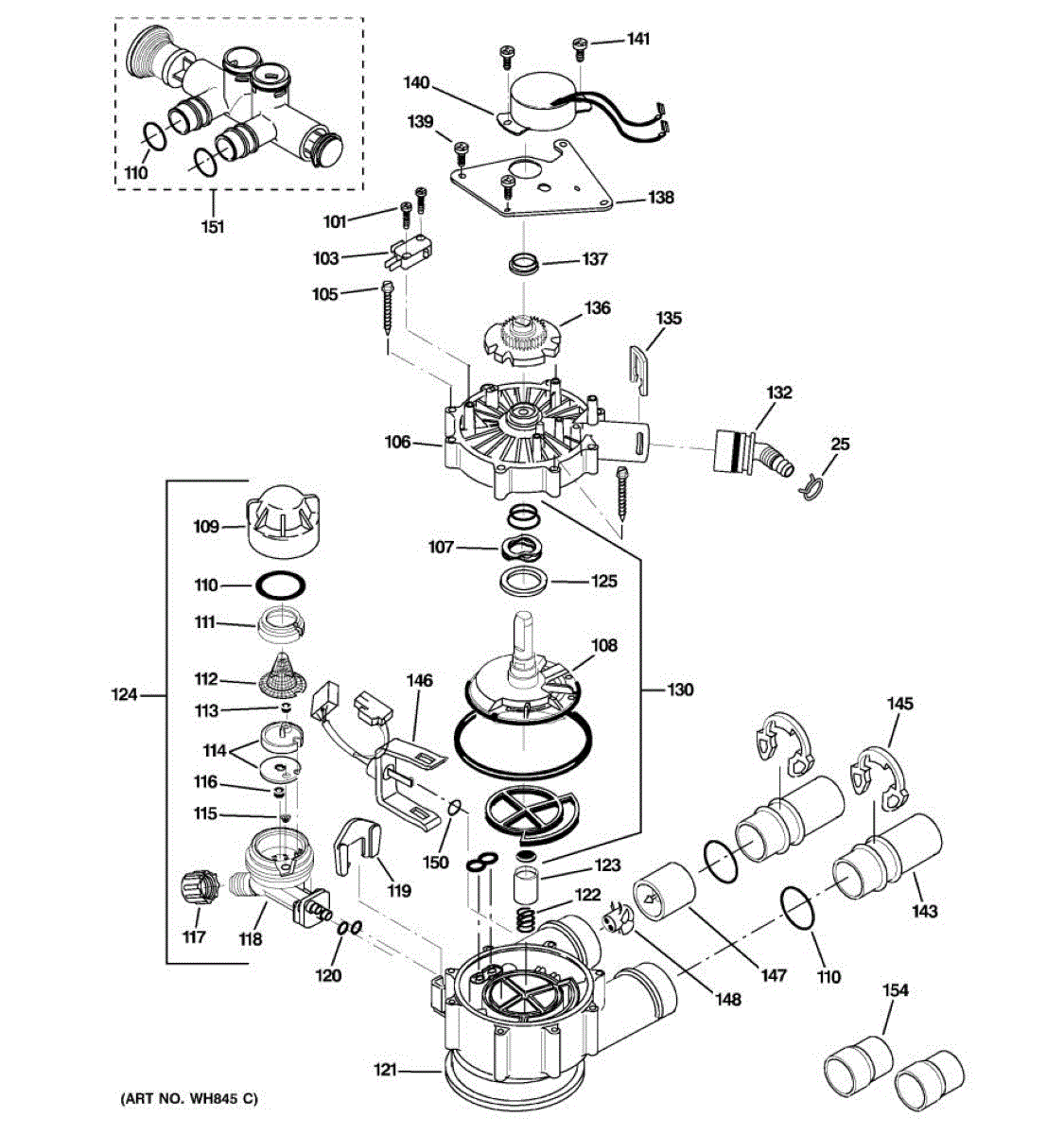

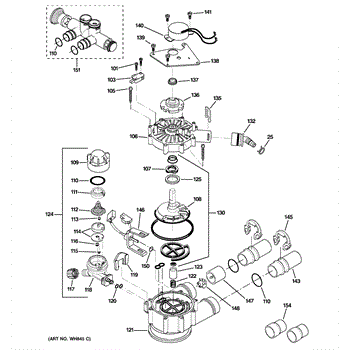

Parts for Ge GXSH39E02: 02 - Pump Parts

This overflow adapter kit helps route excess water away from the appliance to reduce the chance of spills and surface damage. It replaces a worn or missing adapter to restore correct overflow drainage. What it does:

• Connects the overflow outlet to the drain path so excess water is carried away safely.
• Helps stop water from pooling inside or beneath the appliance, reducing leak symptoms.
• Restores a proper seal and fit where a damaged adapter allowed unwanted discharge.
• Works as a direct-fit replacement for the OEM overflow connection to ensure reliable flow.

• Turn off power and shut off the water supply before beginning any work.
• Basic hand tools may be needed; inspect gaskets and hoses for wear and replace if necessary.
• Verify proper fit and secure connections to prevent leaks; test with a short water cycle.

This electrical switch opens and closes a circuit to signal the control when a mechanism is engaged or returns to position, helping restore reliable start/stop and proper cycle sequencing in your appliance. What it does:

• Sends an on/off signal to the control when actuated by a lever or cam
• Helps start, stop, or confirm the position of internal mechanisms
• Common symptoms of a failed switch: selected function won't start, cycles won't advance or stop as expected, or intermittent operation
• A good switch shows proper continuity when actuated during a multimeter test

• 1 electrical switch

• Disconnect power before servicing; shut off water supply if applicable
• Access the switch and note/photograph wire positions
• Transfer wires one at a time; mount the new switch in the same orientation
• Verify operation or continuity before reassembly and full testing

This washer wave is the molded wave-shaped plate that helps move water and clothes during the wash cycle, restoring proper agitation and wash action in compatible top-load machines. What it does:

• Re-establishes the water flow pattern under the laundry to improve agitation and cleaning
• Helps stabilize load movement to reduce excessive vibration or uneven washing
• Can eliminate grinding or scraping noises caused by a damaged or worn wave plate
• Restores correct engagement between the washplate/pulsator and the drive components when worn

• Disconnect power and water before beginning any repair
• Remove the agitator or washplate per the manufacturer's service instructions to access and replace the wave
• Use appropriate tools and replace the part with the exact OEM part number for proper fit

This O-ring creates a tight, leak-resistant seal between mating water system components. Replacing a worn seal helps stop drips and maintain correct pressure and flow in your GE water treatment system.

• Forms the compression seal between housings, manifolds, or valve fittings
• Helps prevent water leaks and seepage at the connection
• Maintains system pressure by reducing bypass at the joint
• Typical failure signs: flattening, cracks, nicks, swelling, or persistent drips even after tightening

• Shut off the water supply and relieve system pressure before service
• Clean the groove and mating surfaces; remove debris, scale, or old residue
• Lightly lubricate with food-grade silicone grease; do not use petroleum-based products
• Seat the O-ring evenly without twisting and tighten fittings to manufacturer guidance—do not overtighten

This replacement door mesh screen restores the protective metal mesh in a microwave door so you can safely view food while it cooks. It fits into the inner door assembly and helps maintain the microwave's shielding and visibility. What it does:

• Replaces a worn, dented, or damaged door mesh that can compromise viewing or protection
• Helps retain microwave energy inside the cooking cavity while allowing visibility of food
• Prevents larger food particles and splatter from entering the door cavity
• Can reduce glare and improve visibility through the door window

• One replacement microwave door mesh screen

• Unplug the microwave or disconnect power before attempting any disassembly
• Replace using the door panel fasteners and clips specified by your model; follow the service manual
• If the door or latch is bent, cracked, or otherwise damaged, replace the entire door assembly rather than only the mesh

This gasket seals the nozzle/vent connection to prevent air or moisture leaks and help maintain proper venting. It fits into the appliance's vent/nozzle opening to restore a tight seal and reduce escaping airflow. What it does

• Creates a seal at the nozzle/vent connection to prevent leaks of air, moisture, or lint.
• Helps maintain proper venting performance and airflow direction.
• Can reduce symptoms such as visible air or moisture escaping around the vent opening or decreased venting efficiency.
• Serves as a replacement for a torn, hardened, or missing vent gasket.

• One nozzle/vent gasket.

• Disconnect power to the appliance before beginning any service.
• Inspect the mounting surface and nozzle for damage or debris; clean before installing the new gasket.
• Seat the gasket fully around the nozzle/vent opening so it lies flat and forms a continuous seal.

Screen cone is a replacement cone-shaped screen that helps keep lint and debris out of the appliance's drain and pump area, reducing clogs and helping protect pump components from wear. What it does:

• Traps lint and loose debris before it reaches the drain and pump assembly.
• Helps maintain proper draining and reduces the chance of recurring clogs.
• Reduces stress and potential damage to the pump impeller caused by foreign debris.
• When worn or missing, common symptoms include slowed draining, recurring clogs, or unusual pump noise.

• Disconnect power to the appliance (unplug or shut off breaker) before accessing the pump/drain area.
• Turn off water supply if required by your model and drain remaining water before removal.
• Replace the old screen cone with the new unit, ensuring it seats fully in the housing; no special tools are typically required.

This fill flow plug controls and limits water flow into the appliance to the specified 0.3 gpm rate, helping the unit fill correctly and preventing overfilling. It's a direct-replacement inlet flow restrictor used on compatible GE water systems. What it does

• Restricts incoming water flow to about 0.3 gallons per minute for proper fill volumes
• Helps maintain consistent water fill levels for ice makers and dispensers
• Can stop excessive flow that may cause slow fills, minor leaks at fittings, or improper ice/dispense operation
• Works as a simple inline replacement to restore correct inlet flow performance

• One fill flow plug (0.3 gpm)

• Replace only when water supply is shut off and the appliance is unplugged or power is disconnected
• Inspect nearby hoses and fittings for wear or leaks when replacing the plug

This nut ferrule is a small compression fitting that secures the refrigerator water line connection to prevent leaks and keep the dispenser/ice maker supplied. It's a direct-replacement hardware piece used where the water tubing meets the inlet fitting. What it does:

• Secures the water tubing to the inlet fitting using a compression seal
• Helps prevent leaks at the water-line connection
• Restores a loose or damaged compression fitting connection
• Commonly replaced when the water line leaks or won't seat properly

• One nut ferrule compression fitting

• Turn off the appliance water supply before replacing the fitting
• Remove the old nut/ferrule and slide the new ferrule onto the tubing, then thread the nut onto the inlet fitting
• Tighten by hand first, then snug with an appropriate wrench; avoid over-tightening to prevent damage
• After installation, turn the water back on and check the connection for leaks

A small rubber O-ring that seals a water or fluid connection to prevent leaks and keep appliance lines watertight. Simple replacement restores a reliable seal at the mating fitting. What it does

• Creates a watertight seal at pipe, hose, or valve connections to stop drips and leaks
• Helps maintain proper pressure by preventing fluid bypass at the joint
• Commonly used where a compact ring seal is required between metal or plastic fittings
• Can resolve symptoms such as visible leaking, puddling under the appliance, or intermittent drips at a connection

• One O-ring seal (1/4 in. x 3/8 in.)

• Turn off and disconnect water supply and power to the appliance before servicing
• Remove the old O-ring, inspect mating surfaces for nicks or debris, and clean before seating the new ring
• Lightly lubricate with a water-safe (food-grade) silicone lubricant if needed for installation; avoid petroleum-based products
• Ensure the O-ring sits evenly in the groove and is not twisted or overstretched during installation

This body valve is the main valve housing that routes and channels water inside the appliance, allowing the unit's water features to open, close, and seal properly. It replaces a worn or damaged valve body to restore correct water flow paths. What it does

• Directs internal water flow between supply lines and appliance components.
• Works with solenoids/seals to open and close water passages as intended.
• Commonly related to symptoms such as no water to dispenser or ice maker, intermittent flow, or water leaking from the valve area.
• Helps stop or redirect water when internal sealing surfaces and passages are intact.

• One body valve

• Turn off power to the appliance and shut off the water supply before starting work.
• Only install on compatible models.
• Inspect O-rings/gaskets and replace if damaged; tighten fittings to prevent leaks without overtightening.
• After install, restore water and power, then check for proper operation and leaks.

This replacement door hinge spring restores proper counterbalance and smooth opening/closing for compatible appliance doors. It helps reduce sagging, slipping, or uneven movement so doors stay aligned and operate safely. What it does:

• Provides tension to the door hinge assembly so the door opens and closes smoothly
• Helps keep the door properly balanced and aligned during use
• Reduces sagging or dropping that can make the door hard to latch
• Supports normal door movement without adding force or resistance

• One replacement door hinge spring as shown

• Install only after unplugging the appliance or switching off power at the breaker
• Use proper tools and support the door during removal/installation to avoid injury or damage
• Release and apply tension carefully per the manufacturer's service instructions

This wave spring bearing is a small suspension/support component that helps stabilize and center the microwave turntable/rotating assembly for smooth, quiet operation. It restores correct alignment and reduces wobble or rubbing during rotation. What it does:

• Supports the turntable/rotating assembly and helps maintain proper alignment during operation
• Absorbs axial movement to reduce wobbling, scraping, and uneven rotation
• Helps prevent excess noise caused by misaligned or unstable turntable parts
• Works as a wear item that may be replaced when rotation becomes noisy or uneven

• Basic disassembly of the microwave turntable support is required; follow your model's service instructions
• Disconnect power before servicing to avoid electrical hazard
• Inspect adjacent parts (coupler, roller ring, glass tray) for wear and replace as needed
• Use proper tools and avoid forcing parts

This drain hose adapter kit connects the appliance drain hose to the drain outlet, restoring a secure, leak-resistant connection so wastewater flows away reliably. Ideal when the existing connector is cracked, worn, or leaking. What it does:

• Replaces a damaged or missing drain hose connection to stop leaks at the hose outlet
• Provides a sealed transition between the drain hose and the appliance/drain line
• Helps restore normal draining and prevents water pooling under or around the appliance
• Works where worn fittings, broken tabs, or loose hose connections cause water loss

• Disconnect power and water supply before servicing the appliance
• Remove the old adapter and clean mating surfaces before installing the new adapter
• Use appropriate clamps or retainers and tighten securely—replace clamps if corroded or damaged
• After installation, run a short cycle and check the connection for leaks

This drain clip secures the washer drain hose to the pump or tub, helping keep the hose in place during operation and reducing the risk of leaks or hose separation. A simple, low-cost replacement to restore proper hose retention. What it does:

• Secures the drain/hose connection to the pump or tub to prevent the hose from slipping off
• Helps reduce water leaks caused by a loose or detached drain hose
• Restores proper alignment and retention after a damaged or missing clip
• Works wherever the OEM drain clip design is used to fasten the hose

• One drain clip

• Disconnect power and turn off water supply before starting any work
• Drain any remaining water from the washer to avoid spills
• Remove the old clip (use pliers if needed) and fit the new clip over the hose and fitting until fully seated
• After installation, run a short wash/drain cycle and inspect for leaks

This motor cam gear assembly replaces a worn or damaged cam gear that times and transfers motion from the motor to the appliance's driven components, restoring proper movement and reducing noise or slipping. What it does:

• Transmits motor rotation to the drive mechanism to control component timing and movement
• Restores proper gear engagement when worn, cracked, or stripped teeth cause slipping
• Helps eliminate grinding, clicking, or unusual gear noise from the motor area
• Can prevent intermittent operation or failure of the driven parts when the cam gear is broken

• Disconnect power before servicing to avoid electric shock or injury
• Follow the appliance's service manual for disassembly and reassembly steps
• Basic hand tools are typically required; inspect surrounding parts for related wear

This small retaining clip secures a bypass or control-valve fitting, keeping the connection locked in place under water pressure. Replacing a worn or missing clip helps prevent leaks and maintain stable, reliable flow through the system.

• Locks the fitting or yoke into the valve body/manifold to prevent it from backing out
• Helps maintain a sealed connection to reduce drips or seepage at the joint
• Restores proper retention when the original clip is cracked, bent, or missing
• Common symptoms include leaks at the valve connection, a fitting that won't stay seated, or difficulty keeping the unit in service/bypass positions

• Shut off the water supply; place the system in bypass and relieve pressure at a nearby faucet
• Disconnect electrical power to the unit, if applicable
• Pull the old clip straight out; fully seat the fitting, then press the new clip into the groove until it is fully engaged
• Restore water slowly and check for leaks before returning to normal operation

This turbine and support assembly replaces a worn blower wheel and its support to restore exhaust airflow and reduce noise. It's a direct-fit service part used where a damaged turbine causes weak ventilation or vibration. What it does:

• Spins to drive airflow for exhaust/ventilation in the appliance
• Restores proper venting and drying performance when the turbine is damaged or broken
• Reduces grinding, rattling, or scraping noises caused by a worn wheel or loose support
• Helps prevent airflow restrictions that can lead to overheating or poor operation

• Disconnect power to the appliance before starting any repair.
• Access and removal may require removing panels; keep track of screws and fasteners.
• Inspect surrounding housing and ducting for debris or damage before reassembly.

This turbine and support assembly replaces a worn blower wheel and its support to restore exhaust airflow and reduce noise. It's a direct-fit service part used where a damaged turbine causes weak ventilation or vibration. What it does:

• Spins to drive airflow for exhaust/ventilation in the appliance
• Restores proper venting and drying performance when the turbine is damaged or broken
• Reduces grinding, rattling, or scraping noises caused by a worn wheel or loose support
• Helps prevent airflow restrictions that can lead to overheating or poor operation

• Disconnect power to the appliance before starting any repair.
• Access and removal may require removing panels; keep track of screws and fasteners.
• Inspect surrounding housing and ducting for debris or damage before reassembly.

This rubber O-ring seal creates a watertight connection at a pump or hose junction to help prevent leaks and keep the appliance running normally. Fits into a groove to compress and block water passages. What it does:

• Seals pump, hose or plumbing connections to prevent water leaks at joints
• Helps maintain correct pressure and flow at the sealed connection
• Commonly replaced when you see leaks, puddling under the appliance, or dripping near the pump area
• Small part that restores a secure seal after service or when the old ring is worn or damaged

• Disconnect power and shut off the water supply before servicing the appliance
• Drain remaining water from hoses or the pump housing to avoid spills
• Inspect mating surfaces for nicks or debris and replace if damaged for a proper seal
• Lubricate lightly with water or a manufacturer-recommended lubricant to aid installation
