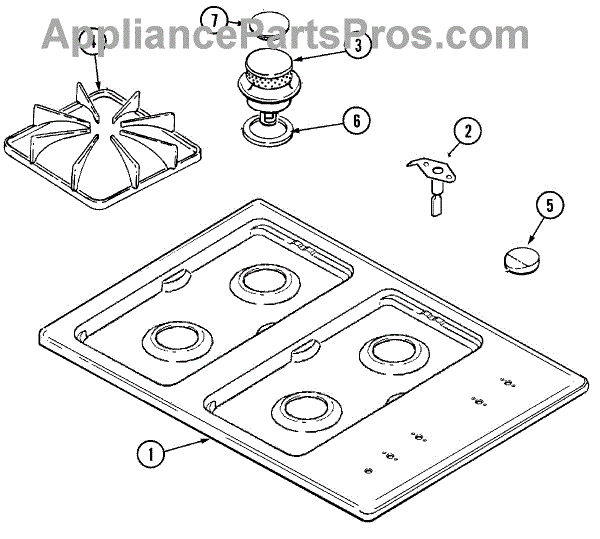

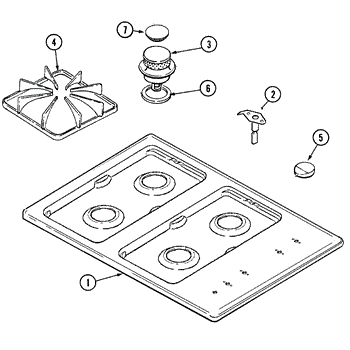

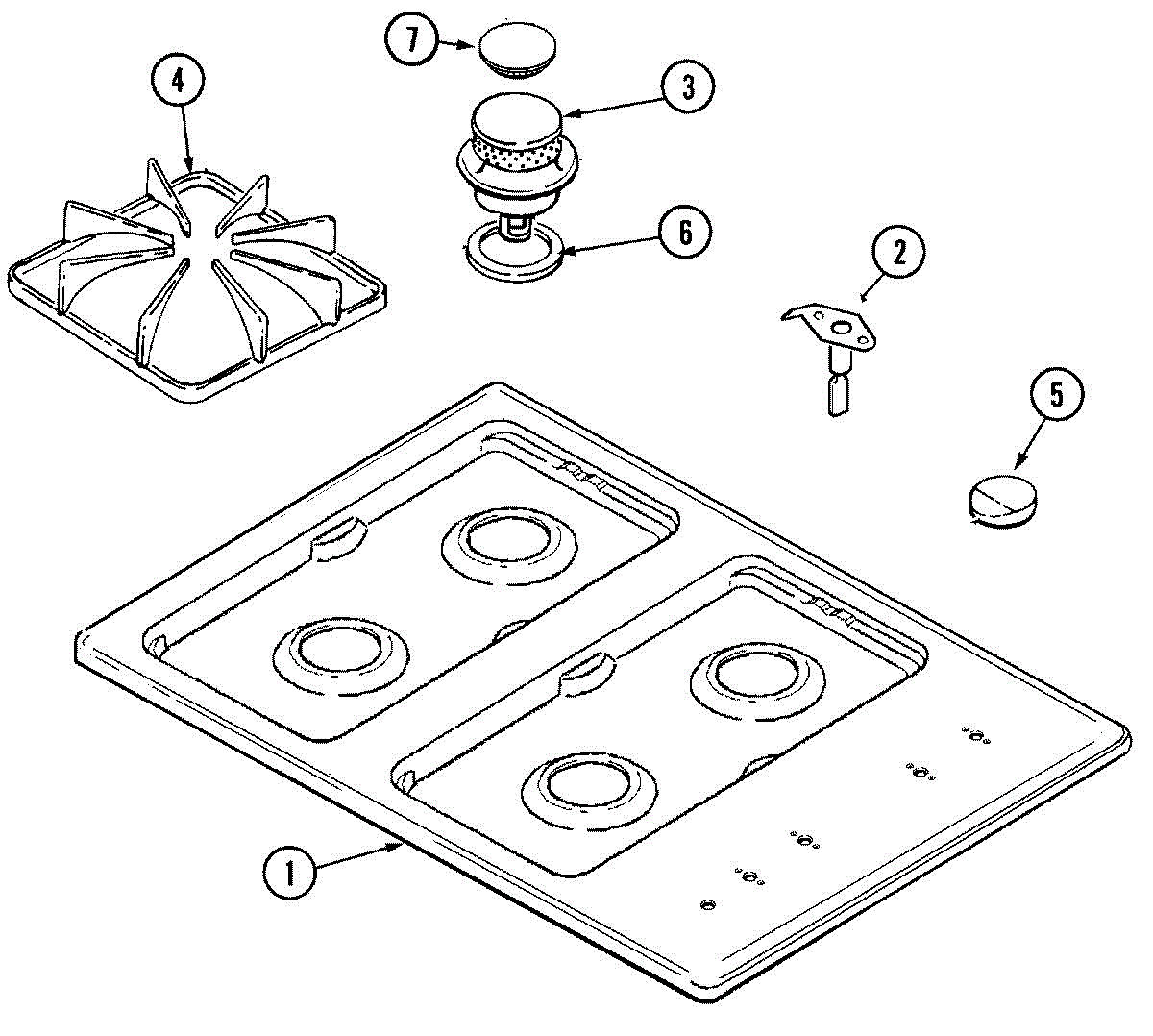

Parts for Maytag MGC5430ADW: 02 - Top Assembly Parts

This grommet is used on the bottom feet of a gas stovetop grate. Color: black. It measures about 1/2 an inch in diameter.

This sealed burner igniter is the spark electrode for a gas cooktop burner. It creates the ignition spark at the burner head so your surface burner lights reliably when you turn the control knob.

• Produces the high-voltage spark that ignites gas at a sealed surface burner
• Helps resolve a single burner that won't light or lights intermittently
• Common signs: no visible spark at that burner, continuous clicking without ignition, or a cracked/chipped ceramic insulator
• A shorted or misaligned electrode can cause the spark to jump to ground instead of the burner

• Disconnect power and shut off gas supply before servicing
• Remove the burner cap and head; lift the cooktop if needed to access the electrode
• Handle the ceramic insulator carefully; disconnect/reconnect the wire lead and reuse mounting hardware
• Align the tip toward the burner port and secure; verify a strong, consistent spark before reassembly

The Top Burner Spark Igniter is an OEM part for Whirlpool ranges. It is responsible for igniting the gas on the stove burners, allowing you to start cooking quickly and efficiently. The spark igniter produces a spark that lights the gas, providing the flame needed for cooking.

Causes of a bad igniter can include wear and tear over time, buildup of food debris or grease that interferes with the spark, or electrical issues that prevent the igniter from generating a spark.

Symptoms of a bad Top Burner Spark Igniter include:

• Burner not igniting
• Weak or no spark
• Clicking sound without ignition
• Delayed ignition of the burner

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This burner seal assembly replaces the gasket-like ring that sits around a cooktop surface burner, helping keep spills and debris out of the burner area for easier cleaning and consistent ignition. What it does:

• Seals the gap between the cooktop and surface burner to reduce debris and liquid intrusion
• Helps prevent food and grease from falling into the burner cavity
• Supports stable burner placement for reliable ignition and flame performance
• Can reduce the need for frequent deep cleaning under burners

• One burner seal assembly

• Disconnect power and shut off gas supply before servicing
• Allow the cooktop and burners to cool completely before attempting removal/installation
• Remove burner heads and lift out the old seal, then seat the new seal evenly around the burner opening

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold

This is a replacement sealed burner cap. This is a genuine OEM part made by Whirlpool and has been sourced directly from the manufacturer. This part is intended to replace a broken, misplaced, or defective burner cap in various models of gas ranges and stoves. Electrodes are included.This sealed burner cap protects the surface burner and allows the cooktop to light properly. If the gas igniter is glowing but does not ignite, the stove won't start up, or there will be a gas smell. Proper tools may be required to replace this part. Always ensure the appropriate safety precautions are adhered to when attempting to fix any appliances. Make sure that the stove is entirely disconnected from gas and power before starting the repair work. For more accurate information on how and where to install this sealed burner cap, the appropriate owner's manual and included diagrams should be referenced.As an authentic replacement part, this burner cap is suitable for use on several different models of gas stoves, ranges, and cooktops manufactured by Whirlpool, Maytag, KitchenAid, Amana, and other Whirlpool brands. This is a genuine part made of high-quality, durable materials and is sold individually.

Color: Gray.

This white control knob fits an infinite switch for a surface element. It lets you turn the burner on/off and smoothly adjust heat, restoring secure control and a clean look when the original knob is cracked, stripped, or missing.

• Attaches to the infinite switch to turn the surface element on/off and adjust heat
• Restores a secure grip and engagement when the old knob is cracked, loose, or stripped
• Helps ensure proper alignment with the control markings for accurate settings
• Common symptoms: knob broken, missing, wobbly, hard to turn, or won't stay on the shaft

• Turn off power to the appliance to prevent unintended activation during replacement
• Pull the old knob straight off the switch shaft; avoid prying on the control panel
• Align the new knob with the shaft orientation and press straight on until fully seated
• Verify the pointer aligns to Off before restoring power

This part has been discontinued and is no longer available. This gasket is no longer needed.

A removable burner cap that covers the burner head to help direct flame and promote even heating on gas cooktops. Replaces a damaged or missing cap to restore proper burner performance and appearance. What it does:

• Sits on top of the burner head to shape and protect the flame for consistent heat distribution
• Helps prevent uneven cooking, weak or erratic flames, and flame lifting from the burner head
• Protects the burner head from spills and debris that can interfere with ignition
• Restores a secure seating surface so the burner ignites and burns as intended

• Turn off the gas supply and ensure the cooktop is completely cool before servicing
• Lift off the old cap, clean the burner head and surrounding area of debris, then set the new cap in place so it seats flat
• No tools typically required; seat by hand and test burner operation before regular use
