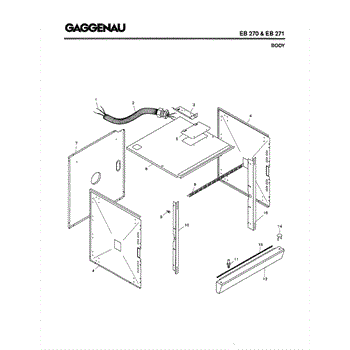

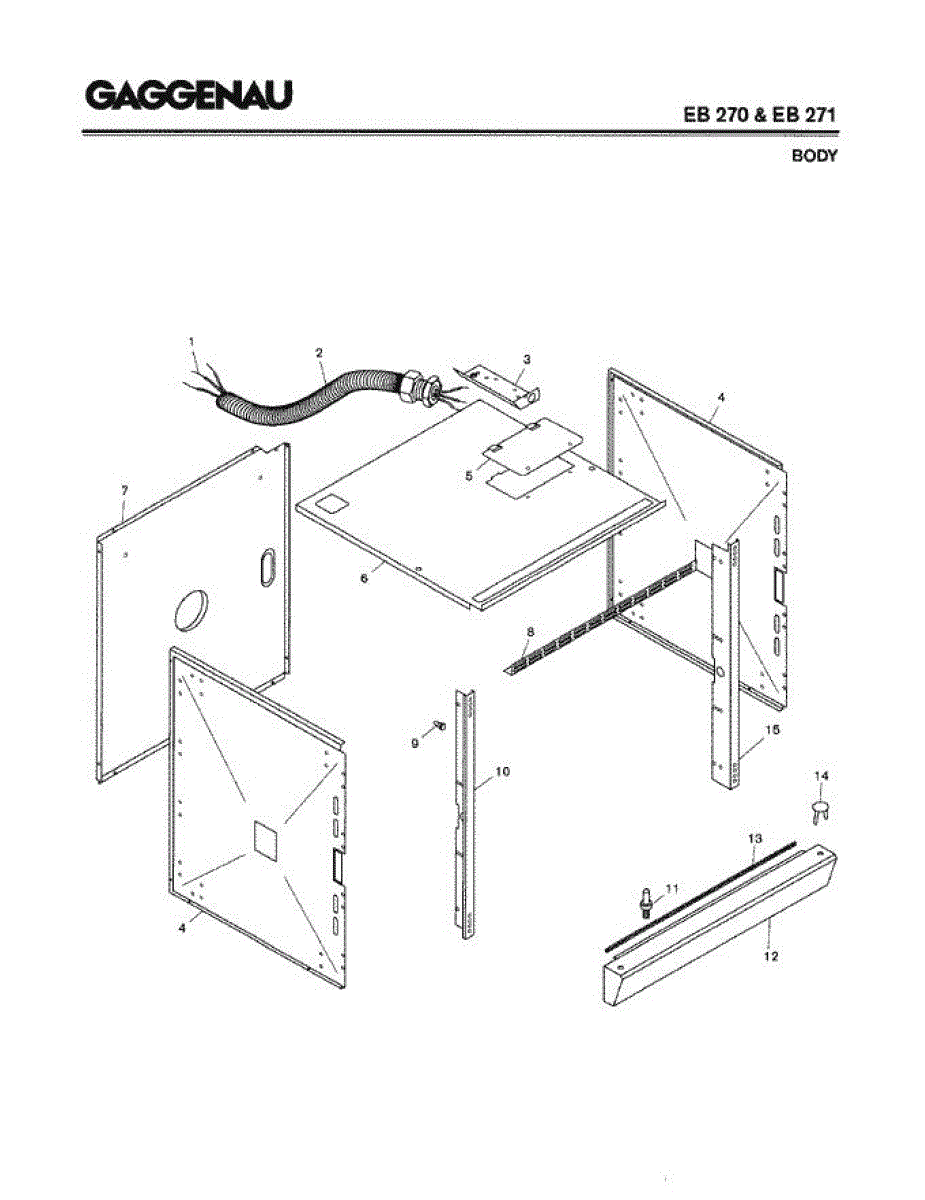

Parts for Gaggenau EB271-600: 03 - Body Parts

This wire harness with connector routes power and signals between appliance components to restore reliable electrical connections and component communication. It replaces damaged or worn wiring that can cause intermittent operation or no power at affected circuits. What it does

• Provides a matched connectorized wiring assembly for CK 260 NKT applications to ensure correct pin-to-pin connections.
• Restores power and signal continuity to the associated control or component when the original harness is broken, frayed, or corroded.
• Helps eliminate intermittent failures, errors, or component non-response caused by loose, burned, or damaged wires.
• Maintains factory-style routing and secure connector fit to reduce strain on terminals.

• One wire harness with connector as pictured.

• Disconnect power to the appliance before starting any repair to avoid shock or damage.
• Verify the harness part number and connector orientation match the original before installation.
• Remove and replace carefully to avoid bending terminals; ensure connectors fully seat and locking tabs engage.

This top-front frame rail replaces the upper support rail that secures and aligns the appliance front panel for a stable fit and proper door/panel operation. It restores correct front-frame alignment and reduces panel movement or gaps. What it does:

• Provides structural support for the appliance's top/front frame area.
• Helps maintain correct door or panel alignment to prevent binding and uneven gaps.
• Restores mounting points used by the front panel and related trim pieces.
• Reduces vibration or rattle caused by a worn or damaged top frame rail.

• One top-front frame rail

• Refer to your model's service manual for exact removal and reinstallation procedure.
• Power off and disconnect the appliance before beginning work; remove any applicable trim and fasteners carefully.
• Handle sheet metal edges with care and use appropriate tools to avoid damage or injury.

This panel fastener is a small retainer used to secure an appliance exterior or control panel, keeping the panel aligned and reducing vibration or rattling. It's a direct-fit replacement sized for the original mounting point. What it does

• Secures the appliance panel or trim to the cabinet to prevent looseness and rattling.
• Keeps panel edges aligned to maintain a flush appearance.
• Replaces worn, stripped, or missing fasteners that allow panel movement.
• Helps maintain a stable mounting for switches, controls, and trim pieces.

• Disconnect power to the appliance before beginning any repair.
• Remove the panel or trim carefully to avoid damaging clips or wiring.
• Install the fastener in the original mounting hole and tighten until snug; avoid overtightening which can strip threads or crack panels.
• If screws or threads are damaged, replace matching hardware or an authorized parts guide.
