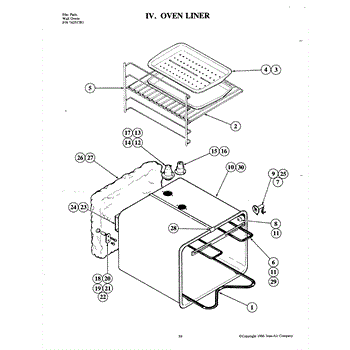

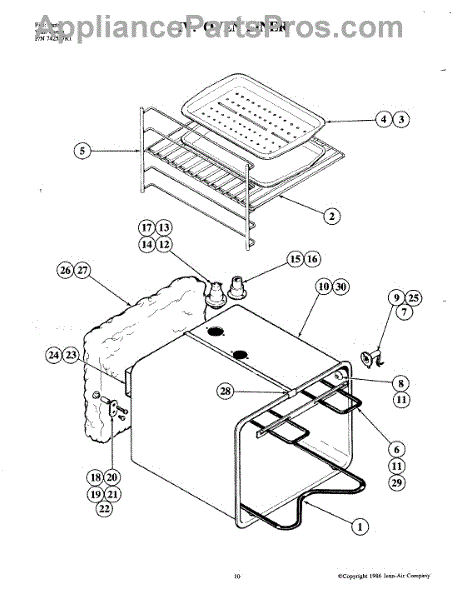

Parts for Jenn-Air W181: 03 - Body Parts

The Bake Element is an OEM part for Whirlpool ranges. This heating element is responsible for providing the necessary heat for baking and roasting by distributing heat evenly throughout the oven cavity, ensuring consistent cooking results.

Over time, bake elements can wear out or fail due to regular use, exposure to high temperatures, or accidental damage during cleaning.

Symptoms of a bad bake element include:

• Oven not heating to the set temperature
• Uneven cooking or baking results
• Visible signs of damage such as burns, blisters, or breaks in the element
• The element not glowing red when in use

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Broil Pan Set is an OEM part for Whirlpool ovens. This set includes a broil pan and an insert, designed to catch drippings and ensure even heat distribution during broiling, allowing for perfectly cooked and crisp results.

Causes of a bad broil pan set can include prolonged exposure to high temperatures, which may lead to warping or distortion of the pan. Additionally, frequent use without proper cleaning can result in rusting, chipping, or buildup of residues that compromise the pan's functionality and safety.

Symptoms of a bad broil pan set include:

• Warping or bending of the pan
• Presence of rust or corrosion
• Surface chipping or flaking
• Difficulty in achieving even cooking results

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Broil Pan Set is an OEM part for Whirlpool ovens. This set includes a broil pan and an insert, designed to catch drippings and ensure even heat distribution during broiling, allowing for perfectly cooked and crisp results.

Causes of a bad broil pan set can include prolonged exposure to high temperatures, which may lead to warping or distortion of the pan. Additionally, frequent use without proper cleaning can result in rusting, chipping, or buildup of residues that compromise the pan's functionality and safety.

Symptoms of a bad broil pan set include:

• Warping or bending of the pan
• Presence of rust or corrosion
• Surface chipping or flaking
• Difficulty in achieving even cooking results

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This broil element mounts at the top of the oven cavity and delivers the intense radiant heat needed for broiling. Replace a failed element to restore reliable top heat and consistent broil results in your range or wall oven.

• Provides strong, direct radiant heat from the top of the oven during the Broil cycle
• Common signs of failure: no broil heat, uneven broiling, visible breaks/blistering, or tripping the breaker when Broil is selected
• Restores proper broiling when the original element is open or shorted
• Also known as the upper/top oven element; verify fit with your model number

• Disconnect power at the breaker or unplug the appliance before servicing
• Allow the oven to cool completely and wear cut-resistant gloves
• Remove mounting screws, gently pull the element forward, and support the wires so they don't slip back through the liner
• Transfer wires one at a time to the new element, secure the element, check connections, restore power, and test

This 10-32 machine screw secures panels, brackets, and internal assemblies in your appliance. Replacing missing or stripped hardware restores a tight, rattle-free fit and helps keep components properly aligned.

• Provides a threaded fastener for metal-to-metal connections
• Helps maintain correct alignment of panels, brackets, and housings
• Replaces missing, rusted, or stripped screws
• Symptoms include loose or vibrating panels, gaps/misalignment, or hardware that won't tighten

• Disconnect power (and shut off gas/water, if applicable) before servicing
• Match the 10-32 thread and length to the original screw for the location
• Start by hand to avoid cross-threading; tighten snugly without over-torquing
• Retain and reinstall any original clips, spacers, or washers used in your model

This oven temperature probe senses the cooking cavity temperature so the range control can regulate heat for accurate baking and roasting. It replaces a failed or intermittent sensor to restore correct temperature feedback. What it does:

• Measures oven temperature and sends the signal to the control board for proper heating control
• Helps correct symptoms such as oven not reaching set temperature, inconsistent baking, or temperature error codes
• Provides the oven control with the feedback needed for timed cooking and self-clean cycles
• Replaces a damaged or open/shorted probe that causes incorrect temperature readings

• One temperature probe

• Disconnect power (unplug or shut off breaker) before servicing to avoid shock
• Handle the sensor and connector gently to avoid damage; route and secure wiring as originally installed
• Reconnect wiring fully and verify secure connection; test oven function and temperature accuracy after installation

Color: Stainless steel

The Screw is an OEM part for Whirlpool appliances. This specific screw is used in various locations within Whirlpool appliances, securing components and ensuring the stability and proper alignment of parts. It is designed to fit precisely and maintain a firm hold, contributing to the overall functionality and safety of the appliance.

Over time, screws can become worn or stripped due to regular use, corrosion, or over-tightening.

Causes of a bad screw include wear and tear, exposure to moisture leading to rust, and over-tightening which can strip the threads.

Symptoms of a bad screw include:

• Loose or wobbly components
• Misalignment of parts
• Noise due to vibrating or loose parts
• Difficulty in securing or removing the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

This part has been discontinued by the manufacturer and is no longer available.

This hex-head sheet metal screw secures appliance panels, brackets, and trim for a tight, rattle-free fit. Replace missing or stripped fasteners to keep covers and components firmly in place and restore proper alignment.

• Fastens sheet-metal parts, brackets, and trim using a hex drive
• Replaces worn, rusted, missing, or stripped screws
• Helps reduce vibration and rattling from loose panels
• Common signs you need this fastener: head or threads stripped, screw won't tighten, panel or handle coming loose

• Unplug the appliance before service; turn off water supply if working near water lines
• Use the correct nut driver or socket to avoid rounding the head
• Replace one fastener at a time to maintain alignment; do not overtighten
• Match screw type/length to the original location as specified by the manufacturer
