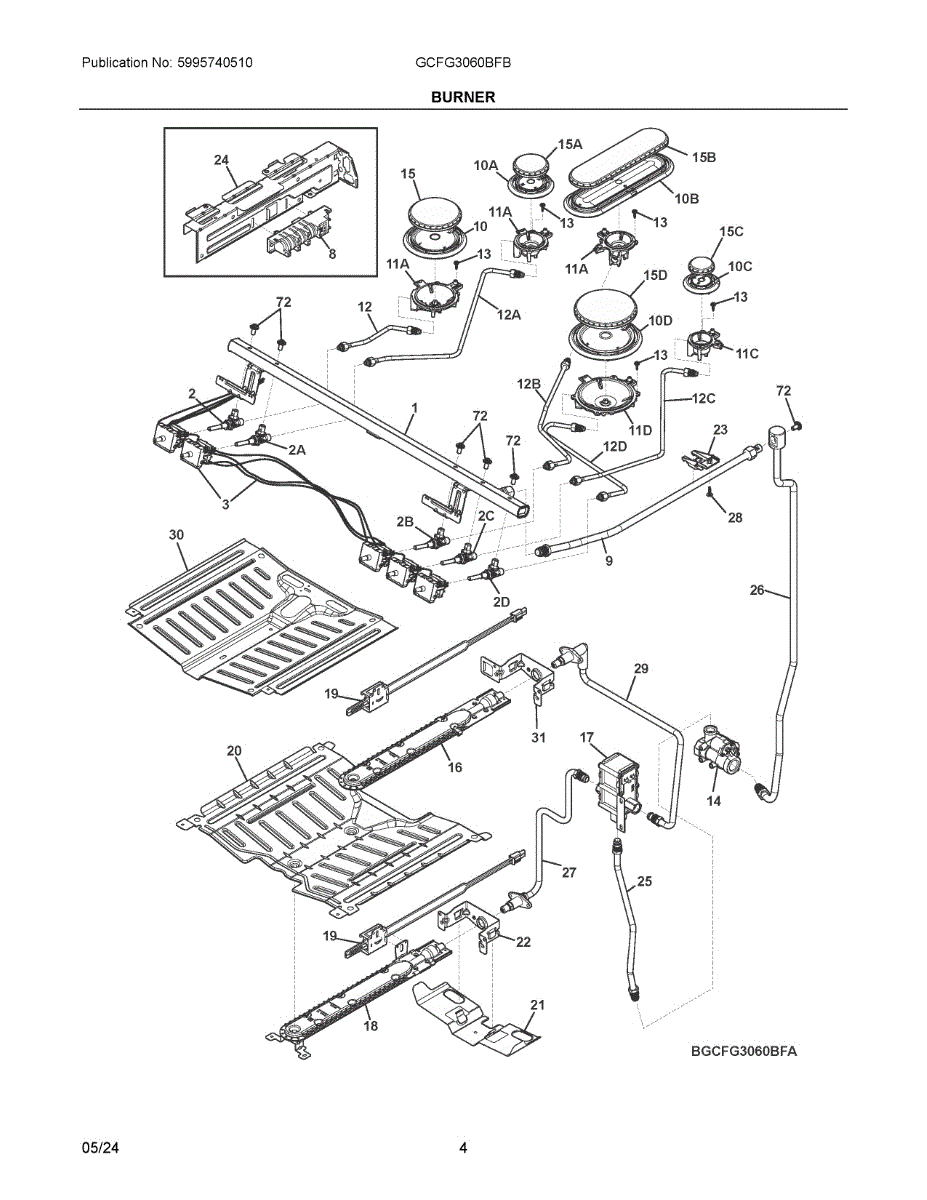

Parts for Electrolux GCFG3060BFB: 03 - Burner Parts

This is a surface burner valve for a gas range that controls the flow of gas to an individual cooktop burner. It connects to the burner knob and regulates gas output to adjust flame height. Replace this valve if a burner won't light, the flame cannot be adjusted, or you notice gas leaking near the control knob area.

The Burner Valve is an OEM component specifically designed for Frigidaire ranges. It controls gas flow to individual burners, providing a selection of different heat levels when operating the cooktop.

Causes of a bad burner valve can include wear over extended usage periods, damage from water, or gas blockage impeding operation.

Symptoms of a bad burner valve include:

• Inability to light specific burners or adjust the flame height
• Uneven or intermittent burner performance
• Gas leaks at burner valve connections
• Recurring error codes due to valve malfunctions

Replacing with this OEM valve restores full functionality to the range cooktop. Compatible with existing gas lines, it supports safe and reliable cooking performance.

This OEM Frigidaire replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models. Replace before issues worsen.


Burner won't turn on or light? This gas valve controls gas flow to surface burners on your range. Common fix for non-functioning burners. Moderate DIY.

Fix a burner that won't light or sparks without gas flow. This surface burner valve controls gas to one burner. Replace if knob turns but burner won't ignite.

This is a top burner gas valve that controls the flow of gas to a surface burner on a gas range. It connects to the burner control knob and regulates the flame from low to high settings. Replace this valve if a surface burner won't ignite, the flame is difficult to adjust, or you detect a gas smell even when the knob is in the off position.

Replace your gas range wiring harness to restore electrical connections between components. Fixes control malfunctions and accessory issues. Verify fit with your model number before ordering.

Gas burners won't ignite or igniter clicks continuously? The spark module generates the electrical spark to light burners. Direct plug-in repair.

Replace a cracked or corroded oval burner crown on your 10,000-BTU gas range burner. Restores even heating and reliable ignition. Verify fit with your model.

Surface burner crown that mounts on sealed gas burners to distribute gas through flame ports. Replace if worn, clogged, cracked, or missing.

This extra-large burner crown replaces the outer decorative cap on a cooktop surface burner, restoring proper flame distribution and cookware support for large pots and pans. Durable finish helps maintain even heating and appearance. What it does:

• Covers and protects the burner head while directing flames for even heating
• Supports large cookware on the cooktop surface
• Can reduce uneven or weak flames caused by a damaged or warped crown
• Restores proper fit and appearance for an extra-large surface burner

• One extra-large burner crown

• Ensure the cooktop is completely cool and gas or power is turned off before starting
• Remove and replace gently to avoid bending the burner head; no special tools usually required
• Follow the appliance manufacturer's instructions and safety guidelines

Medium burner crown for gas cooktops and ranges. Sits atop the burner base to shape and distribute flame. Replace if cracked, chipped, or damaged.

Small crown-style burner cap for gas cooktops. Sits atop the burner head to distribute flame evenly. Replace if cracked, chipped, or missing.

Oven won't heat or takes forever to preheat? This hot surface igniter lights the bake burner in gas ranges. Moderate DIY repair, about 30 minutes.

Oven won't heat or takes too long to preheat? This ignitor/orifice assembly restores proper gas flow and ignition for reliable oven heating.

Oven won't heat or takes forever to preheat? This hot surface igniter glows to ignite your gas range's bake burner, restoring consistent oven heating.

This ignitor/orifice assembly sits at the surface burner and provides both the ignition spark and metered gas flow for clean, reliable light-off. Replace it to restore quick starts and consistent flame quality. What it does:

• Provides the ignition spark at the burner via the electrode
• Meters gas through the fixed orifice to set proper flame size
• Wear, cracks, or blockage here can cause clicking with no flame or a burner that won't light without a match
• A damaged or restricted orifice may lead to small, uneven, or yellow flames

• Disconnect electrical power and shut off the gas supply before servicing
• Allow the cooktop to cool; handle the ceramic electrode carefully to avoid damage
• Transfer any burner-specific hardware as needed and secure the spark lead connection
• After reassembly, restore gas and check all joints for leaks with a soapy-water solution; verify proper spark and flame

This replacement drain tube routes condensate away from the evaporator area to the drain pan, helping prevent water buildup and frost problems. Fits specific Frigidaire refrigerator models—use OEM part number for confirmation. What it does

• Channels defrost and condensation water to the drain pan to prevent pooling inside the cabinet
• Helps stop water leaks and ice buildup in the freezer or fresh food compartments
• Restores proper drainage when the original tube is cracked, pinched, or clogged
• Works with the refrigerator's defrost/drain system to maintain normal cooling performance

• Disconnect power and water supply before beginning any repair
• Inspect connections and hose clamps; replace clamps if corroded or damaged
• Ensure proper routing and secure attachment to prevent kinks or pinching

Gas range tube component for connecting gas supply or ignition system. Replace if cracked, damaged, or leaking to restore proper gas flow and safety.

This is a gas burner tube that connects to the left front burner assembly on a gas range. It channels gas from the valve to the burner for proper ignition and flame distribution. Replace this tube if you notice gas odor near the burner, uneven flames, or if the left front burner fails to ignite properly.

Gas burner tube for gas ranges. Connects gas valve to burner assembly. Replace if cracked, damaged, corroded, or leaking. Essential part for safe operation.

This is a gas supply tube that connects to the left rear burner on a gas range. It delivers gas from the manifold to the burner for ignition and flame production. Replace this tube if you notice a gas smell near the burner area, if the left rear burner won't ignite properly, or if the tube shows visible corrosion or damage.

Regulates gas flow from the supply line to your range burners. Replace if cracked, leaking, or damaged to restore proper fuel control and flame size.

Plastic cap cover for gas range burner assemblies. Replaces cracked, melted, or missing caps that expose fasteners. Restores finished appearance.

Snap-on burner cap for gas cooktops and ranges. Restores finished appearance and protects components. Replace if cracked, chipped, or missing.

Replacement burner cap for gas cooktops and ranges. Covers and protects the burner assembly. Needed when original cap is cracked, broken, or missing.

Replacement burner cap for gas cooktops and ranges. Covers the burner assembly for proper flame distribution. Needed when original is cracked or missing.

Replace a cracked, chipped, or missing burner cap on your gas range or cooktop. Restores a clean look and protects the burner assembly underneath.

Gas range won't ignite or heat properly? This safety valve controls gas flow to burners and oven. Straightforward replacement restores reliable operation.

Fix an oven that won't heat or takes too long to preheat. This igniter glows but may be too weak to open the gas valve. DIY repair in under an hour.

Replacement mounting bracket for gas ranges. Secures panels and components in place. Install when original is cracked, bent, broken, or missing.

This is a gas supply tube that connects the regulator to the safety valve on a gas range. It carries gas from the pressure regulator to the safety valve assembly, ensuring proper fuel delivery to the burners or oven. Replace this tube if you detect a gas smell near the connection points, notice visible corrosion or cracks, or if the tube is leaking.

This replacement tube routes water to the ice maker or dispenser so your appliance can fill ice trays and dispense water reliably. It restores a sealed water path to prevent leaks and ensure proper filling. What it does

• Carries water from the supply or valve to the ice maker or dispenser
• Restores proper ice maker fill and water dispensing when a cracked or clogged tube is causing underfilling
• Helps stop leaks by replacing brittle, split, or deteriorated tubing
• Works with the appliance's existing fittings and clamps to maintain a sealed connection

• One replacement water tube

• Turn off the water supply and unplug the appliance before starting work
• Inspect fittings and clamps; reuse if undamaged or replace with equivalent clamps for a secure seal
• Confirm tube routing matches the original to avoid kinking or interference with moving parts

This is the gas supply tube that delivers gas from the main valve to the bake burner at the bottom of the oven. It ensures a steady flow of gas for proper heating during baking. Replace this tube if you smell gas near the oven, the bake burner won't ignite, or you notice visible damage, corrosion, or cracks in the existing tube.

Replace your gas range burner tube assembly when damaged, cracked, or missing. This component connects the gas valve to the burner, ensuring proper fuel delivery.

Replacement screw for gas range panels and components. Needed when original fastener is missing, stripped, or damaged to restore secure fit and alignment.

This screw is a factory replacement fastener used to secure panels, trim, or internal components so parts stay aligned and stable during normal use. It restores proper fit and reduces rattles from loose hardware. What it does

• Secures panels, brackets, or trim pieces to the appliance chassis
• Restores proper alignment when hardware is missing or worn
• Helps stop vibration or rattling caused by loose or missing fasteners
• Replaces stripped, damaged, or lost screws to allow correct reassembly

• Screw

• Disconnect power and water to the appliance before servicing when applicable
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or part damage
• Wear gloves to protect hands from sharp edges and steady small parts during installation

Replacement mounting screw for ovens and ranges. Secures panels, brackets, trim, and internal components. Replace missing or stripped screws to restore fit.

Converts your gas range from natural gas to liquid propane fuel. Includes all orifices and instructions. Needed when switching fuel types or missing parts.
