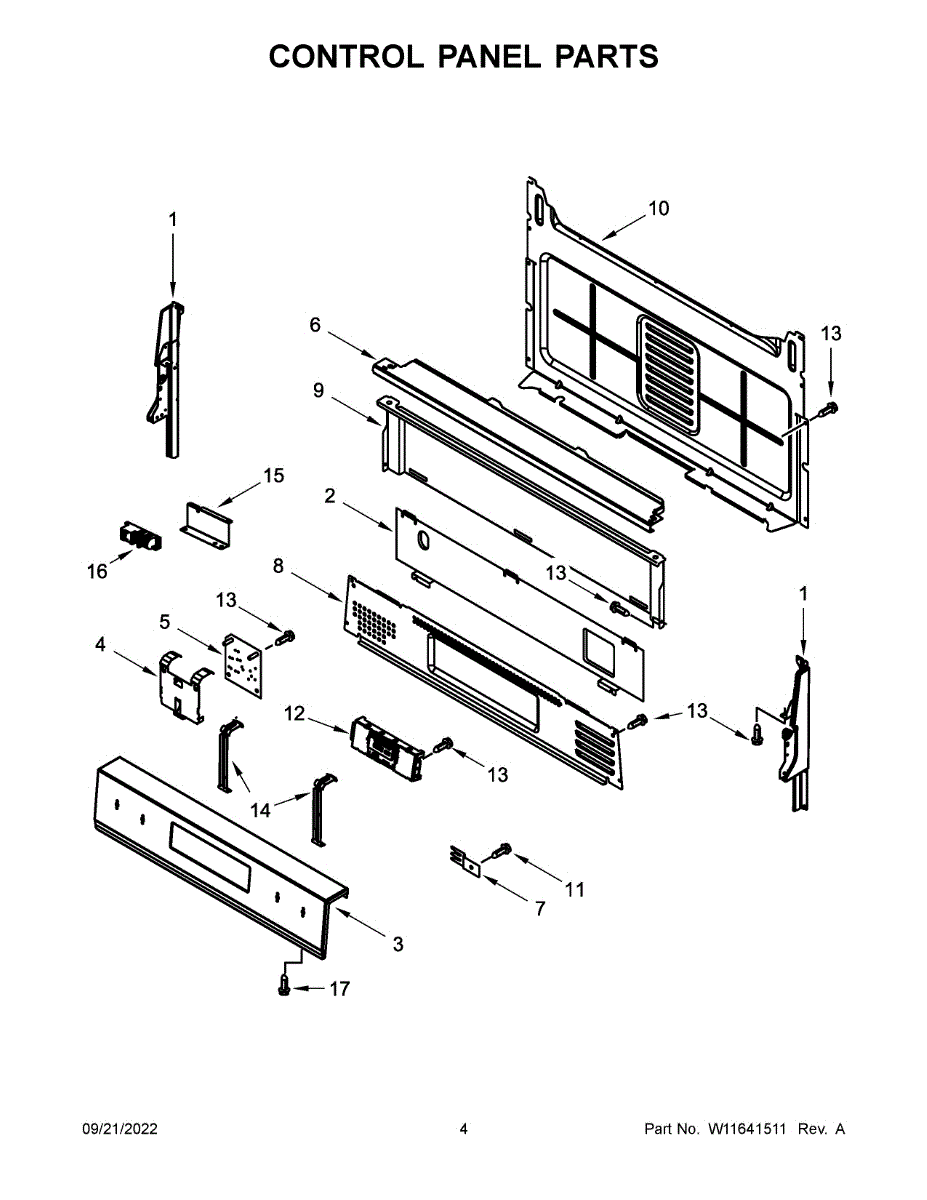

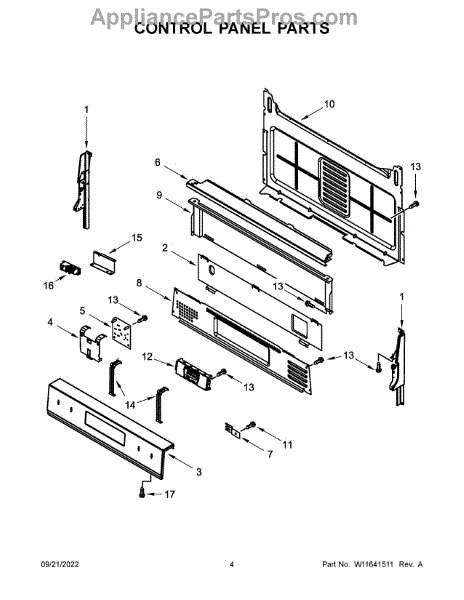

Parts for Whirlpool WFG515S0MB0: 03 - Control Panel Parts

Color: White  Note: Left side endcap

Black left side end cap panel for electric and gas ranges. Replaces cracked, broken, or damaged side trim pieces. Installs on left exterior edge.

Right side end cap panel for ranges in black. Replaces cracked, broken, or missing end panel. Covers and protects the exterior side of your range.

White plastic end cap that covers the right side panel edge of your range. Replaces cracked, broken, or missing endcaps to restore a finished appearance.

Lower heat shield for gas ranges. Protects internal components from heat damage. Replace if cracked, warped, or missing to maintain proper heat distribution.

This electronic control panel is the console assembly that houses the touch pads, indicators and user controls so you can select cycles and settings and see status at a glance. It restores proper input and display operation for the appliance. What it does:

• Provides the user interface: buttons, touch pads and status LEDs/indicators
• Sends user selections to the main control for cycle selection and option changes
• Displays cycle status and error indicators so you can monitor operation
• Common symptom: unresponsive or intermittent buttons, blank or missing indicators, or controls that don't register inputs

• Disconnect power to the appliance before starting any work
• Handle the assembly carefully and avoid touching circuit contacts or connector pins
• Reconnect ribbon and wire harnesses securely and verify proper seating before testing

If your gas range buttons aren't responding or the display is blank, the control panel may need replacement. Requires screwdriver and basic skills.

Gas range won't ignite or no clicking when preheating? The spark module generates sparks to ignite burners. Intermediate repair, requires panel access.

Support bracket for gas ranges. Secures and stabilizes internal components. Replace if bent, cracked, or broken to restore proper structural support.

Rear cover panel for gas ranges. Replaces cracked, damaged, or missing covers on the back of your range. Restores appearance and protects components.

Metal heat shield that protects range components from direct heat damage. Installs near oven cavity. Replace when original is warped, cracked, or missing.

Rear cover panel for gas ranges. Replaces cracked, broken, or missing rear housing. Restores the finished appearance of your range's back panel.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This LCX 1.0 electronic oven control replaces a failed range control to restore oven functions and timed operations. It's used on gas ranges with a pyrolytic self-clean option and matches OEM control behavior and layout. What it does

• Regulates oven temperature, bake/ broil cycles, clock and timed cook functions
• Controls pyrolytic self-clean cycle sequencing for safe, high-heat cleaning
• Works with the range's power and safety interlocks to enable normal oven operation

• One oven electronic control board (LCX 1.0) — exact configuration as pictured

• Disconnect power (unplug or shut off breaker) before attempting service
• Handle the control by its edges and avoid static discharge; ground yourself
• Verify proper wiring and secure connections; refer to the range service manual for terminal identification

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Secures range components and panels to maintain proper alignment. Replace if your original bracket is cracked, broken, or missing to restore stability.

Burners won't light or spark intermittently? This spark module controls ignition for gas burners. Moderate DIY repair, typically behind control panel.

Size: 8-18 x 1/2 inch.
