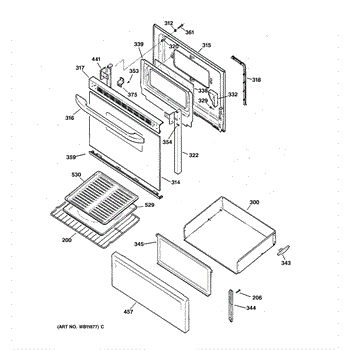

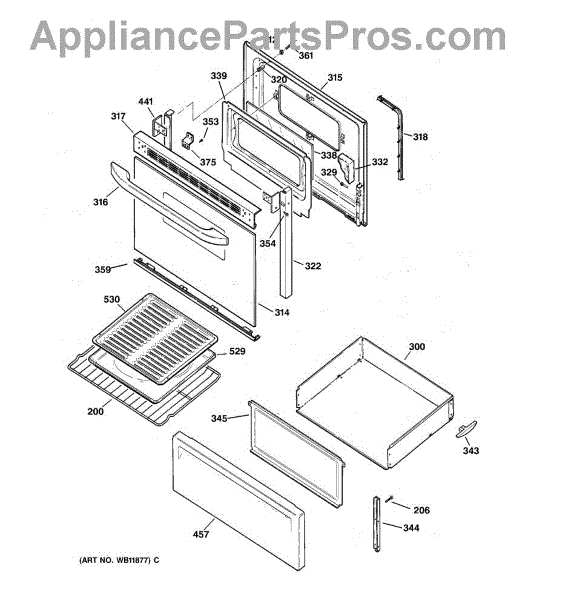

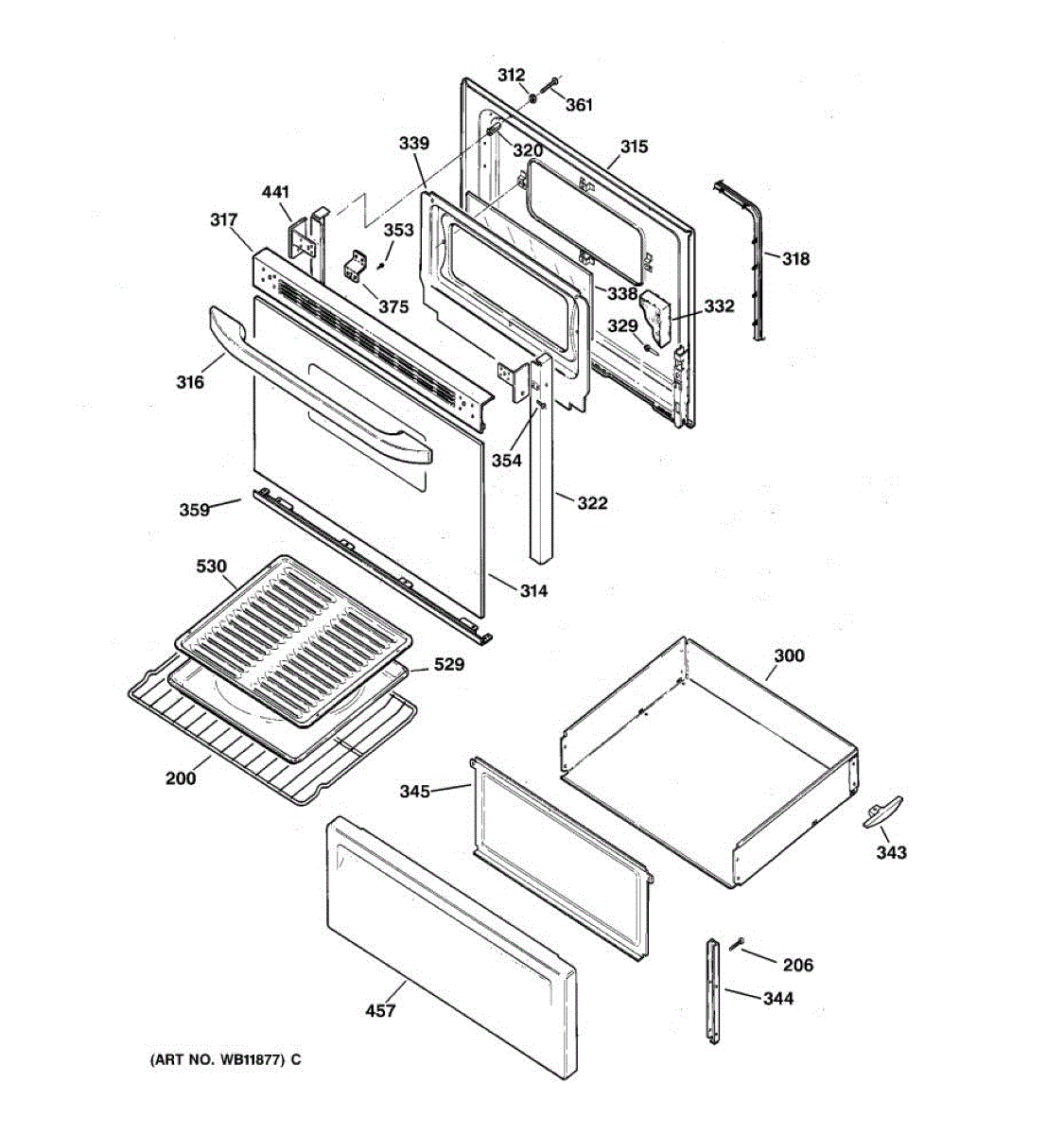

Parts for Ge RB536BC2AD: 03 - Door & Drawer Parts

Replacement oven rack for electric and gas ranges. Installs inside oven cavity. Needed when original rack is missing, damaged, or warped from use.

Size: 10-32 GXTT FLP.595 S

Includes 12 washers.

Color: Black

Replace your cracked, broken, or missing range oven door handle. Mounts externally on the oven door for safe opening and closing during cooking cycles.

Seals your oven door to retain heat and maintain proper cooking temperature. Replace if torn, brittle, or heat escapes. Clips into place in minutes.

Spacer that fits between mating parts in your range or oven to maintain proper clearance and alignment. Replace if worn, missing, or damaged to prevent rubbing.

Includes 12 screws.

Insulation that installs on the side of your range door to reduce heat transfer and dampen sound. Replace if worn, torn, compressed, or missing.

Replaces cracked, shattered, or heat-damaged inner glass pane in your range oven door. Restores insulation, visibility, and protects from spills.

Insulation guard that installs inside the oven door assembly to protect internal components. Replace if cracked, torn, or missing during door maintenance.

Replaces the warming drawer cover on your electric range. Order a new cover if yours is cracked, broken, discolored, or missing to restore appearance.

Replacement mounting screw for range panels, brackets, and trim. Restores secure fit when original fastener is missing, stripped, or damaged.

Replacement mounting screw for range panels, brackets, and trim. Restores secure fit when original fastener is missing, stripped, or damaged.

Black trim piece that installs at the bottom edge of your range oven door. Replace if cracked, rusted, broken, or missing to restore appearance.

Includes 12 screws.

Endcap for range storage drawer. Installs at drawer end to provide finished edge and structural support. Replace if cracked, broken, or missing.

This drum end cap supports the dryer drum and helps keep it aligned for smooth rotation. Replacing a worn or damaged end cap restores drum positioning to reduce rubbing, noise and uneven wear. What it does:

• Supports and locates the drum at the cabinet end to maintain proper alignment
• Helps the drum rotate smoothly and reduces rubbing or scraping sounds
• Prevents excess wear on the drum edge and adjacent supports
• Common symptom: noisy or wobbling drum that may rub against the cabinet

• One drum end cap

• Disconnect power to the appliance before beginning any repair
• Access typically requires removing the dryer front or cabinet panels; keep track of fasteners
• Inspect adjacent parts (glides, rollers, bearings or seals) and replace if worn
• Test the dryer on a short cycle after reassembly to ensure smooth drum rotation

White drawer front panel for electric ranges. Replace if cracked, dented, discolored, or missing to restore appearance and ensure proper handle mounting.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.
