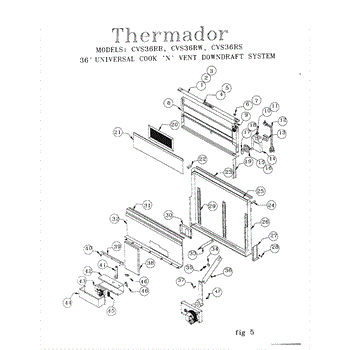

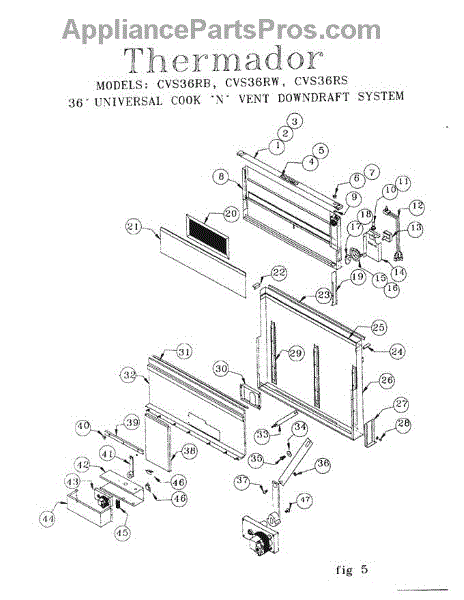

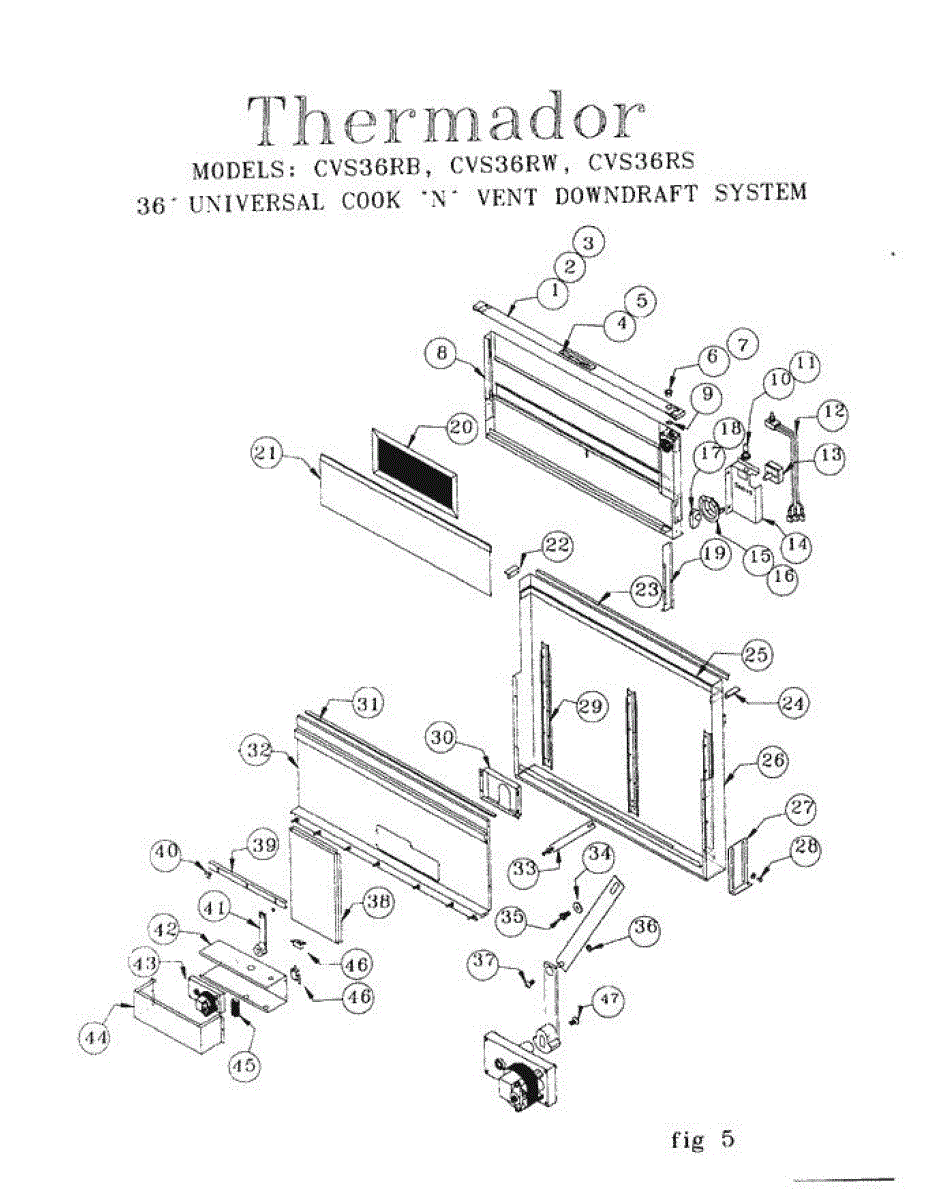

Parts for Thermador CVS36RB: 03 - Downdraft System Parts

Color: Black

This is a genuine OEM replacement o-ring sourced directly from the manufacturer for use on range vent hood switches. The o-ring provides a tight seal for the switch and keeps smoke from escaping through the switch connection. If the o-ring becomes worn or damaged, the vent will not remove smoke during cooking and should be replaced. Heat and debris pulled through the vent may cause the o-ring to warp. O-rings are not designed to last forever and may need to be replaced during the life of the appliance to keep it functioning correctly.To start, disconnect the power to the vent hood and dismantle the vent in order to reach the switch. To start, disconnect the switch and locate the o-ring. Remove the old one and dispose of it. Place the new o-ring in the groove and press firmly to seal the part. Lubrication is not necessary for installing the new o-ring. Reassemble the switch and put the vent hood back in place. Connect the power and try the switch to make sure it works. This o-ring is made of heavy-duty black rubber is and sold individually. It is designed for use in range hoods manufactured by Thermidor.

The Vent Control Button is an OEM component specifically designed for select Bosch downdraft ventilation ranges. Pressable from the countertop, its reliable switch operates the vent position. Precise guidance aligns ductwork airflows.

Symptoms of a faulty control button may include intermittent or unresponsive vent movement. Over-activation degrades contacts requiring change.

Causes of a bad button relate to typical contact wear reducing conductivity. Splashes introduce moisture necessitating replacement over time.

Causes of a bad vent control button involve:

• Vents remaining stuck open exposing grease-laden air
• Closed vents trapping cooking emissions near surfaces
• Failure to change vent direction as needed

This OEM Bosch part is also compatible with some Thermador, Dacor, and Viking downdraft ventilation ranges. Replace to maintain convenient vent management directing smoke and odors safely outdoors.


The Vent Switch is an OEM replacement part for Bosch range hoods. It is an electronic control device located inside the range hood that regulates the internal vent and fan functions.

Causes of a faulty vent switch can include long-term use in high-heat cooking environments, damage from accidental spills or impacts, or normal component degradation over time.

Symptoms include:

• Failure of the fan or vents to engage during cooking
• Variable or inconsistent fan speeds that don't adequately vent smoke
• Electrical shorting or sparking noises from within the hood control unit

This genuine Bosch replacement part is also compatible with Thermador, Gaggenau, and some Kenmore range hood models.

Knob, blk (cvs)

The Control Knob is an OEM part for Bosch ranges and cooktops. As the interface regulating gas flow, control knobs activate precise burner levels through internal calibration.

Causes of failure include loosened set screws beneath allowing knob slippage. Prolonged heat and moisture exposure may also degrade contact surfaces over time.

Symptoms of faulty knobs include:

• Burners failing to engage or not matching dial settings
• Inability to decrease output levels from full flame
• Knobs wobbling insecurely or detaching entirely

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

Color: metallic. Measures about 16 inches wide by 5 inches high.

This silicone adhesive-backed seal replaces a worn or damaged dishwasher door/tub perimeter gasket to restore a tight seal and reduce leaks and dampness around the door. Flexible silicone resists common household temperatures and moisture. What it does:

• Forms a watertight barrier around the dishwasher door/tub edge to help prevent leaks during cycles
• Adhesive backing allows the seal to stick in place for consistent contact and reduced movement
• Commonly used when the existing gasket is cracked, flattened, torn, or no longer sealing
• Helps reduce water pooling, floor damage, and poor wash performance caused by door leaks

• One silicone adhesive-backed seal (33.75 in.)

• Clean and dry the mounting surface thoroughly before applying to ensure proper adhesion
• Peel backing and press seal into place, working slowly to avoid gaps or twists
• Trim excess if necessary with a sharp utility knife; avoid stretching the gasket while installing

The Drive Link, Welded Assembly is an OEM part for Bosch range hoods. This assembly is responsible for linking the motion of the internal components to allow for proper function of the range hood.

The Drive Link provides a direct connection between the internal drive system and blower fan, facilitating the smooth transfer of power needed for ventilation. It also helps guide internal mechanisms to ensure components operate as intended with each other during use.

Causes of a bad Drive Link can include wear from continuous use, excessive stress, or damage resulting from impact.

Symptoms of a bad Drive Link include:

• Reduced or uneven ventilation output
• Strange noises coming from inside the range hood
• Difficulty adjusting ventilation settings or fan speed
• Internal components not functioning in sync

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.
