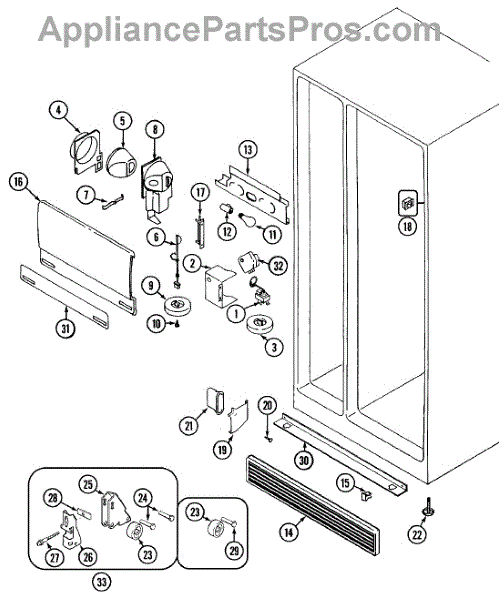

Parts for Magic Chef RC274TDV: 03 - Fresh Food Compartment Parts

Size: 8-32 x .312 inch.

Size: 8 x 1/2 ab.

This replacement light bulb restores clear, reliable illumination so you can see contents and monitor appliance operation. Replace a burned-out, dim, or flickering bulb to bring visibility back to the area it lights. What it does:

• Provides illumination in the appliance's interior or designated lighting location
• Makes it easier to see contents and check status at a glance
• Common symptoms: light won't turn on, intermittent/flickering light, dim or blackened bulb

• 1 light bulb

• Disconnect power before servicing; allow hot surfaces and the old bulb to cool completely
• Remove any lens/cover, then remove the old bulb
• Install the new bulb securely without overtightening; reinstall the lens/cover if present
• Restore power and test operation

Size: 8 x 1/2 ab.

Includes one clip.

Size: 8 x 1/2 ab.

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


Specs: No.8X1/2 HEX WASHER HEAD

This genuine replacement screw secures appliance panels and components, restoring proper fit and stopping movement. Use it when a missing or damaged fastener causes loose trim or rattling. What it does

• Secures panels, brackets, and small assemblies to restore proper fit
• Helps eliminate rattling, vibration, or misaligned trim caused by a missing or stripped screw
• Replaces lost or damaged fasteners during maintenance or part replacement
• Matches OEM fit for reliable fastening where specified in diagrams

• Use the matching screw location shown in the appliance diagram; do not force or overtighten
• Use the correct screwdriver or bit to avoid stripping the head
• Disconnect power and follow appliance safety procedures before accessing internal components
• If threads are damaged, replace with the correct OEM fastener rather than reusing a compromised hole

This is a replacement mounting screw for securing appliance components and panels. It restores proper fastening where a missing or stripped screw causes loose parts or rattling. What it does:

• Fastens panels, brackets, or small components to restore secure attachment
• Prevents vibration and rattling caused by loose or missing fasteners
• Replaces stripped or lost factory screws to maintain original fit
• Matches OEM fit for the specific mounting location when the part number is specified

• Use the matching screw location and size specified by the parts diagram
• Hand-start threads to avoid cross-threading; tighten securely but do not overtighten
• Disconnect power to the appliance before removing panels or components
• If threads are damaged, replace with correct OEM screw—do not force a mismatched fastener

This defrost timer controls the automatic defrost cycle in select refrigerators and freezers, switching between cooling and defrost to clear frost on the evaporator. It helps maintain stable temperatures and prevents heavy ice buildup and long run times. What it does:

• Alternates the system between cooling and defrost on a timed schedule
• Sends power to the defrost heater during defrost, then returns power to the compressor and fans
• Failure can cause heavy frost on the evaporator/back freezer wall
• May lead to warmer temperatures, constant running, short cycling, or no-cool if stuck in defrost

• 1 defrost timer

• Disconnect power before servicing
• Access location varies by model
• Note wire positions and transfer them one at a time to the new timer
• Mount securely in the same orientation as the original and verify normal cycling after power is restored
