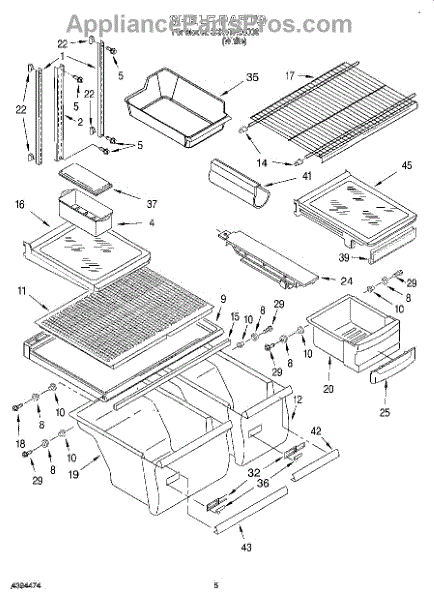

Parts for Whirlpool 3XKVN490000: 03 - Shelf Parts

Color: clear. It measures about 6 inches wide by 3-1/2 inches high by 15 inches deep.

Comes with two rollers and two eyelets

Color: white. Measures about 26 inches wide by 20 inches deep. Cover includes center rail.

The Crisper Pan is an OEM part for Whirlpool refrigerators. This pan is essential for storing and organizing fruits and vegetables. The crisper pan provides a seamless surface that protects produce from damage while allowing optimal air circulation for extended freshness.

Causes of a bad crisper pan can include cracks or tears developing over time from repeated loading and unloading of produce. Spills or leaks inside the crisper could also degrade the pan material.

Symptoms of a bad crisper pan include:

• Discoloration, cracks or holes appearing on the pan surface
• Pan unable to properly fit or function within the crisper drawer
• Produce sitting directly on the drawer bottom without coverage
• Bacteria, mold or odors developing from unhygienic crisper conditions

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This mounting cup installs in the freezer liner to create a secure attachment point for the ice maker or its bracket. It helps keep the assembly stable and properly aligned so the ice maker mounts firmly and operates reliably. What it does:

• Provides the receiving anchor for the ice maker/bracket mounting screw
• Helps hold the ice maker level and reduces movement or vibration
• A worn, stripped, or missing cup can prevent the screw from tightening
• Common signs include a loose or sagging ice maker, rattling, or difficulty keeping the ice maker aligned

• 1 mounting cup

• Disconnect power and shut off the water supply before servicing
• Remove the ice maker to access the cup location
• Seat the cup fully into the liner opening, then reinstall the bracket/ice maker and mounting screw
• Do not overtighten; verify the ice maker sits level and clears the fill tube

This crisper cover support mounts to the refrigerator liner and holds the crisper cover frame/glass level. Replacing a broken or missing support restores a stable shelf surface and helps the crisper drawers slide and close properly.

• Supports the crisper cover frame/glass along the cabinet wall
• Maintains a level surface to help prevent sagging or glass shifting
• Keeps crisper drawers aligned and moving smoothly
• Common symptoms: cracked or missing support, shelf tilts, glass slips, drawers scrape or won't close fully

• Disconnect power and clear the shelf area
• Remove crisper drawers and lift out the cover/glass
• Release and remove the damaged support; snap or screw the new support into the same position
• Reinstall the cover and drawers; verify level fit

This genuine shelf assembly replaces a damaged or cracked refrigerator cabinet shelf to restore stable storage and keep items organized. It fits original mounting points for a secure, flush installation. What it does:

• Provides a stable, flat surface for storing food and containers inside the refrigerator
• Replaces shelves that are cracked, warped, or no longer supporting weight safely
• Helps maintain proper airflow and organization when positioned as originally designed
• Restores the refrigerator's intended storage layout without modifying the cabinet

• Install on existing shelf supports or brackets; confirm orientation before seating
• Disconnect power and remove food items from the area for safer handling and access
• Handle glass or acrylic components carefully—use two hands and avoid impact
• If clips or supports are damaged, replace them to ensure a secure fit

This 10-16 screw secures panels, brackets, and internal components in your appliance. Replacing a missing or stripped fastener restores a snug fit, reduces vibration and rattling, and keeps parts properly anchored for reliable operation.

• Provides 10-16-thread fastening for sheet metal, plastic, and bracket assemblies
• Direct replacement for a missing, worn, or stripped factory screw
• Helps address loose or rattling panels or covers that won't stay secured
• Supports proper alignment and retention of internal components

• Disconnect power; shut off water and/or gas before servicing
• Match the new screw to the original location and length; replace like-for-like
• Start threads by hand to avoid cross-threading; use the correct driver for the head style
• Tighten snugly; do not overtighten into plastic or thin sheet metal

The Crisper Drawer is an OEM part for Whirlpool refrigerators. This drawer provides the best storage environment for fruits and vegetables, helping to maintain their freshness for longer periods. It works by controlling the humidity levels within the drawer, reducing the chances of premature spoiling.

The crisper drawer can deteriorate over time from overloading, impacts, or aging, affecting humidity control and leading to food spoilage.

Symptoms of a bad Crisper Drawer include:

• Cracks or breaks in the drawer that compromise its structural integrity
• Difficulty in sliding the drawer in and out due to damage or warping
• Excessive moisture accumulation inside the drawer, indicating a failure in humidity control
• Visible signs of wear that affect the drawer's appearance and functionality

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This screw support secures the dryer drum ladder assembly, helping maintain proper alignment and stable rotation for reliable drying performance. It replaces a worn or broken support to reduce noise and rattling during operation. What it does:

• Holds the ladder/support bracket in place so the drum rotates smoothly.
• Prevents excessive movement that can cause scraping, knocking, or rubbing noises.
• Restores correct positioning to reduce wear on adjacent components.
• Suitable when the original support is cracked, bent, or missing fastener points.

• One screw support (ladder) as shown.

• Intended for experienced DIYers; confirm compatibility with your model before installing.
• Disconnect power (unplug electric or shut off gas and unplug) before beginning work.
• Handle small parts carefully and keep track of fasteners; use appropriate hand tools.

The Crisper Drawer Track is an OEM component for Whirlpool side-by-side refrigerators. It provides smooth gliding motion for organizing crisper drawers.

Causes primarily relate to ordinary fatigue from repetitive stresses concentrated along the drawer's travel path.

Symptoms involve:

• Crisper drawers difficult to fully extend or retract
• Noises or binding during operation
• Reduced organization from inconsistent track support

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This is a replacement 10-16-1 screw used to fasten appliance panels and components. It restores a secure fit for loose or rattling parts so panels and assemblies stay properly aligned during use. What it does:

• Secures panels, brackets, or small appliance components in place
• Helps stop rattling, vibration noise, or loose-fitting parts
• Restores proper alignment for doors, access panels, or internal assemblies
• Matches OEM thread and length for correct fit when replacing worn or missing screws

• Use the correct screwdriver or driver bit to avoid stripping the head
• Hand-start the screw to ensure proper thread engagement before tightening
• Do not overtighten; snug the screw until the part is secure to avoid damage
• Disconnect power to the appliance before accessing internal components

This humidity control body mounts on the crisper cover and forms the adjustable vent for the produce drawer. Replacing a cracked or missing housing restores smooth slider operation and helps manage moisture inside the crisper.

• Houses the humidity control slider and covers the vent opening on the crisper cover
• Regulates airflow into the drawer to help manage moisture for fruits and vegetables
• Restores proper fit when the original part is cracked, warped, or missing
• Common symptoms: loose or stuck slider, difficulty adjusting crisper humidity, excess condensation or wilting in the drawer

• Disconnect power; remove the crisper drawer and cover, handling any glass carefully
• Release retaining tabs or screws and remove the old humidity control body
• Transfer the existing slider/indicator as needed and seat the new body fully
• Verify smooth slider movement before reinstalling the cover and drawer

The Ice Pan is an OEM part for Whirlpool refrigerators. It is used to collect and store ice produced by the icemaker, ensuring a dedicated space for easy access and storage of ice. It measures approximately 11" W x 8" H x 20" D.

Causes of a bad ice pan can include cracks or breaks due to handling or impact, warping from temperature fluctuations, or general wear and tear over time. A damaged ice pan can lead to leaks or improper ice storage, impacting the overall functionality of the icemaker.

Symptoms of a bad ice pan include:

• Cracks or visible damage to the pan
• Leaks or water pooling in the freezer
• Ice not being stored properly or the pan not fitting correctly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This humidity control slide mounts on the crisper cover and moves the vent door that regulates moisture in the produce bin. Replacing a broken slider restores smooth adjustment so you can fine-tune humidity for better food freshness.

• Moves the crisper vent door between high and low humidity settings to control airflow
• Restores smooth, positive slider action and clear setting selection
• Common symptoms: slider cracked, missing, or stuck; humidity setting won't hold; crisper too wet or too dry; condensation in the drawer
• Direct-fit replacement for the original crisper humidity vent slider

• Unplug the refrigerator and remove the crisper drawer(s) for access
• Lift out or access the crisper cover where the slider seats
• Align the new slide with the vent/damper lever and snap or slide it into place
• Confirm smooth travel through the full range before reinstalling the drawer(s)

This replacement wine rack restores secure bottle storage inside the refrigerator, keeping bottles organized and helping prevent rolling or breakage. It replaces worn, cracked or missing wine racks so your fridge stores bottles safely. What it does:

• Holds and secures standard wine bottles on a dedicated shelf area to prevent rolling
• Replaces damaged, bent or missing racks that no longer support bottles safely
• Restores organized bottle storage and helps maximize usable shelf space
• Designed to fit into the fridge's existing support grooves or shelf frame

• Slides into existing support grooves or shelf frame; no special tools typically required
• Remove surrounding shelves or contents for safer, easier access before installing
• Handle edges carefully during installation to avoid damage or scratches
