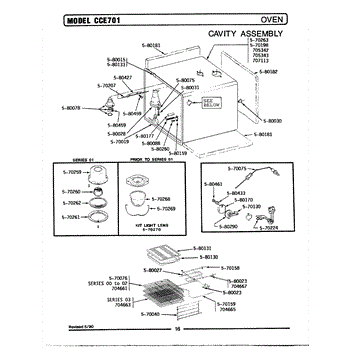

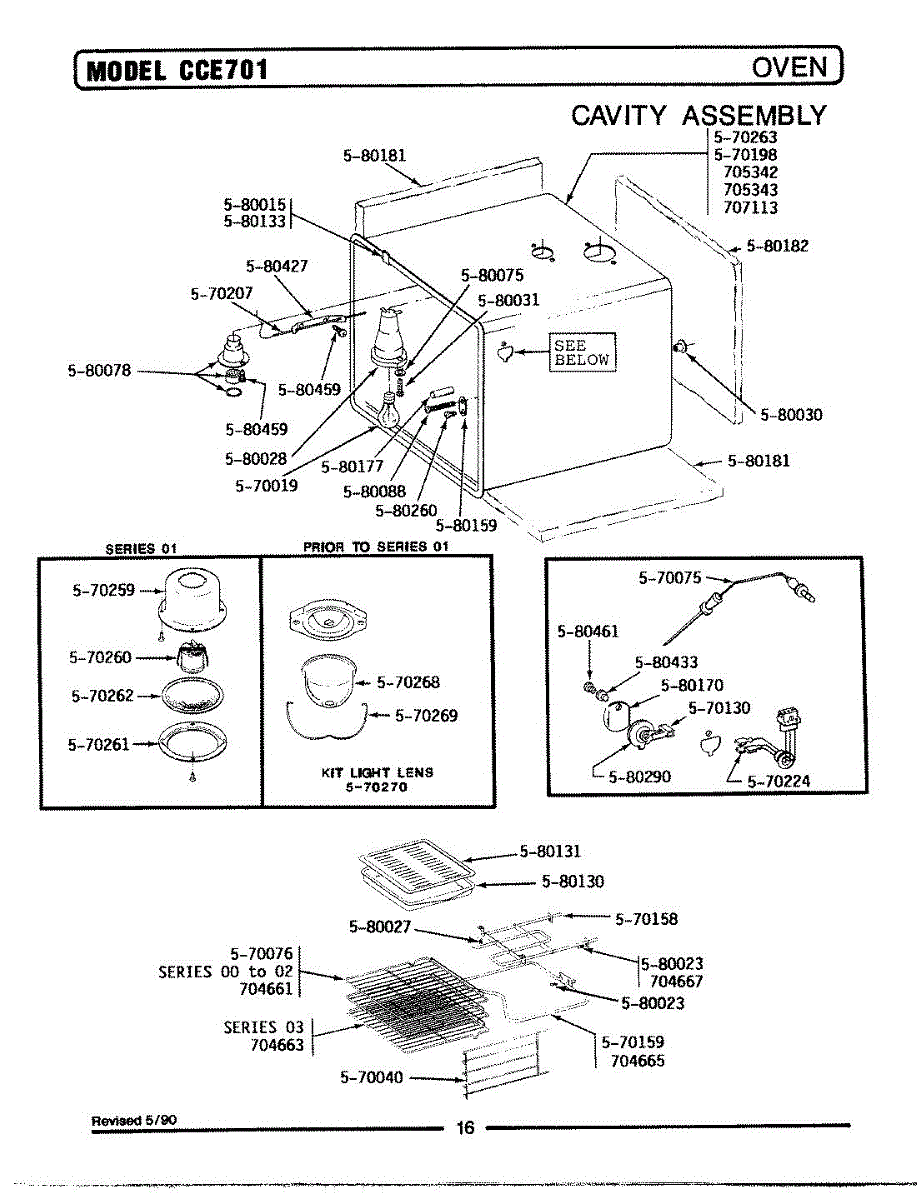

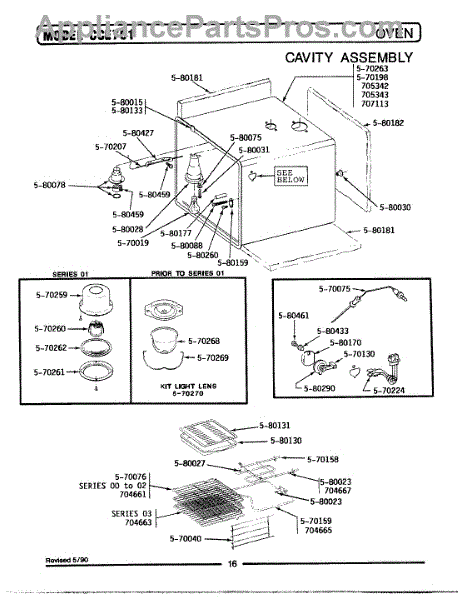

Parts for Maytag LCCE701: 04 - Cavity Assembly Parts

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

This part has been discontinued by the manufacturer and is no longer available.

This oven temperature probe senses the cooking cavity temperature so the range control can regulate heat for accurate baking and roasting. It replaces a failed or intermittent sensor to restore correct temperature feedback. What it does:

• Measures oven temperature and sends the signal to the control board for proper heating control
• Helps correct symptoms such as oven not reaching set temperature, inconsistent baking, or temperature error codes
• Provides the oven control with the feedback needed for timed cooking and self-clean cycles
• Replaces a damaged or open/shorted probe that causes incorrect temperature readings

• One temperature probe

• Disconnect power (unplug or shut off breaker) before servicing to avoid shock
• Handle the sensor and connector gently to avoid damage; route and secure wiring as originally installed
• Reconnect wiring fully and verify secure connection; test oven function and temperature accuracy after installation

This broil element mounts at the top of the oven cavity and delivers the intense radiant heat needed for broiling. Replace a failed element to restore reliable top heat and consistent broil results in your range or wall oven.

• Provides strong, direct radiant heat from the top of the oven during the Broil cycle
• Common signs of failure: no broil heat, uneven broiling, visible breaks/blistering, or tripping the breaker when Broil is selected
• Restores proper broiling when the original element is open or shorted
• Also known as the upper/top oven element; verify fit with your model number

• Disconnect power at the breaker or unplug the appliance before servicing
• Allow the oven to cool completely and wear cut-resistant gloves
• Remove mounting screws, gently pull the element forward, and support the wires so they don't slip back through the liner
• Transfer wires one at a time to the new element, secure the element, check connections, restore power, and test

The Bake Element is an OEM part for Whirlpool ranges. This heating element is responsible for providing the necessary heat for baking and roasting by distributing heat evenly throughout the oven cavity, ensuring consistent cooking results.

Over time, bake elements can wear out or fail due to regular use, exposure to high temperatures, or accidental damage during cleaning.

Symptoms of a bad bake element include:

• Oven not heating to the set temperature
• Uneven cooking or baking results
• Visible signs of damage such as burns, blisters, or breaks in the element
• The element not glowing red when in use

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This part has been discontinued by the manufacturer and is no longer available.

A single pop rivet used to secure sheet-metal parts and small brackets on appliances for a permanent, vibration-resistant hold. Replaces missing or damaged rivets to restore proper attachment without welding. What it does:

• Provides a permanent blind-rivet fastening point for panels, brackets and trim.
• Replaces rivets that are sheared, loose or missing and prevents rattling or misalignment.
• Ideal where a solid, tamper-resistant join is required and screws aren't suitable.
• Works with a compatible pop-rivet tool for quick installation.

• Drill out the old rivet carefully; use the proper size hole for the replacement rivet.
• Use a dedicated pop-rivet tool and wear eye protection during installation.

This 10-32 machine screw secures panels, brackets, and internal assemblies in your appliance. Replacing missing or stripped hardware restores a tight, rattle-free fit and helps keep components properly aligned.

• Provides a threaded fastener for metal-to-metal connections
• Helps maintain correct alignment of panels, brackets, and housings
• Replaces missing, rusted, or stripped screws
• Symptoms include loose or vibrating panels, gaps/misalignment, or hardware that won't tighten

• Disconnect power (and shut off gas/water, if applicable) before servicing
• Match the 10-32 thread and length to the original screw for the location
• Start by hand to avoid cross-threading; tighten snugly without over-torquing
• Retain and reinstall any original clips, spacers, or washers used in your model

This part has been discontinued by the manufacturer and is no longer available.

The Broil Pan Set is an OEM part for Whirlpool ovens. This set includes a broil pan and an insert, designed to catch drippings and ensure even heat distribution during broiling, allowing for perfectly cooked and crisp results.

Causes of a bad broil pan set can include prolonged exposure to high temperatures, which may lead to warping or distortion of the pan. Additionally, frequent use without proper cleaning can result in rusting, chipping, or buildup of residues that compromise the pan's functionality and safety.

Symptoms of a bad broil pan set include:

• Warping or bending of the pan
• Presence of rust or corrosion
• Surface chipping or flaking
• Difficulty in achieving even cooking results

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This part has been discontinued by the manufacturer and is no longer available.

Color: Stainless steel

This is the electric broil element for your oven. It delivers high, direct heat from the top of the cavity to sear and brown foods, restoring proper broiling performance when the original element has failed.

• Provides radiant heat from the top of the oven during the Broil cycle
• Restores proper searing and browning performance
• Common failure symptoms: no heat on Broil, weak or uneven broiling, element won't glow red, visible blistering or breaks
• Direct replacement for a failed or damaged broil element

• Disconnect power at the breaker or unplug the appliance; allow the oven to cool completely
• Remove oven racks, take out element mounting screws, and gently pull the element forward to access the wires
• Transfer the wires one at a time; ensure terminals are fully seated and do not let wires slip back into the insulation
• Reinstall the element without bending it, tighten screws snugly, restore power, and test the Broil cycle

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold
