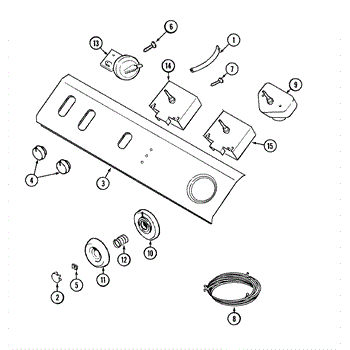

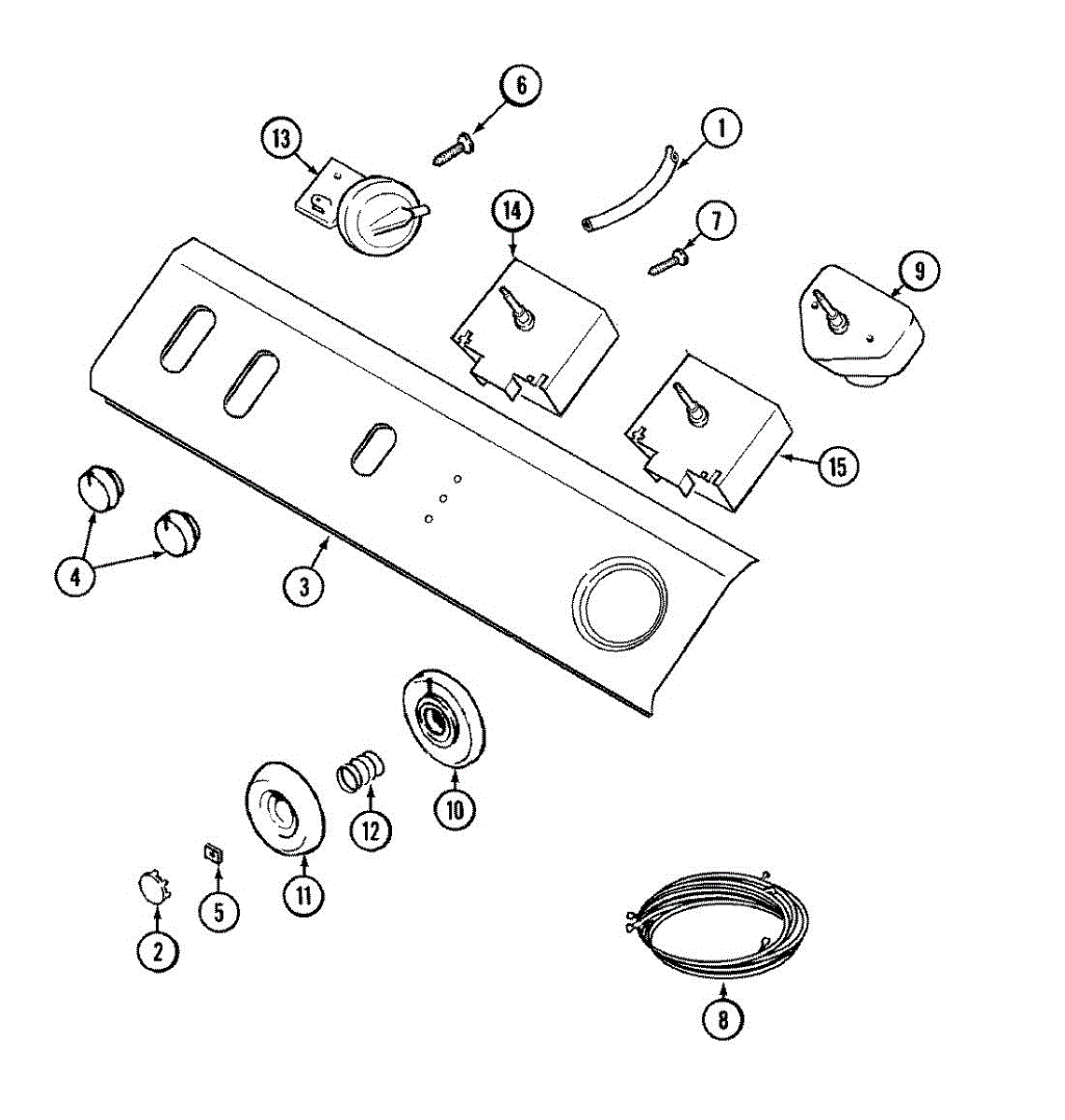

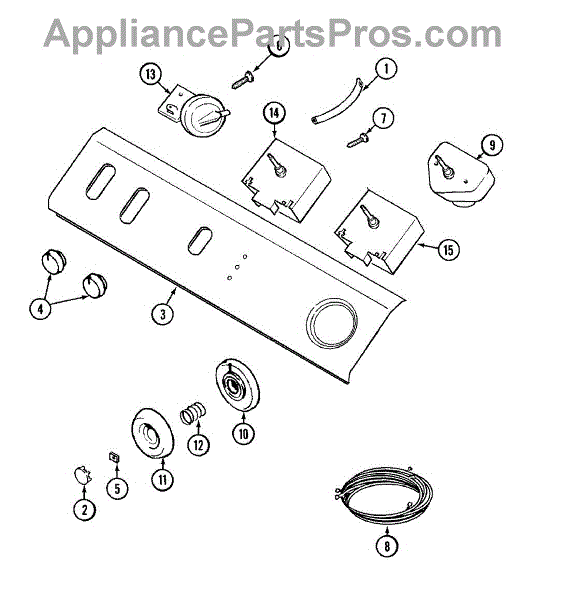

Parts for Maytag LAT9520AAE: 04 - Control Panel Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Water Level Pressure Switch Hose is an OEM part for Whirlpool washing machines. It connects the water level pressure switch to the tub, allowing the switch to accurately detect and control the water level during washing cycles.

Common causes of a bad pressure switch hose include wear and tear over time, blockages from detergent buildup or debris, and kinks or cracks that disrupt the pressure flow.

Symptoms of a bad Water Level Pressure Switch Hose include:

• Incorrect water levels during wash cycles
• The washing machine not filling or overfilling
• Leaks around the hose area
• Error codes related to water level issues

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Timer Knob Insert is an OEM replacement part for Whirlpool dryers. This is a cap located on the timer knob on the control panel. Color: White. This is the timer knob cap only. For the complete assembly, you must also order the knob and skirt.

Causes of timer knob Insert failure can include cracked plastic from years of repeated turning motions. Wear on components also occurs due to extensive lifetime usage cycles.

Symptoms of a faulty timer knob insert include:

• Knob becomes loose, detached or inoperable for timings scrolling
• Cracks appear exposing internal timer parts

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This selector knob attaches to the control shaft so you can choose cycles and options on your appliance. Replace a cracked or stripped knob to restore smooth, accurate settings without forcing or damaging the control stem.

• Attaches to the control shaft to operate the cycle/timer or option switch
• Common symptoms: knob is cracked, stripped, loose, spins freely, falls off, or is missing
• Restores positive, accurate control feel when selecting settings

• Disconnect power before servicing
• Pull the old knob straight off the shaft; avoid prying against the control panel
• Align the keyed/flat side and press the new knob on until fully seated
• If your original knob used a spring clip or insert, transfer it to the new knob before installation

This is a genuine replacement mounting screw used to secure appliance components and panels. It restores proper fit and prevents movement that can cause noise or misalignment. What it does:

• Fastens panels, brackets, and small components in place
• Helps stop rattling or vibration caused by loose hardware
• Restores secure attachment after stripped or missing fasteners
• Matches OEM thread and head style for correct fit

• Use the correct driver to avoid stripping the head
• Tighten until snug; do not overtighten to prevent damage
• Disconnect power to the appliance before accessing internal components
• Replace matching screws in the area for consistent fit

This 10-32 x 3/8 machine screw secures panels and components in many appliances where a small, threaded fastener is required. It replaces stripped, missing, or loose screws to restore stable assembly and reduce vibration. What it does:

• Fastens panels, brackets, and small components using 10-32 unified threads
• Restores secure mounting when screws are missing, stripped, or loose
• Helps stop rattling, misalignment, and intermittent part contact caused by loose fasteners
• Works wherever a 10-32 x 3/8 machine screw is specified by the manufacturer

• Disconnect power or unplug the appliance before servicing
• Use the correct size screwdriver or nut driver to avoid stripping the head
• Tighten until snug; avoid over-tightening which can strip threads or crack plastic
• Replace with the same size and thread spec to ensure proper fit and function

This is the timer that is used on washing machine units. The purpose of the timer is to control the electrical components and the duration of the cycles.In the event that the washing machine does not progress through the cycles, it is likely that the timer is bad and will need to be replaced. Some users report that the washing machine will go through the washing cycle but will not drain or spin. The replacement process is fairly easy and can be done quickly. It is important to unplug the washing machine from the electrical outlet before starting the replacement process. Wear work gloves during this process to protect from scratches or other injuries.This particular timer is compatible with washing machine units that are manufactured by the Maytag brand. It is sourced directly from the manufacturer and is sold individually. It is a genuine OEM replacement part that is high-quality.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Timer Knob is an OEM replacement part for Whirlpool dryers. It allows users to set cycle durations with smooth, intuitive adjustment.

Symptoms of a faulty timer knob include:

• The timer knob does not turn or is difficult to turn.
• The timer knob is missing

Causes of a bad timer knob can include loose or stripped internal gears from an extended operation or impact damage during loading/unloading clothes.

Note: This is the center portion of the knob only. For the complete knob assembly, the cap and skirt must also be purchased.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This spring-timer knob replaces a worn, cracked or missing timer knob so you can set and adjust the appliance's mechanical timer reliably. Simple, direct replacement that restores the user control interface. What it does:

• Fits onto the appliance's mechanical timer shaft to allow setting and advancing the timer
• Restores a secure grip and pointer for accurate time selection
• Commonly used to fix loose, cracked, stripped, or missing timer knobs
• Helps resolve inability to turn or set the mechanical timer caused by a damaged knob

• Disconnect power to the appliance before starting any repair
• Pull the old knob straight off the timer shaft; align splines and press the new knob fully onto the shaft until seated
• If the knob is tight, use a proper knob puller or gentle, even leverage to avoid damaging the shaft

This is the washer's water level switch that senses tub level via air pressure and provides five selectable fill settings. Replacing a failed switch restores accurate filling and lets the cycle advance properly through wash, rinse, and spin.

• Monitors air pressure from the tub to detect actual water level
• Controls the inlet valves to start/stop filling at the selected setting
• Signals the timer/control to begin agitation and advance the cycle once full
• Common symptoms: overfilling or water keeps running, stops filling too soon or won't fill, inconsistent water levels, cycle won't advance due to incorrect level detection

• Disconnect power and turn off water supply before servicing
• Access the control console; remove the selector knob/dial and panel as needed
• Note wire locations (take a photo), move the harness, and transfer the pressure hose; ensure the hose is clear and firmly seated
• Securely mount the new switch, reassemble the console/knob, restore utilities, and test each fill level

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.
