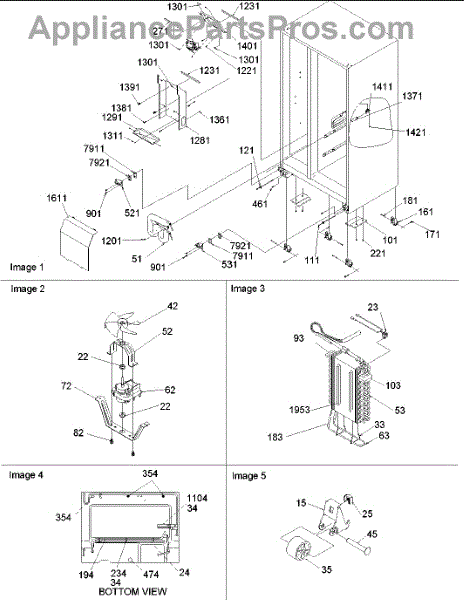

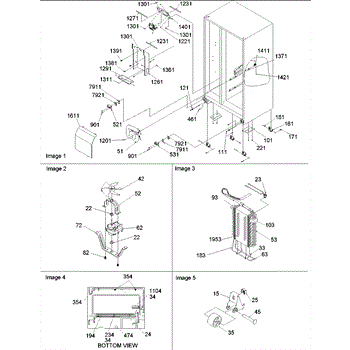

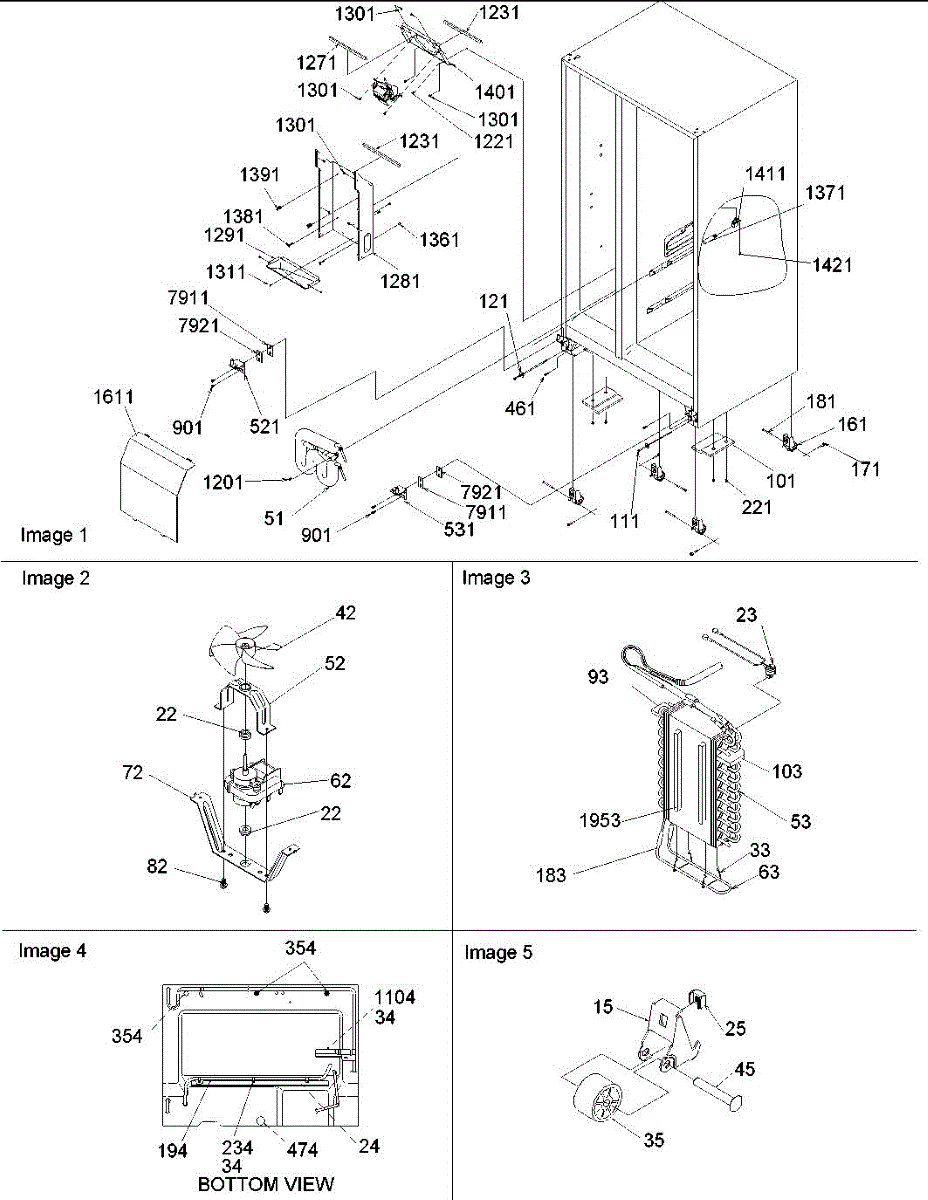

Parts for Amana SXD522VE / P1320302W E: 04 - Drain, Rollers, And Evap Assy Parts

This rubber grommet cushions and secures a refrigerator fan motor, isolating vibration to help reduce noise and keep the fan properly aligned in its mount.

• Provides a snug, vibration-dampening seat for the fan motor shaft or mounting stud
• Helps prevent rattling, buzzing, or humming sounds from a loose fan mount
• Maintains proper fan alignment to avoid blade contact with shrouds or brackets
• Replaces aged, cracked, or compressed rubber that can lead to increased vibration

• Disconnect power before service; wear cut-resistant gloves
• Access the fan assembly (rear or evaporator section), support the motor, and remove the old grommet
• Press the new grommet fully into the bracket or housing; transfer any spacers as originally configured
• Reinstall the motor and verify the fan blade spins freely with no contact before restoring power

This thermostat kit replaces a failed temperature control thermostat to help restore consistent temperature regulation and appliance operation. It's a direct-replacement kit used where the thermostat has failed or is intermittently opening/closing. What it does:

• Senses cabinet or component temperature and opens or closes the circuit to control heating/cooling.
• Stops unwanted heating or cooling when the thermostat trips.
• Commonly used when an appliance won't reach or maintain the correct temperature or cycles irregularly.
• Restores reliable temperature switching when the original thermostat is faulty.

• Disconnect power to the appliance before starting any repair to avoid electric shock.
• Handle the thermostat sensor and capillary gently—do not kink or bend sharply.
• Verify wiring connections and secure mounting; follow the appliance service manual for routing.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

The Cabinet Roller is an OEM part for Whirlpool refrigerators. It facilitates the smooth movement and positioning of the refrigerator cabinet, making it easier to adjust or relocate the appliance as needed. This roller is designed to support the weight of the refrigerator while allowing for effortless mobility.

Causes of a bad Cabinet Roller can include wear and tear over time, exposure to heavy loads, or damage due to rough handling or impact. These factors can lead to the roller becoming ineffective or breaking altogether, resulting in difficulty moving the refrigerator.

Symptoms of a bad Cabinet Roller include:

• Difficulty moving or adjusting the refrigerator
• Unusual noises when attempting to move the appliance
• The refrigerator not sitting level or wobbling

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This evaporator fan blade replaces the torn or damaged plastic blade that moves cold air over the evaporator coil, restoring proper airflow for consistent cooling and frost control. Fits the fan motor shaft and spins quietly when intact. What it does:

• Circulates cold air across the evaporator to help maintain even temperatures
• Helps reduce frost buildup by promoting proper airflow over the coil
• Restores airflow when original blade is cracked, warped, or missing
• Can reduce or stop abnormal fan noise caused by broken blades

• Disconnect power to the appliance before starting any repair
• Remove evaporator cover panels to access the fan; handle plastic parts gently to avoid breakage
• Ensure blade is seated fully on the motor shaft and secured in the correct orientation
• If fan motor wobble or noise persists after blade replacement, inspect the motor and mounting for wear

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

A single replacement screw used to fasten appliance panels and components, restoring secure fit and reducing vibration or noise. Simple, low-cost part for repairs that need a missing or stripped fastener. What it does:

• Secures panels, trim, or small component housings to the appliance frame
• Helps stop rattling, vibration, and misalignment caused by loose or missing screws
• Keeps internal components properly seated to maintain normal operation
• Used wherever the OEM specifies this exact fastener

• One replacement screw

• Disconnect power before servicing the appliance to avoid shock or injury
• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread by hand first, then tighten snugly—do not overtighten
• Keep small parts away from children and pets

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

Size: 8-32 x .312 inch.

This part has been discontinued by the manufacturer and is no longer available.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This metal bottom hinge shim helps level and align the appliance door by providing a thin, durable spacer under the bottom hinge. Proper shimming restores correct door fit and reduces rubbing or uneven gaps for reliable sealing. What it does:

• Adds precise spacing under the bottom hinge to correct door height and tilt
• Helps stop door rubbing, binding, or uneven gaps that can affect sealing
• Restores proper door alignment so the latch and seals engage correctly
• Durable metal construction resists compression for long-lasting support

• Disconnect power and empty or support the door before working on hinges to avoid injury or damage.
• Support the door while removing hinge fasteners; small shims are installed under the hinge plate.
• Use the correct size fasteners and torque per the manufacturer; replace damaged hardware as needed.

Includes both shims as seen in the photo
