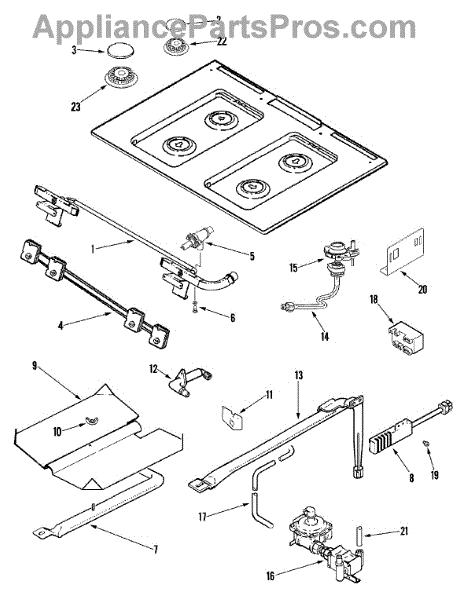

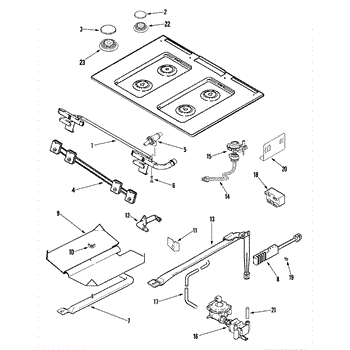

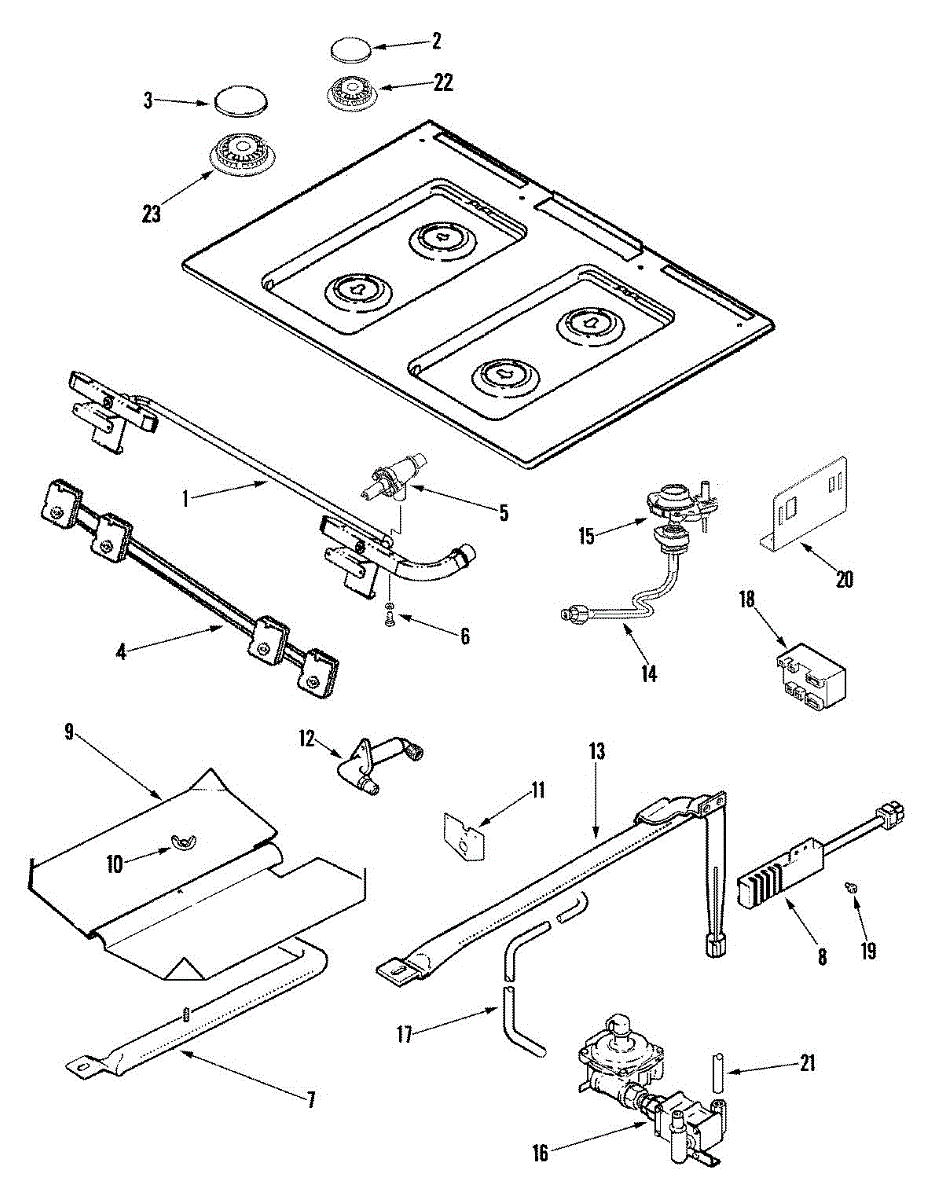

Parts for Maytag PGS3759BDS: 04 - Gas Controls Parts

Color: black. Small size. Measures about 2-1/2 inches in diameter.

Color: Black

5K. Mueller

9K. Mueller.

A set of four valve mounting screws used to secure the water/ice valve or valve bracket in place. These OEM-style screws restore proper valve alignment and fasten valve assemblies for reliable operation. What it does:

• Secures the valve or valve bracket to the appliance chassis to prevent movement during operation
• Helps maintain a tight seal at valve mounting points to reduce risk of leaks
• Replaces missing, stripped, or corroded valve mounting fasteners
• Restores stable valve positioning that can prevent rattling or vibration

• Disconnect power and shut off the water supply before beginning any work
• Use the correct screwdriver or bit to avoid stripping the screw heads
• Thread screws in by hand first, then tighten snugly—do not overtighten to avoid damaging the valve or mounting threads
• If existing threads are damaged, inspect the mounting boss and replace as needed

The Oven Igniter is an OEM part for Whirlpool ovens, designed to ignite the gas in the oven burner, allowing it to heat. This crucial component is responsible for creating the spark that starts the combustion process, enabling your oven to reach the desired temperature for baking or broiling.

Causes of a bad oven igniter include wear and tear from regular use, a buildup of residue that can inhibit the igniter's ability to heat properly, or electrical issues that prevent the igniter from drawing enough current.

Symptoms of a bad Oven Igniter include:

• Oven not heating up at all
• Oven takes longer than usual to heat up
• Gas smell when the oven is turned on, indicating gas is not igniting

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This wing nut is a hand-tightening fastener used to secure small appliance components for easy tool-free adjustment or removal. It offers a simple replacement when the original nut is lost, stripped, or broken. What it does:

• Secures panels, brackets, or components that require occasional removal or adjustment
• Allows tool-free tightening and loosening with built-in wings for finger grip
• Restores proper fit where a missing or damaged nut causes rattling, looseness, or instability
• Designed for repeated hand-operation without specialized tools

• Disconnect power to the appliance before performing any work to avoid shock or injury
• Thread by hand until snug; avoid overtightening to prevent stripping threads or cracking surrounding parts
• Inspect mating threads and replace if damaged to ensure secure fastening
• Use appropriate size and thread type—do not force a mismatched nut onto the stud

G4 orifice holder secures the gas orifice to the burner tube, keeping the orifice aligned for reliable ignition and a consistent flame. Replaces a damaged or worn holder to help restore proper burner flame behavior. What it does:

• Holds and positions the gas orifice in the burner tube for correct flame pattern and stability.
• Ensures consistent ignition and steady flame when the burner is operating normally.
• Common symptom indicators: burner won't light reliably, flame is weak or uneven, or burner performance is inconsistent.

• Turn off the appliance power and shut off the gas supply before beginning work.
• Inspect the orifice and burner tube for debris and proper alignment during installation.
• Tighten fasteners snugly but avoid overtightening; ensure the orifice is properly seated and oriented.
• After installation, check for correct ignition and perform a gas-leak check.

This valve/regulator assembly controls gas flow to the burner, restoring correct gas pressure and ignition response in compatible gas appliances. Use it to address heating issues and unstable or inconsistent burner operation. What it does:

• Regulates and meters gas pressure delivered to the burner for proper combustion.
• Opens and closes gas flow during the ignition cycle to maintain a steady flame.
• Common symptoms it can address: no heat, weak or uneven flame, or burners that fail to light.
• Designed as a direct replacement assembly—matches OEM function and form for affected gas systems.

• Shut off gas supply and disconnect electrical power before attempting replacement.
• Replace gaskets/seals as needed and tighten gas fittings per manufacturer torque specs; check all connections for leaks with soapy water (do not use an open flame).
• Follow model-specific instructions and diagram for correct routing and mounting.

This 4-spark ignition module controls the spark for gas burners so your cooktop or range lights reliably. It replaces a worn or failed module to restore consistent ignition and reduce click/no-spark issues. What it does:

• Sends timed spark to up to four burner electrodes for ignition
• Enables safe ignition sequence when burner control is turned on
• Helps eliminate symptoms like intermittent sparking, no spark, or continuous clicking
• Works with the range/cooktop's control system to coordinate ignition

• One 4-spark ignition module

• Disconnect power and shut off gas before attempting service
• Handle module and wiring harnesses carefully to avoid damage to connectors
• Verify proper electrode gap and burner alignment when reassembling

The Spark Module Kit is an OEM part for Whirlpool ranges. It is responsible for generating the spark needed to ignite the gas burners on the cooktop. The spark module sends electrical signals to the igniters, creating the spark that lights the gas for cooking.

Over time, the spark module can fail due to electrical issues, exposure to moisture, or normal wear and tear. When the spark module becomes faulty, it can lead to various problems with igniting the burners.

Symptoms of a bad spark module include:

• Burners not lighting or taking a long time to light
• No clicking sound when turning the burner knob
• Burners only lighting intermittently
• Visible sparks or arcing from the module

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

NOTE: This part is only compatible with serial numbers starting with 21 and up on model 8351VV.

Size: 10-24X5/16-NI

This auxiliary surface burner head mounts over the orifice on your gas cooktop/range and distributes gas through precision ports for an even flame. Replacing a clogged or damaged head restores fast ignition and consistent heat on the small burner. What it does:

• Distributes gas through ports to produce a stable, even flame on the auxiliary burner
• Interfaces with the igniter electrode for quick, reliable lighting
• Common symptoms of a worn/clogged head: burner won't ignite or clicks without lighting; weak, uneven, or yellow flame; delayed ignition
• Helps restore proper simmer performance after corrosion, warping, or blocked ports

• 1 auxiliary burner head

• Shut off gas and disconnect power; allow the cooktop/range to cool completely
• Remove grate and burner cap, then lift off the old head; clear debris from the orifice and around the igniter (do not enlarge burner ports)
• Position the new head over the orifice and igniter; align locating features and seat fully; if your model uses screws, tighten them evenly without over-torquing
• Reinstall the cap and grate, restore gas/power, and verify even flame and normal ignition

The Burner Head is an OEM part for Whirlpool ranges. It is responsible for distributing gas to create an even flame for cooking on the stovetop. This burner head ensures efficient gas flow and optimal flame control, which are essential for consistent cooking performance.

Causes of a bad burner head can include clogging from food debris or grease, corrosion due to prolonged exposure to heat and moisture, or physical damage from impact. Such issues can obstruct gas flow and result in uneven heating or poor flame quality.

Symptoms of a bad burner head include:

• Uneven flame or poor flame control
• Difficulty igniting the burner
• Low or inconsistent heat output
• Unusual noises such as hissing or popping during operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
