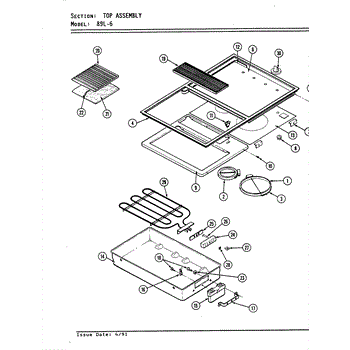

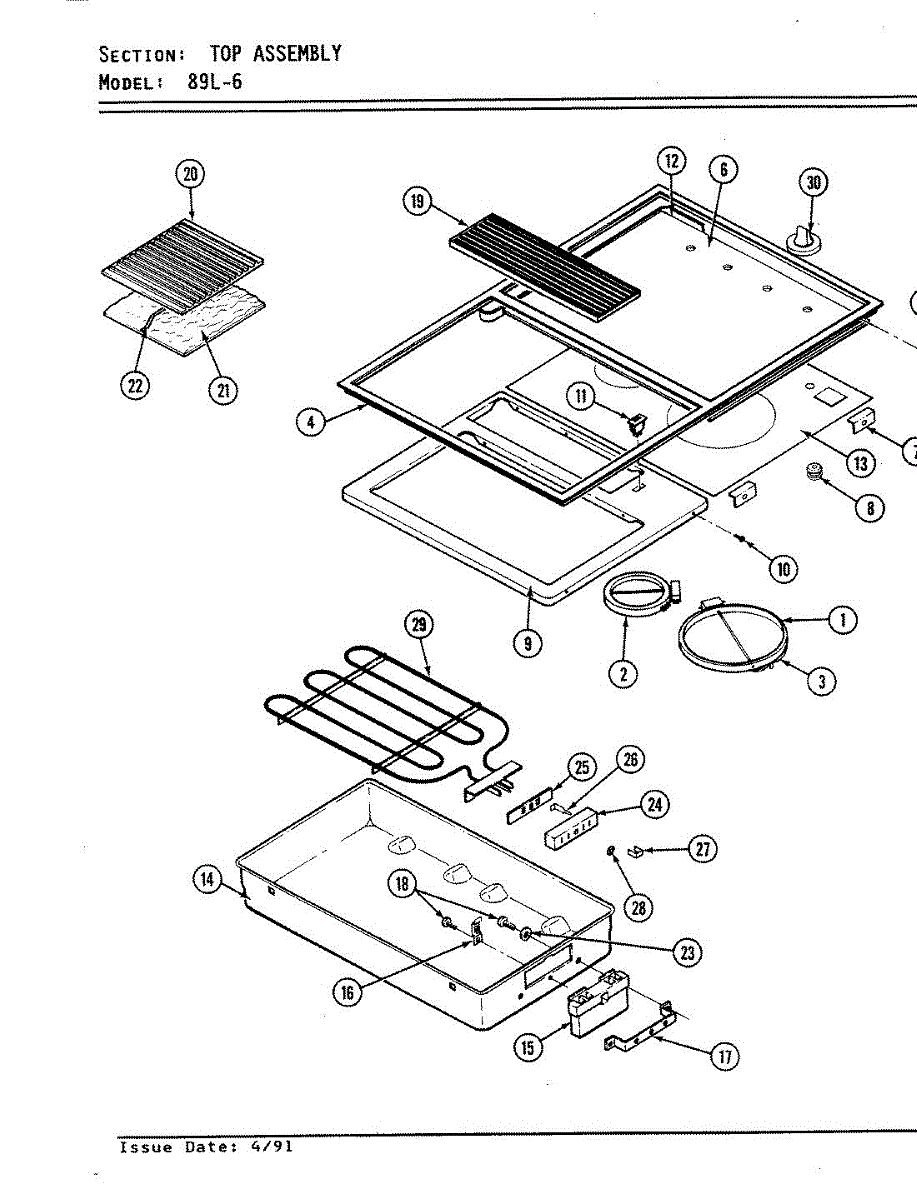

Parts for Magic Chef 89L-6: 04 - Top Assembly Parts

Burner not heating or heating unevenly? This surface element restores consistent heat to your cooktop. Moderate DIY repair with basic tools.

Burner not heating or heating unevenly? This surface element restores consistent heat for boiling, simmering, and sautéing. DIY install in 45 minutes.

Replacement mounting screw for securing panels, brackets, and internal components. Needed when original fasteners are stripped, missing, or damaged.

Mounting screw secures panels, brackets, and components inside your oven. Replace missing, stripped, or damaged screws to restore proper fit.

This part has been discontinued by the manufacturer and is no longer available.

Color: Black

This is a high-heat ceramic light receptacle used in select appliances. It provides a safe, insulated socket for the appliance light bulb so you can reliably see inside during use or service.

• Holds and insulates the bulb in high-temperature areas
• Restores lighting when the bulb is good but the light won't turn on
• Helps correct loose, flickering, or intermittent interior light
• Common signs include a cracked/scorched socket or arcing at the bulb base

• Disconnect power before servicing; allow the appliance to cool completely
• Access may be from inside the cavity or from the rear panel, depending on model
• Transfer wires one at a time to the new receptacle to maintain correct connections
• Install only the bulb type and wattage specified by the appliance manufacturer

Secures cooktop panels and components to eliminate rattling and maintain alignment. Replace when worn clips allow movement or vibration. Confirm fit with your model.

This part has been discontinued by the manufacturer and is no longer available.

Includes one rock plate. 2 used per unit. For the support order 700819.

This rock plate support is used on many of the Jenn-air grill cartridge rock plates.

This terminal block provides an insulated, secure junction for incoming power or harness leads inside the appliance. Replacing a cracked, loose, or heat-damaged block restores a safe, reliable connection and helps prevent arcing or intermittent power.

• Creates a fixed, insulated junction between external supply wires and internal appliance wiring
• Maintains tight screw-lug connections to minimize resistance and heat buildup
• Helps ensure steady power delivery to controls, motors, and heaters
• Common indicators of failure: melted/discolored block, burning odor, visible arcing, loose or stripped terminals, intermittent or no power

• Disconnect power at the breaker and verify zero voltage before servicing
• Photograph/label wire positions; transfer one lead at a time to the new block
• Tighten terminal screws firmly; do not overtighten into the insulator
• Inspect wire ends/ring terminals and strain relief; replace any heat-damaged components per the service information

This contact spade is a push-on electrical terminal used to connect an appliance wire lead to a component's blade. Replacing a worn or heat-damaged connector restores a secure fit and consistent power flow.

• Creates a reliable electrical connection between a wire lead and a flat spade terminal on a component
• Helps prevent arcing, heat build-up, and intermittent power caused by loose or burned terminals
• Common symptoms include: component won't power or heat, intermittent operation, visible discoloration or melting at the connector
• Direct replacement for a damaged or fatigued push-on terminal

• Disconnect power to the appliance before servicing
• Match the size/orientation to the original terminal and replace any discolored or heat-damaged wiring/insulation
• Use an appropriate crimp tool to attach the terminal to the wire lead; ensure a firm crimp
• Push fully onto the mating blade for a tight, secure connection

Stamped metal retaining clip that secures screws to panels and trim. Replace if clip is bent, broken, or missing to properly fasten covers and components.

Color: black. It measures about 2 inches in diameter.

Glass scraper tool for cleaning cooktop surfaces. Removes stuck-on food, spills, and residue from glass cooktops. Essential for maintaining appearance.

Size: 10 fl. oz. Used on glass, ceramic and porcelain cooktops.
