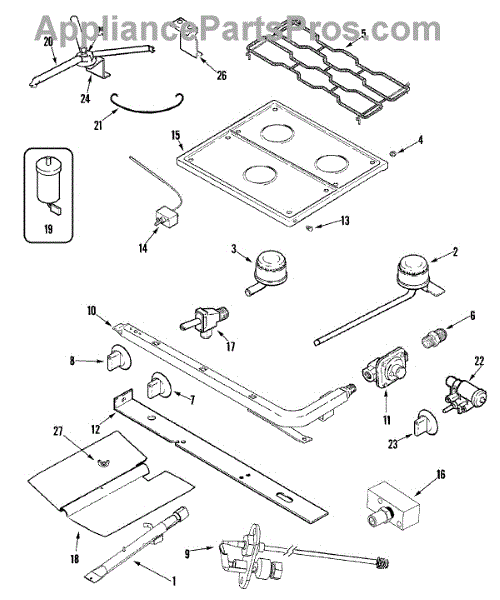

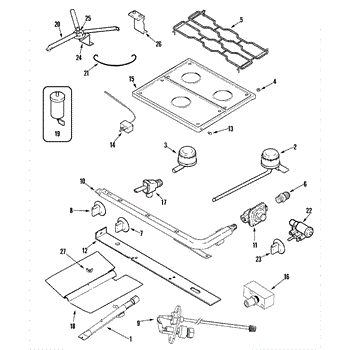

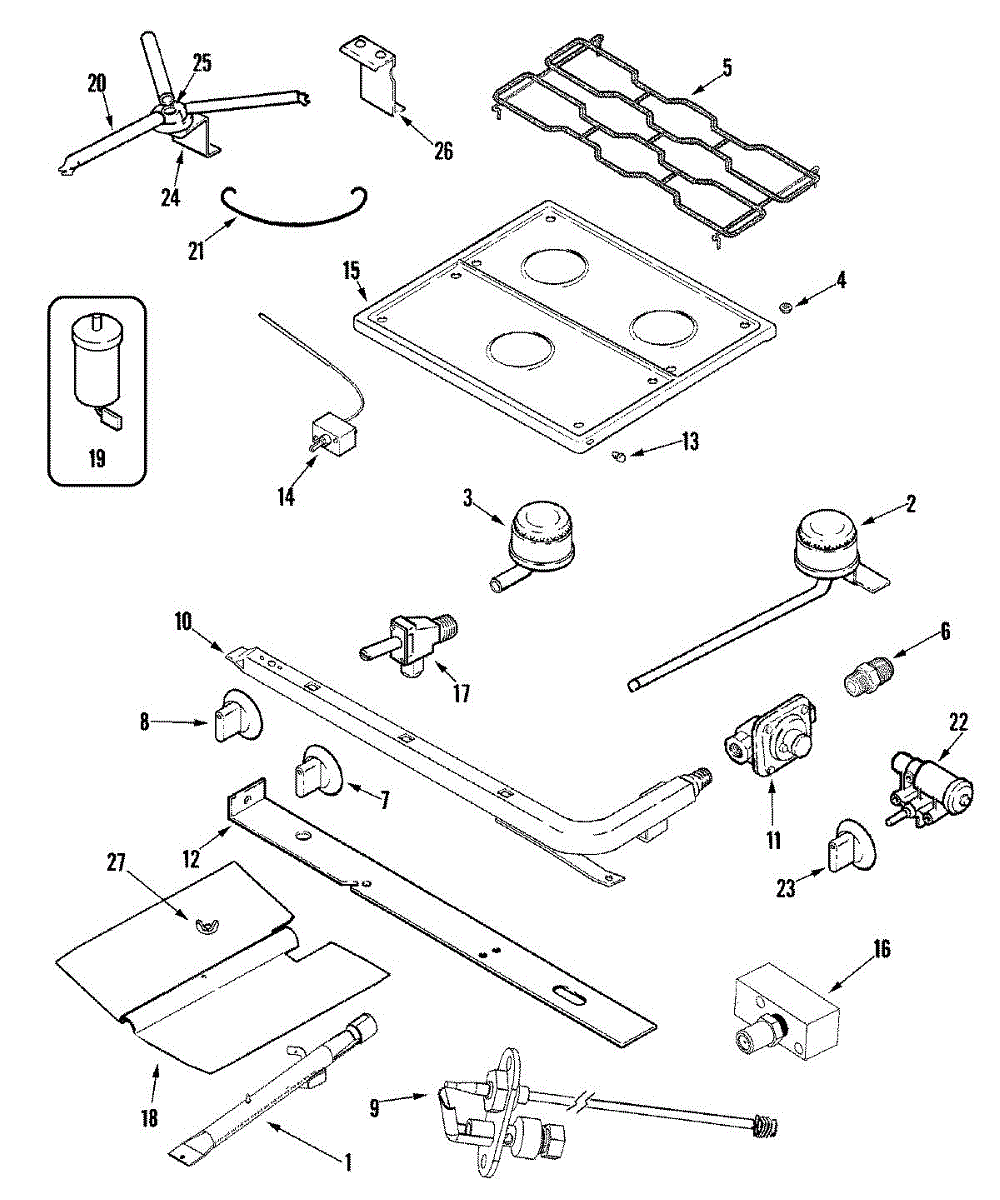

Parts for Magic Chef CLY1620BDB: 04 - Top & Gas Controls Parts

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold

This factory fastener secures panels, trim, or brackets on your appliance. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned for proper operation and a clean, finished appearance.

• Fastens exterior panels, trim pieces, or internal brackets to the appliance chassis
• Replaces lost, damaged, or stripped hardware
• Helps prevent vibration, rattling, and gaps between parts
• Common signs you need this screw: missing hardware, loose or misaligned panel/trim, stripped head or threads

• Disconnect power before servicing; also shut off the gas supply
• Use the correct driver; start the screw by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping or cracking adjacent parts
• Repair or replace the mounting point before installing

This factory fastener secures panels, trim, or brackets on your appliance. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned for proper operation and a clean, finished appearance.

• Fastens exterior panels, trim pieces, or internal brackets to the appliance chassis
• Replaces lost, damaged, or stripped hardware
• Helps prevent vibration, rattling, and gaps between parts
• Common signs you need this screw: missing hardware, loose or misaligned panel/trim, stripped head or threads

• Disconnect power before servicing; also shut off the gas supply
• Use the correct driver; start the screw by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping or cracking adjacent parts
• Repair or replace the mounting point before installing

This grommet is used on the bottom feet of a gas stovetop grate. Color: black. It measures about 1/2 an inch in diameter.

This silicone grommet fits into the burner grate to cushion and stabilize it on the cooktop. It helps prevent rocking and rattling while protecting the surface from metal-to-surface contact and scratches.

• Provides a cushioned interface between the grate and cooktop to reduce noise and wear
• Helps keep the grate level and securely positioned during use
• Minimizes vibration and metal-to-surface contact to protect the finish
• Worn or missing grommets can cause grate wobble, rattling, or scraping marks

• Turn off all burners and allow the cooktop to cool completely
• Remove the grate; pull out the old grommet and clean the recess
• Press the new grommet fully into the grate opening, aligning as shown in your model's diagram
• Reinstall the grate and verify it sits level and stable; replace multiple grommets if wear is uneven

This half-union fitting connects sections of the appliance water line to restore a secure, leak-resistant joint. It's a small but essential plumbing connector used in appliances with water supply plumbing. What it does:

• Joins two compatible water line fittings to complete the water supply connection
• Helps prevent leaks when the mating tubing and fittings are properly seated
• Commonly used where a removable connection or service access is needed
• Works with the appliance's existing water plumbing components to maintain flow

• One half-union fitting

• Turn off water supply and unplug appliance before servicing
• Inspect mating tubing and O-rings for wear; replace if damaged
• Hand-tighten as required, then follow OEM torque recommendations

Replace a worn, cracked, or missing surface burner knob to restore smooth, precise heat control on your cooktop. This direct-fit knob brings back easy ON/OFF operation and clear setting alignment for everyday cooking.

• Attaches to the surface burner valve stem to turn the burner on/off and adjust flame or heat level
• Common symptoms: knob cracked or stripped, spins freely or falls off, melted/discolored, or missing
• Restores proper pointer alignment and a clean, finished look
• Designed for the surface burner position; match style and shaft orientation to your original

• Allow the appliance to cool completely before servicing
• Pull the old knob straight off the valve stem; do not pry against the control panel
• Align the stem orientation with the new knob and press straight on until fully seated
• Disconnect power or shut off gas before any work near controls

This thermostat knob is the control dial that lets you set temperature or cycle settings on compatible Whirlpool appliances. It restores a secure grip and clear position reference so you can select settings easily. What it does

• Replaces a missing, cracked, or stripped thermostat/control knob
• Provides a tactile grip and visible indicator for accurate temperature or cycle selection
• Helps resolve issues where the control is hard to turn or slips on the shaft
• Fits on the appliance's thermostat/control shaft to restore normal operation

• Disconnect power to the appliance before servicing to avoid electrical shock
• Pull the old knob straight off the control shaft; align the new knob's splines with the shaft and push on firmly
• If the knob is tight or stuck, use a non-marring pry tool and work gently to avoid damaging the control panel
• If the shaft or underlying control is damaged, replace the control assembly rather than forcing the knob

This pilot burner assembly ignites the oven's main burner and restores reliable pilot flame control for gas ranges and ovens. Use to replace a worn or malfunctioning pilot that won't hold a steady flame. What it does:

• Provides the small, continuous pilot flame required to light the main burner
• Helps resolve symptoms like a weak or out pilot flame, intermittent ignition, or oven that won't light
• Direct replacement for the OEM pilot burner assembly designed for compatible gas ovens
• Works with factory gas control and ignition components when installed correctly

• Turn off gas supply and electrical power to the appliance before servicing
• Inspect the gas orifice and pilot tube for debris; clean gently if needed
• Use appropriate hand tools and tighten fittings to manufacturer torque specs — do not overtighten

This is a replacement thermostat mounting screw that secures the temperature control sensor for reliable positioning and consistent temperature sensing. A simple, low-cost fix when the existing screw is missing, stripped, or damaged. What it does:

• Secures the thermostat or temperature sensor to the appliance housing or bracket
• Keeps the thermostat sensor in correct contact/position for accurate temperature readings
• Prevents the sensor from shifting, which can cause temperature fluctuations or inconsistent operation
• Replaces stripped, corroded, or missing mounting hardware

• Disconnect power to the appliance before starting any repair to avoid electric shock
• Use the correct screwdriver and match thread engagement; do not force or cross-thread the screw
• Tighten snugly but avoid overtightening to prevent damage to the thermostat or housing
• After installation, restore power and verify proper temperature control and operation

This oven thermostat regulates your range's cooking temperature. It senses the oven cavity and switches the heat on and off to maintain your set point, helping restore accurate, consistent baking and roasting results.

• Regulates oven temperature by sensing heat and cycling the burner/element to hold the set point
• Symptoms of a failing thermostat include running too hot or too cool
• Food may bake unevenly, be undercooked/overcooked, or the oven may not reach the set temperature
• Preheat may take excessively long or temperature may swing widely
• Heat may not cycle off once the set temperature is reached

• Disconnect electrical power; for gas ranges also shut off the gas supply
• Allow the oven to cool completely before service and use proper PPE
• If your original uses a sensing bulb/capillary, route and secure it exactly as the original and avoid kinks or sharp bends
• After installation, verify temperature with an oven thermometer and perform user calibration only if your model supports it

This top burner valve regulates the gas flow to a cooktop surface burner, restoring proper ignition and flame control for safe, efficient cooking. It replaces a worn or leaking burner valve to help burners light and maintain a steady flame. What it does:

• Controls gas flow to a single surface/top burner for ignition and flame adjustment
• Restores burner function when flame is weak, uneven, or fails to light
• Replaces valves that are stuck, leaking, or no longer responsive to the control knob
• Works as the interface between the cooktop control and the burner jet

• One top burner valve

• Turn off gas supply and electrical power before servicing; follow all safety guidelines
• Tighten gas fittings to manufacturer torque specs and test all connections for leaks
• Inspect surrounding gaskets and mounting hardware; replace if damaged

This top burner valve controls gas flow to a single surface burner, restoring reliable ignition and adjustable flame control for gas cooktops. Replaces a worn or leaking burner valve to help stop uneven flames and gas smell. What it does:

• Regulates gas delivery to the top/surface burner for normal ignition and flame adjustment
• Commonly replaced for symptoms like weak or inconsistent flame, gas odor from the cooktop area, or a valve that won't turn smoothly
• Works with the cooktop's control knob and orifice to provide steady, adjustable heat

• One top burner valve (single valve only)

• Turn off gas supply and power to the appliance before inspecting or replacing the valve
• Check for proper gas connections and leaks after installation using an approved leak-detection method

This valve kit repairs the appliance's water/control valve assembly and provides the small mounting screw needed for secure installation. It replaces a worn or damaged valve kit so the appliance can restore proper valve function. What it does:

• Replaces the valve assembly components that control water flow or internal fluid routing
• Helps stop issues caused by a damaged valve kit, such as inconsistent water delivery or valve leakage
• Restores secure mounting with the included screw to prevent loose fittings
• Works as the direct replacement kit specified for the original valve location

• Disconnect power and shut off water supply before starting any repair
• Handle valve components carefully to avoid damaging seals and fittings
• Use basic hand tools; avoid overtightening the mounting screw to prevent stripping

This hot-surface oven igniter heats and lights the gas burner to start your bake or broil cycle. Replacing a weak or failed igniter restores reliable ignition, faster preheat, and consistent oven temperatures.

• Heats to ignite the oven burner and allows the gas safety valve to open
• Common fixes: oven won't heat, very long preheat, burner lights intermittently, or igniter glows but no flame
• Designed to light the bake or broil burner, depending on model
• Restores proper burner startup and temperature recovery

• Disconnect power and shut off gas before servicing
• Handle by the ceramic base; do not touch or strike the heating element
• Mount with the existing bracket/screws and route leads away from hot surfaces
• Restore utilities and verify prompt ignition and a steady blue flame

Color: black. Measures about 2 inches in diameter.

This factory fastener secures panels, trim, or brackets on your appliance. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned for proper operation and a clean, finished appearance.

• Fastens exterior panels, trim pieces, or internal brackets to the appliance chassis
• Replaces lost, damaged, or stripped hardware
• Helps prevent vibration, rattling, and gaps between parts
• Common signs you need this screw: missing hardware, loose or misaligned panel/trim, stripped head or threads

• Disconnect power before servicing; also shut off the gas supply
• Use the correct driver; start the screw by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping or cracking adjacent parts
• Repair or replace the mounting point before installing

This lighter burner assembly provides the spark/ignition component for gas cooktop burners so burners light reliably and cooking can start without delay. It replaces the burned or damaged burner igniter assembly. What it does

• Generates the spark that ignites the gas at a cooktop burner
• Restores ignition when burners fail to light or spark inconsistently
• Stops clicking or weak-spark symptoms caused by a worn igniter
• Helps ensure a stable, visible flame when the gas valve opens

• One lighter burner (igniter/burner) assembly as shown

• Shut off gas supply and power to the appliance before starting work
• Handle ceramic/porcelain and ceramic-tipped igniters carefully to avoid damage
• Basic hand tools required; keep screws and small parts organized during removal

This wing nut is a hand-tightening fastener used to secure small appliance components for easy tool-free adjustment or removal. It offers a simple replacement when the original nut is lost, stripped, or broken. What it does:

• Secures panels, brackets, or components that require occasional removal or adjustment
• Allows tool-free tightening and loosening with built-in wings for finger grip
• Restores proper fit where a missing or damaged nut causes rattling, looseness, or instability
• Designed for repeated hand-operation without specialized tools

• Disconnect power to the appliance before performing any work to avoid shock or injury
• Thread by hand until snug; avoid overtightening to prevent stripping threads or cracking surrounding parts
• Inspect mating threads and replace if damaged to ensure secure fastening
• Use appropriate size and thread type—do not force a mismatched nut onto the stud
