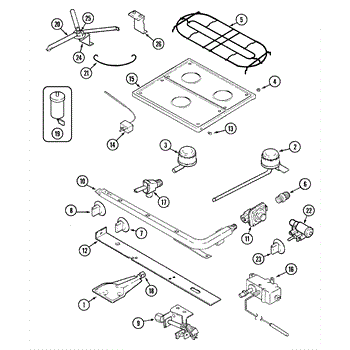

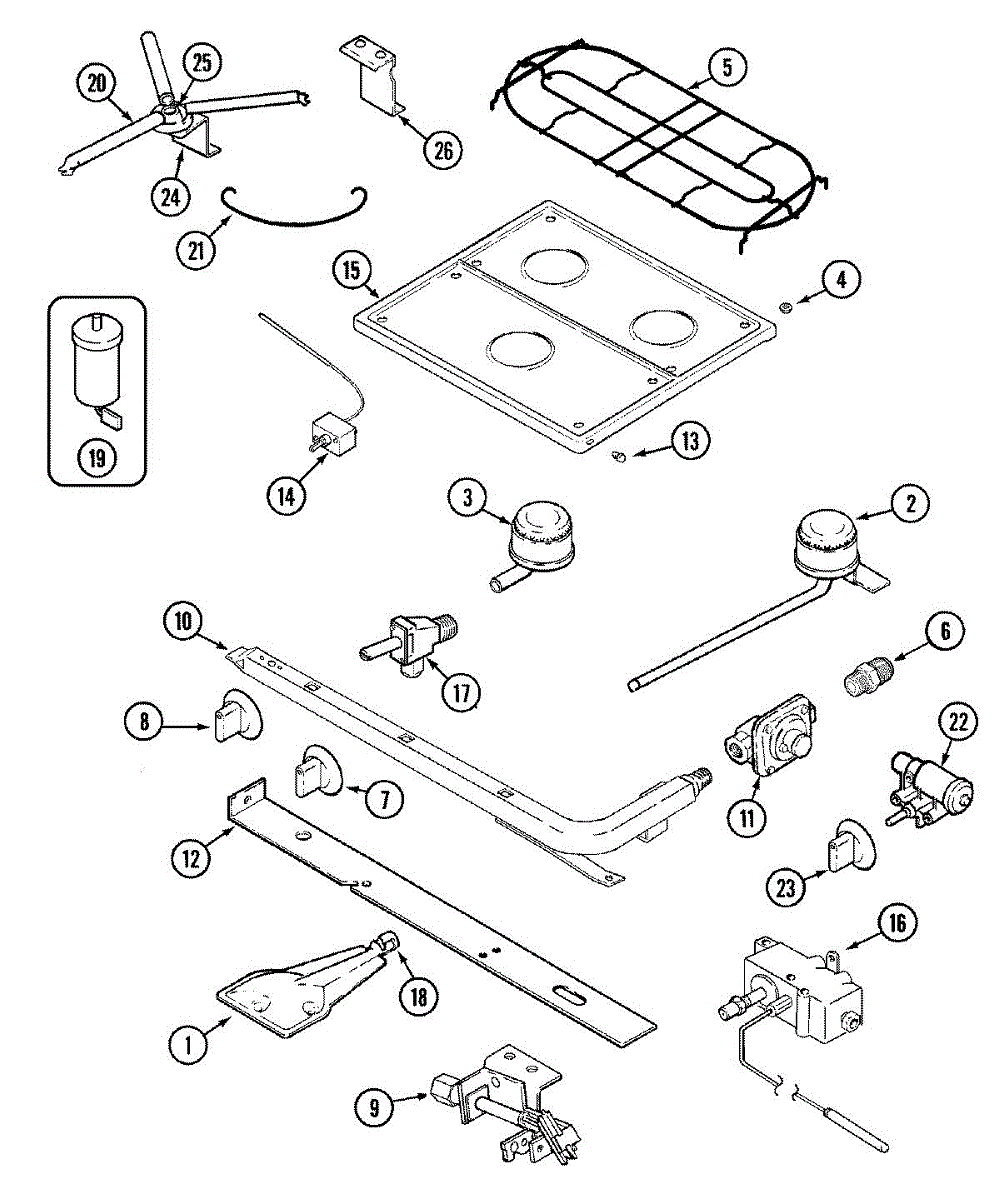

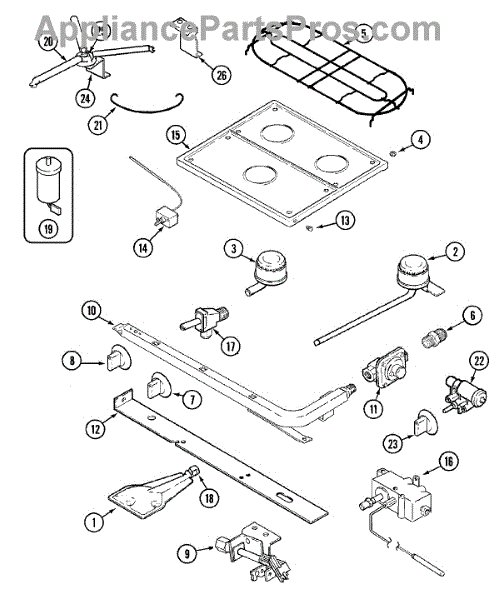

Parts for Magic Chef CLY2242BDB: 04 - Top & Gas Controls (Series 11) Parts

This grommet is used on the bottom feet of a gas stovetop grate. Color: black. It measures about 1/2 an inch in diameter.

This hot-surface oven igniter heats and lights the gas burner to start your bake or broil cycle. Replacing a weak or failed igniter restores reliable ignition, faster preheat, and consistent oven temperatures.

• Heats to ignite the oven burner and allows the gas safety valve to open
• Common fixes: oven won't heat, very long preheat, burner lights intermittently, or igniter glows but no flame
• Designed to light the bake or broil burner, depending on model
• Restores proper burner startup and temperature recovery

• Disconnect power and shut off gas before servicing
• Handle by the ceramic base; do not touch or strike the heating element
• Mount with the existing bracket/screws and route leads away from hot surfaces
• Restore utilities and verify prompt ignition and a steady blue flame

The Screw is an OEM part for Whirlpool appliances. This specific screw is used in various locations within Whirlpool appliances, securing components and ensuring the stability and proper alignment of parts. It is designed to fit precisely and maintain a firm hold, contributing to the overall functionality and safety of the appliance.

Over time, screws can become worn or stripped due to regular use, corrosion, or over-tightening.

Causes of a bad screw include wear and tear, exposure to moisture leading to rust, and over-tightening which can strip the threads.

Symptoms of a bad screw include:

• Loose or wobbly components
• Misalignment of parts
• Noise due to vibrating or loose parts
• Difficulty in securing or removing the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement igniter knob is the user control that engages the spark igniter and gas valve on compatible gas ranges, restoring safe, reliable burner ignition and user control when the original knob is damaged or worn. What it does:

• Replaces a worn, cracked, or stripped igniter/control knob so you can easily turn burners on and off.
• Engages the burner spark mechanism when rotated or pressed (depending on range design).
• Helps ensure proper alignment with the range valve splines for predictable control response.
• Addresses symptoms like a loose, slipping, or broken knob that won't turn the burner valve or activate ignition.

• One replacement knob

• Disconnect power to the appliance and shut off the gas supply before attempting service.
• Ensure splines on the shaft and inside the knob are clean and undamaged; align knob to the shaft and slide fully onto the splines.
• Do not force the knob onto a damaged shaft; forcing can break the knob or valve stem.
• If the burner does not ignite after installation, the igniter or valve assembly may need inspection—this knob only replaces the user control.

This lighter burner assembly provides the spark/ignition component for gas cooktop burners so burners light reliably and cooking can start without delay. It replaces the burned or damaged burner igniter assembly. What it does

• Generates the spark that ignites the gas at a cooktop burner
• Restores ignition when burners fail to light or spark inconsistently
• Stops clicking or weak-spark symptoms caused by a worn igniter
• Helps ensure a stable, visible flame when the gas valve opens

• One lighter burner (igniter/burner) assembly as shown

• Shut off gas supply and power to the appliance before starting work
• Handle ceramic/porcelain and ceramic-tipped igniters carefully to avoid damage
• Basic hand tools required; keep screws and small parts organized during removal

This half-union fitting connects sections of the appliance water line to restore a secure, leak-resistant joint. It's a small but essential plumbing connector used in appliances with water supply plumbing. What it does:

• Joins two compatible water line fittings to complete the water supply connection
• Helps prevent leaks when the mating tubing and fittings are properly seated
• Commonly used where a removable connection or service access is needed
• Works with the appliance's existing water plumbing components to maintain flow

• One half-union fitting

• Turn off water supply and unplug appliance before servicing
• Inspect mating tubing and O-rings for wear; replace if damaged
• Hand-tighten as required, then follow OEM torque recommendations
