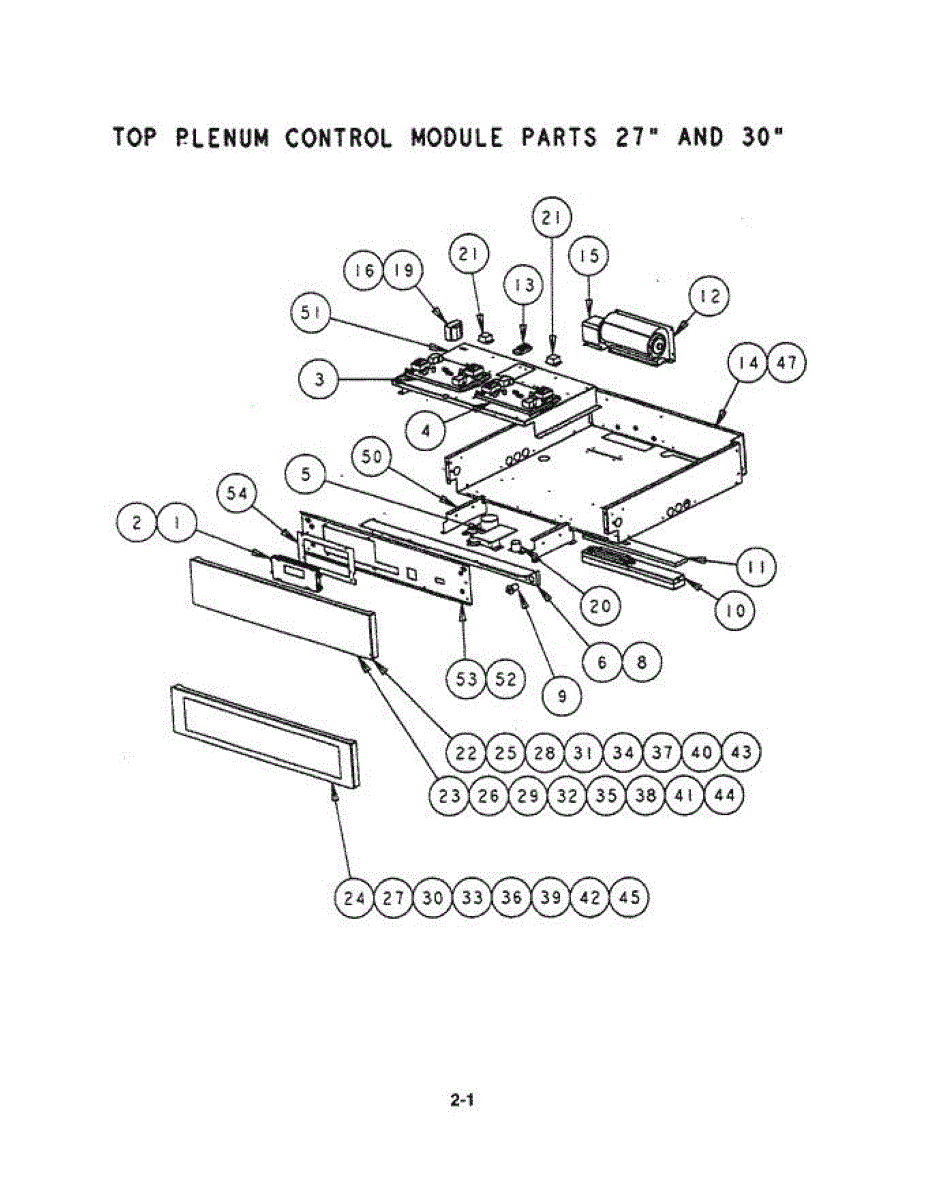

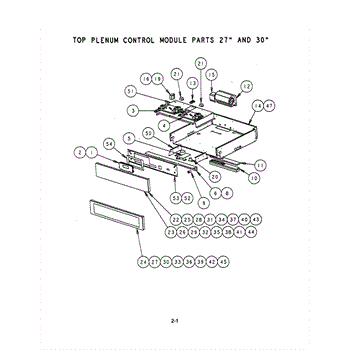

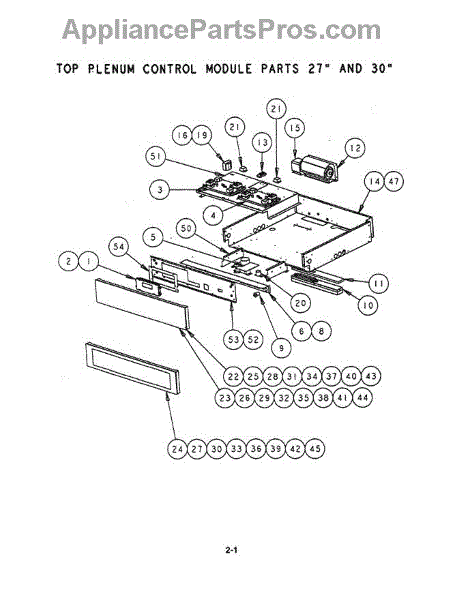

Parts for Thermador SCD302T: 04 - Top Plenum Parts

Double oven. Includes display board, relay board, wire harness and instructions. For the single oven display kit order 00702450.

Double oven. Includes display board, relay board, wire harness and instructions. For the single oven display kit order 00702450.

Single oven. Includes display board, relay board, wire harness and instructions. For the double oven display kit order 00702451.

This replacement plate restores proper support and coverage where the original plate is cracked, bent, or missing. It helps keep nearby components aligned and maintains the appliance's intended fit and function. What it does:

• Provides a stable mounting or cover where an original plate has failed
• Prevents loose parts and reduces rattling or movement during operation
• Helps maintain proper alignment of adjacent components
• Reduces risk of localized wear caused by contact with other parts

• Disconnect power and water before servicing the appliance.
• Use basic hand tools; avoid over-tightening fasteners to prevent distortion.
• Handle edges carefully—wear gloves if edges are sharp.
• Refer to OEM installation instructions for exact placement and torque specs.

This door switch detects when the door is fully closed and latched. Replacing a worn or stuck switch restores safe, consistent start/stop behavior and ensures the unit only runs with the door securely shut. What it does:

• Senses door position and signals the control to enable/disable operation
• Prevents the appliance from running with the door open
• Resolves issues such as: won't start despite power, stops when the door is jostled, "close door" message, or needing to press on the door to run
• Helps restore reliable cycle start and proper safety interlock function

• 1 door switch

• Disconnect power at the breaker before servicing
• Access the switch behind the door panel or latch area; note wire locations or take a photo
• Move wire connectors to the new switch one at a time; ensure terminals are fully seated
• Reassemble and test door closure and operation before returning to service

This replacement fan restores proper airflow inside your appliance, circulating air for cooling and overall performance. Replacing a worn or damaged fan helps keep temperatures in check and reduces noise from rubbing or imbalanced blades.

• Circulates air as designed to cool components and move heat/moisture where intended
• Common symptoms of a failing fan include loud scraping or rattling, weak or no airflow, wobble, or the fan not turning
• Heat buildup around the control area or repeated thermal shutdowns can point to a fan issue
• Physical cracks, broken fins, or warping indicate the fan should be replaced

• Disconnect power at the breaker; allow the unit to cool completely
• Access the fan per your model; remove panels/guards carefully and note orientation
• Transfer any retaining nut/clip or gasket from the original as required; seat the fan fully and secure
• Spin by hand to verify free movement; ensure no contact with shrouds before restoring power

This transformer provides the low-voltage power supply required by the appliance control system, enabling proper operation of the control board and related low-voltage circuits. Replaces a failed or noisy transformer to restore reliable control power. What it does:

• Steps down mains voltage to the appliance's low-voltage control circuit for the control board and relays
• Helps restore control functions when a failed transformer causes no power, intermittent control operation, or unresponsive electronics
• Prevents control-board brownouts by providing consistent low-voltage feed (when the transformer itself is the issue)
• Used wherever a dedicated appliance control transformer is required by the appliance's electrical system

• One replacement transformer

• Always disconnect power to the appliance before accessing electrical components
• Verify wiring locations and terminal IDs before removing the old transformer; label wires if needed
• Transfer mounting hardware and brackets from the old part unless new hardware is explicitly included

This is a replacement electrical fuse used in select Bosch appliances to protect internal circuits by opening the circuit if an overload or fault occurs. It restores proper safety protection when the original fuse is blown. What it does

• Acts as an overcurrent/thermal protection element for control and power circuits
• Prevents further electrical damage by interrupting power when a fault is present
• Common symptom of a blown fuse: appliance has no power or certain functions won't operate
• May be checked when the appliance is completely unresponsive or specific components do not receive power

• One replacement Fuse 4 (mdl 4)

• Disconnect power to the appliance before inspecting or replacing the fuse
• Replace only with the exact part specified for your model; do not bypass the fuse
• If the replacement fuse blows again, stop use—repeated failures indicate a deeper electrical problem
• Wear appropriate safety gear and follow for access instructions

This transformer provides the low-voltage power supply required by the appliance control system, enabling proper operation of the control board and related low-voltage circuits. Replaces a failed or noisy transformer to restore reliable control power. What it does:

• Steps down mains voltage to the appliance's low-voltage control circuit for the control board and relays
• Helps restore control functions when a failed transformer causes no power, intermittent control operation, or unresponsive electronics
• Prevents control-board brownouts by providing consistent low-voltage feed (when the transformer itself is the issue)
• Used wherever a dedicated appliance control transformer is required by the appliance's electrical system

• One replacement transformer

• Always disconnect power to the appliance before accessing electrical components
• Verify wiring locations and terminal IDs before removing the old transformer; label wires if needed
• Transfer mounting hardware and brackets from the old part unless new hardware is explicitly included

This Thermal Fuse is an OEM part for Bosch Wall Ovens. It acts as a safety mechanism, designed to interrupt the electrical connection if the oven's temperature exceeds the safe limit.

What Causes a Bad Thermal Fuse:
Overheating due to issues like a malfunctioning thermostat or restricted airflow can cause the thermal fuse to blow. This interruption prevents the oven from operating at dangerously high temperatures, reducing the risk of fire.

Symptoms of a Bad Thermal Fuse:

• Oven fails to heat up
• No response or display on the control panel
• The oven doesn't maintain the set temperature

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This replacement tension spring restores proper tension and smooth movement for the affected appliance mechanism. It helps bring parts back into correct alignment and reduces loose or inconsistent operation when the original spring fails. What it does:

• Provides restoring tension for the associated moving part to maintain correct position and motion
• Helps eliminate loose, sagging, or unstable movement caused by a worn or broken spring
• Reduces rattling or intermittent operation related to a failed spring
• Works with the appliance's pivot or latch assembly to ensure reliable engagement

• Disconnect power to the appliance before beginning any repair to avoid shock or injury
• Springs are under tension; wear eye protection and use appropriate tools to control tension during removal and installation
• Note orientation and attachment points of the old spring for correct reinstallation
