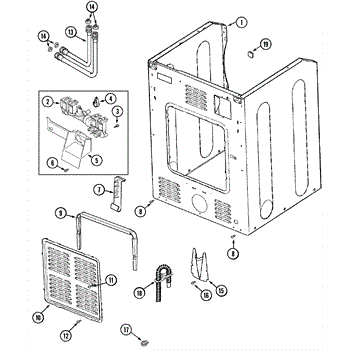

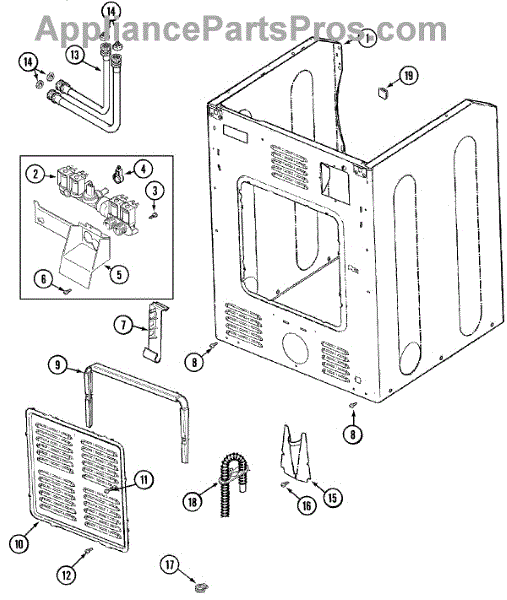

Parts for Maytag MLE2000AZW: 05 - Cabinet-Rear (Washer) Parts

Color: White

Color: White This part has been discontinued and is no longer available.

Spesc: #12 pozi - drive

This factory screw secures appliance panels and components, keeping them properly aligned and quiet during operation. Replace a stripped, corroded, or missing fastener to restore a snug fit and dependable performance in the original mounting location. What it does:

• Fastens brackets, panels, trim, or internal hardware to the cabinet/frame as specified by the manufacturer
• Helps maintain proper alignment and reduce rattling or vibration when a screw is worn or missing
• Direct replacement for damaged, stripped, or rusted hardware
• Used in various locations per the service diagram; match to the original position

• 1 screw

• Disconnect power (and shut off water or gas, if applicable) before servicing.
• Compare length and thread style to the original; install in the same location.
• Start threads by hand to avoid cross-threading; tighten until snug—do not overtighten.
• Reinstall any brackets or panels in the correct order.

This water inlet valve regulates the flow of water into the washer tub and dispenser compartments. When it wears or sticks, the machine may fill improperly or at the wrong times; replacing it restores controlled filling and dispensing. What it does:

• Directs hot/cold water to the tub and dispenser channels as selected by the control.
• Uses four solenoids to open/close individual water paths during fill and rinse.
• Common symptoms: won't fill or fills slowly; keeps filling when off; water drips into tub between cycles; incorrect temperature; a dispenser bay doesn't flush.
• Addresses internal leaks, stuck or shorted coils, or sediment-clogged inlet screens causing restricted flow.

• Water inlet valve assembly (4 solenoids)

• Disconnect power and turn off both water supplies before servicing.
• Place a towel to catch residual water; note hose locations and relieve pressure before removal.
• Move electrical connectors to the matching terminals one at a time; transfer hoses securely.
• Open supply valves and check all connections for leaks; run a fill cycle to operation.

This hose clamp secures a rubber or plastic hose to its fitting to maintain a tight, leak-resistant seal. Replace a worn or missing clamp to stop drips and keep appliance water connections secure.

• Fastens a hose to a barb or port to prevent leaks
• Helps keep hoses from slipping off due to vibration or pressure
• Restores proper sealing when a clamp is rusted, bent, or stripped
• Common symptoms: water dripping at a hose joint, loose hose connection, or a clamp that won't tighten

• Disconnect power and shut off the water supply before servicing
• Place a towel to catch residual water when removing hoses
• Position the clamp just behind the hose barb/bead and secure with the appropriate tool
• Restore water and power, then run a quick check for leaks at the connection

Screw: 8-16 x 3/8 inch.

This factory screw secures appliance panels and components, keeping them properly aligned and quiet during operation. Replace a stripped, corroded, or missing fastener to restore a snug fit and dependable performance in the original mounting location. What it does:

• Fastens brackets, panels, trim, or internal hardware to the cabinet/frame as specified by the manufacturer
• Helps maintain proper alignment and reduce rattling or vibration when a screw is worn or missing
• Direct replacement for damaged, stripped, or rusted hardware
• Used in various locations per the service diagram; match to the original position

• 1 screw

• Disconnect power (and shut off water or gas, if applicable) before servicing.
• Compare length and thread style to the original; install in the same location.
• Start threads by hand to avoid cross-threading; tighten until snug—do not overtighten.
• Reinstall any brackets or panels in the correct order.

This replacement screw fastens trim, panels and small components to restore secure attachment and reduce rattling or movement. Use when a screw is missing, stripped, or damaged to keep parts aligned and operating quietly. What it does:

• Secures panels, brackets and trim to appliance assemblies
• Prevents vibration, rattling and misalignment caused by missing or damaged fasteners
• Replaces lost or stripped screws that can allow gaps or loose parts
• Helps maintain safe, stable operation by keeping components properly fastened

• Disconnect power (and water if applicable) before accessing interior panels
• Use the proper screwdriver or driver bit to avoid stripping the head
• Align parts before tightening and tighten until snug—do not overtighten
• Replace only with the correct OEM part to ensure proper fit and function

Screw: 8-16 x 3/8 inch.

Screw: 8-16 x 3/8 inch.

Size: 5 foot long. Rubber fill hose used on most automatic washing machines. Two hoses used per machine.

This small retaining clip secures components in place inside the appliance, helping prevent movement, vibration, and premature wear. Replace a bent, fatigued, or missing clip to restore a solid, factory-tight hold.

• Holds panels, brackets, or tubing securely in their mounts
• Helps maintain alignment to reduce rattles, rubbing, or intermittent issues
• Common signs of failure: missing clip, loose fit, buzzing/vibration, parts that won't stay seated
• Restores proper retention after service, transport, or vibration-related fatigue

• Disconnect power and shut off gas/water before servicing
• Note the original clip's orientation; remove with needle-nose pliers
• Seat the new clip fully—do not over-bend; spring tension provides the hold
• Test operation before reassembly

This factory screw secures appliance panels and components, keeping them properly aligned and quiet during operation. Replace a stripped, corroded, or missing fastener to restore a snug fit and dependable performance in the original mounting location. What it does:

• Fastens brackets, panels, trim, or internal hardware to the cabinet/frame as specified by the manufacturer
• Helps maintain proper alignment and reduce rattling or vibration when a screw is worn or missing
• Direct replacement for damaged, stripped, or rusted hardware
• Used in various locations per the service diagram; match to the original position

• 1 screw

• Disconnect power (and shut off water or gas, if applicable) before servicing.
• Compare length and thread style to the original; install in the same location.
• Start threads by hand to avoid cross-threading; tighten until snug—do not overtighten.
• Reinstall any brackets or panels in the correct order.

The Hose Clamp is an OEM part for Whirlpool washing machines. This clamp secures the hose in place, ensuring a tight connection and preventing leaks during operation. It is essential for maintaining the integrity of the washing machine's water system, securing hoses that carry water to and from the washer.

Common causes of a bad hose clamp include rust, physical damage, or loosening from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Water leaks around the hose connection points
• The hose slipping off the fitting
• Visible rust or wear on the clamp
• Difficulty in tightening the clamp to secure the hose

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This drain hose carries used water away from your appliance during the drain cycle. Replacing a worn or damaged hose helps stop leaks and restores proper draining performance.

• Routes wastewater from the appliance's drain system to the household drain
• Replaces hoses that are cracked, brittle, clogged, or kinked and leaking
• Can help when cycles end with standing water or slow/failed draining
• Helps reduce odors and backflow when installed and routed correctly

• Disconnect power and water supply; allow the appliance to cool before servicing
• Move the unit for access; keep towels or a pan handy to catch residual water
• Transfer and tighten existing clamps/fittings to the new hose; route without kinks and secure per your model's instructions
• Run a short test cycle and check all connections for leaks
