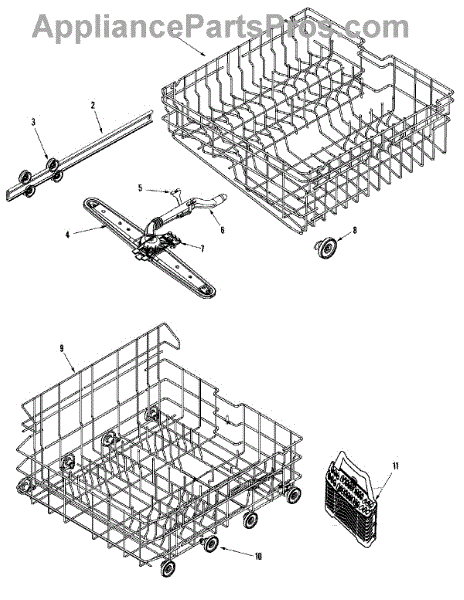

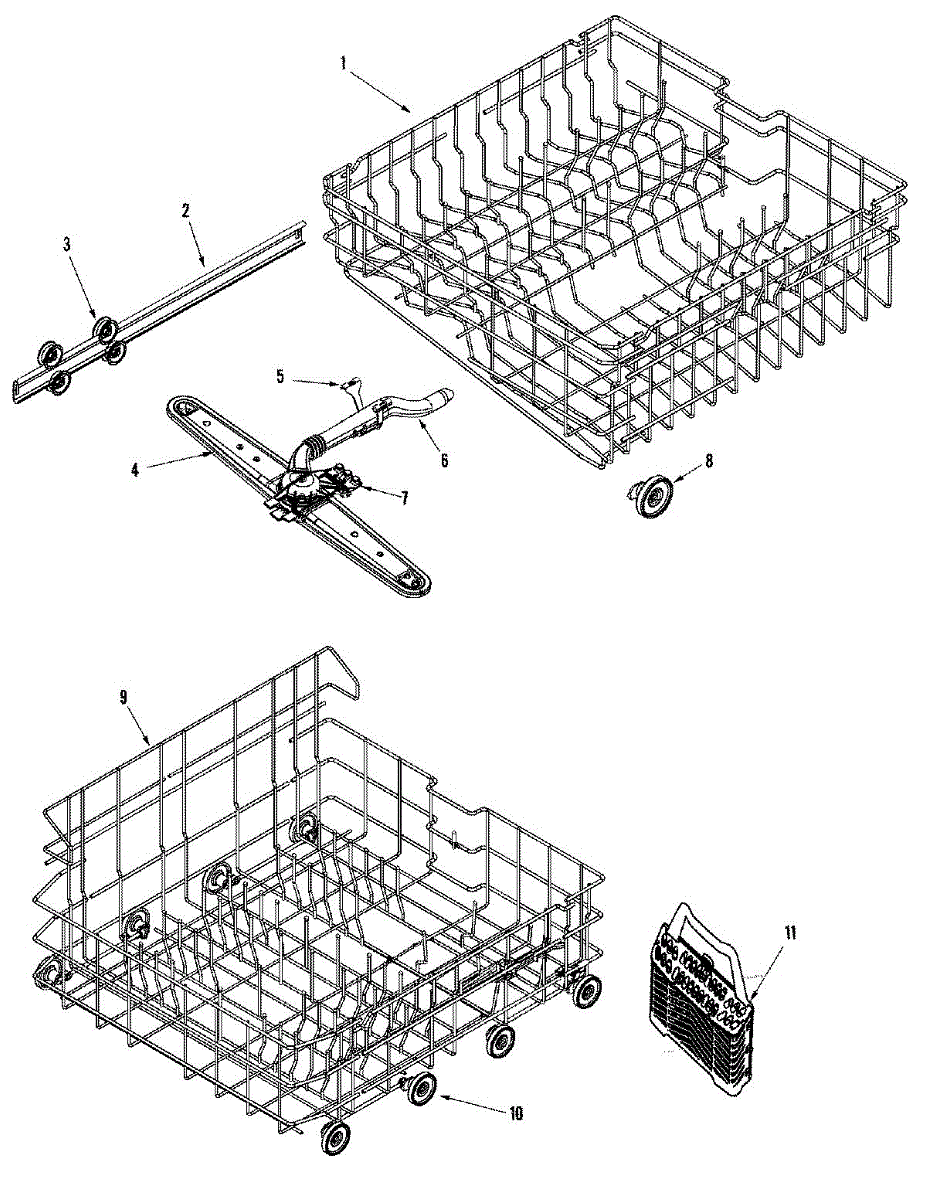

Parts for Maytag PDBL390AWB: 05 - Track & Rack Assembly Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

This upper dishwasher rack holds dishes, glasses, and utensils in the top section of your dishwasher during the wash cycle. It slides in and out for easy loading and features adjustable tines and cup holders. Replace this rack if the wheels are broken, tines are bent, or the rack won't slide smoothly.

This slide rail guides and supports the dishwasher rack as it moves in and out of the dishwasher tub. It provides smooth rolling motion and proper alignment for the dish rack during loading and unloading. Replace this part if your rack is difficult to pull out, doesn't slide smoothly, or comes off track during use.

Secures the upper rack rail to prevent it from sliding out. Replace if missing, broken, or popped off. Installs on the end of the rack track.

The Tub Wheel supports and guides the washer's tub assembly on its base during wash and spin cycles. Replacing a worn wheel restores smoother, quieter operation and helps reduce vibration and rubbing as the machine operates.

• Provides rolling support so the tub can move and self-balance during cycles
• Reduces friction between the tub and the base/frame
• Helps keep the tub centered to minimize noise and vibration
• Failure symptoms include squeaking or grinding, scraping noises, dragging movement, or visible flat spots/cracks on the wheel

• Disconnect power and water supply before servicing; wear appropriate gloves and eye protection
• Access the base/suspension per the service information and support the tub to remove load from the wheel
• Remove the retainer/axle, install the new wheel, and free rotation and correct orientation
• Reassemble, level the appliance, and run a spin test to check for noise and balance

Replacement tub wheel assembly for dishwasher upper rack track. Installs on inner tub to support rack gliding. Needed when wheel is cracked or broken.

Replacement tub wheel assembly for dishwasher upper rack track. Installs on inner tub to support rack gliding. Needed when wheel is cracked or broken.

This rotating spray arm distributes water throughout the upper rack of your dishwasher to clean dishes, glasses, and utensils. It spins during the wash cycle, spraying pressurized water through multiple holes to remove food particles and soap residue. Replace this spray arm if your upper rack dishes aren't getting clean, the arm doesn't rotate, or spray holes are clogged and can't be cleared.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Secures the upper wash manifold in your dishwasher. Replace this clip if it's cracked, broken, or missing to properly mount the spray arm assembly.

Upper

Front

Replace cracked, broken, or missing upper rack wheels that cause the top rack to slide poorly or fall off the rail. Includes roller and axle assembly.

Note: New rack no longer includes removable tines or cup shelf. This part is a lower dishrack. The lower dishrack is the lower shelf of a dishwasher that holds plates, bowls, and utensils. To remove the old dishrack, simply pull it out and lift the wheels up from its track. Set it off the side, and lift the new dishrack. Slide it into its track and make sure it is locked in. If it is gliding in and out in a smooth way, it has been installed properly.This genuine replacement OEM part is sold individually and is compatible with Whirlpool brands include Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Sears/Kenmore brand appliances.

Dishrack wheel assembly for dishwashers. Replaces broken, cracked, or worn wheels that prevent smooth rack sliding. Includes wheel and axle bracket.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.
