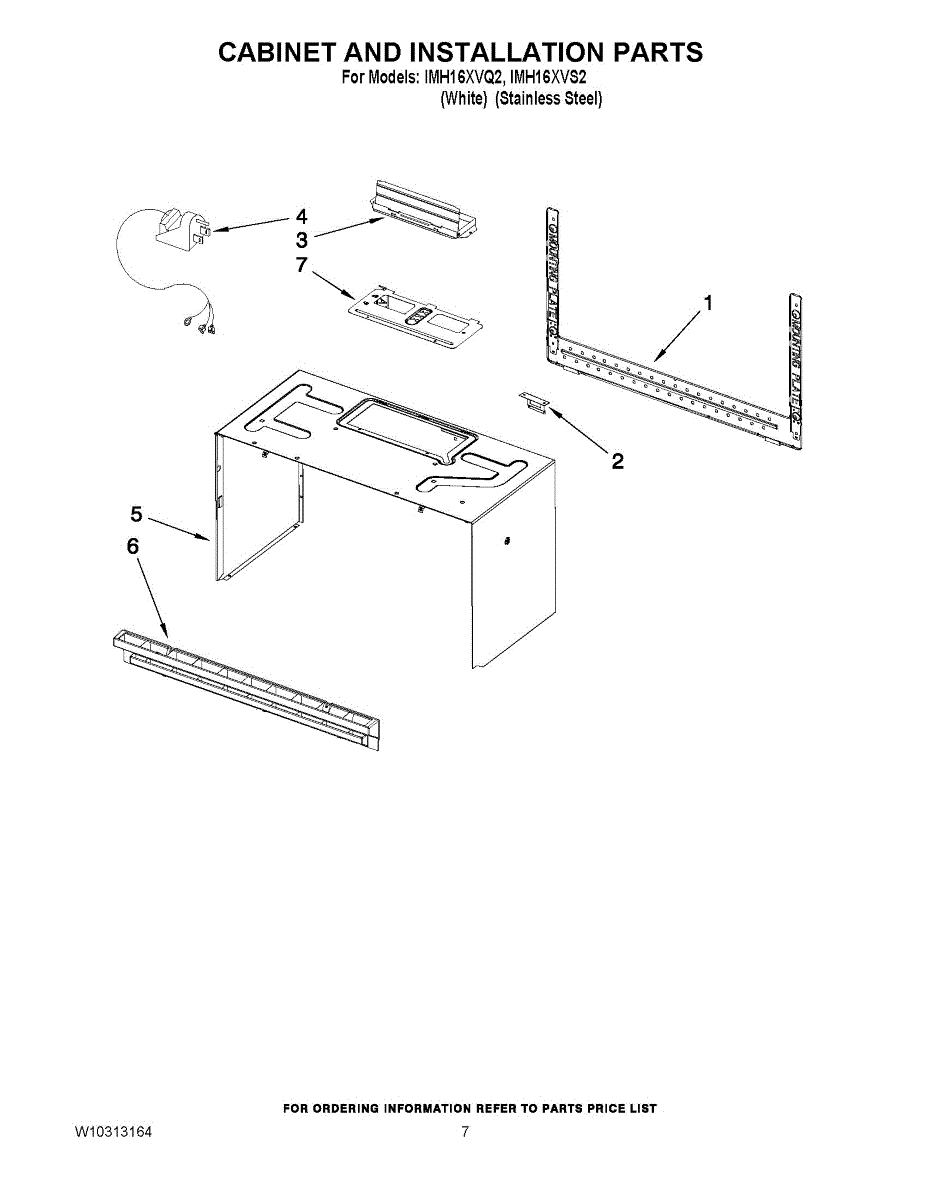

Parts for Whirlpool IMH16XVS2: 06 - Cabinet And Installation Parts

Replacement mounting plate for over-the-range microwaves. Anchors microwave to wall studs. Replace if bent, damaged, or missing to restore secure mounting.

Molded wire clip that secures wiring and harnesses to the microwave cabinet. Replace if broken, cracked, or missing to prevent wire rubbing and chafing.

Air damper assembly for over-the-range microwaves. Installs at top exhaust opening to control airflow direction. Replace if cracked, missing, or broken.

Power cord connects your microwave to the wall outlet. Replace if damaged, frayed, chewed, or cut. Attaches to internal wiring with wire connectors.

This cabinet wrapper replaces damaged or worn exterior cabinet trim to restore the appliance's finished appearance and protect the outer cabinet edge. It's a direct-fit cosmetic panel used where the cabinet surface is dented, scratched, or missing trim. What it does:

• Covers and protects the appliance cabinet edge or corner from further damage and moisture exposure
• Restores a smooth, finished exterior appearance after dents, scrapes, or torn trim
• Helps close visible gaps between panels for a cleaner look
• Keeps cabinet surfaces ready for normal cleaning and maintenance

• Disconnect power and water before servicing to reduce risk of injury
• Use appropriate hand tools and handle edges carefully to avoid cuts or damaging adjacent trim
• Replace any damaged clips or screws with OEM-specified hardware

Wire harness assembly that connects the control board to microwave components. Replace this wiring assembly if damaged, corroded, or connectors are worn.

This hardware kit contains the screws, bolts, and mounting components needed to install an over-the-range microwave to the wall and upper cabinet. It provides the necessary fasteners to securely anchor the microwave in place during installation. Use this kit if you are missing the original mounting hardware or if existing hardware is stripped, damaged, or incompatible during a replacement installation.

Metal screw for mounting microwaves to upper cabinets. Replace if lost, stripped, or damaged during installation. Installs with screwdriver.
