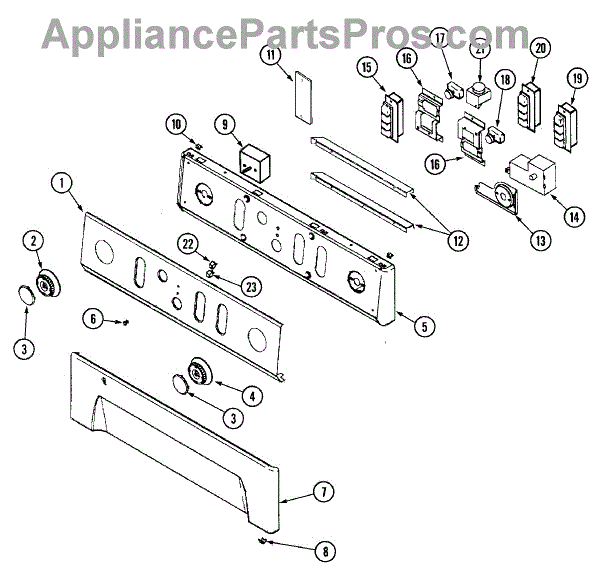

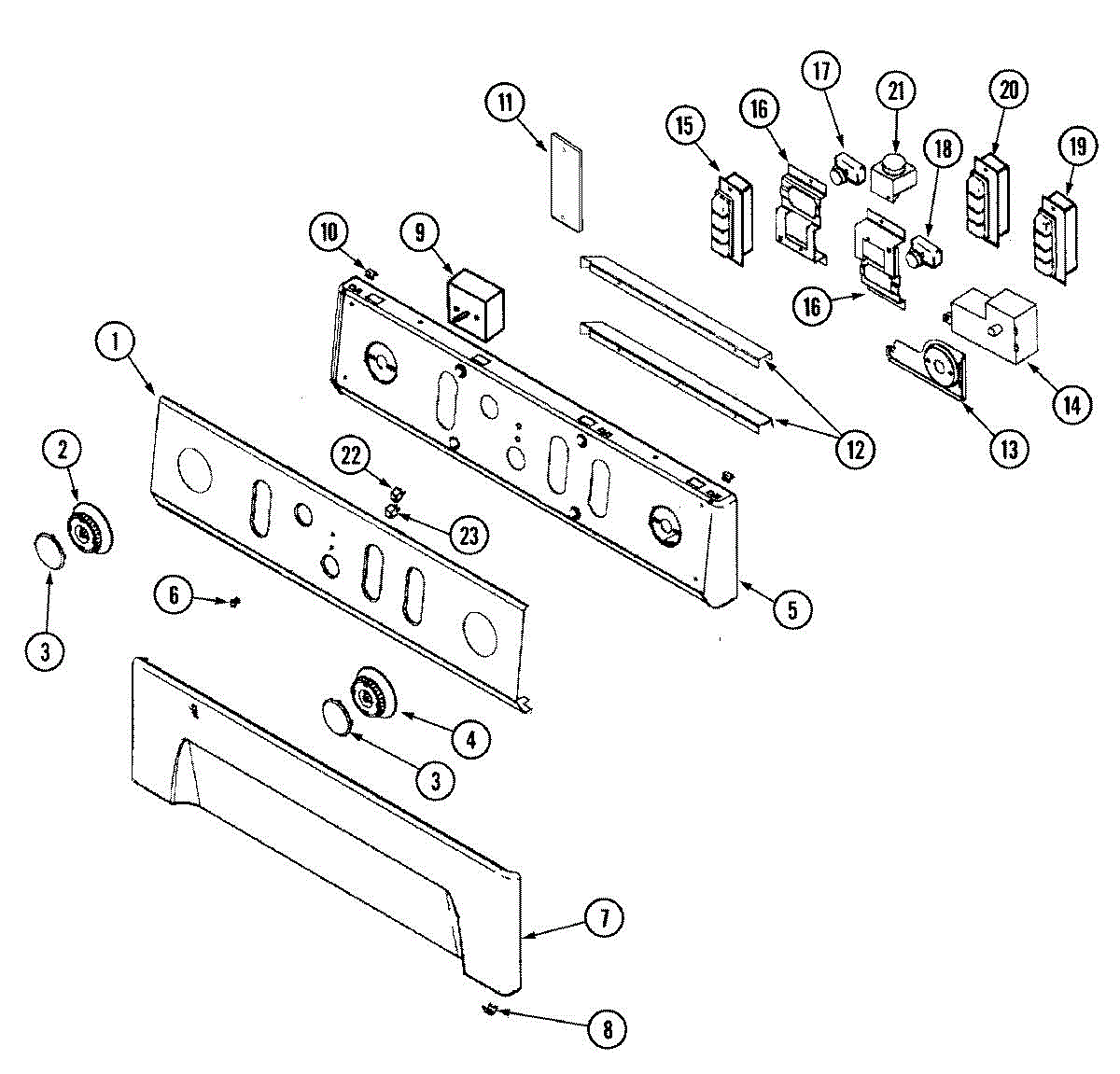

Parts for Maytag MUG2000AWW: 06 - Control Panel (Dryer) Parts

The Timer Knob Insert is an OEM replacement part for Whirlpool dryers. This is a cap located on the timer knob on the control panel. Color: White. This is the timer knob cap only. For the complete assembly, you must also order the knob and skirt.

Causes of timer knob Insert failure can include cracked plastic from years of repeated turning motions. Wear on components also occurs due to extensive lifetime usage cycles.

Symptoms of a faulty timer knob insert include:

• Knob becomes loose, detached or inoperable for timings scrolling
• Cracks appear exposing internal timer parts

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

Specs: No.8-18AB WAFER HD

This indicator light lens covers the pilot/indicator lamp opening on the appliance's control panel. It protects the assembly and diffuses the light so operating status is easy to see, restoring a clean, finished appearance when the original lens is damaged or missing.

• Covers and protects the indicator/pilot light opening in the panel
• Diffuses light for clearer visibility of the status indicator
• Helps keep dust, grease, and moisture out of the indicator assembly
• Common symptoms: lens cracked, missing, loose, or discolored; indicator light difficult to see

• Disconnect power to the appliance before servicing.
• Access the rear of the control panel/backguard to reach the lens area.
• Release the old lens from the panel opening and press the new lens in until fully seated; do not force brittle plastics.
• Reassemble panels, restore power, and verify the indicator is clearly visible.

Specs: No.8-18AB WAFER HD

Size: 8-32 x .312 inch.

This mechanical timer controls the dryer's cycle timing and advances the selected program so loads dry on schedule. It replaces a failing timer to restore cycle selection and timed operation. What it does:

• Rotates to advance dryer cycles and engage the correct timed functions.
• Directs power to timer-controlled components during each cycle step.
• Commonly used when the dryer won't advance through cycles or won't run on a timed setting.
• Corrects intermittent or non-responsive cycle selection caused by a faulty timer.

• One timer assembly.

• Disconnect power to the appliance before beginning any work.
• Access typically requires removing the control panel or console; handle internal parts and connectors carefully.
• Tighten fasteners and re-check cycle selection after installation; do not force connectors.

Size: 8-32 x 1/4 inch.

This electronic control board regulates the appliance's functions and user controls so the unit runs cycles and displays status correctly. Replaces a failed control board to restore normal appliance operation and control responsiveness. What it does:

• Manages timing, cycle selection, and user interface commands for the appliance
• Communicates with sensors and actuators to start and stop cycles
• Can resolve symptoms like unresponsive controls, incorrect cycle operation, or error codes tied to the main control
• Works as the central logic module coordinating other control components

• One electronic control board

• Disconnect power before servicing to avoid shock or damage
• Handle the board by its edges and avoid static discharge; use an anti-static strap if available
• Verify cabinet access panels and connectors match before installing the replacement

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Size: 8-32 x .312 inch.

Specs: 10 - 16 x .375

This part is a timer that has been manufactured by Whirlpool for use with certain laundry centers. The timer controls the length of the different laundry center cycles. If the timer is faulty, including becoming detached, warped, corroded, or otherwise rendered ineffective, the user may notice that the cycles do not run for their intended amount of time or some cycles may not start at all. Check the timer for continuity using a multimeter to determine if it needs to be replaced. Before starting any repairs, always make sure the appliance is completely disconnected from the power source. As a genuine OEM part, this part has been sourced directly from the manufacturer and is only sold individually. This timer is manufactured from high quality and durable materials to ensure sturdiness and reliability. It is intended for use with certain laundry centers that have been manufactured by brands that include Whirlpool, Maytag, Jenn-Air, Amana, Norge, and Admiral.

Specs: 10 - 16 x .375

Size: 8-32 x 1/4 inch.

To order indicator lens use WP22001948.
