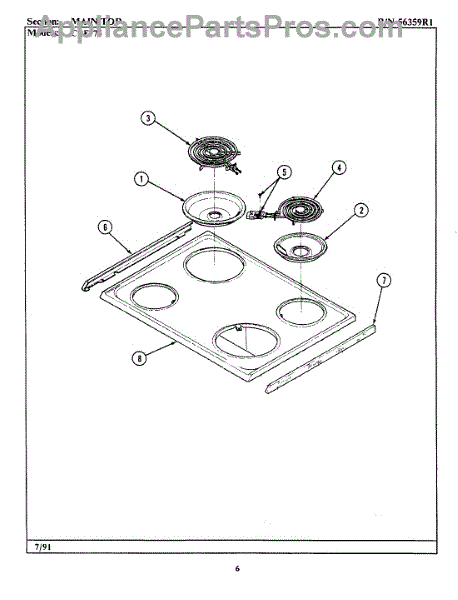

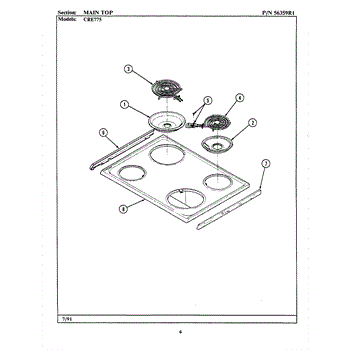

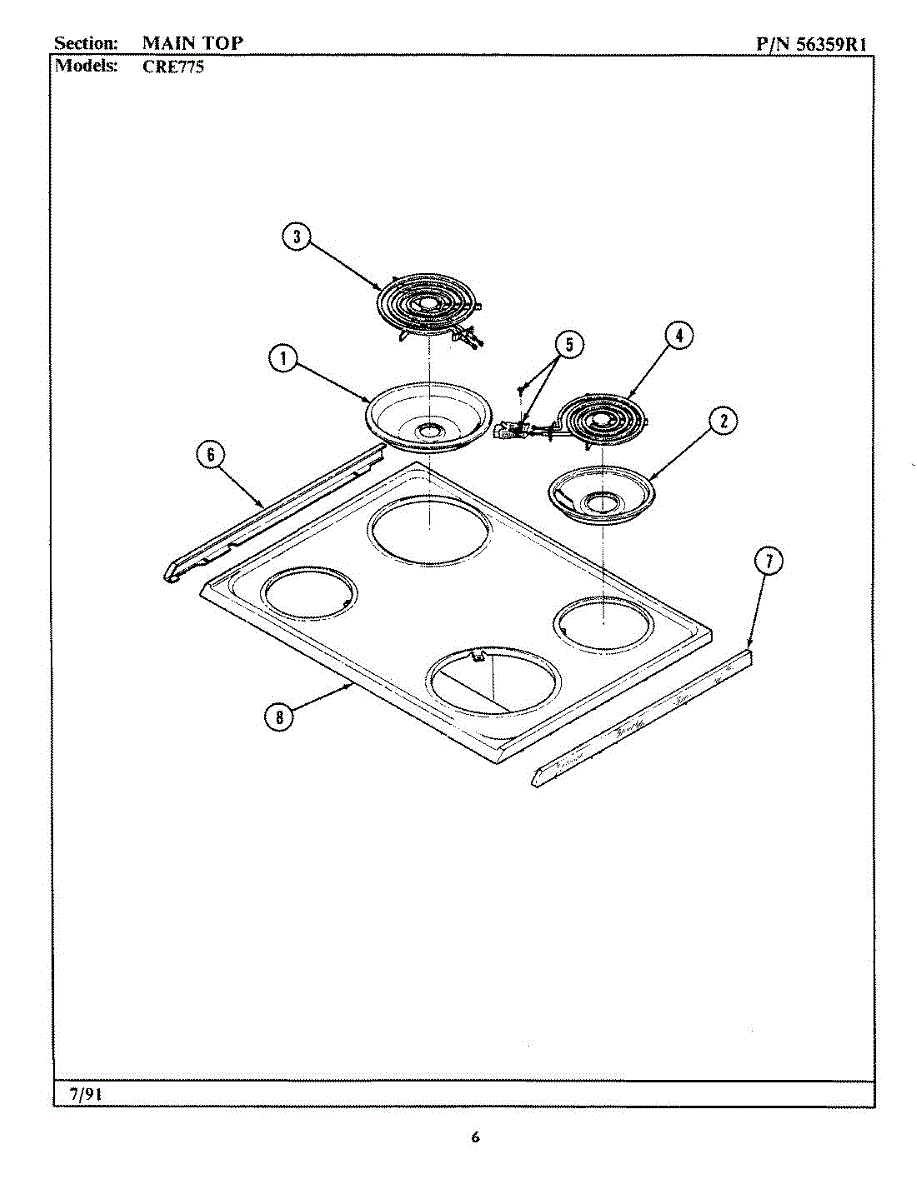

Parts for Maytag CRE775: 06 - Main Top (Cre775) Parts

This drip bowl catches and channels excess moisture or drips to help keep the area under the dispenser or ice/water outlet clean and dry. Durable molded plastic resists staining and is shaped for correct fit and drainage. What it does:

• Collects and directs drips from the dispenser or outlet to prevent pooling
• Helps reduce water on the cabinet floor and in the drip tray area
• Restores proper alignment and containment when the original bowl is cracked or warped
• Compatible with units that use an 8" black drip bowl as the dispenser/collector component

• One 8" black drip bowl

• Remove power to the appliance before beginning any service
• Typically snaps or slides into place; check for retaining clips or mounting tabs
• Inspect surrounding seals and gaskets; replace if damaged to prevent leaks

The Stove Top Drip Pan is an OEM replacement part for Whirlpool ranges. It is the shallow metal pan located below the stove burner elements that collects grease and food particles. The drip pan helps direct spills and drips away from the burner area to the bottom drawer for easy cleanup.

Symptoms of a bad drip pan include:

• Grease or food spilling below the burners outside of the pan
• Burner elements showing signs of corrosion or damage from drips
• The drip pan no longer fitting properly or securely in place

Causes can be warping or damage of the drip pan over time due to exposure to heat. Dents and structural changes compromise its ability to direct drips properly.

This OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

If you require a compatible 6-inch drip bowl, suggest considering our WPW10196406 model for a perfect fit. For a black option include the 6-inch W10290353RW and 8-inch WPW10290350 models.

The Stove Top Drip Pan is an OEM replacement part for Whirlpool ranges. It is the shallow metal pan located below the stove burner elements that collect grease and food particles. The drip pan helps direct spills and drips away from the burner area to the bottom drawer for easy cleanup.

Symptoms of a bad drip pan include:

• Grease or food spilling below the burners outside of the pan
• Burner elements showing signs of corrosion or damage from drips
• The drip pan no longer fitting properly or securely in place

Causes can be warping or damage of the drip pan over time due to exposure to heat. Dents and structural changes compromise its ability to direct drips properly.

This OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This drip pan measures about 7-2/3 inches in diameter. Matching 8 inch drip bowl: WPW10196405. Same drip bowls in porcelain black: 6 inch W10290353RW and 8 inch WPW10290350. You may also consider buying a second set for when company comes over or for the holidays.

2100W. Size: 8 inch. Location: Right front.

The 8 Inch Large Surface Element is an OEM part for Whirlpool cooktops and ranges, designed to provide reliable and consistent heat for cooking. This large surface element is crucial for performing a wide range of cooking tasks, from boiling water to frying and sautéing.  For matching 6 inch element order WP660532.

The primary reasons for replacing the 8 Inch Large Surface Element often involve wear and tear from regular use, physical damage, or electrical issues within the element itself.

Symptoms indicating the need for a replacement 8 Inch Large Surface Element include:

• The element not heating up, indicating a failure to provide the necessary cooking temperature
• Uneven heating, resulting in inconsistent cooking results
• Visible damage to the element, such as blistering, peeling, or cracking
• The element heating slowly or not maintaining the desired temperature during use

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This 6-inch radiant surface element is the heating source for a small burner beneath a glass-ceramic cooktop. Replacing a failed element restores reliable, controllable heat to that cooking zone. What it does:

• Heats the 6-inch cooking zone under the glass top when the control is turned on
• Cycles to help maintain the selected temperature during cooking
• Common symptoms of failure: small burner won't heat, heats unevenly or intermittently, or shows visible burn spots/damage

• 1 six-inch radiant surface element

• Disconnect power at the breaker and allow the cooktop to cool completely
• Lift the glass top or remove the cooktop to access the elements; support the glass to avoid stress or cracks
• Note wire positions and transfer connections to the new element one at a time
• Ensure the element sits flat in its mounting brackets before reassembly and testing

The 6 Inch Small Surface Element is an OEM part for Whirlpool electric ranges and cooktops. This component is essential for providing consistent, controlled heat to cookware on the stovetop.

Symptoms of a bad 6 Inch Small Surface Element include:

• Lack of heat production, with the element failing to warm up at all.
• Inconsistent heating, where the element may fluctuate in temperature or only partially heat.
• Visible damage such as blistering, bubbling, or cracks on the element's surface.
• A tripped circuit breaker when the element is turned on, indicating a short.

Causes of a bad surface element can include prolonged use leading to element burnout, electrical faults such as faulty wiring or internal failures, and physical damage from impact or heavy cookware being dropped on the element.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

8-inch element is part number WP660533.

The Terminal Block Kit is an OEM part for Whirlpool cooktops. It is a crucial component that provides a secure connection point for electrical wires and cables within the appliance's control system.

Symptoms of a faulty terminal block kit:

• Intermittent power supply or electrical issues
• Burnt or melted wires or connectors
• Appliance not receiving or responding to electrical signals correctly
• Visible damage or corrosion on the terminal block

Causes of a bad terminal block kit include excessive heat exposure, loose connections, moisture or water damage, or simply wear and tear over time.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

Size: 10-24X5/16-NI
