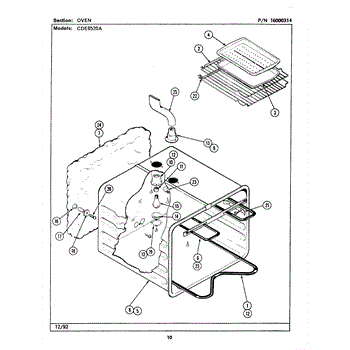

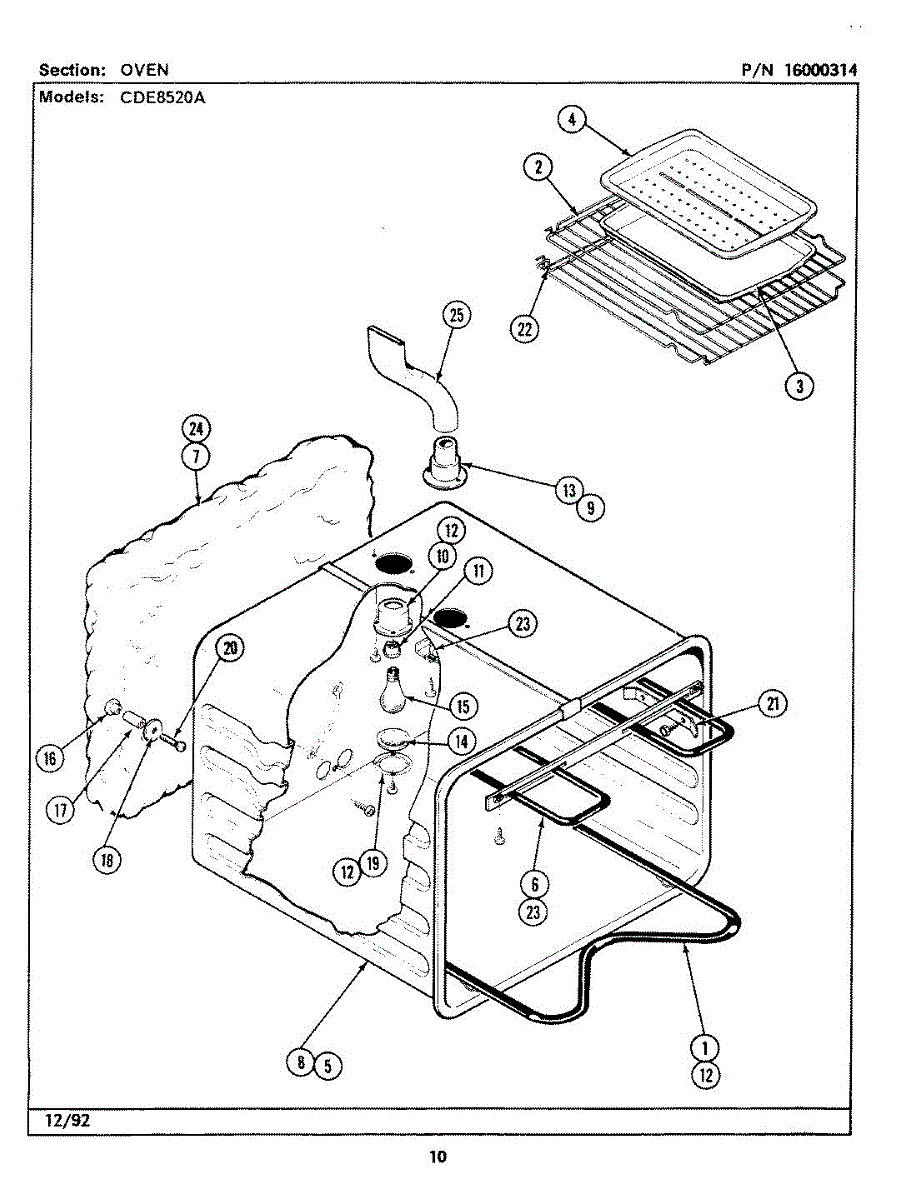

Parts for Maytag CDE8520ACB: 07 - Oven Parts

This bake element is the lower-oven heating source that brings your range or wall oven up to temperature for consistent baking. Replace a burned or damaged element to restore reliable preheat and even cooking results. What it does:

• Provides bottom heat during bake cycles for even, consistent cooking
• Primary heat source for preheating and maintaining set temperature
• Common symptoms: no heat in bake, slow preheat, won't reach temperature, uneven baking, visible blisters/breaks on the element
• Useful clue: broil works but bake does not

• 1 bake element

• Disconnect power at the breaker before servicing
• Remove racks; take out element mounting screws; pull element forward to access terminals
• Transfer wires one at a time and ensure tight, insulated connections; don't let wires retract into the cavity
• After reassembly, run a brief bake test to verify operation and clear any residual smoke from first heat-up

The Broil Pan Set is an OEM part for Whirlpool ovens. This set includes a broil pan and an insert, designed to catch drippings and ensure even heat distribution during broiling, allowing for perfectly cooked and crisp results.

Causes of a bad broil pan set can include prolonged exposure to high temperatures, which may lead to warping or distortion of the pan. Additionally, frequent use without proper cleaning can result in rusting, chipping, or buildup of residues that compromise the pan's functionality and safety.

Symptoms of a bad broil pan set include:

• Warping or bending of the pan
• Presence of rust or corrosion
• Surface chipping or flaking
• Difficulty in achieving even cooking results

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Broil Pan Set is an OEM part for Whirlpool ovens. This set includes a broil pan and an insert, designed to catch drippings and ensure even heat distribution during broiling, allowing for perfectly cooked and crisp results.

Causes of a bad broil pan set can include prolonged exposure to high temperatures, which may lead to warping or distortion of the pan. Additionally, frequent use without proper cleaning can result in rusting, chipping, or buildup of residues that compromise the pan's functionality and safety.

Symptoms of a bad broil pan set include:

• Warping or bending of the pan
• Presence of rust or corrosion
• Surface chipping or flaking
• Difficulty in achieving even cooking results

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is the electric broil element for your oven. It delivers high, direct heat from the top of the cavity to sear and brown foods, restoring proper broiling performance when the original element has failed.

• Provides radiant heat from the top of the oven during the Broil cycle
• Restores proper searing and browning performance
• Common failure symptoms: no heat on Broil, weak or uneven broiling, element won't glow red, visible blistering or breaks
• Direct replacement for a failed or damaged broil element

• Disconnect power at the breaker or unplug the appliance; allow the oven to cool completely
• Remove oven racks, take out element mounting screws, and gently pull the element forward to access the wires
• Transfer the wires one at a time; ensure terminals are fully seated and do not let wires slip back into the insulation
• Reinstall the element without bending it, tighten screws snugly, restore power, and test the Broil cycle

This part has been discontinued by the manufacturer and is no longer available.

Color: Stainless steel

This 10-32 machine screw secures panels, brackets, and internal assemblies in your appliance. Replacing missing or stripped hardware restores a tight, rattle-free fit and helps keep components properly aligned.

• Provides a threaded fastener for metal-to-metal connections
• Helps maintain correct alignment of panels, brackets, and housings
• Replaces missing, rusted, or stripped screws
• Symptoms include loose or vibrating panels, gaps/misalignment, or hardware that won't tighten

• Disconnect power (and shut off gas/water, if applicable) before servicing
• Match the 10-32 thread and length to the original screw for the location
• Start by hand to avoid cross-threading; tighten snugly without over-torquing
• Retain and reinstall any original clips, spacers, or washers used in your model

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued and is no longer available.

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold
