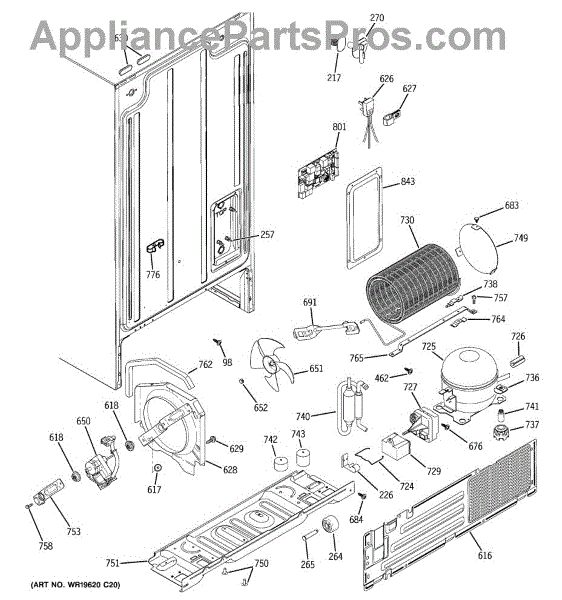

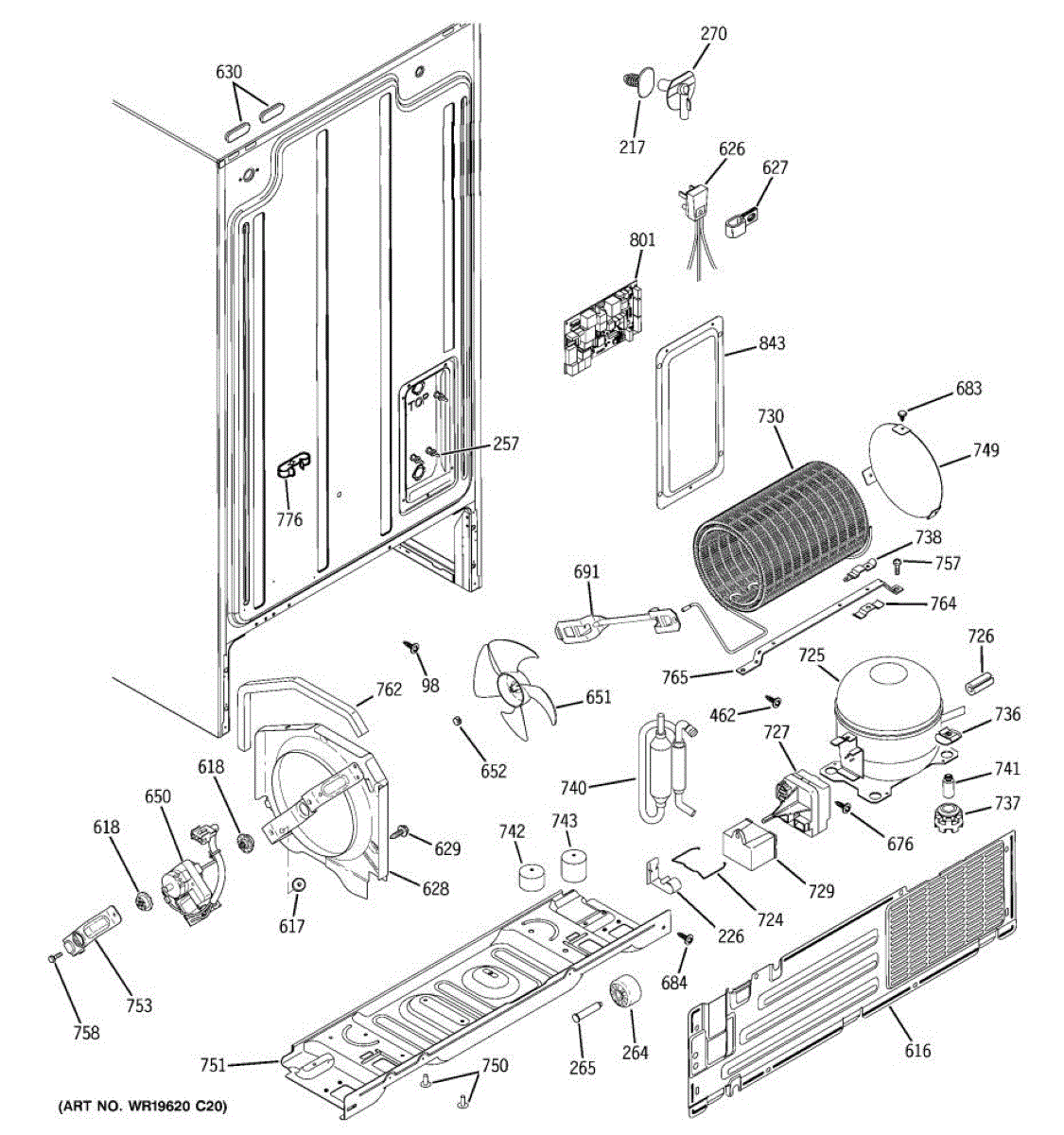

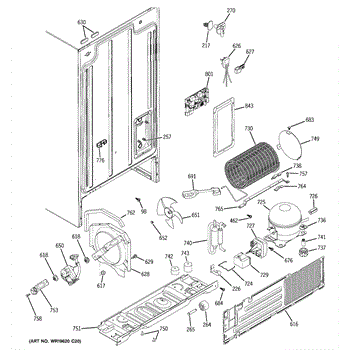

Parts for Ge GSS20DBPMCC: 07 - Sealed System & Mother Board Parts

Includes 12 screws.

This is a drain tube clip that secures the refrigerator/freezer drain tube to the cabinet, keeping the tube in place to help prevent water from pooling or dripping where it shouldn't. What it does:

• Holds the drain/defrost tube firmly against the cabinet or evaporator housing
• Helps prevent the drain tube from pulling loose and creating leaks or water buildup
• Reduces risk of ice forming from redirected or trapped meltwater around the evaporator area
• Simple mechanical retainer—no seals or gaskets included

• One drain tube clip/retainer

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Remove any access panels or shelving as needed to access the drain tube area
• Snap the clip over the drain tube and into the mounting boss or slot until it seats securely; use pliers if needed
• Inspect the drain tube for damage or clogs while installing; replace tube if cracked or deteriorated

The Rear Refrigerator Wheel is an OEM replacement part for GE refrigerators. This wheel is attached to the bottom rear of the refrigerator, facilitating easy movement of the appliance for cleaning, maintenance, or repositioning. It is designed to support the weight of the refrigerator while ensuring smooth and stable mobility.

Symptoms of a bad Rear Refrigerator Wheel include:

• Difficulty moving the refrigerator
• Unusual noises, such as squeaking or grinding, when the appliance is moved
• The refrigerator not sitting level or stable
• Visible damage or wear to the wheel

Causes for a malfunctioning Rear Refrigerator Wheel can include wear and tear from regular movement, damage due to excessive weight or impact, or issues with the axle or mounting hardware that secure the wheel in place.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This lid bumper cushions your washer lid where it meets the top panel, softening closure and protecting the finish. Replacing worn or missing bumpers reduces slamming and rattles for a quieter, smoother close.

• Cushions contact between the lid and top panel to reduce slamming noise
• Protects painted/enamel surfaces from chips and scratches at contact points
• Helps the lid sit level and minimizes vibration or rattling
• Replace if the bumper is missing, cracked, flattened, or hardened

• Disconnect power to the washer before servicing.
• Open the lid and locate the bumper(s) at the front corners (on the lid underside or top panel lip).
• Pull the old bumper straight out; clean the mounting hole.
• Press the new bumper firmly into the hole until fully seated and flush; test lid closure.

The Evaporator Fan Grommet is an OEM part for GE refrigerators. This component serves as a cushion and stabilizer for the evaporator fan motor, reducing vibrations and noise while ensuring the fan operates smoothly. It helps to secure the fan motor in place, maintaining proper airflow and efficient cooling within the refrigerator.

Common causes of a bad grommet include wear and tear from constant use, damage from excessive vibrations, or degradation of the material over time.

Symptoms of a bad evaporator fan grommet include:

• Increased noise or rattling sounds coming from the fan area
• Vibrations felt within the refrigerator
• The evaporator fan motor becoming loose or misaligned
• Reduced cooling efficiency due to improper fan operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This power cord assembly supplies electrical power from the wall outlet to your refrigerator. Replace a cut, frayed, or overheated cord to restore safe, reliable operation and eliminate intermittent power loss caused by a damaged cord. What it does:

• Provides the electrical connection between the household outlet and the refrigerator's wiring
• Helps resolve no-power or intermittent power when the cord is moved
• Addresses visible damage such as cuts, cracks, fraying, or a melted/discolored plug
• Mitigates arcing, sparking, or a burning odor originating from the cord or plug area

• One power cord assembly

• Disconnect power by unplugging the unit or switching off the circuit breaker before servicing
• Pull the refrigerator forward for access; note the original cord routing and connections
• Install the new cord along the same path and secure any built-in strain relief; ensure the ground connection is properly seated
• Restore power and verify operation

This cable clamp secures refrigerator wiring to the cabinet, keeping harnesses organized and protected. Replacing a missing or damaged clamp helps prevent chafing and vibration noise while maintaining proper clearance from fans and other moving components.

• Anchors wire harnesses in their designed routing
• Helps prevent insulation wear from rubbing or vibration
• Keeps wires clear of sharp edges and moving parts
• Common signs it's needed: missing/broken clamp, loose or dangling wires, or new rattling/buzzing noises

• Disconnect power before servicing
• Access the clamp location and note original wire routing
• Position the clamp and secure with the existing fastener; do not overtighten
• Ensure wires aren't pinched and have clearance from the fan/compressor before restoring power

This is a 8-18 x 1/2 inch hex washer head screw used to secure appliance panels and components. It provides a reliable, corrosion-resistant fastener for repair or reassembly tasks. What it does:

• Fastens panels, brackets or trim where an 8-18 x 1/2" screw is specified
• Hex washer head offers wider bearing surface to prevent pull-through
• Stainless finish resists rust and corrosion in humid appliance environments
• Restores proper fit and function when original screw is missing or damaged

• One 8-18 x 1/2 in. hex washer head stainless screw

• Use the correct driver/socket to avoid stripping the head
• Tighten securely but avoid over-torquing to prevent damage to plastic or thin metal parts
• Disconnect power and follow appliance safety precautions before working inside the unit
• Replace only with the same size and head style for proper fit

The Condenser Fan Motor is an OEM part for GE refrigerators. This motor is vital for the efficient operation of the refrigerator, as it powers the fan that cools the condenser coils and helps to circulate air. Without a properly functioning condenser fan motor, the refrigerator can overheat, leading to poor cooling performance and increased energy consumption.

Symptoms of a failing Condenser Fan Motor include:

• The refrigerator making unusual noises such as humming or buzzing
• The back of the refrigerator feeling hotter than usual
• The refrigerator cycling on and off more frequently
• Food not being kept at the proper temperature

Common causes for a bad condenser fan motor include dust and debris buildup obstructing the motor, age-related wear, and electrical failures such as short circuits or burnt-out capacitors. Regular cleaning and maintenance can help prolong the life of the motor, but if these symptoms occur, a replacement may be necessary.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Note: This is a 115-volt AC fan motor. For the 12-volt DC fan motor, order part number WR60X10209. Right-hand thread. The compatible fan blade is part number WR60X10207.

The Compression Ring is an OEM part for GE refrigerators. It is designed to secure and seal connections within the refrigerator’s water and ice dispensing system, ensuring a leak-free operation. This small yet vital component helps maintain the integrity of the connections, preventing water leaks and ensuring the proper flow of water through the dispenser and ice maker.

Over time, the compression ring can wear out or become damaged due to regular use and the natural aging of materials. If the compression ring is compromised, it can lead to water leaks or poor water flow, which can affect the overall performance of the refrigerator’s water and ice dispensing functions.

Symptoms of a bad compression ring include:

• Water leaks around the dispenser or ice maker
• Reduced water flow or no water flow at all
• Drips or puddles forming inside the refrigerator

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 10-16 ab.

The Compressor Start Device is an OEM replacement part for GE refrigerators. This start device is responsible for powering on and initiating the refrigeration compressor during each cooling cycle.

Causes of a bad start device can include wear and tear over time, exposure to fluctuations in power or voltage that can damage electronic components, or accidental damage that impairs the device's ability to reliably power the compressor.

Symptoms of a bad start device include:

• The refrigerator not cooling properly or only cooling intermittently
• The compressor not turning on at all or making unusual sounds when powered on
• Warm air blowing from vents inside the refrigerator or freezer sections
• Frost or ice building up in areas it typically would not

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Run Capacitor is an OEM part for GE refrigerators. It plays a crucial role in the refrigerator's cooling system by providing the necessary start and run voltage to the compressor. Without a properly functioning run capacitor, your refrigerator may struggle to maintain the desired temperature, leading to spoiled food and inefficient energy use.

Causes of a bad run capacitor include electrical surges, wear and tear over time, or overheating due to a malfunctioning refrigerator compressor or poor ventilation.

Symptoms of a bad Run Capacitor include:

• The refrigerator compressor fails to start.
• Unusual humming noises coming from the refrigerator.
• The refrigerator cycles on and off more frequently than normal.
• A noticeable increase in energy consumption as the refrigerator struggles to maintain the proper temperature.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This condenser assembly is the condenser coil used in compatible refrigerators to release heat from the refrigerant so the appliance can cool efficiently. Replacing a damaged coil helps restore proper cooling performance and energy use. What it does:

• Circulates refrigerant through the condenser coil to dissipate heat from the refrigeration system
• Supports normal compressor cycling and helps maintain steady internal temperatures
• Common symptom fixes: reduces long run times, improves inadequate or uneven cooling, and addresses overheating or noisy compressor operation
• Works with the condenser fan and other sealed-system components to complete the heat-exchange process

• Disconnect power to the refrigerator before servicing to avoid electric shock
• Access commonly from the rear lower panel or front grille; may require removal of kick plate or back cover
• Avoid damaging the coil fins; handle carefully and use fin comb if needed

This is a grommet and it is intended for use on refrigerators and freezers. This is a genuine replacement part made by General Electric. A new grommet might be needed if the current one is visibly worn out or damaged in any way. If there are noises from vibration coming from the lower back area of the fridge there might be need for a new grommet. This is an OEM part sourced directly from the manufacturer, and it is sold individually. It is compatible with refrigerators and freezers, or units with a compressor and is made by General Electric.

The R134 Drier is an OEM part for GE refrigerators. This component plays a critical role in the refrigeration system by removing moisture and contaminants from the refrigerant, ensuring efficient cooling and preventing damage to other parts of the system. It helps maintain the purity and effectiveness of the refrigerant as it cycles through the system.

You should replace the R134 drier if it becomes clogged or damaged. Common causes of a bad drier include wear and tear over time, exposure to moisture, or contamination from other failing components in the refrigeration system.

Symptoms of a bad R134 drier include:

• Reduced cooling efficiency
• Frost buildup on the evaporator coils
• Unusual noises from the refrigeration system
• Increased energy consumption
• Refrigerator not maintaining the set temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a replacement screw used to secure appliance components and panels so parts stay properly attached for safe operation. It's a direct-fit fastener matching OEM form and function. What it does

• Secures panels, trim, or internal components to prevent rattling or gaps
• Restores factory attachment where a screw is missing or stripped
• Helps maintain proper alignment of housing and service access
• Suitable when repair requires original-fit fasteners

• Disconnect power or unplug the appliance before servicing to avoid shock
• Use the matching screwdriver or bit to avoid stripping the head
• Thread carefully and avoid overtightening to prevent damage to threads or plastic parts
• Keep removed screws organized; replace only the screws that match the original locations

This is a 10-32 machine-thread screw used to secure appliance panels, trim, and components. It replaces missing or damaged fasteners so parts fit tightly and operate without rattles or misalignment. What it does:

• Fastens panels, brackets, or assemblies that use a 10-32 machine screw
• Restores secure mounting where a stripped, missing, or corroded screw causes looseness
• Helps eliminate vibration noise or gaps caused by loose hardware
• Matches OEM thread size and length for correct fit in designated mounting holes

• One 10-32 x 5/16 machine screw

• Disconnect power and remove power source or batteries before servicing appliances
• Use the correct screwdriver or nut driver to avoid stripping the head
• Thread carefully; do not force or overtighten to prevent thread damage
• Replace any damaged mating hardware or clipped inserts for a secure repair

This self-adhesive foam strip provides a flexible seal and buffer for appliance gaps, helping reduce drafts, rattling, and moisture intrusion. Designed for easy stick-on replacement where foam padding or sealing is needed. What it does

• Seals small gaps between components to help reduce air leaks and temperature loss
• Cushions panels and doors to minimize noise and vibration
• Helps block moisture and dust from entering sensitive areas
• Self-adhesive backing allows for quick placement without extra glue

• One self-adhesive foam strip

• Surface must be clean and dry; wipe with isopropyl alcohol for best adhesion
• Measure and trim the foam strip to fit—use scissors or a utility knife
• Press firmly along the length to ensure full contact; allow adhesive to set before closing doors or panels
• For safety, disconnect power to the appliance before working in internal areas

This tube clamp secures flexible water tubing to its fitting in refrigerators. It helps maintain a tight seal to prevent leaks and keeps lines from slipping off under normal operating pressure.

• Holds plastic or rubber tubing firmly on a barbed fitting or nipple
• Helps prevent drips and leaks at tube connection points
• Addresses loose or disconnected water lines
• Useful when tubing slips off or won't stay seated

• Disconnect power and shut off the water supply before servicing
• Position the clamp over the tube and fitting; compress with pliers and release to lock in place
• Ensure the clamp is centered and fully seated; tug-test the tube
• Restore water and power; check all connections for leaks

The Board Asm Main Control is an OEM replacement part for GE refrigerators. It serves as the electronic brain of the appliance, controlling and coordinating all the essential functions and operations of the refrigerator.

Causes of a bad refrigerator main control board can include electrical malfunctions, power surges, or physical damage due to moisture or impact over time.

Symptoms of a bad main control board include:

• The refrigerator not powering on or responding to user inputs
• Inconsistent temperature regulation or cooling performance
• Error codes or fault indicators displayed on the control panel
• Individual components or systems, like the ice maker or defrost cycle, not functioning properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
