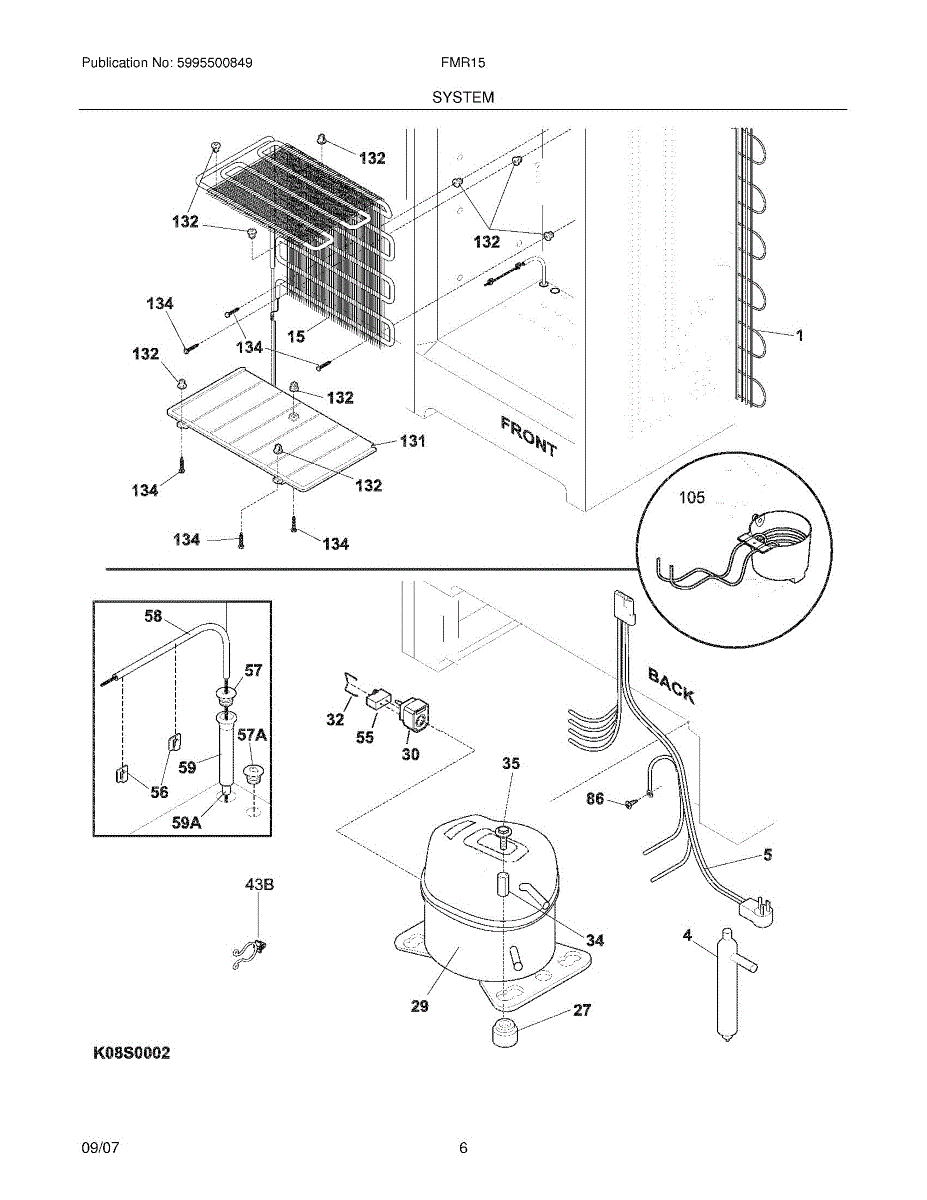

Parts for Electrolux FMR15: 07 - System Parts

Includes service line.

Wine cooler not powering on or experiencing electrical issues? The main wiring harness connects all electrical components. Moderate difficulty repair.

Fix ice buildup and cooling failure with this evaporator coil kit. Professional installation recommended due to refrigerant system work required.

Rubber mounting grommet that cushions and isolates the compressor from the chassis. Replace if cracked, worn, or missing to restore proper support.

Refrigerator not cooling or freezer not freezing? This compressor kit circulates refrigerant to restore proper cooling. Advanced repair, requires HVAC expertise.

This is a start relay device that attaches to the compressor and provides the initial electrical boost needed to start the compressor motor. It works in conjunction with the run capacitor to get the compressor running and then disengages once the motor reaches operating speed. Replace this device if the refrigerator is not cooling, the compressor clicks on and off repeatedly, or you hear a buzzing sound coming from the back of the unit.

Replacement mounting clip for freezers and refrigerators. Secures interior panels and trim to prevent rattling. Replaces broken or missing clips.

This capacitor stores and releases electrical energy to help the refrigerator's compressor start and run smoothly. Replacing a weak or failed capacitor can restore reliable compressor startup and more consistent cooling performance.

• Provides the electrical boost/phase shift needed for compressor motor startup and steady operation
• Works with the start device to deliver proper current to the compressor
• Failure symptoms can include clicking or humming near the compressor, poor cooling, or short cycling
• May cause the compressor not to start after power interruptions when weak or failed

• Disconnect power before servicing any electrical component
• Safely discharge the capacitor before handling; avoid touching terminals
• Note wire positions and terminal markings; transfer leads one at a time to the matching terminals
• Secure the capacitor in its mounting/bracket to prevent vibration damage

Suction line plug seals the refrigerant line connection in your freezer's compressor system. Replace if cracked, damaged, or missing to maintain proper seal.

Refrigerator tube used in cooling system or water line assembly. Replace if cracked, leaking, brittle, or disconnected to restore proper function.

Freezer leaking water inside? This evaporator drain cup catches defrost meltwater and channels it to the drain system, preventing leaks and ice buildup.

Replacement spacer for the front of the top grid in your freezer. Needed when original spacer is cracked, broken, or missing to properly support shelf.

Mounting screw that secures the top grid assembly inside your refrigerator. Replace if the original screw is stripped, missing, or damaged during maintenance.

Fix poor cooling or frost buildup with a new heat exchanger. This component transfers heat between refrigerant lines for efficient operation.

Replacement screw that secures brackets, shelves, trim, panels, and covers inside your appliance. Install when the original is missing, stripped, or corroded.
