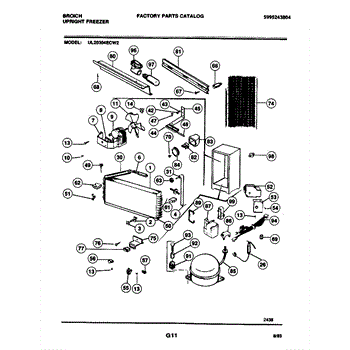

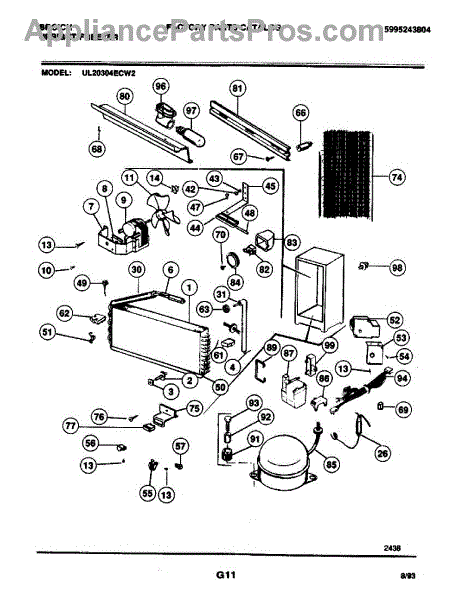

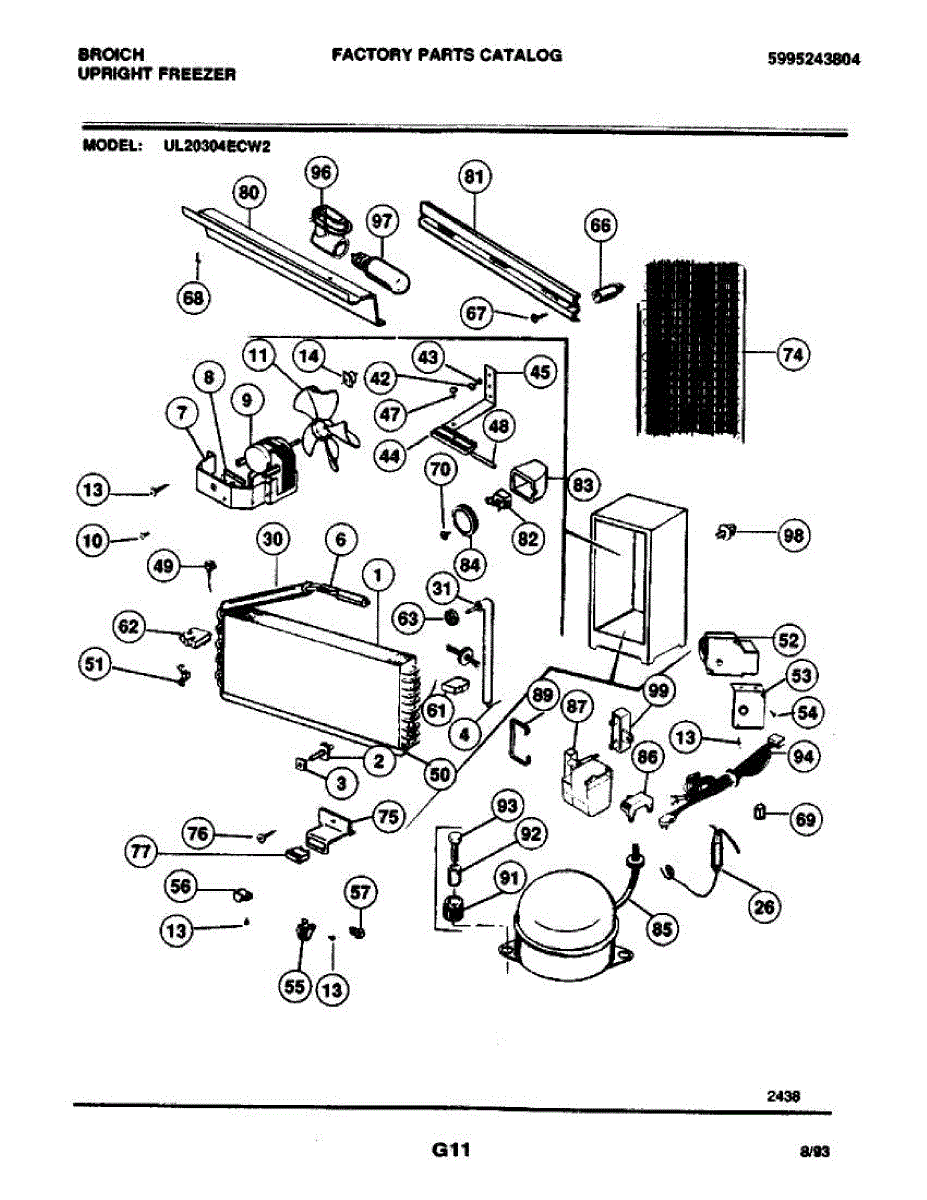

Parts for Frigidaire UL2030ECW2: 07 - System Parts

Replacement screw that secures brackets, shelves, trim, panels, and covers inside your appliance. Install when the original is missing, stripped, or corroded.

This is a retainer clip used to secure internal components in place within a freezer. It holds parts firmly in position to prevent shifting or rattling during normal operation. Replace this retainer if the original is cracked, broken, or missing, which can cause loose or misaligned components inside the unit.

Support spacer for refrigerators. Installs between components to maintain proper alignment and clearance. Replace if cracked, broken, or missing.

This fan motor kit includes the evaporator fan motor and associated mounting hardware used in the freezer compartment. The evaporator fan circulates cold air over the evaporator coils and throughout the freezer and refrigerator sections. Replace this motor if the freezer is warm, you hear unusual buzzing or clicking noises, or the fan has stopped spinning, which can lead to uneven cooling or rising temperatures.

This screw is a direct replacement fastener used to secure appliance panels and components. It restores proper fit and prevents rattling or loose parts for a snug, reliable finish. What it does:

• Secures panels, brackets, or trim to keep components properly aligned
• Stops vibration and rattling caused by loose fasteners
• Maintains electrical and mechanical connections by holding parts in place
• Use when original screw is missing, stripped, or corroded

• One replacement screw as pictured

• Use the matching driver bit and apply steady pressure to avoid stripping the head
• Do not overtighten—stop when the part is snug to prevent damage to threads or panel
• Replace with identical screw type and size; compare to the original before installation
• Disconnect power to the appliance if working near electrical components

Replacement screw that secures brackets, shelves, trim, panels, and covers inside your appliance. Install when the original is missing, stripped, or corroded.

Includes service line.

Foam insulation sleeve that wraps around the defrost drain tube. Replace if worn, missing, or damaged to prevent condensation and maintain proper insulation.

This replacement tube routes water from the refrigerator's defrost area to the drain pan to help prevent leaks and pooling. A simple, direct-fit part for restoring proper drain flow and reducing water buildup. What it does

• Channels defrost and condensation water to the drain pan to prevent interior pooling.
• Helps maintain normal drainage to avoid ice buildup or water leaks.
• Restores a damaged, cracked or clogged original tube where flow is restricted.
• Works as a service part when inspecting drain path during defrost/drain issues.

• One replacement tube.

• Disconnect power to the appliance before starting any repair.
• Remove access panels as needed and route tube along the factory path; avoid sharp bends or kinks.
• Inspect drain openings and heater components while replacing the tube.

The Defrost Thermostat is an OEM part for Frigidaire refrigerators. It monitors the temperature of the evaporator coils and activates the defrost heater when necessary. This process prevents frost buildup on the coils, ensuring the refrigerator maintains optimal cooling efficiency.

You should replace the defrost thermostat if it becomes faulty or damaged. Common causes of a bad defrost thermostat include electrical failures, regular wear and tear, or temperature fluctuations that can degrade the component over time.

Symptoms of a bad defrost thermostat include:

• Excessive frost buildup on the evaporator coils
• Refrigerator not cooling properly
• The defrost cycle not activating
• Increased energy consumption

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Aluminum strap secures the defrost heater against the evaporator coil. Replace if broken, cracked, or missing to maintain proper heater contact.

The Defrost Timer is an OEM replacement part for Frigidaire upright freezers. It serves as a crucial component responsible for regulating automatic defrost cycles.

Causes of a faulty defrost timer relate to 20,000+ hours of constant exposure to freezer temperatures as low as -10 degrees Fahrenheit. Such extremes can compromise electrical switching mechanisms over prolonged usage periods.

Symptoms of a failed defrost timer include:

• Inability to initiate automatic defrost modes
• Excessive ice and frost accumulation inside cabinet
• Warm areas detected due to impaired fan circulation
• Diagnostic codes indicating defrosting problems

This genuine Frigidaire replacement part is compatible with Kelvinator and some Kenmore units as well.

Secures refrigerator hoses to fittings with spring tension to prevent leaks. Replace when clamp loses grip or shows rust. Verify fit with model number.

Replacement screw that secures brackets, shelves, trim, panels, and covers inside your appliance. Install when the original is missing, stripped, or corroded.

This retainer lead wire secures appliance wiring to keep harnesses organized and away from heat or moving parts, reducing wear and accidental disconnection. It's a simple replacement to restore proper wire routing and protection. What it does:

• Clips or holds the wiring harness in place to prevent chafing and strain
• Helps keep wires away from hot surfaces, vents, or moving components
• Reduces risk of intermittent electrical connections caused by loose wiring
• Restores factory routing after service or component replacement

• Disconnect power to the appliance before installing to avoid shock or injury
• Remove any panels necessary to access the original retainer and wiring route
• Replace like-for-like, seating the retainer securely so the harness cannot shift
• If wires show damage or insulation wear, inspect further and replace damaged wiring before reassembly

This thermostat monitors and controls the temperature inside your freezer compartment. It cycles the cooling system on and off to maintain your selected temperature setting. Replace it if your freezer is too warm or too cold, runs constantly, or if food is freezing inconsistently.

This is a compressor used in several types of home appliances. The compressor is designed to take cold gas in the appliance and place it under pressure so the gas raises in temperature. It is then moved through the refrigerator system to ensure the unit stays cold throughout the appliance. This part can become damaged or malfunction, which may cause the motor to stop running, make the motor noisier, or cause the motor to never stop running.If this happens, the compressor will need to be replaced. A basic set of tools will be needed. A pair of work gloves can also be useful. First, locate the compressor as it may be in various locations depending on the appliance model. Unplug the appliance before removing the compressor. Install the new compressor using the original bolts and nuts before turning the power back on and resuming normal use.This part is sold on an individual basis. The compressor is made to be used with refrigerators, ranges, stoves, ovens, air conditioners, and freezers created by Gibson, Frigidaire, Kelvinator, Montgomery Wards, Westinghouse, Tappan, JCPenney, Universal, and Kenmore. It is an authentic OEM replacement part directly sourced from the manufacturer.

This is a wire-style clamp that secures the overload relay cover on the compressor at the back of the refrigerator. It holds the protective cover tightly in place over the relay and overload components to prevent them from coming loose. Replace this clamp if it is bent, broken, or missing, which can allow the relay cover to detach and leave electrical components exposed.

Rubber mounting grommet that cushions and isolates the compressor from the chassis. Replace if cracked, worn, or missing to restore proper support.

Compressor vibrating or loose? This mounting screw secures the compressor in freezers and refrigerators. Simple fix, basic tools required.

LED light bulb illuminates your refrigerator interior. Replace when bulb burns out, flickers, or stops working. Verify fit with your model number.

This door-activated light switch controls the interior lamp in your refrigerator. Replace a worn or sticking switch to restore dependable lighting and prevent the bulb from staying on and warming the compartment when the door is closed.

• Opens and closes the light circuit as the door is opened and closed
• Helps prevent the light from staying on with the door shut
• Common symptoms: interior light won't turn on, stays on with the door closed, or works intermittently
• Physical signs may include a stuck/broken plunger or damaged housing

• Disconnect power before servicing
• Gently pry the old switch from the liner/panel and release its locking tabs
• Transfer wires one at a time to the same terminals on the new switch
• Press the new switch fully into place; restore power, and test

Refrigerator not cooling or compressor won't start? A failed run capacitor prevents the compressor from running. DIY repair in 10-15 minutes with video guide.
