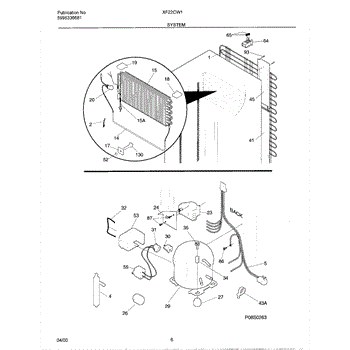

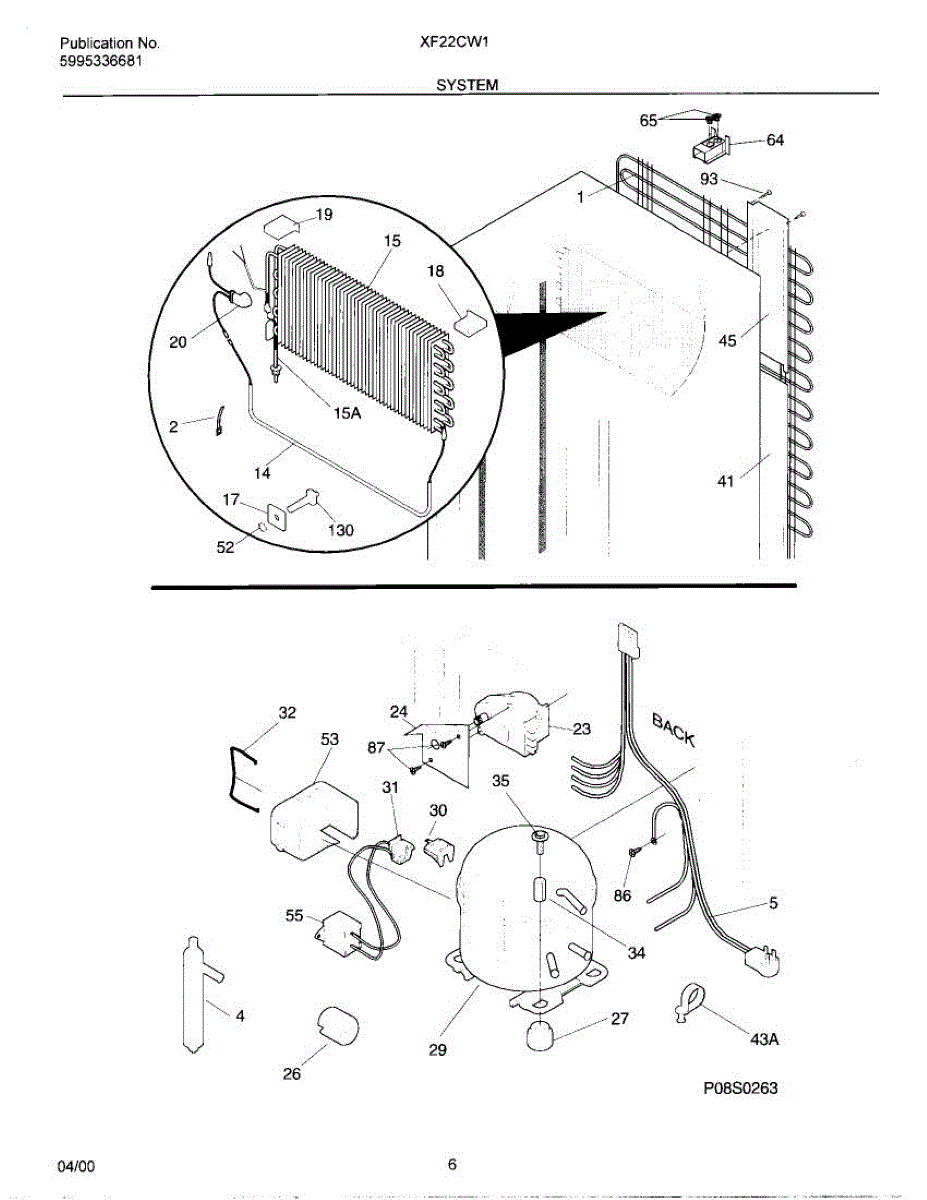

Parts for Frigidaire XF22CW1: 07 - System Parts

This aluminum strap secures the defrost heater firmly against the evaporator coil to maintain proper contact during defrost. Correct contact improves heat transfer so frost melts evenly and helps prevent recurring ice buildup on the evaporator.

• Secures the defrost heater to the evaporator for proper contact and heat transfer
• Promotes complete, even defrosting across the evaporator coil
• Helps reduce repeat frost/ice accumulation caused by a shifted or loose heater
• Typical clues include a loose heater, uneven frost pattern, or rattling near the evaporator

• Disconnect power and allow ice to melt before accessing the evaporator
• Use care around sharp fins and fragile refrigerant tubing; do not puncture or deform the coil
• Position the heater per your model's parts diagram and tighten the strap for firm, even contact
• Verify wiring is routed clear of the fan and moving parts before reassembly

Includes service line.

The Defrost Thermostat is an OEM replacement part for Frigidaire refrigerators. This component plays a crucial role in the defrost system, monitoring and regulating the temperature to ensure proper defrosting of the evaporator coils.

Causes of a faulty defrost thermostat can include normal wear and tear over time, exposure to excessive temperature fluctuations or moisture, or electrical malfunctions.

Symptoms of needing to replace the defrost thermostat include:

• Improper defrosting or lack of defrosting
• Frost buildup on the evaporator coils
• The refrigerator running constantly or cycling frequently

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

This rotary defrost timer controls the refrigerator's switch between cooling and defrost cycles to help prevent frost buildup and maintain proper cooling performance. It replaces a failed or intermittent defrost timer to restore automatic defrost operation. What it does:

• Advances the refrigerator between cooling and defrost modes on a timed cycle
• Ensures the defrost heater runs at scheduled intervals to melt frost and ice
• Commonly replaces timers that fail to advance, stop, or cause continuous cooling
• Helps address symptoms like excessive frost, warm compartments, or continuous compressor run

• Disconnect power to the appliance before servicing to avoid shock or injury
• Access and mounting vary by model;
• Verify electrical connections and timer orientation match original before reassembly
• Consider replacing with an exact OEM part number for fit and function

This compressor grommet is a rubber mounting isolator that cushions and secures the compressor to the appliance chassis, helping reduce vibration and noise while preventing metal-to-metal contact and premature wear. What it does:

• Cushions compressor movement to reduce vibration transmitted to the cabinet
• Dampens noise and rattling caused by compressor operation
• Prevents direct metal-to-metal contact that can wear mounting points
• Helps keep the compressor positioned and secured under load

• Disconnect power to the appliance before accessing the compressor or base pan
• Replace grommets while supporting the compressor to avoid strain on lines and connections
• Inspect remaining mounting grommets; replace all worn isolators for best performance

This part has been discontinued by the manufacturer and is no longer available.

This vent directs airflow and helps channel exhaust air from the appliance to improve ventilation and maintain proper operation. Durable replacement restores correct air flow and reduces hot spots or moisture buildup. What it does:

• Channels exhaust or circulating air from the appliance to the cabinet or exterior
• Helps maintain even internal temperatures by directing airflow where needed
• Reduces build-up of heat or moisture that can affect performance
• Replaces worn, cracked, or missing vents that may cause rattling or poor airflow

• One replacement vent

• Basic hand tools may be required; verify screw/clip locations before removal
• Disconnect power to the appliance before starting work for safety
• Handle gently to avoid damaging mounting tabs or surrounding trim

This replacement screw secures appliance components so brackets, shelves, trim, or panels stay firmly in place. Install a new screw when the original is missing, stripped, or corroded to restore a tight, rattle-free fit.

• Fastens brackets, panels, trim, or covers to the cabinet or liner
• Helps maintain alignment and reduce vibration and noise
• Direct replacement for a missing, rusted, or stripped fastener
• Use wherever your model's parts diagram specifies this screw

• Disconnect power before servicing; shut off water if working near water lines
• Match thread and length to the original location as shown in your model's parts diagram
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening (especially into plastic)
• Retain and transfer any original spacers or clips used with this fastener
