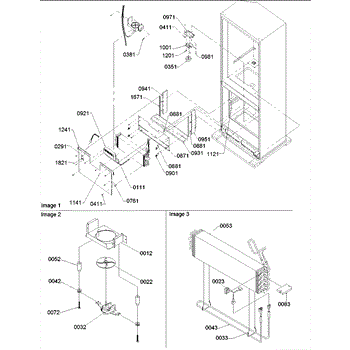

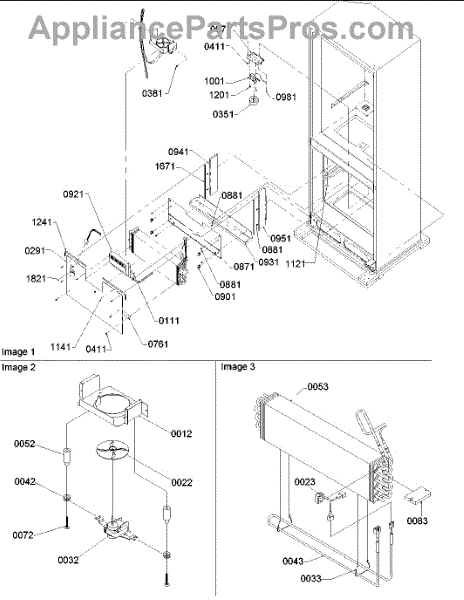

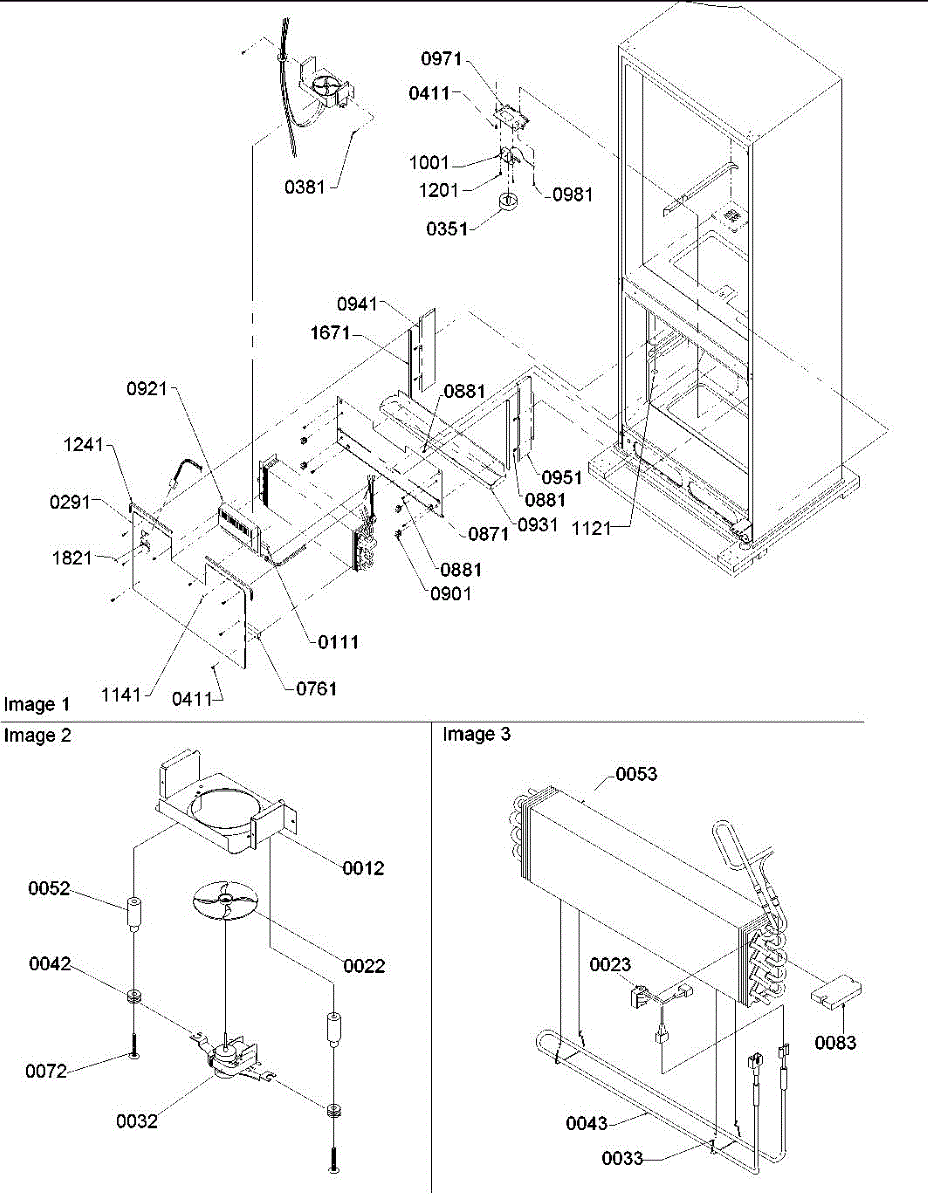

Parts for Amana BB20VPSE / P1321302W E: 08 - Evaporator Area Parts

This replacement fan blade mounts to the fan motor to move air through the system, restoring proper airflow and helping maintain stable temperatures while reducing unwanted noise and vibration. What it does:

• Attaches to the fan motor shaft to circulate air through the appliance
• Drives airflow across coils and compartments to support proper cooling
• Helps maintain even temperatures and stable performance
• Common symptoms include rattling/whirring noises, weak airflow, warm spots, or wobbling due to a cracked or warped blade

• Disconnect power before servicing
• Access the fan housing; remove any guards/shrouds as needed
• Transfer and reuse the existing retainer/clip or fastener and fully seat the blade on the motor shaft with correct orientation
• Spin by hand to ensure free clearance; reassemble and test for smooth, quiet operation

This thermostat is a temperature-sensing switch that opens or closes an electrical circuit at a specific temperature. Replacing a failed thermostat restores accurate temperature control or over-temperature protection so the appliance operates safely and reliably. What it does:

• Senses temperature and switches its contacts to control or limit a heating or cooling circuit
• Helps maintain proper operating temperature or interrupt power if a threshold is reached
• Common symptoms of a failed thermostat: inconsistent temperatures, no heat/cool, short cycling, continuous running, or no operation due to an open circuit
• Can be checked with a multimeter for continuity change as temperature changes

• 1 thermostat

• Disconnect power before servicing; allow hot components to cool
• Note/photograph wire positions and transfer leads to the same terminals
• Reinstall with original clip/bracket/insulation in the same position for correct sensing; do not overtighten
• After reassembly, restore power and verify proper operation

This evaporator fan motor assembly circulates cold air across the evaporator coil and through the refrigerator and freezer. Replacing a failing motor restores steady airflow for consistent temperatures, faster cooling recovery, and quieter, reliable operation.

• Circulates air across the evaporator and through vents to cool both compartments
• Helps maintain even temperatures and proper defrost/airflow
• Replace if you notice weak or no airflow from vents and rising refrigerator temps
• Addresses noisy, intermittent, or non-running fan from the freezer area
• Can contribute to frost buildup on the evaporator cover when airflow is lost

• Disconnect power before service; use gloves to protect against sharp edges
• Access is typically behind the freezer's rear panel; remove shelves/bins as needed
• Note wire harness orientation; transfer any screws, grommets, or brackets from the original as required
• After reassembly, restore power and ensure smooth fan operation and airflow from vents

This thermostat is a temperature safety device that opens the circuit if temperatures climb beyond the safe threshold. Replacing a failed thermostat helps protect the appliance from overheating and restores normal heating performance.

• Monitors internal temperature and cuts power if it overheats
• Helps prevent damage to components from excessive heat
• Common failure signs include no heat, intermittent heat, or the unit shutting off on high heat
• Shows continuity when cool and open when tripped

• Disconnect power before service; verify no voltage is present
• Access location varies by model; note wire positions and transfer one at a time
• Mount firmly against the intended surface for proper sensing
• After replacement, verify airflow/venting and clear lint/debris to avoid repeat trips

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

A replacement door gasket that restores a tight seal around the oven door to help maintain proper cooking temperature and improve efficiency. Fits Whirlpool ovens and ranges that use part A3189394. What it does

• Seals the oven cavity to reduce heat loss and help maintain consistent cooking temperatures.
• Helps prevent heat from escaping around the door, improving energy use and cook results.
• Worn, torn, or flattened gaskets can cause uneven baking or longer cook times.
• Replacing a damaged gasket can reduce hot spots on the exterior and nearby cabinetry.

• Disconnect power and ensure the oven is completely cool before starting.
• Remove the old gasket by pulling it out of the door channel; clean the channel before installing the new gasket.
• Press the new gasket into the channel around the full perimeter, working from one corner and ensuring an even fit.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

This evaporator clip secures the refrigerator evaporator assembly and related components so the cooling system stays aligned and vibration-free. It helps maintain proper airflow and prevents rubbing or loose parts. What it does:

• Holds the evaporator coil/assembly or associated covers in place
• Prevents vibration, noise, and contact between the coil and cabinet parts
• Helps maintain consistent airflow for reliable cooling performance
• Commonly linked to rattling, buzzing, or loose parts around the freezer evaporator

• Disconnect power before servicing the appliance
• Handle evaporator and surrounding fins carefully; they are sharp and fragile
• Verify clip orientation against the OEM diagram before fastening
