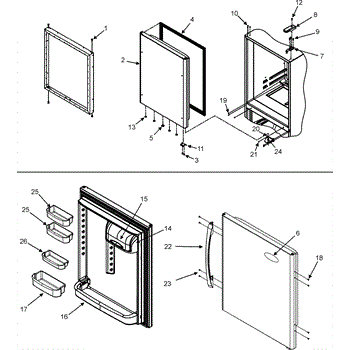

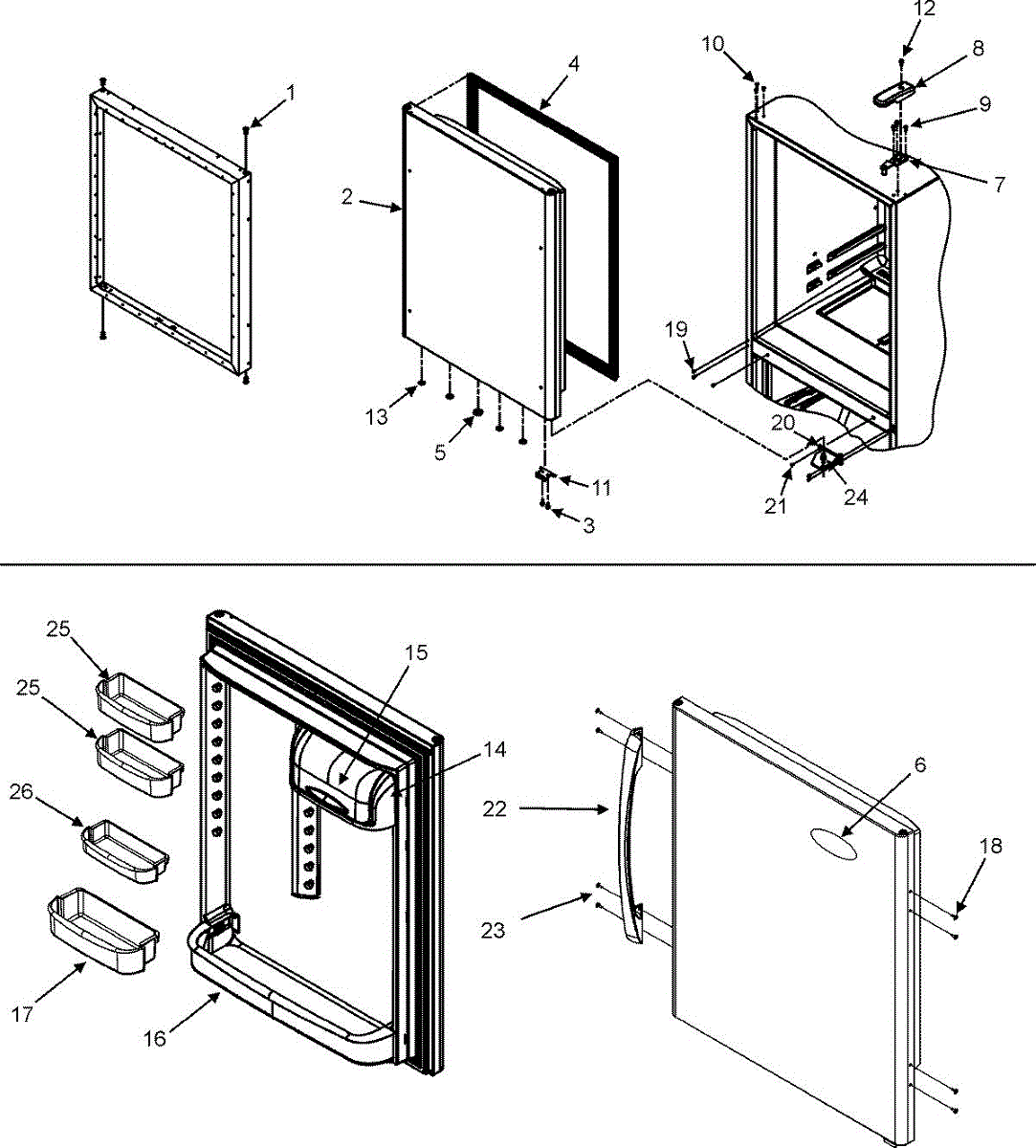

Parts for Crosley CB19G7B: 08 - Refrigerator Door Parts

This door bushing fits on the refrigerator hinge/closer to provide a smooth pivot point and proper door alignment. Replacing a worn bushing reduces squeaks and binding and helps the door close and seal as designed.

• Provides a low-friction bearing surface between the hinge pin/closer cam and the door
• Helps maintain correct door height and alignment to the cabinet
• Promotes smooth door swing and reliable self-closing action
• Typical wear symptoms: squeaking or grinding, binding, door sag, or poor sealing

• Disconnect power and support the door before removing hinge hardware
• Note the order/orientation of hinge parts and any shims; lift off the door carefully
• Install the new bushing on the hinge pin or in the door as shown in your model's diagram
• Reinstall, level, and verify the gasket seals evenly all around

This factory screw secures appliance components. It restores a tight, reliable hold when the original hardware is stripped, missing, or corroded—helping prevent vibration and keeping panels and brackets properly aligned.

• Provides threaded fastening for panels, brackets, covers, or internal components
• Replaces worn, rusted, stripped, or missing hardware
• Helps reduce vibration and rattling from loose parts
• Restores proper alignment and a secure fit of attached parts

• Disconnect power; turn off water supply before service
• Note original screw location and retain any spacers or clips for reassembly
• Start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten to prevent stripping

This refrigerator door gasket replaces a worn seal to restore a tight, even closure around the door. A proper seal keeps cold air in and moisture out, helping maintain temperature, reduce frost, and minimize run time. What it does:

• Forms a tight seal between the door and cabinet frame
• Helps maintain set temperatures and reduce moisture intrusion
• Resolves frost or condensation at the door and frequent compressor cycling
• Common signs: torn, cracked, or warped gasket; gaps; door not sealing smoothly

• Includes: 1 door gasket

• Disconnect power before servicing; remove or secure contents for safety
• On many models, loosen the inner-liner screws or pull the old gasket from the retainer/channel to remove
• Warm the new gasket (warm water or low heat from a hair dryer) to relax shipping folds
• Seat corners first, then press the rest into the retainer; verify seal with a paper-slip test and adjust as needed

This top hinge assembly mounts at the upper corner of the cabinet to support the refrigerator door and allow smooth pivoting. Replacing a worn hinge restores proper door alignment and helps the gasket seal reliably.

• Supports the door's weight at the top and provides the pivot point
• Helps maintain correct door alignment and closing action
• Aids in consistent gasket contact to minimize warm-air leaks
• Common symptoms of a failing hinge: door sagging or rubbing, uneven gaps, poor sealing, squeaks or popping noises

• Unplug the refrigerator and, if applicable, turn off the water supply
• Have a helper support the door; remove the hinge cover, then the hinge screws
• Note/mark hinge position and transfer any shims or spacers from the original hinge
• Reinstall and adjust for even gaps; verify the door swings freely and the gasket seals all around

This top hinge cover protects and conceals the refrigerator's upper hinge assembly for a finished appearance and to keep dirt and debris out of moving parts. It restores a clean look and helps prevent contact with sharp edges. What it does:

• Covers the top door hinge to improve appearance and hide hardware
• Shields the hinge area from dust, crumbs and spills that can affect movement
• Helps prevent accidental contact with the hinge and sharp edges
• Matches the original color and fit for a seamless repair

• One top hinge cover

• Typically snaps or screws into place over the upper hinge; retain original fasteners if present
• Two-person support recommended when removing or reattaching the door to avoid damage or injury
• Disconnect power only if required by your appliance model and inspect the model-specific service instructions
• Inspect hinge and surrounding parts for wear while cover is off; replace damaged components as needed

This hex washer-head screw secures panels, brackets, and other components inside your appliance. Replacing a worn, stripped, or missing screw restores a tight fit, reduces vibration and rattles, and helps keep assemblies properly aligned.

• Fastens panels, brackets, covers, and internal hardware to the cabinet or frame
• Helps prevent loosening, rattling, or misalignment during appliance operation
• Replace if the head is rounded, threads are stripped, or the screw is missing
• Useful after service when an original fastener is lost or damaged

• Disconnect power and shut off gas/water before starting
• Use the correct nut driver or socket for the hex head to avoid rounding
• Start threads by hand to prevent cross-threading; tighten snugly without overtightening

Color: Black

The Screw is an OEM part for Whirlpool refrigerators. This screw secures the refrigerator door hinge in place, allowing the door operates smoothly and seals properly.

Over time, screws can become loose or go missing during repairs or adjustments, which can lead to a misaligned door, compromised sealing, and increased energy consumption.

Symptoms of a bad screw include:

• The refrigerator door seems misaligned or does not close properly.
• Increased effort needed to open or close the door.
• Unusual gaps around the door seal when closed.
• The door might squeak or make other noises during operation.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This vent plug seals an unused appliance vent opening to keep out debris and improve appearance. A simple OEM-fit replacement that restores a clean, finished look to the appliance exterior. What it does

• Covers and seals a vent opening to prevent dust, lint, and pests from entering the cabinet or vent cavity.
• Restores the appliance's finished appearance where a vent opening is exposed or a plug is missing.
• Helps maintain proper airflow paths by closing unused ports and reducing drafts.
• Fits the original mounting location for a secure, low-profile fit.

• One black vent plug.

• High-level push-in replacement; no special tools typically required.
• Disconnect power to the appliance before any service when accessing internal areas.
• Inspect surrounding trim or grille for clips or screws; remove carefully to access the vent opening.
• If plug does not seat fully, verify the correct OEM location and orientation before forcing.

Replace a cracked or missing dairy tray on your refrigerator door. This door bin restores a dedicated spot for butter and small items so they stay organized and easy to reach while maintaining a secure fit on the door.

• Mounts on the refrigerator door as the dairy compartment tray
• Holds butter, cheese, and other small items securely
• Restores proper fit when the original tray is cracked, warped, or missing
• Common symptoms: broken tabs, tray falls off, loose/wobbly fit, items spilling when the door opens

• Open the door, lift the old tray straight up and out; align the new tray with the door slots and lower until fully seated
• Handle plastic parts gently and avoid forcing; allow parts to warm to room temperature to reduce risk of cracking
• Confirm both sides are fully engaged before loading items

Color: clear. Measures about 11 inches wide by 7 inches high.

This shelf trim is the molded edge piece for your refrigerator shelf. It snaps in place to restore a clean, secure lip that helps keep items in place and limits spills from reaching shelves below. What it does:

• Attaches to the edge of a refrigerator shelf to create a finished barrier
• Helps retain items and contain minor spills
• Restores stability when the original trim is cracked or missing
• Common symptoms: broken or loose trim, items sliding off the shelf, trim won't stay attached

• 1 shelf trim

• Disconnect power and remove food from the affected shelf before servicing
• Lift out the shelf or bin and place it on a flat, protected surface
• Release the old trim's tabs and slide or unsnap it from the shelf—avoid forcing or flexing
• Align the new trim and press until fully seated; reinstall the shelf or bin

This medium refrigerator door bin replaces a cracked or missing shelf on the fresh-food door, restoring secure, organized storage for bottles, jars, and condiments. It snaps into the door rails for a stable, factory fit.

• Holds and organizes items on the refrigerator door to maximize usable space
• Restores proper fit when the original bin is cracked, warped, or missing
• Helps prevent tipping and spills when opening/closing the door
• Common symptoms: broken or chipped plastic, loose fit, falls off door, missing bin

• Empty the old bin before removal
• Lift the front and pull up to release it from the door rails/tabs
• Align the new bin with the mounting tabs and press down until fully seated
• Ensure it sits level and avoid overloading; place in the position intended for the medium bin on your model

A direct-replacement Plug B push button for the appliance control panel that restores tactile operation for the associated function. Ideal for replacing cracked, worn, or missing buttons so controls respond and look right again. What it does:

• Replaces the Plug B push button on the appliance control/interface so the linked control works properly.
• Provides the tactile surface users press to select a setting, cycle, or function.
• Common symptoms this part can fix: button is cracked, sticking, missing, or no longer actuating the switch.
• Cosmetic refresh when a button is faded or damaged.

• Always disconnect power to the appliance before servicing to avoid shock or injury.
• Replacement typically requires removing the control panel or trim; keep screws and small parts organized.
• Handle the button and panel clips gently to avoid breaking plastic retainers.

This hex washer-head screw secures panels, brackets, and other components inside your appliance. Replacing a worn, stripped, or missing screw restores a tight fit, reduces vibration and rattles, and helps keep assemblies properly aligned.

• Fastens panels, brackets, covers, and internal hardware to the cabinet or frame
• Helps prevent loosening, rattling, or misalignment during appliance operation
• Replace if the head is rounded, threads are stripped, or the screw is missing
• Useful after service when an original fastener is lost or damaged

• Disconnect power and shut off gas/water before starting
• Use the correct nut driver or socket for the hex head to avoid rounding
• Start threads by hand to prevent cross-threading; tighten snugly without overtightening

This center hinge assembly secures and supports a refrigerator door, helping it pivot smoothly and stay aligned for a tight seal. Replaces a worn or damaged hinge to restore proper door movement and closure. What it does:

• Provides the pivot point that lets the door open and close smoothly
• Restores proper door alignment to prevent gaps that let cool air escape
• Stops door sagging or uneven operation caused by a worn hinge
• Reduces scraping, binding, or unusual noises at the door pivot

• One center hinge assembly

• Disconnect power to the appliance before beginning any repair
• Support or remove the door to avoid injury or damage
• Use the original mounting hardware or OEM-specified fasteners for secure installation
• Check door alignment and gasket seal after installation; adjust as needed

This replacement screw secures appliance panels and components to restore proper fit and reduce vibration. A straightforward fastener that helps keep parts aligned and prevents noise or loose trim from worsening. What it does:

• Fastens panels, brackets, or trim pieces to the appliance frame
• Helps stop rattling or vibration caused by loose or missing hardware
• Restores proper alignment where original screw has been lost or damaged
• Works wherever the OEM screw specification is required for secure mounting

• Turn power off and unplug the appliance before working on it
• Use the correct screwdriver or bit to avoid stripping the head
• Thread carefully and avoid overtightening to prevent damage to threads or plastic parts
• Keep removed fasteners organized so you reinstall the correct pieces

A high-torque black screw used to secure appliance components where a strong, tamper-resistant fastener is required. Designed to replace worn or stripped fasteners and restore a solid mechanical connection. What it does:

• Fastens panels, brackets, or assemblies that require a high-torque connection
• Helps prevent loosening from vibration or regular use
• Restores secure mounting when original screws are missing, rusted, or damaged
• Commonly used wherever a durable black-coated fastener is specified

• Disconnect power and follow appliance safety procedures before servicing
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten securely but avoid over-torquing to prevent damage to parts or threads
• If thread damage is present, replace the mating fastener or insert as needed

This center hinge pin is the pivot stud for the refrigerator door's middle hinge. Replacing a worn pin restores stable door movement and alignment so the door opens smoothly and seals reliably.

• Provides the pivot point for the door on the center hinge bracket
• Helps maintain proper door alignment for smooth opening/closing
• Wear or damage may show as door sagging, rubbing, or wobbling at the hinge
• Misalignment from a worn pin can contribute to poor sealing or a door that won't stay closed

• Disconnect power; wear cut-resistant gloves
• Remove items from the door and support the door before loosening hinge fasteners
• Lift the door off the hinge, swap in the new pin, and transfer any spacers/shims in the same order
• Reassemble, align the door, and confirm the gasket makes full contact all around

This is the small refrigerator door bin that mounts on the inner door panel. It provides organized, accessible storage for smaller items and restores usable space when the original bin is cracked, loose, or missing.

• Holds and organizes items on the fresh food door
• Replaces bins that are cracked, broken, or won't stay seated
• Helps prevent items from tipping or falling when opening/closing the door
• Sized for the "small" position, not the full-width/gallon bin

• Unplug the appliance before servicing
• Remove contents, lift the old bin up and out of the door rails
• Align the new bin with the door slots and press down until fully seated
• Verify a snug fit before reloading items
