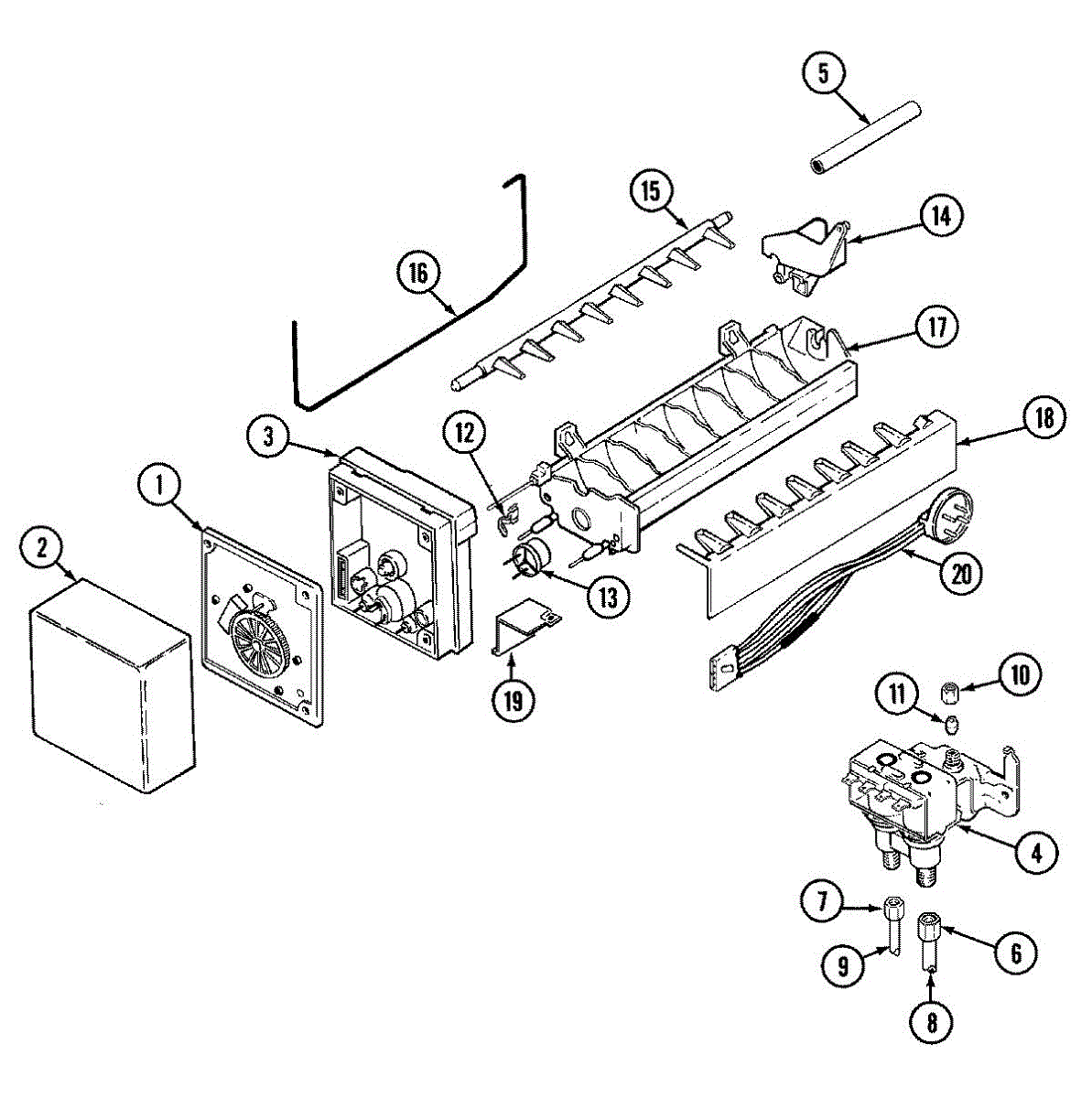

Parts for Admiral GC20C8C3EB: 09 - Ice Maker Parts

Does not come with wiring harness.

Size: 8 x 1/2 ab.

This support mounts in the dispenser area to secure the ice housing assembly. It helps keep the chute and door properly aligned so ice dispenses smoothly and the opening seals as designed.

• Supports and positions the ice housing/chute assembly in the freezer door
• Helps maintain proper alignment and sealing of the ice door/flapper
• Reduces wobble or flex that can affect dispensing performance
• Typical signs it may be needed: loose or misaligned dispenser housing, ice or air leaking at the chute, frost buildup around the dispenser, inconsistent ice dispensing

• Disconnect power to the refrigerator before servicing
• Remove the dispenser trim/control to access the housing; handle wiring and tabs carefully
• Remove mounting fasteners, replace the support, and transfer any reusable hardware
• Reassemble, restore power, and test ice dispensing and chute seal

The Screw is an OEM part for Whirlpool refrigerators, designed to secure components of the ice maker assembly. This screw maintains the structural integrity of the ice maker, ensuring that all parts are tightly fastened to prevent malfunction or inefficiency in ice production.

Causes of failure can include stripping of the screw threads through over-tightening or corrosion, leading to a less secure fit.

Symptoms of a bad Screw include:

• Loose or dislodged components within the ice maker assembly.
• Inconsistent or halted ice production due to components shifting.
• Unusual noises emanating from the ice maker as a result of loose parts.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This part has been discontinued by the manufacturer and is no longer available.

The Hose Clamp is an OEM part for Whirlpool washing machines. This clamp secures the hose in place, ensuring a tight connection and preventing leaks during operation. It is essential for maintaining the integrity of the washing machine's water system, securing hoses that carry water to and from the washer.

Common causes of a bad hose clamp include rust, physical damage, or loosening from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Water leaks around the hose connection points
• The hose slipping off the fitting
• Visible rust or wear on the clamp
• Difficulty in tightening the clamp to secure the hose

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

Compression nut for 5/16" plastic water line.

Size: 1/4 inch. Nut for plastic water line.

This thick water tube routes water between components to supply the dispenser or ice/water systems and helps prevent kinks or pinching for reliable flow. Use it to restore proper water delivery and reduce leaks from damaged tubing. What it does:

• Channels water between supply points and internal components to enable dispensing and ice production
• Thick-walled design resists kinking and abrasion for more consistent flow
• Can address symptoms like intermittent water flow, reduced dispensing, or visible tubing damage
• Helps stop leaks when replacing cracked, split, or hardened tubing

• Shut off the appliance power and water supply before replacing tubing
• Inspect and replace any worn clamps or seals; tight, leak-free connections are required
• Use basic hand tools; avoid sharp bends or pinch points when routing the tube

Ice maker water line: 1/4x 8ft.

This is a replacement hex nut used to secure appliance components and fasteners. It restores a tight, reliable connection where a worn or missing nut causes loose panels, trim, or bracketing. What it does:

• Secures threaded studs, bolts, or fasteners to keep panels and components in place
• Restores proper fastening when original nut is stripped, corroded, or lost
• Helps eliminate rattling, vibration, or loose parts caused by a missing/failed nut
• Compatible with the appliance locations that use a standard hex nut for mounting

• Turn off and unplug the appliance before accessing interior panels or fasteners
• Use the correct wrench or socket size to avoid rounding the nut
• Replace only like-for-like nuts; if thread damage is present, inspect and replace the mating bolt/stud as needed

This ball sleeve guides and supports the valve ball inside the water/dispensing assembly to help maintain a proper seal and smooth movement. Replacing a worn sleeve restores reliable valve operation and reduces intermittent leaks or flow issues. What it does:

• Positions and protects the valve ball for consistent seating and sealing
• Prevents wear between the ball and valve bore to maintain proper flow control
• Helps stop dripping, leaking, or inconsistent dispensing caused by a damaged sleeve
• Works as the mating surface for the ball to ensure smooth operation

• One ball sleeve

• Disconnect power and water supply before starting any repair
• Replace only with the correct part number to ensure proper fit and seal
• Inspect surrounding valve components and seals; replace if worn or damaged
• Test for leaks and proper operation after reassembly

This thermostat retainer clip secures the defrost thermostat to the evaporator tubing in your refrigerator or freezer, maintaining firm contact for accurate temperature sensing and dependable defrost operation.

• Holds the thermostat firmly against the evaporator line for proper temperature feedback
• Helps prevent a loose or dangling thermostat that contribute to frost buildup and poor defrost performance
• Restores correct mounting when the original clip is cracked, bent, or missing
• Common signs include a broken clip or a thermostat not attached to the coil

• Disconnect power to the appliance before servicing; wear cut-resistant gloves
• Access the evaporator compartment; remove accumulated frost/ice as needed without prying on coil fins
• Position the thermostat body flat against the tubing and snap the retainer over it, avoiding pinched wires or damaged fins
• Confirm a secure fit and proper wire routing before reassembling and restoring power

The Icemaker Cycling Thermostat is an OEM part for Whirlpool refrigerators. This thermostat plays a crucial role in the icemaker's operation by monitoring the temperature in the icemaker and ensuring it is at the appropriate level for proper ice production. It reads the temperature to determine when the icemaker should cycle on and off.

Causes of a bad icemaker cycling thermostat can include electrical malfunctions, temperature sensor issues, or wear and tear.

Symptoms of a bad icemaker cycling thermostat may include:

• Inconsistent ice production.
• The icemaker not cycling properly.
• The icemaker not dumping the ice into the ice bin.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This icemaker fill cup and bearing assembly directs water from the inlet tube into the ice mold and provides the pivot point for the shutoff arm. Replacing a cracked or missing cup helps stop leaks, misdirected fills, and inconsistent ice production.

• Channels incoming water into the ice mold to prevent splashing and overfilling
• Provides the pivot/bearing for the ice level (shutoff) arm
• Helps maintain consistent cube size and reliable icemaker shutoff
• Typical symptoms: water or ice buildup under the icemaker, overfilling or hollow/irregular cubes, or a loose/binding shutoff arm

• Unplug the refrigerator and shut off the water supply before servicing
• Remove the ice bin and detach the icemaker to access the side-mounted cup
• Position the new cup directly under the fill tube; secure with existing hardware and verify the shutoff arm pivots freely in the bearing
• Restore power and water; run a test fill and check for leaks

This replacement ejector is the plastic arm that pushes harvested ice cubes out of the ice mold and into the storage bin, helping restore proper ice ejection and reduce ice that sticks inside the tray. What it does:

• Pushes ice cubes out of the ice mold during the ice maker's harvest cycle.
• Works with the ice maker's motor/gear assembly to advance cubes into the bin.
• Replaces worn, cracked, or broken ejector arms that can leave ice stuck in the mold.
• Can help address symptoms such as cubes that don't eject, partial fills, or frequent ice jams.

• Disconnect power to the refrigerator before servicing to prevent electrical shock.
• Remove the ice bin and follow the OEM ice maker removal steps to access the ejector.
• Handle plastic components carefully to avoid cracking; inspect gears, mounts, and the ice tray for related wear.

The Ice Level Arm is an OEM part for Whirlpool refrigerators. It is an component of the ice maker, responsible for sensing the ice level in the ice bin and controlling the ice production cycle. When the ice bin reaches capacity, the ice level arm signals the ice maker to stop producing ice, ensuring efficient operation.

You should replace this ice level arm if it becomes faulty. Causes of a bad ice level arm can include mechanical wear and tear, accidental damage, or issues with the connection to the ice maker mechanism.

Symptoms of a bad Ice Level Arm include:

• Continuous ice production, leading to overfilling
• The ice maker not producing ice even when the bin is empty
• The ice level arm not moving freely or appearing stuck

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This mold heater assembly warms the ice maker mold to help release ice and prevent ice buildup for consistent ice production. It replaces a faulty heater that can cause stuck cubes or irregular harvesting. What it does:

• Gently warms the ice mold so ice cubes release cleanly from the tray
• Helps prevent ice from sticking or freezing unevenly to the mold
• Supports regular ice harvesting cycles when heater has failed or is intermittent
• Works as the heater component inside the ice maker housing

• One mold heater assembly

• Disconnect power to the appliance before attempting any service
• Accessible from the ice maker module area; some models require removing the ice bin or access panel
• Handle the heater and surrounding components carefully to avoid damage to the ice maker

Ice stripper removes ice cubes from the ice maker mold so the dispenser or storage bin fills properly. Replacing a worn or broken stripper helps the ice maker eject cubes cleanly and reduces ice jams or stuck cubes. What it does:

• Pushes or guides harvested cubes out of the ice mold into the bin during the ice maker's harvest cycle.
• Prevents cubes from sticking in the mold; a damaged stripper can cause incomplete ejection or leftover ice in the mold.
• Works with the ice maker's ejector mechanism to maintain consistent cube release and storage.
• A faulty or broken stripper may lead to noisy operation, partial fills, or visible ice build-up in the mold.

• Disconnect power to the appliance before starting any repair to avoid electrical shock.
• Remove the ice maker or access panel per the manufacturer's instructions to reach the stripper; keep small parts and screws organized.
• Inspect the ice mold and surrounding components for damage or ice build-up; clear ice before installing the new stripper.
• After installation, restore power and run a test harvest cycle to ensure proper cube ejection.

This replacement bracket secures the refrigerator ice maker assembly so it stays properly positioned for reliable ice production. It restores stable mounting and helps prevent the ice maker from shifting or coming loose. What it does:

• Holds the ice maker assembly in place on the freezer liner or mounting frame
• Keeps the ice maker aligned for proper operation and water fill
• Helps stop vibration or movement that can cause noisy operation or misfeeds
• Useful when the original bracket is bent, broken, or missing

• Disconnect power to the refrigerator and shut off the water supply before starting
• Remove the ice maker to access the bracket mounting screws
• Reuse existing screws if undamaged; tighten to secure but avoid overtightening
• If mounting points or surrounding plastic are damaged, replace or repair before reinstalling

Screw: 8-16 x 3/8 inch.
