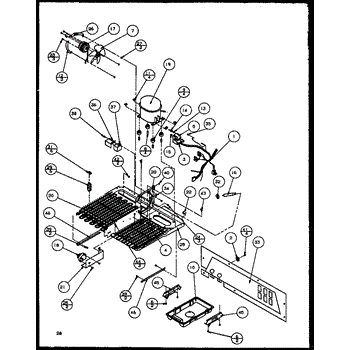

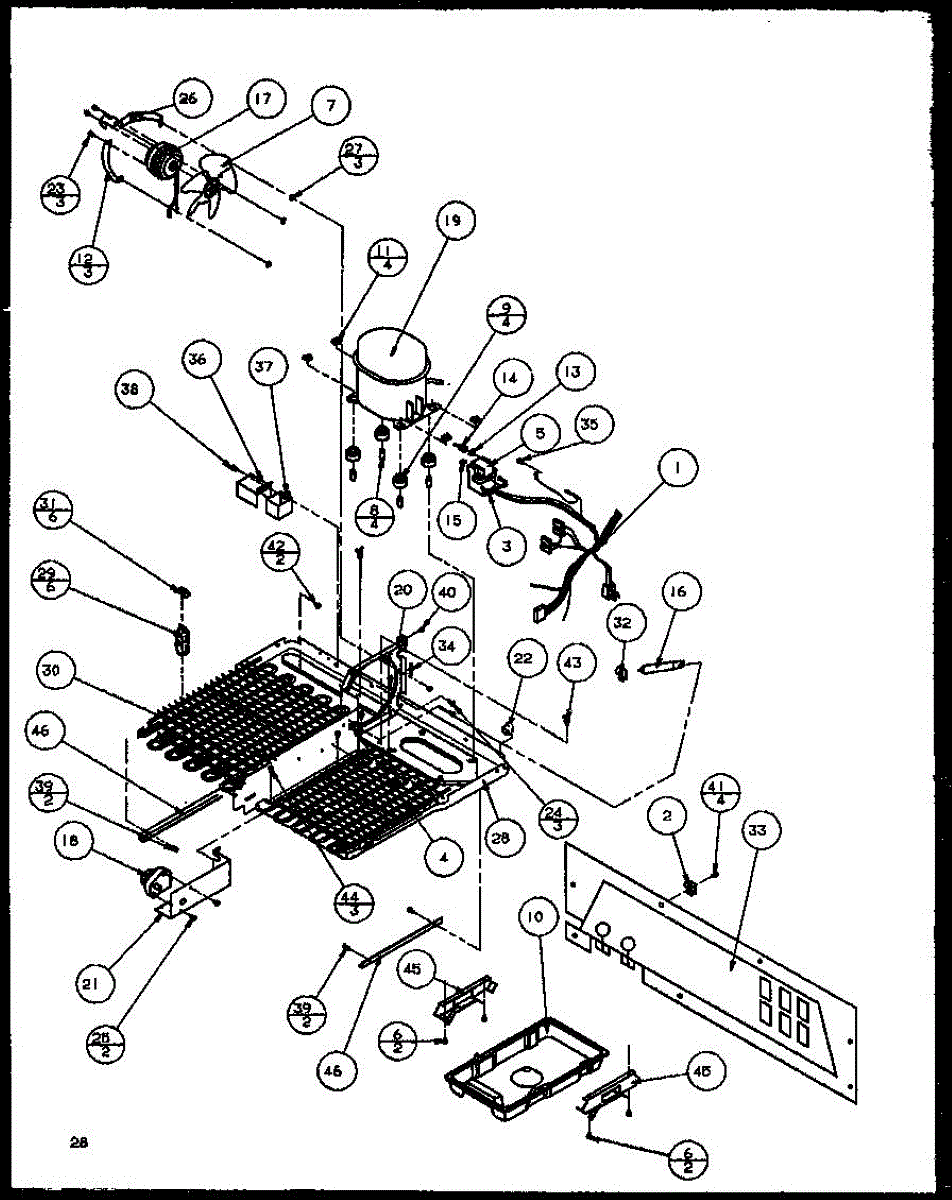

Parts for Amana TZ19QE / P1111409W E: 09 - Panasonic Compressor Parts

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

Protective seal grommet for hoses, tubes, or wires passing through refrigerator cabinet. Replaces cracked, worn, or missing grommets to prevent leaks.

Fix a refrigerator that clicks but won't start or runs warm. This compressor start relay restores reliable startup. Simple DIY repair in under an hour.

This is a filter drier installed in the sealed refrigeration system that removes moisture and contaminants from the refrigerant as it circulates. It protects the compressor and other components from damage caused by moisture or debris in the refrigerant lines. Replace this filter drier if the refrigerator or ice machine is not cooling properly, the compressor is struggling, or during any sealed system repair where the refrigerant lines have been opened.

Refrigerator runs warm or freezer not cooling properly? The condenser fan motor circulates air over the coils. DIY repair takes 15-60 minutes with basic tools.

Refrigerator not defrosting or icing up excessively? A failed defrost timer won't cycle between cooling and defrost modes. Moderately easy repair restores function.

Refrigerator not cooling or running constantly? The compressor circulates refrigerant to maintain temperature. This repair requires refrigerant handling.

This part has been discontinued and is no longer available.

The Run Capacitor is an OEM part for Whirlpool appliances, designed to provide the necessary electrical charge to start and run the compressor motor. This part attaches to the compressor to aids in maintaining a consistent motor speed and ensuring smooth operation. The run capacitor plays a crucial role in the appliance's electrical system, storing and releasing energy as needed to power the motor.

Causes of a bad Run Capacitor include electrical surges, wear and tear over time, or overheating, which can lead to a failure in providing the necessary start-up energy or maintaining motor speed.

Symptoms of a bad Run Capacitor include:

• The appliance does not start.
• The motor shuts off shortly after starting.
• The appliance is humming but not running.
• Increased energy consumption.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

Hex head sheet metal screw secures appliance panels, brackets, and trim. Replace missing, stripped, or damaged screws to keep covers firmly attached.
