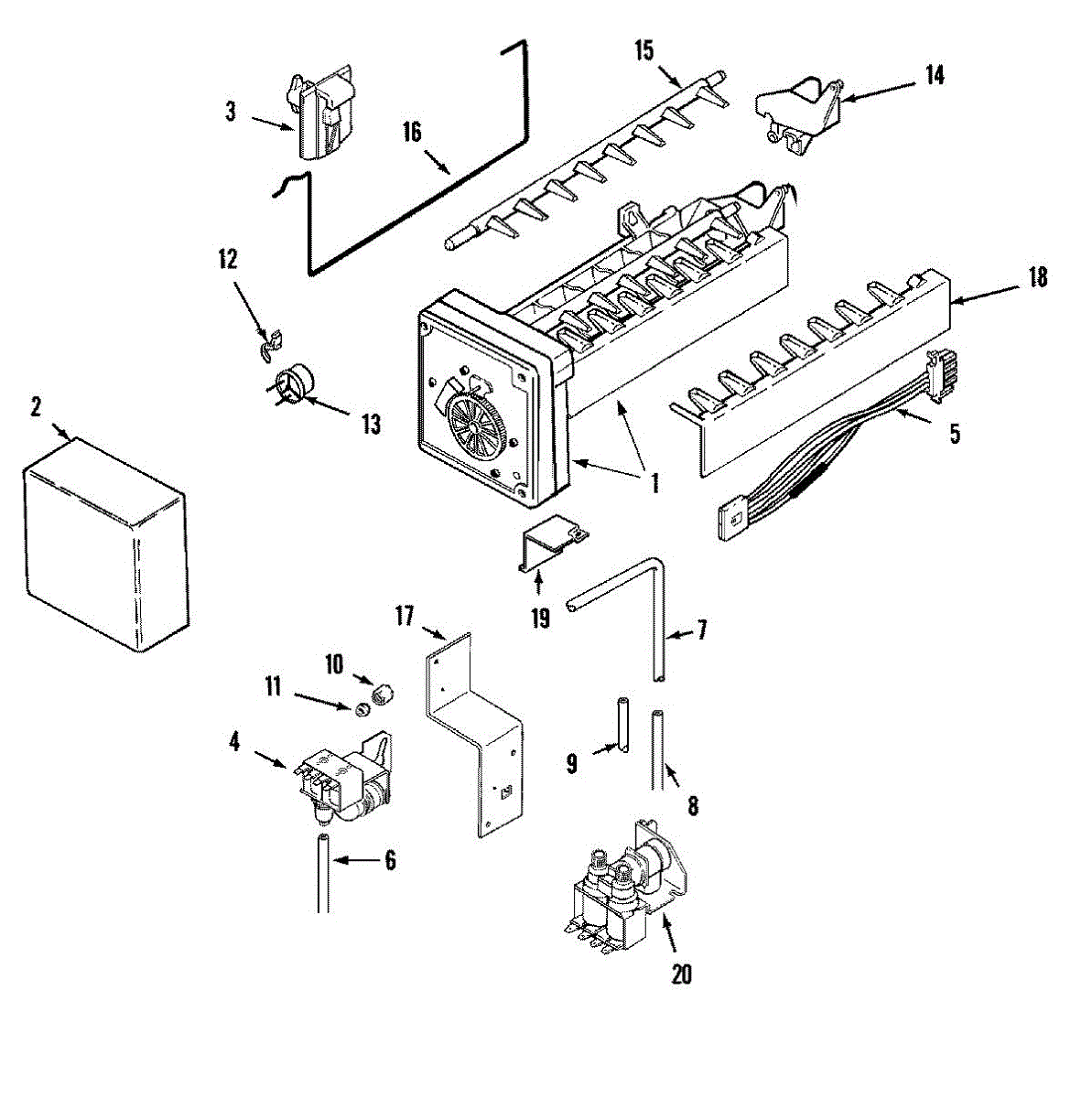

Parts for Maytag MSD2436GRW: 10 - Ice Maker Parts

Size: 8 x 1/2 ab.

The Replacement Icemaker is an OEM replacement part for Whirlpool made refrigerators including Whirlpool, Amana, Maytag, and many others. It is a component responsible for producing ice cubes or crushed ice, ensuring a constant supply of fresh ice for your convenience. Measuring approximately 11 inches long and 5 inches wide, this ice maker assembly is made of durable plastic and metal

Symptoms of needing a replacement icemaker include:

• No ice production or significantly reduced ice output
• Ice cubes appearing misshapen or clumped together
•  Leaks or water buildup in the icemaker area
• Strange noises or grinding sounds coming from the icemaker

Causes of a faulty icemaker can include normal wear and tear over time, water supply issues, clogging or blockages, or electrical malfunctions.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

Please note: that this ice maker is a replacement only and not suitable for add-ons or brand-new installations. It does not include the harness or hardware. For wire harness(Plug)order WPD7813010. For cover order WPW10289690. For shut off bail arm order WP67004028.

This ice maker support is the mounting bracket that secures the freezer ice maker assembly, keeping it aligned for reliable ice production and delivery. Replaces a worn or broken support to restore proper fit and reduce ice-bin movement. What it does:

• Holds the ice maker in the correct position inside the freezer compartment
• Prevents the ice maker from shifting, tilting, or coming loose during operation
• Helps maintain proper alignment for ice dispensing and harvest cycles
• Can eliminate rattling or intermittent contact caused by a damaged support

• One ice maker support bracket

• Disconnect power to the refrigerator before beginning work
• Remove the ice maker and any obstructing trim to access the support
• Retain and reuse original fasteners unless replacements are specified
• Use basic hand tools; avoid forcing parts to prevent damage

Size: 8-32 x .312 inch.

This 115V water valve controls water flow through the refrigerator filter assembly so ice and the dispenser get clean, pressurized water when needed. Replaces a failed valve to restore normal water delivery and stop unwanted leaks. What it does:

• Opens and closes the water supply to the refrigerator filter when the dispenser or ice maker calls for water
• Restores water flow if the dispenser or ice maker has little or no water
• Stops internal leaks when a faulty valve is the source of seepage or continuous water flow
• Operates on a 115V electrical feed used by the filter valve circuit

• One 115V water valve for the filter assembly

• Disconnect refrigerator power and shut off the water supply before beginning
• Relieve water pressure and have a towel handy for residual water in lines
• Verify valve electrical connections and tubing fittings are secure and properly seated
• Test for leaks and proper operation after installation; follow factory service instructions for detailed steps

This hose clamp secures a rubber or plastic hose to its fitting on your appliance, maintaining a tight, leak-resistant seal under vibration and pressure. Replace when the old clamp is rusted, bent, or no longer holds tension. What it does:

• Clamps around a hose to grip the fitting and seal the joint
• Helps prevent drips, leaks, and hose blow-off at the connection
• Restores secure clamping force when the original is worn or damaged
• Common symptoms: water at the connection, hose slipping off, visible corrosion or distortion

• 1 hose clamp

• Disconnect power and shut off the water supply before servicing
• Slide clamp onto hose, seat hose fully on the fitting, then position clamp just behind the bead/raised lip
• Tighten or compress evenly with the appropriate tool; avoid overtightening that could damage the hose
• After reassembly, run a short test and inspect for leaks

(SOLENOID NOT AVAILABLE MUST ORDER ICE DOOR KIT 12001991)

Ice maker water line: 1/4x 8ft.

This is a replacement hex nut used to secure appliance components and fasteners. It restores a tight, reliable connection where a worn or missing nut causes loose panels, trim, or bracketing. What it does:

• Secures threaded studs, bolts, or fasteners to keep panels and components in place
• Restores proper fastening when original nut is stripped, corroded, or lost
• Helps eliminate rattling, vibration, or loose parts caused by a missing/failed nut
• Compatible with the appliance locations that use a standard hex nut for mounting

• Turn off and unplug the appliance before accessing interior panels or fasteners
• Use the correct wrench or socket size to avoid rounding the nut
• Replace only like-for-like nuts; if thread damage is present, inspect and replace the mating bolt/stud as needed

This ball sleeve guides and supports the valve ball inside the water/dispensing assembly to help maintain a proper seal and smooth movement. Replacing a worn sleeve restores reliable valve operation and reduces intermittent leaks or flow issues. What it does:

• Positions and protects the valve ball for consistent seating and sealing
• Prevents wear between the ball and valve bore to maintain proper flow control
• Helps stop dripping, leaking, or inconsistent dispensing caused by a damaged sleeve
• Works as the mating surface for the ball to ensure smooth operation

• One ball sleeve

• Disconnect power and water supply before starting any repair
• Replace only with the correct part number to ensure proper fit and seal
• Inspect surrounding valve components and seals; replace if worn or damaged
• Test for leaks and proper operation after reassembly

This thermostat retainer clip secures the defrost thermostat to the evaporator tubing in your refrigerator or freezer, maintaining firm contact for accurate temperature sensing and dependable defrost operation.

• Holds the thermostat firmly against the evaporator line for proper temperature feedback
• Helps prevent a loose or dangling thermostat that contribute to frost buildup and poor defrost performance
• Restores correct mounting when the original clip is cracked, bent, or missing
• Common signs include a broken clip or a thermostat not attached to the coil

• Disconnect power to the appliance before servicing; wear cut-resistant gloves
• Access the evaporator compartment; remove accumulated frost/ice as needed without prying on coil fins
• Position the thermostat body flat against the tubing and snap the retainer over it, avoiding pinched wires or damaged fins
• Confirm a secure fit and proper wire routing before reassembling and restoring power

The Icemaker Cycling Thermostat is an OEM part for Whirlpool refrigerators. This thermostat plays a crucial role in the icemaker's operation by monitoring the temperature in the icemaker and ensuring it is at the appropriate level for proper ice production. It reads the temperature to determine when the icemaker should cycle on and off.

Causes of a bad icemaker cycling thermostat can include electrical malfunctions, temperature sensor issues, or wear and tear.

Symptoms of a bad icemaker cycling thermostat may include:

• Inconsistent ice production.
• The icemaker not cycling properly.
• The icemaker not dumping the ice into the ice bin.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This icemaker fill cup and bearing assembly directs water from the inlet tube into the ice mold and provides the pivot point for the shutoff arm. Replacing a cracked or missing cup helps stop leaks, misdirected fills, and inconsistent ice production.

• Channels incoming water into the ice mold to prevent splashing and overfilling
• Provides the pivot/bearing for the ice level (shutoff) arm
• Helps maintain consistent cube size and reliable icemaker shutoff
• Typical symptoms: water or ice buildup under the icemaker, overfilling or hollow/irregular cubes, or a loose/binding shutoff arm

• Unplug the refrigerator and shut off the water supply before servicing
• Remove the ice bin and detach the icemaker to access the side-mounted cup
• Position the new cup directly under the fill tube; secure with existing hardware and verify the shutoff arm pivots freely in the bearing
• Restore power and water; run a test fill and check for leaks

This replacement ejector is the plastic arm that pushes harvested ice cubes out of the ice mold and into the storage bin, helping restore proper ice ejection and reduce ice that sticks inside the tray. What it does:

• Pushes ice cubes out of the ice mold during the ice maker's harvest cycle.
• Works with the ice maker's motor/gear assembly to advance cubes into the bin.
• Replaces worn, cracked, or broken ejector arms that can leave ice stuck in the mold.
• Can help address symptoms such as cubes that don't eject, partial fills, or frequent ice jams.

• Disconnect power to the refrigerator before servicing to prevent electrical shock.
• Remove the ice bin and follow the OEM ice maker removal steps to access the ejector.
• Handle plastic components carefully to avoid cracking; inspect gears, mounts, and the ice tray for related wear.

This replacement mounting screw secures appliance panels and components to restore proper fit and reduce rattling. Use when a damaged or missing screw causes loose trim, gaps, or vibrating noises; order by part number to ensure a match. What it does:

• Fastens panels, brackets, or trim to keep parts aligned and secure.
• Stops vibration and rattling caused by loose or missing screws.
• Common symptoms: visible gaps, loose panels, hardware falling out, or excess noise.
• Use the part number and/or existing screw to ensure correct size and thread before ordering.

• Disconnect power and water before accessing internal components.
• Use the correct screwdriver or bit to avoid stripping the head.
• Turn until snug; avoid over-tightening which can strip threads or crack trim.
• Keep small parts away from children and pets during repair.

Ice stripper removes ice cubes from the ice maker mold so the dispenser or storage bin fills properly. Replacing a worn or broken stripper helps the ice maker eject cubes cleanly and reduces ice jams or stuck cubes. What it does:

• Pushes or guides harvested cubes out of the ice mold into the bin during the ice maker's harvest cycle.
• Prevents cubes from sticking in the mold; a damaged stripper can cause incomplete ejection or leftover ice in the mold.
• Works with the ice maker's ejector mechanism to maintain consistent cube release and storage.
• A faulty or broken stripper may lead to noisy operation, partial fills, or visible ice build-up in the mold.

• Disconnect power to the appliance before starting any repair to avoid electrical shock.
• Remove the ice maker or access panel per the manufacturer's instructions to reach the stripper; keep small parts and screws organized.
• Inspect the ice mold and surrounding components for damage or ice build-up; clear ice before installing the new stripper.
• After installation, restore power and run a test harvest cycle to ensure proper cube ejection.

This replacement bracket secures the refrigerator ice maker assembly so it stays properly positioned for reliable ice production. It restores stable mounting and helps prevent the ice maker from shifting or coming loose. What it does:

• Holds the ice maker assembly in place on the freezer liner or mounting frame
• Keeps the ice maker aligned for proper operation and water fill
• Helps stop vibration or movement that can cause noisy operation or misfeeds
• Useful when the original bracket is bent, broken, or missing

• Disconnect power to the refrigerator and shut off the water supply before starting
• Remove the ice maker to access the bracket mounting screws
• Reuse existing screws if undamaged; tighten to secure but avoid overtightening
• If mounting points or surrounding plastic are damaged, replace or repair before reinstalling

Screw: 8-16 x 3/8 inch.

Size: 8-32 x .312 inch.

The Water Inlet Valve Assembly is an OEM part for Whirlpool refrigerators. This assembly controls the flow of water into the refrigerator's ice maker and water dispenser, ensuring that water is supplied efficiently and consistently.

Causes of a bad water inlet valve assembly can include mineral buildup, wear and tear over time, electrical malfunctions, or damage from freezing.

Symptoms of a bad water inlet valve assembly include:

• The ice maker not producing ice
• The water dispenser not dispensing water
• Leaks or puddles forming around the refrigerator
• Unusual noises coming from the valve area

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
