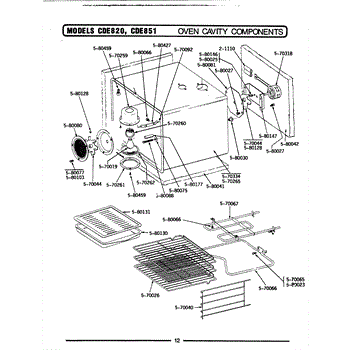

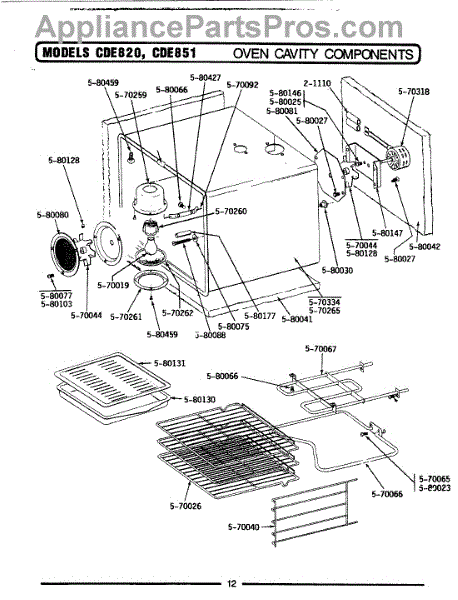

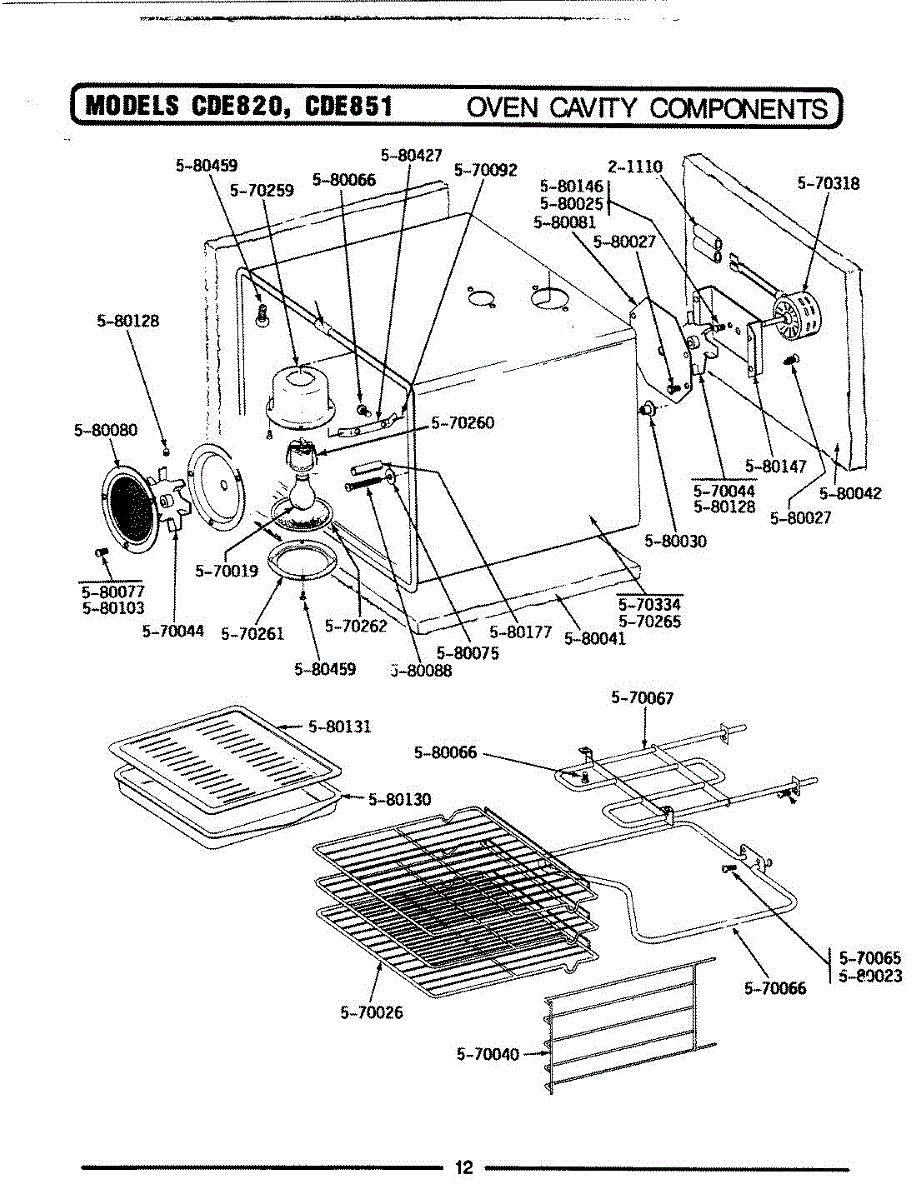

Parts for Maytag CDE851: 11 - Oven Cavity & Components Parts

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

The Bake Element is an OEM part for Whirlpool ranges. This part provides the necessary heat for baking by converting electrical energy into heat within the oven cavity.

Causes of a bad bake element can include electrical issues such as short circuits, physical damage from impacts or spills, or general wear and tear over time.

Symptoms of a bad Bake Element include:

• The oven not heating up
• Uneven baking results
• Visible damage or burn marks on the element
• The element not glowing red when in use

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This upper oven broil element delivers direct, intense heat for broiling and top-browning. Replace a failed element to restore fast, even broiling performance and consistent top heat in your electric range or wall oven.

• Provides high radiant heat from the top of the oven during Broil for searing and browning
• May cycle on for top-browning during Bake (on some models)
• Typical failure symptoms: no broil heat or slow, uneven top browning
• Replace if the element is cracked, blistered, pitted, or sparks/arcs when energized

• Unplug the appliance or switch off power at the breaker before servicing
• Remove oven racks; unfasten the element's mounting screws/clips and gently pull the element forward
• Transfer wires one at a time and support them so they don't slip back through the oven liner
• Avoid bending the new element; secure brackets/screws, restore power, and test broil

This 10-32 machine screw secures panels, brackets, and internal assemblies in your appliance. Replacing missing or stripped hardware restores a tight, rattle-free fit and helps keep components properly aligned.

• Provides a threaded fastener for metal-to-metal connections
• Helps maintain correct alignment of panels, brackets, and housings
• Replaces missing, rusted, or stripped screws
• Symptoms include loose or vibrating panels, gaps/misalignment, or hardware that won't tighten

• Disconnect power (and shut off gas/water, if applicable) before servicing
• Match the 10-32 thread and length to the original screw for the location
• Start by hand to avoid cross-threading; tighten snugly without over-torquing
• Retain and reinstall any original clips, spacers, or washers used in your model

Size: 8-32 x 1/4 inch.

This hex-head sheet metal screw secures appliance panels, brackets, and trim for a tight, rattle-free fit. Replace missing or stripped fasteners to keep covers and components firmly in place and restore proper alignment.

• Fastens sheet-metal parts, brackets, and trim using a hex drive
• Replaces worn, rusted, missing, or stripped screws
• Helps reduce vibration and rattling from loose panels
• Common signs you need this fastener: head or threads stripped, screw won't tighten, panel or handle coming loose

• Unplug the appliance before service; turn off water supply if working near water lines
• Use the correct nut driver or socket to avoid rounding the head
• Replace one fastener at a time to maintain alignment; do not overtighten
• Match screw type/length to the original location as specified by the manufacturer

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

The Screw is an OEM part for Whirlpool appliances. This specific screw is used in various locations within Whirlpool appliances, securing components and ensuring the stability and proper alignment of parts. It is designed to fit precisely and maintain a firm hold, contributing to the overall functionality and safety of the appliance.

Over time, screws can become worn or stripped due to regular use, corrosion, or over-tightening.

Causes of a bad screw include wear and tear, exposure to moisture leading to rust, and over-tightening which can strip the threads.

Symptoms of a bad screw include:

• Loose or wobbly components
• Misalignment of parts
• Noise due to vibrating or loose parts
• Difficulty in securing or removing the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This part has been discontinued by the manufacturer and is no longer available.

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

The Broil Pan Set is an OEM part for Whirlpool ovens. This set includes a broil pan and an insert, designed to catch drippings and ensure even heat distribution during broiling, allowing for perfectly cooked and crisp results.

Causes of a bad broil pan set can include prolonged exposure to high temperatures, which may lead to warping or distortion of the pan. Additionally, frequent use without proper cleaning can result in rusting, chipping, or buildup of residues that compromise the pan's functionality and safety.

Symptoms of a bad broil pan set include:

• Warping or bending of the pan
• Presence of rust or corrosion
• Surface chipping or flaking
• Difficulty in achieving even cooking results

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Stainless steel

This part has been discontinued by the manufacturer and is no longer available.

A single pop rivet used to secure sheet-metal parts and small brackets on appliances for a permanent, vibration-resistant hold. Replaces missing or damaged rivets to restore proper attachment without welding. What it does:

• Provides a permanent blind-rivet fastening point for panels, brackets and trim.
• Replaces rivets that are sheared, loose or missing and prevents rattling or misalignment.
• Ideal where a solid, tamper-resistant join is required and screws aren't suitable.
• Works with a compatible pop-rivet tool for quick installation.

• Drill out the old rivet carefully; use the proper size hole for the replacement rivet.
• Use a dedicated pop-rivet tool and wear eye protection during installation.
