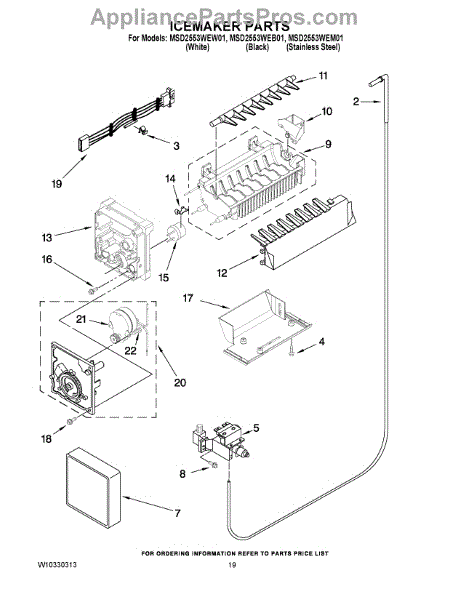

Parts for Maytag MSD2553WEW01: 12 - Icemaker Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

This small metal mounting clip secures the thermal fuse in place to maintain proper thermal contact and stable wiring. It helps keep the fuse positioned so the appliance can monitor temperature reliably and operate safely. What it does:

• Secures the thermal fuse to the appliance housing or duct to prevent movement
• Keeps the fuse in correct contact with temperature-sensing surfaces
• Helps prevent intermittent heating or thermal-sensor misreads caused by a loose fuse
• Useful when replacing a damaged or missing fuse retainer during fuse service

• One thermal fuse mounting clip

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove access panels per your model's service instructions to reach the fuse location
• Install clip in the same orientation as the original; use pliers if needed to seat it firmly
• Inspect the thermal fuse and wiring while installing; replace any damaged components per OEM guidance

Size: 8 x 1/2 ab.

The Water Inlet Valve is an OEM replacement part for Whirlpool refrigerators. It regulates the supply of water to the ice maker and water dispenser features. Properly functioning valves are essential for reliably producing ice and dispensing filtered water.

Symptoms of a faulty inlet valve include:

• Ice maker or dispenser not working properly
• Water leaking or spraying from the supply line connections
• Irregular water pressure when dispensing

Causes can involve mineral buildup overtime inhibiting flow control or a motor malfunctioning to switch the valve on and off.

This replacement valve is also compatible with brands like Maytag, KitchenAid, and Jenn-Air.

Note: If your original valve assembly had an additional connector bracket, the factory no longer includes that with the valve. The connector bracket can be ordered separately by ordering part# WPW10445062.

This ice maker cover shields the front of the ice maker assembly, protecting the module and moving parts from dust and accidental contact. Replacing a cracked or missing cover restores a clean, finished appearance and keeps components protected.

• Shields the ice maker's front components and control module
• Helps keep dust, splashes, and debris out of the mechanism
• Prevents accidental contact with moving ejector parts
• Replace if the cover is cracked, warped, missing, or will not stay attached

• Unplug the refrigerator before servicing
• Access the ice maker in the freezer compartment
• Carefully release the retaining tabs and remove the old cover; note orientation
• Align the new cover and press until it snaps securely into place—do not force the tabs

A replacement machine screw with 8-32 threads used to secure panels and components on compatible Whirlpool appliances. Installs quickly to restore proper fit and stop rattling or loose parts. What it does:

• Secures panels, trim, brackets or components that use 8-32 machine-thread fasteners
• Restores proper alignment and prevents vibration-related noise
• Replaces missing, stripped, or damaged screws that allow parts to come loose
• Works where a standard 8-32 machine screw is specified by the manufacturer

• Disconnect power and/or gas before servicing the appliance to reduce shock or injury risk
• Use the proper screwdriver or nut driver for the screw head to avoid stripping
• Thread gently and stop when snug; do not overtighten to prevent stripping or damage
• If threads are damaged, replace with the correct-size screw rather than forcing it

The Ice Mold is an OEM part for Whirlpool refrigerators. This component forms the ice cubes in the icemaker, shaping the water into cubes as it freezes. The ice mold is crucial for the efficient production of ice, ensuring that each cube is properly formed and easily released into the ice bucket.

You should replace the ice mold if it shows signs of wear or damage. Causes of a bad ice mold can include mineral buildup from hard water, physical damage to the mold surface, or malfunctioning heating elements that prevent ice from releasing properly.

Symptoms of a bad Ice Mold include:

• Ice cubes not forming correctly or being irregular in shape
• Ice cubes sticking to the mold and not dispensing
• The icemaker not producing ice at all
• Leaks around the icemaker area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is the cup-style water fill used to direct or hold incoming water in the appliance's water delivery system, helping proper flow to the dispenser or ice/water components. It replaces a cracked or damaged fill cup to restore reliable water routing. What it does

• Directs incoming water to the dispenser/ice fill area so water reaches the correct channel
• Prevents water from leaking into surrounding compartments when intact
• Commonly replaced when cracked, warped, or causing pooling or poor fill performance
• Works as a passive funneling/holding component in the fill path

• One cup (water fill) as described

• Disconnect power and shut off the water supply before starting work
• Handle carefully to avoid cracking plastic; inspect seals/gaskets and mounting points
• Reinstall per appliance service instructions; secure fasteners and check for proper alignment
• After installation, restore power/water and test the dispenser/fill function for leaks

This replacement ejector is the plastic arm that pushes harvested ice cubes out of the ice mold and into the storage bin, helping restore proper ice ejection and reduce ice that sticks inside the tray. What it does:

• Pushes ice cubes out of the ice mold during the ice maker's harvest cycle.
• Works with the ice maker's motor/gear assembly to advance cubes into the bin.
• Replaces worn, cracked, or broken ejector arms that can leave ice stuck in the mold.
• Can help address symptoms such as cubes that don't eject, partial fills, or frequent ice jams.

• Disconnect power to the refrigerator before servicing to prevent electrical shock.
• Remove the ice bin and follow the OEM ice maker removal steps to access the ejector.
• Handle plastic components carefully to avoid cracking; inspect gears, mounts, and the ice tray for related wear.

This stripper arm for an ice maker lifts and clears ice from the mold so individual cubes separate and move into the dispenser or storage bin. Replacing a worn or damaged arm restores reliable harvest and ice release. What it does:

• Lifts or sweeps ice out of the ice mold during the harvest cycle
• Helps separate stuck or partially formed cubes so they fall into the bin
• Reduces ice buildup that can cause clumping or delivery problems
• Works as part of the ice maker's ejector/harvest mechanism

• Disconnect power to the appliance before starting any repair
• Confirm position and orientation against the removed part before installing
• May require basic hand tools; handle plastic parts carefully to avoid breakage

This support mounts in the dispenser area to secure the ice housing assembly. It helps keep the chute and door properly aligned so ice dispenses smoothly and the opening seals as designed.

• Supports and positions the ice housing/chute assembly in the freezer door
• Helps maintain proper alignment and sealing of the ice door/flapper
• Reduces wobble or flex that can affect dispensing performance
• Typical signs it may be needed: loose or misaligned dispenser housing, ice or air leaking at the chute, frost buildup around the dispenser, inconsistent ice dispensing

• Disconnect power to the refrigerator before servicing
• Remove the dispenser trim/control to access the housing; handle wiring and tabs carefully
• Remove mounting fasteners, replace the support, and transfer any reusable hardware
• Reassemble, restore power, and test ice dispensing and chute seal

This thermostat retainer clip secures the defrost thermostat to the evaporator tubing in your refrigerator or freezer, maintaining firm contact for accurate temperature sensing and dependable defrost operation.

• Holds the thermostat firmly against the evaporator line for proper temperature feedback
• Helps prevent a loose or dangling thermostat that contribute to frost buildup and poor defrost performance
• Restores correct mounting when the original clip is cracked, bent, or missing
• Common signs include a broken clip or a thermostat not attached to the coil

• Disconnect power to the appliance before servicing; wear cut-resistant gloves
• Access the evaporator compartment; remove accumulated frost/ice as needed without prying on coil fins
• Position the thermostat body flat against the tubing and snap the retainer over it, avoiding pinched wires or damaged fins
• Confirm a secure fit and proper wire routing before reassembling and restoring power

The Icemaker Cycling Thermostat is an OEM part for Whirlpool refrigerators. This thermostat plays a crucial role in the icemaker's operation by monitoring the temperature in the icemaker and ensuring it is at the appropriate level for proper ice production. It reads the temperature to determine when the icemaker should cycle on and off.

Causes of a bad icemaker cycling thermostat can include electrical malfunctions, temperature sensor issues, or wear and tear.

Symptoms of a bad icemaker cycling thermostat may include:

• Inconsistent ice production.
• The icemaker not cycling properly.
• The icemaker not dumping the ice into the ice bin.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement screw secures panels, trim pieces and small assemblies so covers and components stay aligned and rattle-free. It's a simple, direct fastening part used when an original screw is missing or damaged. What it does:

• Fastens panels, trim, control housings and other small components to the appliance chassis
• Replaces missing, worn or stripped screws that cause loose panels or rattling noises
• Restores correct alignment of covers and trims after service or disassembly
• Provides a direct, hardware-level repair instead of temporary fixes

• Disconnect power (and gas, where applicable) and ensure the appliance is cool before starting.
• Use the correct screwdriver bit and turn until snug; do not overtighten to avoid stripping threads or damaging parts.
• Keep removed hardware for reference; replace like-for-like if threads or inserts are damaged.
• Wear eye protection and gloves when working on appliances.

The Screw is an OEM part for Whirlpool refrigerators, designed to secure components of the ice maker assembly. This screw maintains the structural integrity of the ice maker, ensuring that all parts are tightly fastened to prevent malfunction or inefficiency in ice production.

Causes of failure can include stripping of the screw threads through over-tightening or corrosion, leading to a less secure fit.

Symptoms of a bad Screw include:

• Loose or dislodged components within the ice maker assembly.
• Inconsistent or halted ice production due to components shifting.
• Unusual noises emanating from the ice maker as a result of loose parts.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Wire harness for the ice maker that restores factory wiring connections so the ice maker receives power and control signals. Replacing a damaged or corroded harness can resolve intermittent operation and loss of ice production. What it does:

• Routes power and control signals between the refrigerator and the ice maker assembly.
• Ensures proper connector fit and signal paths for timed harvest and fill cycles.
• Often fails from connector corrosion, broken or pinched wires, or heat damage.
• Common symptoms: ice maker won't cycle, no or reduced ice production, or intermittent/erratic ice operation.

• Disconnect power (and water supply if applicable) before servicing to avoid shock or damage.
• Handle connectors gently; match and seat each connector fully to avoid loose connections.
• Route and secure the harness away from moving parts, sharp edges, and heating elements.
• Inspect mating connectors for corrosion or damage and replace if necessary.

The Icemaker Motor Module is an OEM part for Whirlpool refrigerators. This module is the heart of the icemaker, responsible for controlling the ice production cycle. It manages the timing, water fill, and ice tray ejection, ensuring that your refrigerator consistently produces and dispenses ice.

Symptoms of a bad Icemaker Motor Module include:

• The icemaker failing to produce ice,
• Ice cubes not ejecting into the bin,
• The icemaker making unusual noises during operation.

Causes of motor module failure typically involve mechanical wear from continuous use, electrical failures such as short circuits, or water damage affecting the electronic components.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Icemaker Motor Module is an OEM part for Whirlpool refrigerators. This module is the heart of the icemaker, responsible for controlling the ice production cycle. It manages the timing, water fill, and ice tray ejection, ensuring that your refrigerator consistently produces and dispenses ice.

Symptoms of a bad Icemaker Motor Module include:

• The icemaker failing to produce ice,
• Ice cubes not ejecting into the bin,
• The icemaker making unusual noises during operation.

Causes of motor module failure typically involve mechanical wear from continuous use, electrical failures such as short circuits, or water damage affecting the electronic components.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Icemaker is an OEM part for Whirlpool refrigerators. This component is responsible for producing ice automatically in the freezer compartment. It includes the mold that forms the ice cubes and the mechanism that releases them into the ice bucket.

Causes of a bad icemaker can include wear and tear from regular use, mineral buildup from hard water, electrical malfunctions, or damage to the mechanical components. These issues can lead to inefficient ice production or complete failure of the icemaker.

Symptoms of a bad icemaker include:

• No ice production
• Ice cubes being too small or misshapen
• Leaks or water pooling inside the freezer
• Unusual noises during the ice-making cycle

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.
