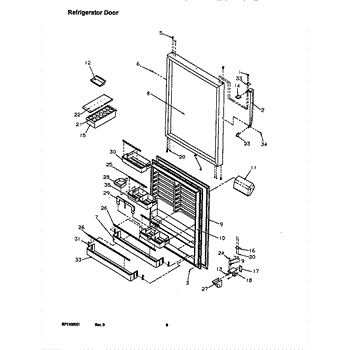

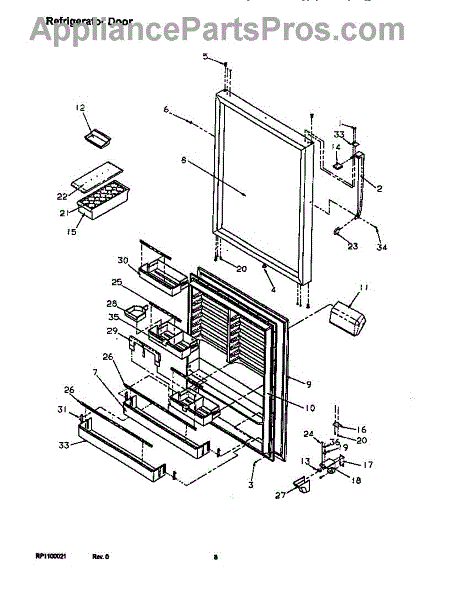

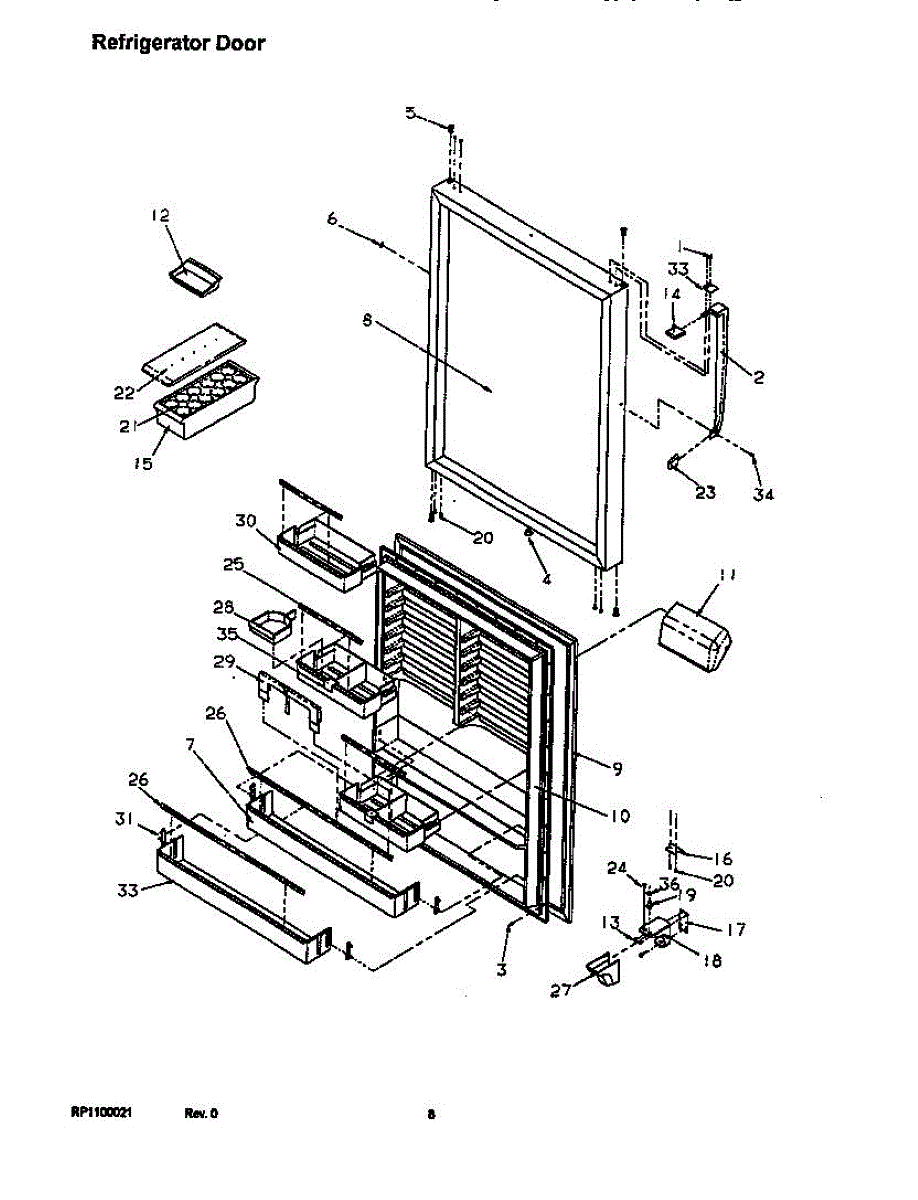

Parts for Amana TRI22S4E / P1196304W E: 13 - Ref Door Parts

This screw secures appliance panels and components to keep assemblies stable and aligned during normal use. It's a direct-fit fastener used where the factory requires a specific screw shape and thread. What it does:

• Fastens trim, panels, brackets, or internal components to the cabinet or frame
• Restores secure mounting when original fasteners are missing or stripped
• Helps eliminate rattling, vibration, or loose parts caused by a missing screw
• Matches OEM fit and fastening points for correct assembly

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Replace only the damaged or missing screw; confirm orientation and thread engagement before final tightening
• Disconnect power and follow all safety precautions before servicing appliances

Color: Black

Color: Black. Size: Approx 31 1/2 inches x 41 1/2 inches. For white order WP12550111Q.

A single replacement screw used to fasten appliance panels and components, restoring secure fit and reducing vibration or noise. Simple, low-cost part for repairs that need a missing or stripped fastener. What it does:

• Secures panels, trim, or small component housings to the appliance frame
• Helps stop rattling, vibration, and misalignment caused by loose or missing screws
• Keeps internal components properly seated to maintain normal operation
• Used wherever the OEM specifies this exact fastener

• One replacement screw

• Disconnect power before servicing the appliance to avoid shock or injury
• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread by hand first, then tighten snugly—do not overtighten
• Keep small parts away from children and pets

This Bottom Hinge Pin supports the refrigerator door at the lower hinge, providing a smooth, stable pivot. Replace a worn or bent pin to restore proper door alignment, closing action, and gasket sealing.

• Serves as the pivot point for the door on the bottom hinge bracket
• Helps maintain alignment so the door gasket seals correctly
• Wear/failure symptoms can include door sagging, wobble at the hinge, squeaks or grinding, and poor self-closing
• Replacing a damaged pin can reduce hinge play and improve door operation

• Disconnect power; turn off water supply if working near a dispenser line
• Remove items from the door and support the door to prevent strain on hinges
• Detach bottom hinge fasteners, lift door off, replace the pin, and reassemble
• Adjust hinges as needed

This factory screw secures appliance components. It restores a tight, reliable hold when the original hardware is stripped, missing, or corroded—helping prevent vibration and keeping panels and brackets properly aligned.

• Provides threaded fastening for panels, brackets, covers, or internal components
• Replaces worn, rusted, stripped, or missing hardware
• Helps reduce vibration and rattling from loose parts
• Restores proper alignment and a secure fit of attached parts

• Disconnect power; turn off water supply before service
• Note original screw location and retain any spacers or clips for reassembly
• Start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten to prevent stripping

This leveling foot adjusts the height and balance of your appliance so it sits stable and operates correctly. Replacing a worn or missing foot helps reduce vibration, noise, and unwanted movement during use.

• Supports and stabilizes the appliance by adjusting height at the base
• Helps correct rocking, excessive vibration, or walking during operation
• Can resolve rattling noises caused by uneven footing
• Aids proper door alignment and smooth operation when leveled

• Unplug power and shut off water (if applicable) before servicing
• Tilt or carefully raise the appliance to access the foot
• Thread the new foot in by hand; adjust to level with a bubble level
• Tighten any jam nut or lock mechanism if present; recheck level after placement

This part has been discontinued and is no longer available.

A non-metal shim used to stabilize and level your appliance for quieter, more reliable operation. Simple, low-profile support that helps correct minor height and balance issues so doors and drawers align and appliances sit securely. What it does:

• Adds thin, non-metallic spacing under feet or frame to correct slight height differences
• Helps stop rocking or tipping that can cause noise, vibration, or misaligned doors
• Supports even weight distribution to reduce uneven wear on adjustable legs
• Useful when adjusting leveling feet can't fully correct a gap or tilt

• Place shim under the appliance foot or frame where additional height or support is needed
• Re-check appliance level and stability after installing; add/remove shims as required
• Use with care to avoid creating instability; pair with proper leveling adjustments

This factory screw secures appliance components. It restores a tight, reliable hold when the original hardware is stripped, missing, or corroded—helping prevent vibration and keeping panels and brackets properly aligned.

• Provides threaded fastening for panels, brackets, covers, or internal components
• Replaces worn, rusted, stripped, or missing hardware
• Helps reduce vibration and rattling from loose parts
• Restores proper alignment and a secure fit of attached parts

• Disconnect power; turn off water supply before service
• Note original screw location and retain any spacers or clips for reassembly
• Start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten to prevent stripping
