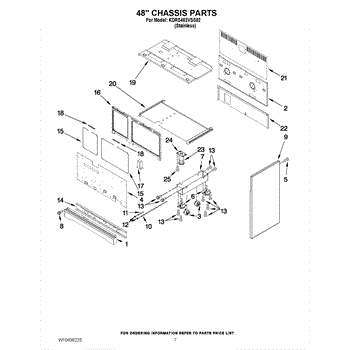

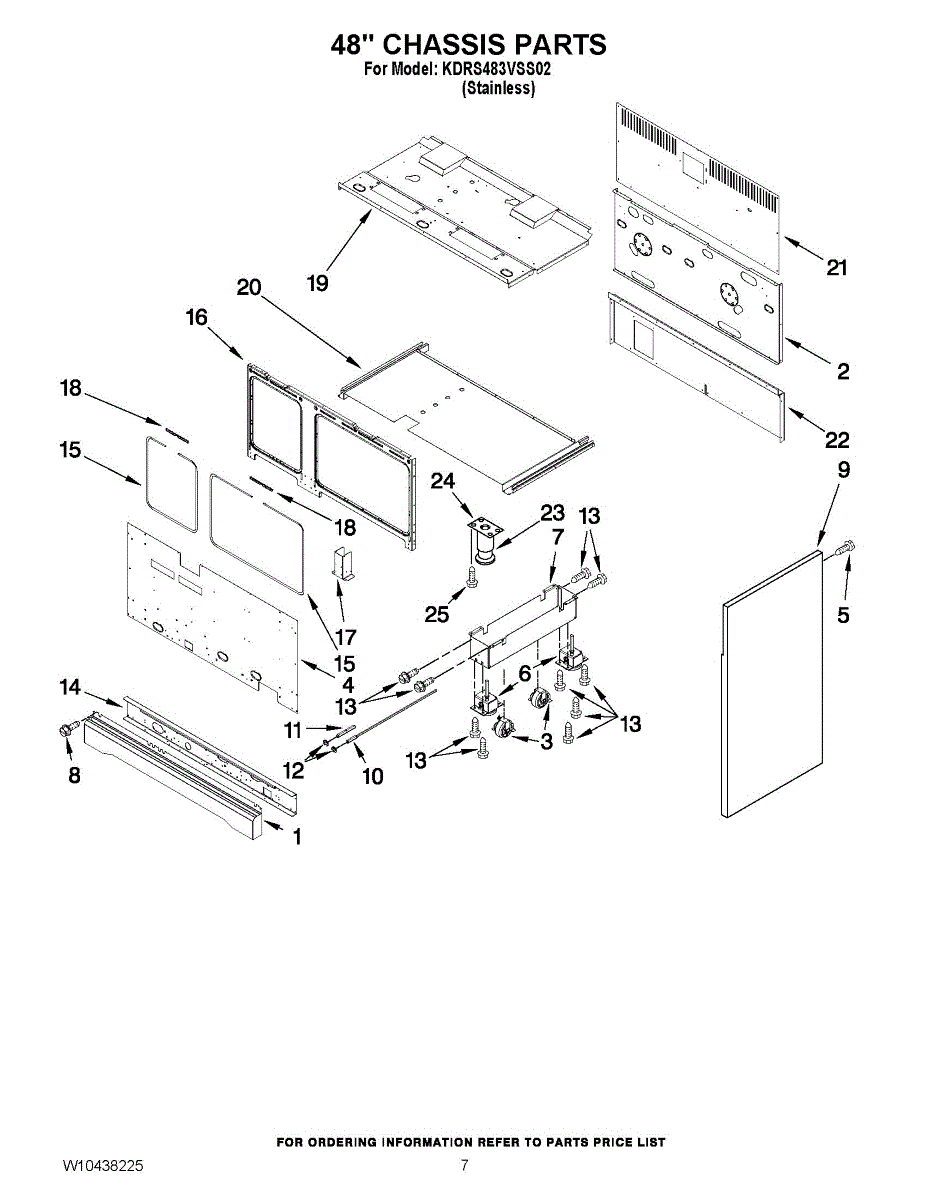

Parts for Kitchenaid KDRS483VSS02: 05 - 48`` Chassis Parts

This replacement roller fits the front or rear position of a slide mechanism, restoring smooth, even movement and reducing noise when a wheel is worn or broken. It helps racks or drawers glide properly and stay aligned. What it does:

• Provides low-friction rolling support for the slide track
• Helps slide-out assemblies move freely without binding or scraping
• Worn or damaged rollers can cause sticking, squeaking, or uneven travel
• Restores proper alignment and smooth operation when replaced

• 1 roller assembly

• Disconnect power and allow the appliance to cool before servicing
• Remove the slide-out assembly; note roller orientation and hardware
• Transfer/reuse existing screws, clips, or retainers as required
• Do not lubricate unless the manufacturer specifies a lubricant

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This mounting bracket secures appliance components in place to reduce movement and rattling during operation. It provides reliable structural support for the cabinet or internal assemblies to help maintain proper alignment and function. What it does:

• Secures panels, assemblies, or components to the appliance frame to prevent shifting
• Helps reduce vibration and noise caused by loose parts
• Maintains alignment of connected parts to support proper operation
• Commonly replaced when bracket is bent, broken, or missing fasteners

• Disconnect power to the appliance before beginning any work
• Installation requires basic hand tools; keep track of fasteners and any small parts
• Support the assembly being worked on to avoid strain on other components
• Follow for proper bracket placement and torque

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This side compartment is a direct-fit door bin that restores storage on the refrigerator door, keeping bottles and small items secure and organized. Durable molded plastic replaces cracked or missing bins for reliable everyday use. What it does:

• Replaces a cracked, broken or missing door bin to restore storage capacity and organization
• Holds bottles, condiments and small containers along the inside of the refrigerator door
• Prevents items from falling when the door opens and closes
• Matches the factory shelf design for correct fit and alignment

• High-level snap-in/screw-in replacement; remove existing bin then install new bin until it seats
• Disconnect power only if removal requires working near electrical components; otherwise power disconnection is not typically needed
• Handle carefully to avoid damage to adjacent door liners or gaskets

This 8-32 x 3/8 screw secures panels, brackets, and internal components in your appliance so everything stays aligned and tight. Replace worn or missing hardware to restore a solid, rattle-free fit and safe operation.

• Fastens components to frames, brackets, or panels
• Helps reduce vibration, rattling, and misalignment
• Replaces missing, stripped, or corroded screws
• Correct 8-32 machine thread for tapped holes in compatible assemblies

• Disconnect power before servicing; shut off gas or water if applicable
• Start threads by hand to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping

This door gasket seals the oven door to help keep heat and cooking odors inside the oven cavity for more even cooking and improved energy efficiency. Durable rubber forms a continuous seal around the oven door opening. What it does:

• Replaces a worn, torn, or brittle gasket to stop heat from escaping around the oven door
• Helps maintain consistent oven temperatures for more even baking and roasting
• Reduces excess heat and smoke in the kitchen caused by a failing door seal
• Prevents food odors from leaking out of the oven cavity

• One oven door gasket

• Disconnect power to the appliance and make sure the oven is completely cool before starting
• Remove the oven door or open as recommended by the manufacturer to access the gasket channel
• Clean the gasket channel of debris and old adhesive before seating the new gasket for a proper seal
• Press the gasket into the retainer evenly around the door; replace only with the exact part number for best fit

The Oven Gasket is an OEM component specifically designed for Whirlpool ranges. This gasket measuring 75.40 inches seals the oven door, preventing heat from escaping and maintaining optimal cooking temperatures inside the oven cavity.

Causes of a bad gasket include warping, cracks or tears that compromise the seal overtime due to repeated exposure to high heat.

Symptoms of a bad gasket include:

• Inefficient or uneven cooking
• Lower than expected oven temperatures
• Escaping heat from around the oven door
• A worn/damaged appearance

This Whirlpool OEM replacement gasket is also compatible with KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This top oven assembly replaces the upper oven module to restore reliable baking and roasting in compatible Whirlpool ranges. It provides the structural cavity and mounting points needed for upper-oven heating and rack support. What it does:

• Houses the upper oven cavity and supports oven racks for cooking and baking
• Provides mounting locations and seals for upper heating elements and sensors
• Helps the upper oven reach and maintain set temperatures when paired with working heating components
• Commonly replaced when the upper oven is damaged, warped, or no longer heating properly

• Disconnect power to the appliance before beginning any repair.
• This is a large assembly; two people and basic tools are typically required for safe removal and installation.
• Transfer any reusable components (racks, trim, elements, sensors) only if they are compatible and in good condition; confirm whether those items are included before proceeding.
• Follow the OEM service manual or wiring diagram for correct reassembly and electrical connections.

This genuine replacement screw secures appliance panels and components, restoring proper fit and stopping movement. Use it when a missing or damaged fastener causes loose trim or rattling. What it does

• Secures panels, brackets, and small assemblies to restore proper fit
• Helps eliminate rattling, vibration, or misaligned trim caused by a missing or stripped screw
• Replaces lost or damaged fasteners during maintenance or part replacement
• Matches OEM fit for reliable fastening where specified in diagrams

• Use the matching screw location shown in the appliance diagram; do not force or overtighten
• Use the correct screwdriver or bit to avoid stripping the head
• Disconnect power and follow appliance safety procedures before accessing internal components
• If threads are damaged, replace with the correct OEM fastener rather than reusing a compromised hole
