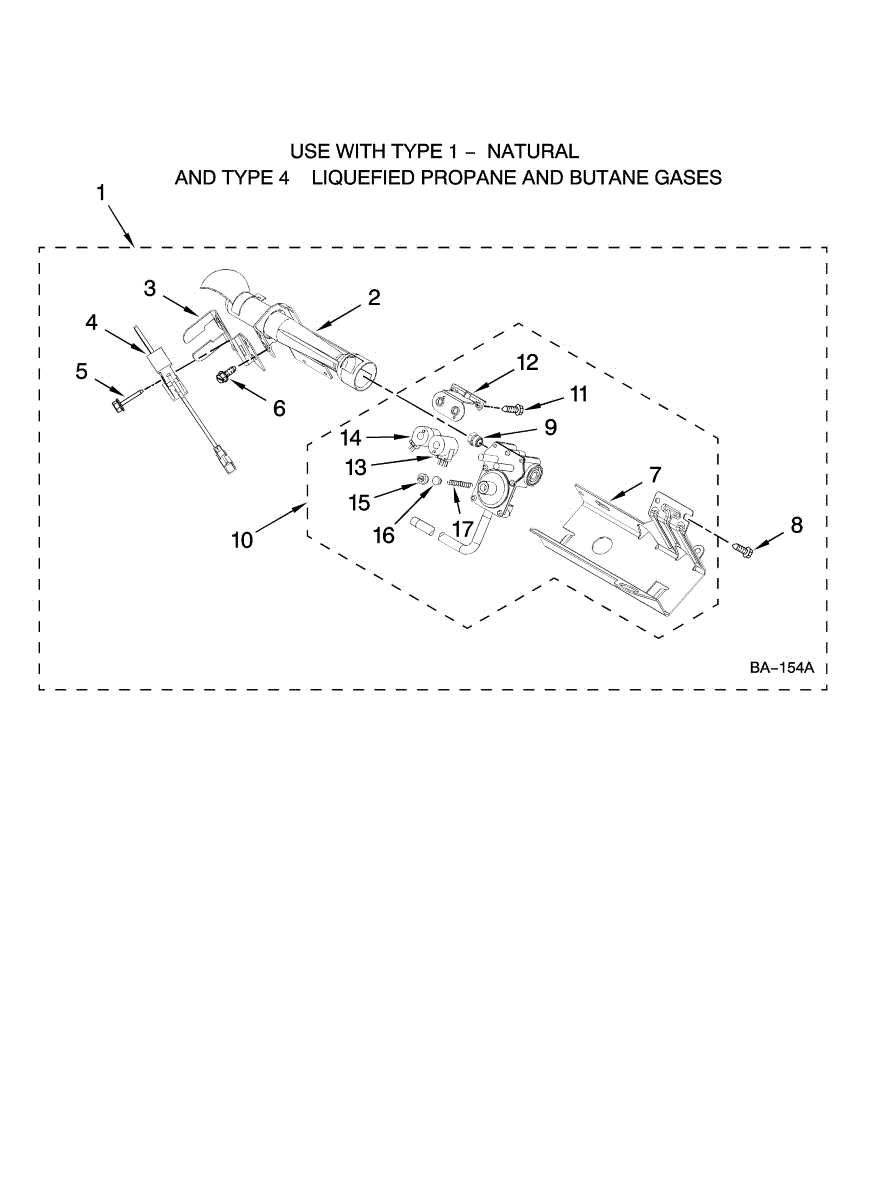

Parts for Kenmore 110.78062801 (11078062801, 110 78062801): 8557891 Burner Assembly Parts

Made for use on a dryer unit, this part is a burner and gas valve assembly. This part includes the complete assembly with the burner that distributes the gas to create an even flame, the gas valve that controls the flow of the gas, and the igniter that lights the gas to create a flame.If there is a gas smell inside of the dryer drum, this part may be faulty. If this is the case, turn off the gas immediately. Another symptom of a bad burner and gas valve assembly is if the dryer will not heat at all. Turn off the gas before performing any care or maintenance on the appliance. Wear work gloves to protect the hands during this process.This part is sold individually and is sourced straight from the manufacturer itself. This particular burner and gas valve assembly are compatible with dryers manufactured by Whirlpool, Maytag, Kenmore, and Kenmore Elite.

This is a gas burner tube that delivers and distributes the gas flame inside a gas dryer's heating assembly. It connects to the gas valve and directs the flame to heat the air that dries your clothes. Replace this burner tube if the dryer is not heating, heating unevenly, or if the tube is corroded, cracked, or shows signs of flame damage.

This bracket is used to attach and is included in the igniter kit. Save money by ordering the igniter kit 279311.

Dryer not heating or won't dry clothes? This igniter kit lights the gas burner. Moderately easy DIY repair with video guide—replaces failed igniters.

Replacement mounting screw for securing panels, brackets, and interior assemblies. Needed when original screw is stripped, missing, or damaged.

This 8-18 x 5/8-inch screw secures dryer panels, brackets, and covers. Replace missing or stripped fasteners to restore a tight fit and stability.

This part has been discontinued and is no longer available.

Dryer won't heat or flames are yellow? This butane burner orifice meters gas flow for clean, reliable ignition. Required for butane conversions.

Dryer not heating or flames won't ignite? This gas valve assembly controls gas flow to restore heat. Moderate DIY repair that fixed no-heat issues.

8-32 mounting screw for dryer assemblies. Replaces lost, stripped, or damaged screws during repairs or panel reinstallation. Essential hardware part.

Dryer won't heat or flame shuts off after 15 seconds? Gas valve coils control gas flow to the burner. Takes about 30 minutes to replace both coils.

Dryer won't heat or flame shuts off after 15 seconds? Gas valve coils control gas flow to the burner. Takes about 30 minutes to replace both coils.

If your dryer won't stay lit or shuts off after a few minutes, the gas limiter may be faulty. This regulator controls safe gas flow to the burner.

Dryer making high-pitched sound when igniter turns on? This natural gas regulator maintains proper gas pressure to burners. DIY-friendly repair.

Spring installs inside the gas pressure regulator assembly on gas dryers. Replace if lost during conversion between natural gas and propane fuel types.

This external vent kit allows you to redirect your dryer's exhaust to either the left or right side of the unit. It includes the necessary ductwork and fittings for flexible exhaust routing. Use this kit when your dryer's rear exhaust location doesn't work with your laundry room layout.

Color: White. Size: 1 qt. can. Acrylic appliance paint.

This is a Y-shaped hose connector fitting used to join or split water supply lines. It allows two hoses to connect to a single water source or directs water flow between components. Replace this connector if it is cracked, corroded, or leaking at the connection points.

This exhaust vent extension restores proper exhaust airflow by lengthening or adapting the appliance exhaust outlet to the vent duct. It helps maintain safe ventilation and reduces backpressure that can cause poor performance or odors. What it does:

• Extends or adapts the appliance exhaust outlet to reach the home vent duct
• Directs exhaust airflow to reduce backflow and help prevent overheating
• Helps resolve symptoms like weak venting, lingering odors, or unusual appliance cycling
• Provides a stable connection point for the exhaust duct to improve sealing and airflow

• Turn off and disconnect power (and gas if applicable) to the appliance before installing.
• Use proper fasteners and high-temperature-rated duct tape or clamps as recommended by the appliance manufacturer.

Size: 6 foot long. Washers not included. This is one hose, for a set with washers order 285363. For inlet hose screen use 285452A and for inlet hose washers use 285448A

This hose kit replaces worn or damaged appliance hoses to restore proper water flow and prevent leaks. It's a direct-fit replacement for compatible Whirlpool systems and helps stop visible leaks and restore normal fill/drain operation. What it does

• Replaces cracked, split or leaking hoses to stop water loss and reduce risk of appliance damage
• Restores reliable water flow for filling and draining functions
• Helps eliminate poor draining, intermittent filling, or water pooling near the appliance
• Works with existing clamps and connections when installed correctly

• Disconnect power and shut off the water supply before starting any repair
• Inspect connection fittings and replace clamps if worn; ensure a snug, leak-free fit
• Route hoses without kinks and secure to avoid chafing or strain
• After installation, run a short cycle and check all connections for leaks

Color: Gray. Size: 13 oz. can. Used for coating the dryer drum interior. Acrylic appliance paint.

Dryer Vent Test Kit ensures your dryer's vent system is operating properly. Kit includes two tests depending on the location of your dryer's lint screen: One for the lint screen in the top of your dryer, and one for the lint screen in the front of your dryer. Instructions included.

Rubber washer gasket for washer fill hose connections. Replace if worn or leaking at coupler adapter. Measures 1-1/16 x 5/8 inch. Verify fit with model.

Moving to a propane home? Convert your natural gas dryer to LP with this orifice kit. Straightforward DIY process takes 1.5-2.5 hours with careful work.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Touch-up paint for covering scratches, chips, and minor blemishes on appliance exteriors. Restores appearance and protects surfaces when finish is damaged.

Silence the squeaks and keep laundry moving - upgrade your dryer with the Whirlpool 4392067 OEM Repair Kit.

Note: Belt may differ from your dryer's model—Double-check compatibility before purchase.

Why choose this kit?

• All-in-one fix: OEM belt 661570V, 4 heavy-duty rollers WPW10314173, idler pulley 279640, tri-rings & washer - everything factory-fresh in one box.
• Wide compatibility: Fits 27" Whirlpool-family dryers—Cabrio, Duet, Bravos XL, Thin Twin, Kenmore 110-series, Maytag, Roper, Estate & more.
• Pro-grade durability: Roller bearings & reinforced belt deliver whisper-quiet tumbling and longer service life.

Fixes these common dryer problems

DIY install in about 45 minutes

1. Unplug dryer and remove front panel.
2. Lift drum to release belt; remove old rollers & idler.
3. Install new rollers, pulley & belt following the routing diagram.
4. Re-assemble, run test cycle - enjoy quiet, smooth tumbling.
