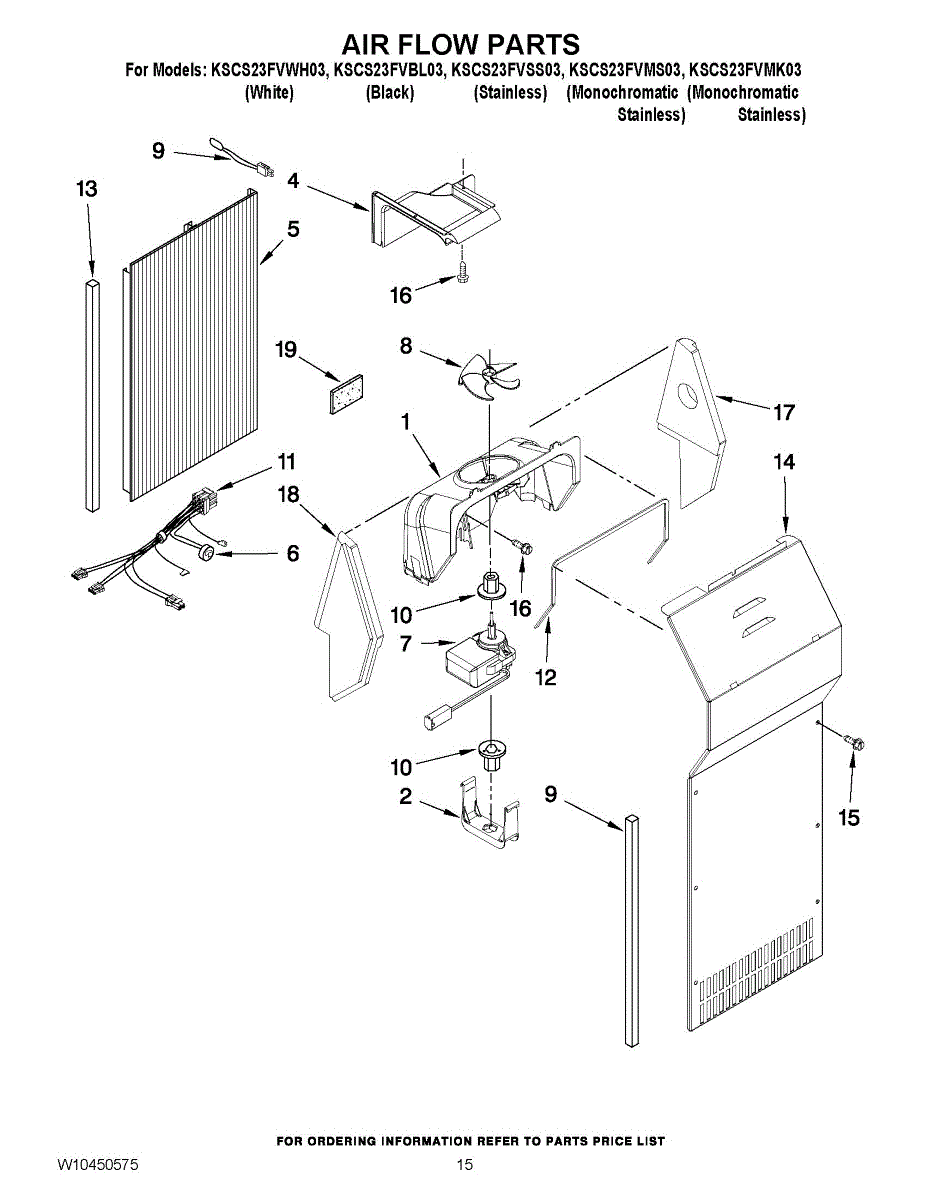

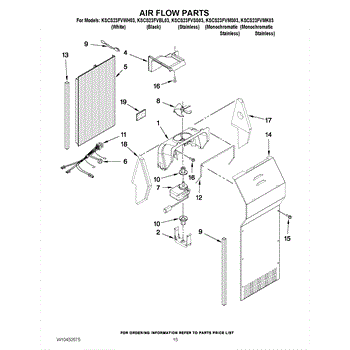

Parts for Kitchenaid KSCS23FVMS03: 09 - Air Flow Parts

Fixes uneven cooling and warm refrigerator temperatures caused by poor airflow. This fan housing directs cold air from freezer to fridge. Easy 30-minute fix.

Instruction sheet included.

This air duct channels cooled air inside the appliance to maintain proper airflow and even temperature distribution. Replacing a damaged duct restores correct airflow for more consistent cooling and helps prevent frost or hot spots. What it does

• Directs airflow from the evaporator to the cabinet to help maintain even temperatures
• Helps prevent localized frost buildup by guiding conditioned air across cooling surfaces
• Reduces air leaks and unwanted noise caused by cracked or misaligned ducts
• Worn or broken ducts can cause warm spots, uneven cooling, or increased run time

• One air duct

• Disconnect power before starting any repair to avoid electrical shock
• Handle plastic tabs and clips carefully; inspect mounting points and seals during installation
• Use only manufacturer-recommended fasteners and gaskets; do not modify the part

Freezer icing up or not defrosting? This refrigerator defrost thermostat monitors evaporator coil temperature. DIY repair in 15-30 minutes with video.

If your fridge isn't cooling or freezer is making loud noises, the evaporator fan motor may have failed. Moderately easy DIY repair with video guide.

Loud noise or freezer warming up? This evaporator fan blade circulates cold air over coils. Simple DIY fix—most repairs done in under an hour.

Excessive frost in your freezer? This evaporator cover gasket seals the cover to prevent frost buildup and maintain consistent cooling performance.

Instruction sheet included.

This fan scroll gasket seals the evaporator/fan housing to prevent air bypass and maintain proper airflow through the evaporator. Replacing a worn gasket helps restore efficient cooling and reduces frost buildup. What it does:

• Seals the fan scro

Replacement door gasket seals your refrigerator to maintain temperature and prevent air leaks. Replace when worn or cracked to restore efficiency.

Refrigerator evaporator cover panel that installs over the evaporator coils. Replace if cracked, broken, or missing to restore proper airflow.

This 8-18 x 5/8-inch screw secures dryer panels, brackets, and covers. Replace missing or stripped fasteners to restore a tight fit and stability.

Replacement fastener screw for appliances. Secures panels, trim, clips, and components. Needed when original screws are stripped, missing, or damaged.

Support plate kit for refrigerators. Includes left and right side mounting plates. Replace if cracked, broken, or missing to restore proper support.
