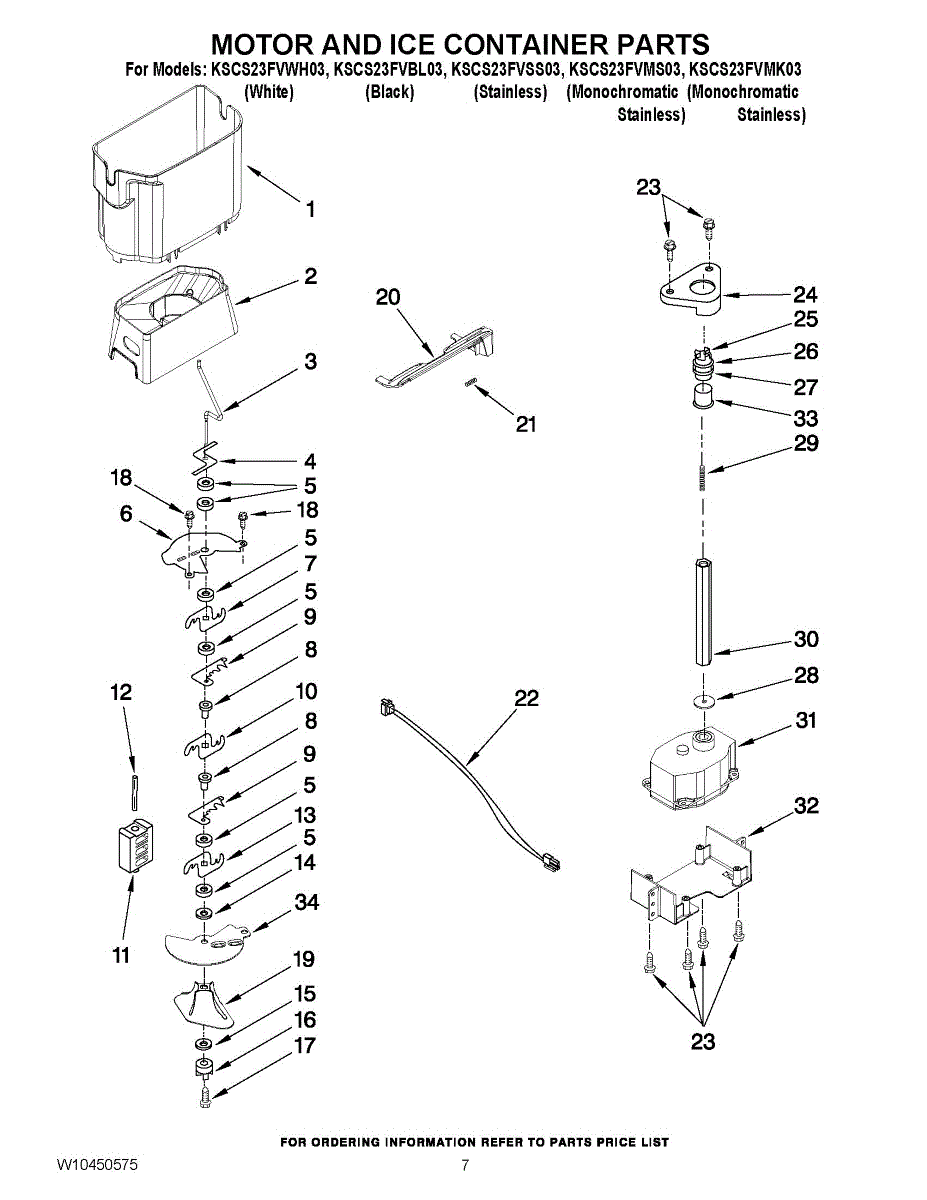

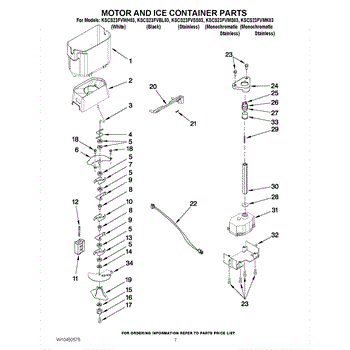

Parts for Kitchenaid KSCS23FVMS03: 05 - Motor And Ice Container Parts

Ice won't dispense or comes out slowly? A worn or stripped ice auger is often the culprit. This repair restores smooth dispensing in 30-45 minutes.

Small metal washer for refrigerator assemblies. Distributes load under bolts and nuts to keep components secure. Replace if lost, damaged, or worn.

Flat spacer for refrigerator door hinges. Maintains proper clearance between hinge and door for smooth operation and tight seal. Replace if worn or missing.

Replacement cap cover for your refrigerator. Installs over exposed components or openings. Order if your original cover is cracked, broken, or missing.

Ice crusher not working or producing inconsistent crushed ice? This rotating crusher blade restores proper ice crushing when worn, bent, or cracked.

Positions and supports the refrigerator step or kickplate. Replace this spacer if worn, missing, or broken to restore secure alignment and fit.

Fix ice not dispensing properly with this ice crusher blade. Replaces free-wheeling or worn blades on the auger assembly. DIY-friendly repair.

Ice dispenser not crushing properly? This blade mounting block secures crusher blades in the ice container head, eliminating noise and uneven crushing.

Secures rotating shafts and levers in your refrigerator's ice dispenser mechanism. Replace if pin is sheared, worn, or missing to restore alignment.

Plain washer distributes load under fasteners in refrigerator assemblies. Replace when worn or missing to secure brackets, hinges, and mounts. Verify fit.

This top coupling links two drive components in select washers to transfer rotation smoothly. Replacing a worn or stripped coupling restores consistent agitation/spin and can reduce slipping, rattling, or grinding noises from the drive area. What it does

Ice won't dispense from your refrigerator? A broken ice bin coupling stops the auger from turning. This 20-minute DIY fix restores ice dispensing.

The Screw is an OEM part for Whirlpool appliances, designed to provide secure fastening in a variety of locations within the appliance. This versatile component is crucial for assembly and maintenance tasks, ensuring that parts are held together tightl

This replacement cabinet screw secures panels, brackets, and ducts in Whirlpool-built appliances so components stay aligned and secure. Replacing missing or stripped hardware helps reduce vibration, rattling, and gaps that can affect performance.

Ice auger won't turn or dispenser jams? This rubber wiper blade clears residue from sealing surfaces to restore proper ice crusher operation and reduce moisture.

Ice bin won't release or latch broke? This ice bin latch spring provides tension to secure the ice container properly. Easy 10-minute DIY fix.

Replacement screw for securing panels, brackets, and internal components. Replaces missing, stripped, or damaged fasteners to restore proper fit.

Fix ice not dispensing or auger not turning issues. This coupler connects the motor to the ice bin auger. DIY-friendly repair, about 20 minutes.

The Drive Shaft Seal is an OEM part for Whirlpool washing machines. It plays a role in preventing water from leaking out of the tub and onto the drive system. This seal ensures that the connection between the drive shaft and the washing machine tub rem

The Coupling is an OEM replacement part for Whirlpool French door bottom-mount refrigerators equipped with an interior automatic icemaker. As an internal part, this coupling connects the auger motor to the ice mold assembly, allowing the motor to trans

This rubber boot seals and shields a component or connector within the appliance. Replacing a worn boot helps keep out moisture and debris, preventing corrosion and wear so the protected part continues to operate reliably.

• Provides a protective seal around the targeted connection or component
• Helps keep out moisture, dust, and debris
• Minimizes vibration and abrasion at the connection point
• Direct replacement when the original boot is cracked, brittle, torn, or missing
• Symptoms can include visible damage, loose fit, or signs of moisture/rust near the protected area

• Disconnect power and turn off water supply before starting
• Access the area and note the boot's orientation and seating depth
• Remove the old boot; fully seat the new boot and transfer any reusable clips/covers
• Restore power/water and verify a secure seal and normal operation

The Spring is an OEM part for Whirlpool refrigerators. It is a small but important internal part that applies pressure to dispense cubed or crushed ice from the refrigerator door. The spring is located within the ice dispenser mechanism and works with

Ice won't dispense or auger making grinding noise? This motor shaft transfers power from motor to auger assembly. Common fix for rusted or worn shafts.

The Dispenser Motor is an OEM part for Whirlpool refrigerators. It is a crucial component that powers and operates the water and ice dispensing system, allowing users to conveniently access chilled water, cubed ice, or crushed ice from the refrigerator

Fix noisy operation or poor ice dispensing caused by a worn drive sleeve coupling. This connector transmits motor rotation in your refrigerator's drive assembly.

Plastic divider panel for side-by-side refrigerator freezer compartments. Organizes frozen items and separates storage zones. Replace if cracked or broken.
