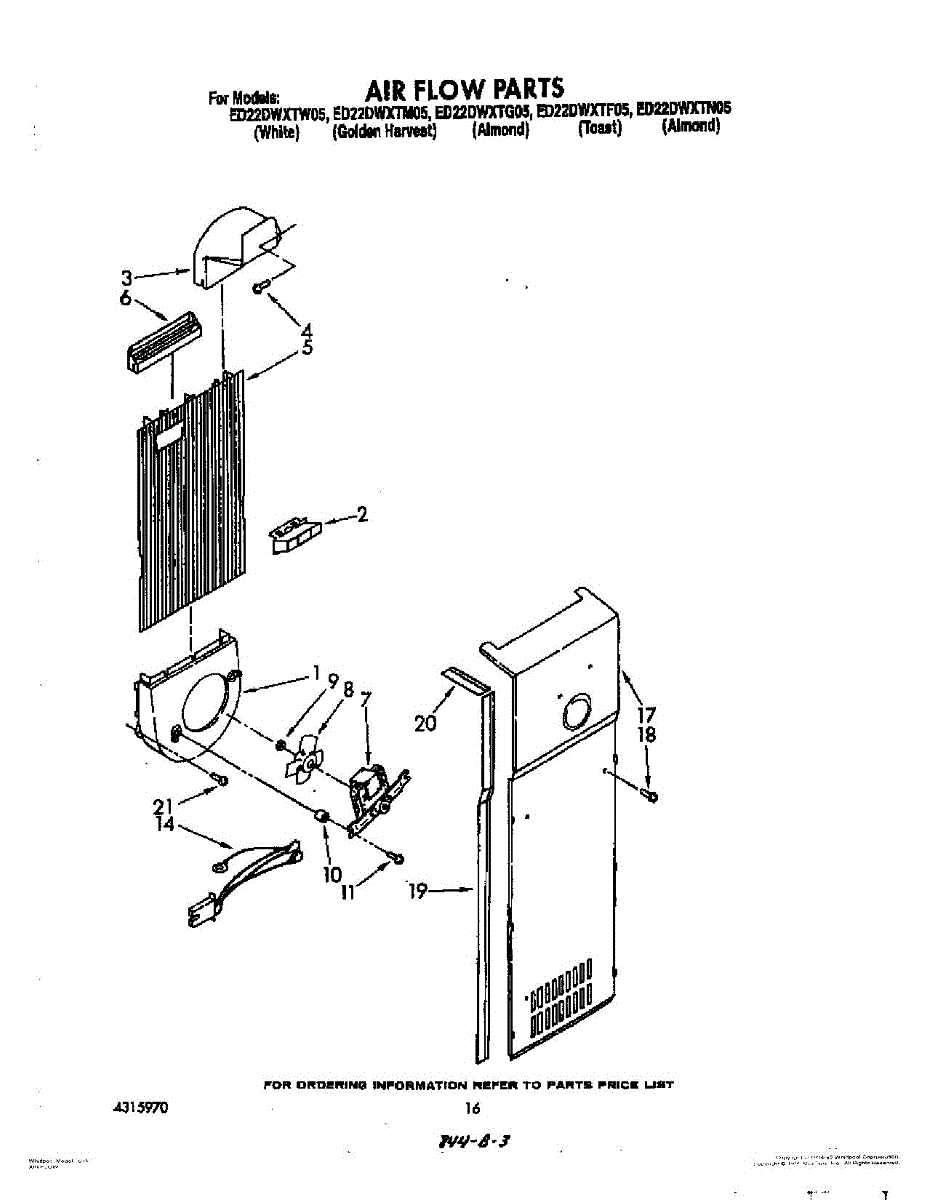

Parts for Whirlpool ED22DWXTM05: 11 - Air Flow Parts

This part has been discontinued and is No Longer Available.

This molded air deflector directs cold freezer airflow around the icemaker assembly to help maintain consistent ice production and reduce partial fills. It's a simple replacement that restores proper air routing inside the freezer compartment. What it does:

• Guides cold air to and around the icemaker so the unit can cool evenly
• Helps prevent warm-air pockets that can cause small or misshapen ice
• Restores intended airflow after a cracked or missing deflector
• Passive part with no electrical components or adjustments

• One icemaker air deflector

• Basic snap- or screw-in replacement; inspect mounting tabs for damage before installing
• Turn off power to the refrigerator before accessing the icemaker area
• Handle plastic parts carefully to avoid cracking mounting clips

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Includes fan blade and motor.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This part has been discontinued and is no longer available.

Size: 8 x 1/2 ab.

Specs: 10-16 x 1/2 inch.
