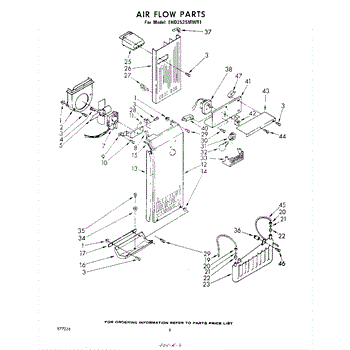

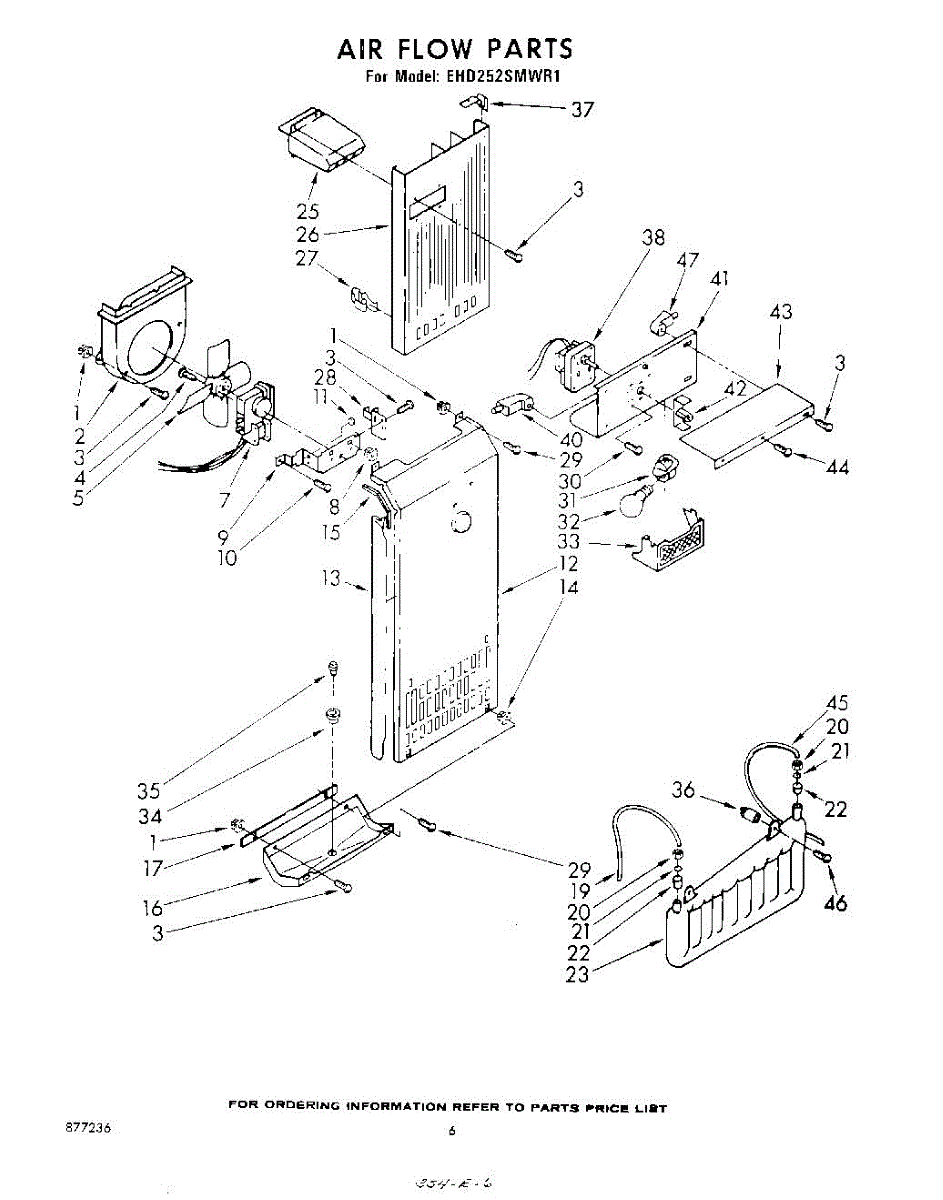

Parts for Whirlpool EHD252SMWR1: 04 - Airflow Parts

Parts for Whirlpool EHD252SMWR1: 04 - Airflow Parts

Location on Diagram
Part Description
Price & Availability
1
Product photo
By: Whirlpool
Part Number: 937252
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

2
By: Whirlpool
Part Number: 983650
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

3
Best Seller
Product photo
4.8 (14)
By: Whirlpool
Part Number: WP488729

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

More
$7.94

IN STOCK
Ships Today Guaranteed
Add to Cart
4
Product photo
By: Whirlpool
Part Number: WP487887

This machine screw secures appliance panels and components for reliable operation and alignment. A simple replacement that restores proper fit and prevents rattles or loose parts. What it does

  • Fastens panels, brackets, or components to restore secure attachment
  • Stops squeaks, rattles, or vibration caused by loose fasteners
  • Replaces worn, stripped, or missing screws to maintain safety and function
  • Matches OEM threading and head style for correct fit when specified
What's included
  • One machine screw
Install notes
  • Use the correct driver size to avoid stripping the head
  • Do not overtighten; stop when snug to prevent damage to threads or parts
  • Disconnect power and move the appliance to a safe, stable position before working near electrical components
  • Ensure proper torque and consider thread engagement length

More
$7.34

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
5
Product photo
By: Whirlpool
Part Number: WP992920
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

7
Best Seller
Product photo
4.4 (16)
By: Whirlpool
Part Number: 482469

Refrigerator not cooling or making screeching noise? This evaporator fan motor kit stops those symptoms. DIY-friendly repair, typically done in 15 minutes.

More
$103.34

IN STOCK
Ships Today Guaranteed
Add to Cart
8
By: Whirlpool
Part Number: 538449
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

9
By: Whirlpool
Part Number: 938224
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

10
Product photo
5.0 (2)
By: Whirlpool
Part Number: WP489069

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

More
$7.56

IN STOCK
Ships Today Guaranteed
Add to Cart
11
By: Whirlpool
Part Number: 548268
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

12
By: Whirlpool
Part Number: 939729
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

13
By: Whirlpool
Part Number: 988494
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

14
By: Whirlpool
Part Number: 2172803
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

15
By: Whirlpool
Part Number: 776780
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

16
By: Whirlpool
Part Number: 934121
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

17
By: Whirlpool
Part Number: 934130
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

19
Best Seller
Product photo
4.9 (22)
By: Whirlpool
Part Number: W10823511

The Ice Maker Water Line is an OEM part for Whirlpool refrigerators. It supplies water from the household plumbing to the ice maker, ensuring a consistent and reliable production of ice cubes. This kit includes a 1/4-inch plastic water line that is approximately 72 inches long. The tubing will need to be cut to match the desired length.

Causes of a bad water line can include wear and tear from prolonged use, kinks or bends restricting water flow, or leaks due to punctures or cracks. A compromised water line can result in inadequate ice production or water leaks.

Symptoms of a bad ice maker water line include:

  • Reduced or no ice production
  • Leaking water from the refrigerator
  • Visible cracks or damage to the water line
  • Ice cubes that are smaller than usual

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

More
$27.37

IN STOCK
Ships Today Guaranteed
Add to Cart
20
Product photo

Nut

By: Whirlpool
Part Number: 4318011

Comes with 4 nuts and 2 inserts. Instruction sheet included.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

21
By: Whirlpool
Part Number: 488819

This part has been discontinued and is no longer available.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

22
Product photo
By: Whirlpool
Part Number: 4387491

Replace cracked or missing compression fitting inserts for 1/4-inch water tubing in refrigerators and ice makers. Prevents leaks at connections.

More
$5.95

IN STOCK
Ships Today Guaranteed
Add to Cart
23
Best Seller
Product photo
4.8 (28)
By: Whirlpool
Part Number: WP2256126

Stores and chills water before dispensing. Replace if cracked, leaking, or causing slime/film buildup in dispensed water. Installs inside refrigerator.

More
$98.95

IN STOCK
Ships Today Guaranteed
Add to Cart
25
By: Whirlpool
Part Number: 983652
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

26
By: Whirlpool
Part Number: 983651
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

27
Product photo
By: Whirlpool
Part Number: 2215823

Secures air duct to housing, maintaining proper airflow alignment. Replace if broken or loose to prevent air leaks. Confirm fit with your model.

More
$7.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
28
By: Whirlpool
Part Number: 548263
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

29
Best Seller
Product photo
4.8 (14)
By: Whirlpool
Part Number: WP488729

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

More
$7.94

IN STOCK
Ships Today Guaranteed
Add to Cart
30
Product photo
By: Whirlpool
Part Number: 303776
$9.24

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
31
Best Seller
Product photo
5.0 (26)
By: Whirlpool
Part Number: 4387478

Refrigerator light won't turn on? This light socket kit restores interior lighting when bulbs won't work. Simple DIY repair with video guide.

More
$54.25

IN STOCK
Ships Today Guaranteed
Add to Cart
32
Best Seller
Product photo
4.9 (376)
By: Whirlpool
Part Number: 8009

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

  • Dimming or flickering light
  • Complete lack of illumination inside the appliance
  • Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

More
$19.55

IN STOCK
Ships Today Guaranteed
Add to Cart
33
Product photo
By: Whirlpool
Part Number: 983359
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

34
Product photo
By: Whirlpool
Part Number: 2172811
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

35
By: Whirlpool
Part Number: 842259

This part has been discontinued by the manufacturer and is no longer available.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

36
By: Whirlpool
Part Number: 1112591
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

37
By: Whirlpool
Part Number: 987954
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

38
Product photo
5.0 (2)
By: Whirlpool
Part Number: WP2188241
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

40
By: Whirlpool
Part Number: 983660
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

41
By: Whirlpool
Part Number: 989716
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

42
Best Seller
Product photo
5.0 (14)
By: Whirlpool
Part Number: WPW10169511

Ice dispenser not working or coupling spins freely? This motor coupling connects the dispenser motor to the auger. 10-minute fix with channel lock pliers.

More
$21.46

IN STOCK
Ships Today Guaranteed
Add to Cart
43
By: Whirlpool
Part Number: 989715
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

44
Product photo
By: Whirlpool
Part Number: WP489128

Screw: 8-16 x 3/8 inch.

More
$9.05

IN STOCK
Ships Today Guaranteed
Add to Cart
45
Best Seller
Product photo
4.9 (22)
By: Whirlpool
Part Number: W10823511

The Ice Maker Water Line is an OEM part for Whirlpool refrigerators. It supplies water from the household plumbing to the ice maker, ensuring a consistent and reliable production of ice cubes. This kit includes a 1/4-inch plastic water line that is approximately 72 inches long. The tubing will need to be cut to match the desired length.

Causes of a bad water line can include wear and tear from prolonged use, kinks or bends restricting water flow, or leaks due to punctures or cracks. A compromised water line can result in inadequate ice production or water leaks.

Symptoms of a bad ice maker water line include:

  • Reduced or no ice production
  • Leaking water from the refrigerator
  • Visible cracks or damage to the water line
  • Ice cubes that are smaller than usual

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

More
$27.37

IN STOCK
Ships Today Guaranteed
Add to Cart
46
By: Whirlpool
Part Number: 489074
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

47
By: Whirlpool
Part Number: 992720
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.
