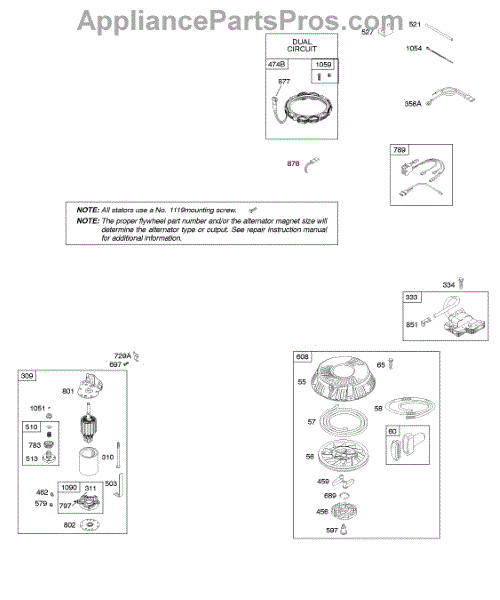

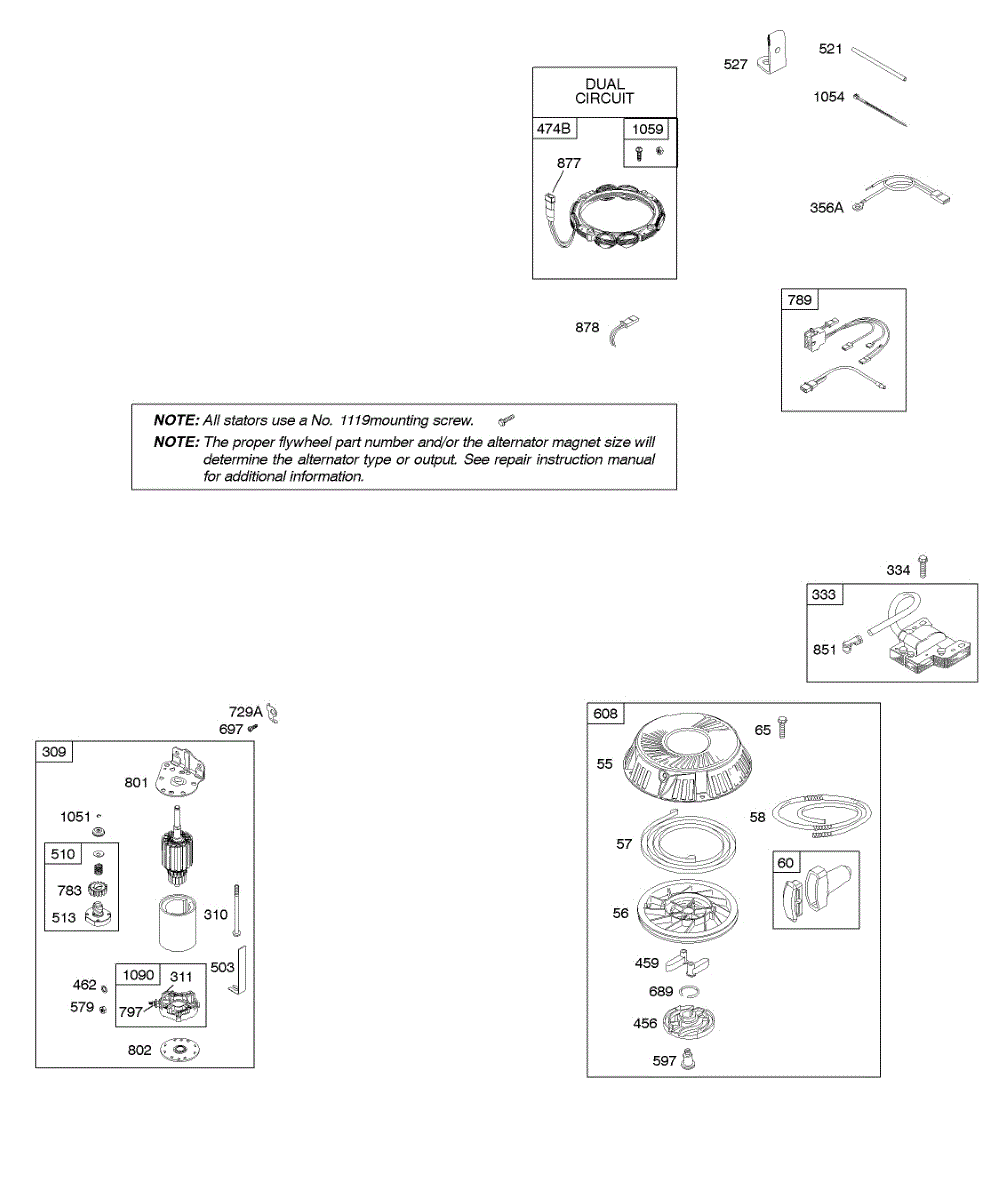

Parts for Briggs & Stratton 217702-0111-E1: Alternator, Electric Starter, Ignition Parts

This is a screw that is used in many types of lawn and garden equipment, including lawnmowers and wood chippers. It comes with a black finish and is made of durable metal. The screw can be used in many locations on a tool to attach two components together. Screws can also be used in tandem with nuts, but the two components should have the same threading and finish.Screws can become damaged, break, or be stripped and will need to be replaced. Corrosion, extreme temperatures, and unexpected stress can all lead to issues with a screw. A visual inspection can indicate whether the screw should be replaced. If it does need replacement, a screwdriver can be used to remove the original screw. The new component can be placed and tightened.This screw is a genuine OEM replacement part that is sourced directly from the manufacturer. It is sold as a single component. The screw can be used with many types of lawn and garden equipment, including lawnmowers, tillers, pressure washers, leaf blowers, edgers, generators, wood chippers, and snowblowers manufactured by Briggs & Stratton, Cub Cadet, Craftsman, Murray, Wheel Horse, Lawn-Boy, MTD, MasterCut, Simplicity, and Toro.

The stop wire is a safety cable device offered on many types of lawn and garden equipment. It is pressed near the upper handle of a device to start it, which lets the blades spin and creates forward motion on equipment that is self-propelled. A stop wire can stretch out over time and will need to be replaced to ensure total safety. If the blade brake control is released and the blades continue to spin for more than a couple of seconds, the wire needs to be replaced.Take the equipment and put it on a flat surface before taking the metal on the stop cable and moving it out of the mower handle. Squeeze the center tabs of the wire with needle-nose pliers and pull the cable end through the bracket. Pull the other end out and then replace it with a new component.This is an authentic OEM replacement part for use with garden equipment engines. It is an individual part that is sourced directly from the manufacturer. This part is compatible with lawnmowers, wood chippers, snowblowers, generators, log splitters, tillers leaf blowers, and pressure washers by Briggs & Stratton, MasterCut, Craftsman, Simplicity, Toro, MTD, Cub Cadet, Lawn-Boy, Murray, and Wheel Horse.

This durable plastic ratchet pawl is used on select engines that feature what is known as a Susa starter. In this configuration, the ratchet pawl will be responsible for engaging the recoil starting system. Then, the starting system will allow the engine to fire. Over time, the pawl can become worn or damaged due to regular use. If this happens, the recoil can slip and cause difficulties with starting the engine. If the engine isn’t starting or you can hear it slipping when you try to fire it up, a replacement ratchet pawl could be needed. Be sure to allow the engine to cool before replacing any parts or doing any work and always wear gloves. This replacement is a genuine OEM part that includes two ratchet pawls for various Briggs & Stratton engines on small lawn equipment. This part offers compatibility with over 150 engines from Briggs & Stratton, Toro, Lawn-Boy, and Vanguard by Briggs & Stratton.

This is a replacement screw to secure the pawl friction plate used in many types of lawn and garden equipment. The part is also sometimes called a flange bolt. It is identical to the original screw that came with the machine and will replace a lost or damaged screw. The screws could become damaged due to corrosion or an incident that causes the screw to bend or break. They also serve as replacements in case the screw was lost. Replacing the screw is a simple repair to make. This is an authentic OEM replacement screw that is sold individually. Some buyers might want to have an extra screw on hand. The replacement screw for the pawl friction plate can be used on lawn mowers, snowblowers, tillers, pressure washers, generators, edgers, log splitters, wood chippers, and other small engines. Compatible brands include Briggs & Stratton, Craftsman, Toro, Cub Cadet, Lawn-Boy, Snapper, MTD, and Simplicity.

This replacement friction spring is a genuine OEM part meant for any number of small appliance engines run using a starter rope. This spring absorbs large amounts of kinetic energy that could damage the starter rope pulley system. It helps keep the pulley from being overstretched, which would create enough pressure to break the entire system. This spring sits at the center of the pulley system and creates resistance as the user yanks the starter rope. Friction springs can become worn out after repeated use, especially if a user tends to yank the starter rope quite forcefully. The most obvious sign of a worn of friction spring is if the pulley system lacks any resistance. As the user pulls the cord, they should feel a little pull back, but if the friction spring is worn, there will be much less resistance. Replacing this part is straightforward and will only require a screwdriver. Simply open the pulley system, carefully remove the old spring, and install the new one. This part is compatible with a wide number of appliances from Toro, Vanguard, Briggs & Stratton, and Lawnboy. It comes sourced from the original manufacturer and ships individually.

This brush retainer is part of the starter motor on many types of lawn and garden machinery. It comes with both the retainer and a set of four brushes. The main job of the brush retainer is to hold a set of carbon brushes against the commutator bars located on the armature. If the brush retainer is worn, damaged, or improperly seated, it can cause problems with the equipment. The starter motor will not be able to get the proper amount of current from the battery.If the brush retainer might be causing problems, a visual inspection can be performed. A damaged brush retainer can wear down to the wire lead and become burned, pitted, or cracked. When the brush retainer is worn out, it can decrease engine performance, reduce braking, and cause the motor to lose power. This brush retainer is an authentic OEM replacement part sourced directly from the manufacturer. It is sold as an individual part. The retainer is made to be used with lawnmowers, snowblowers, tillers, and wood chippers created by Briggs & Stratton, Craftsman, Toro, Cub Cadet, Lawn-Boy, Snapper, MTD, and Simplicity.
